Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
45RFE/545RFE
45RFE/545RFE
TRANSMISSION - SPECIFICATIONS

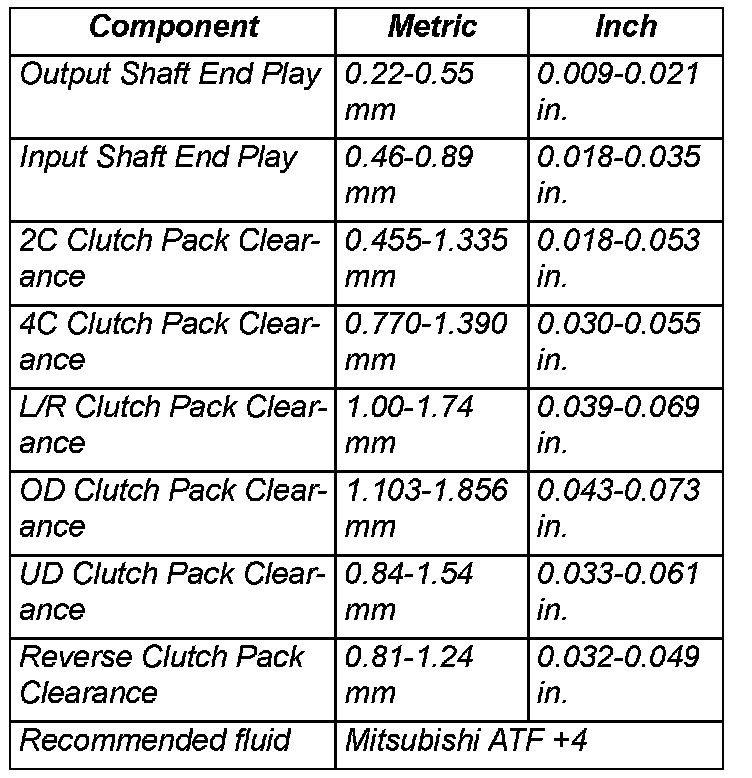

GENERAL

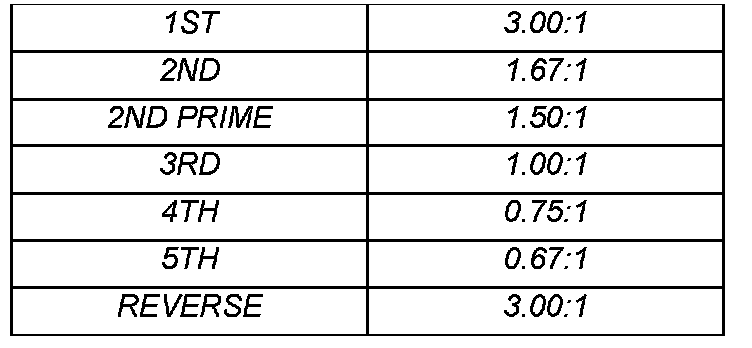

GEAR RATIOS

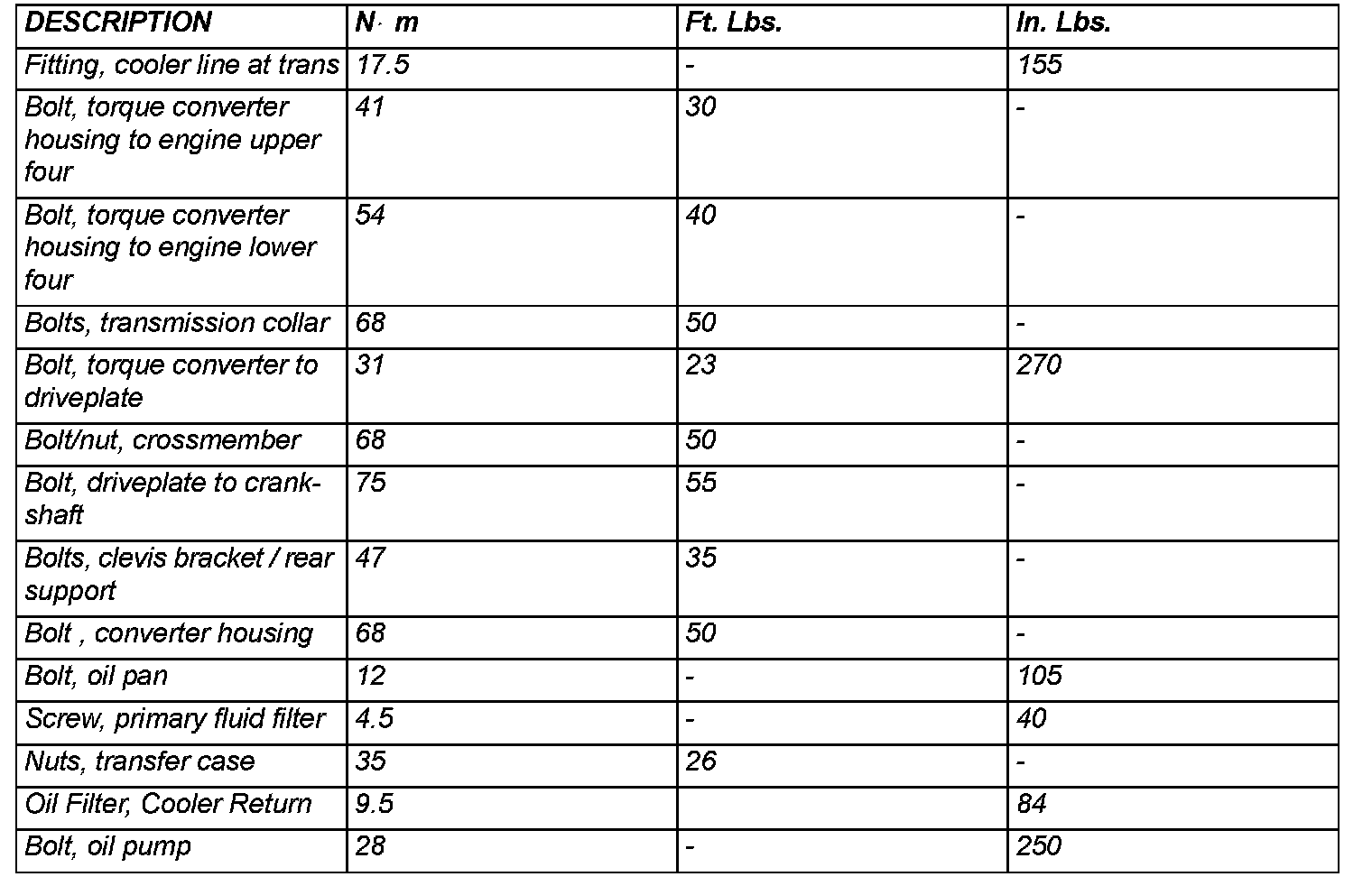

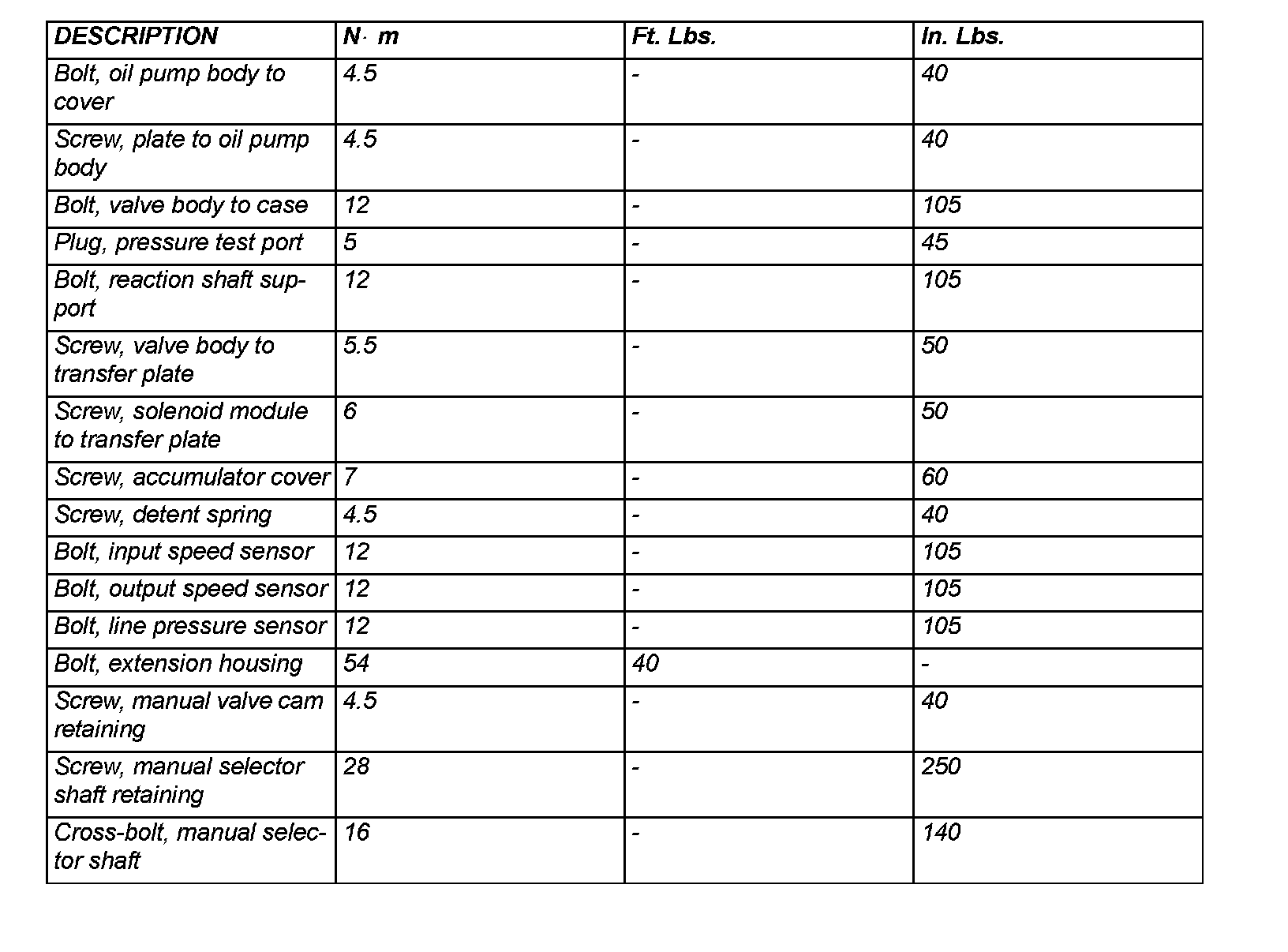

TORQUE SPECIFICATIONS
