Home
>>
Mitsubishi
>>
2008
>>
Raider 4WD V6-3.7L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Locations
>>
Component Locations
Component Locations

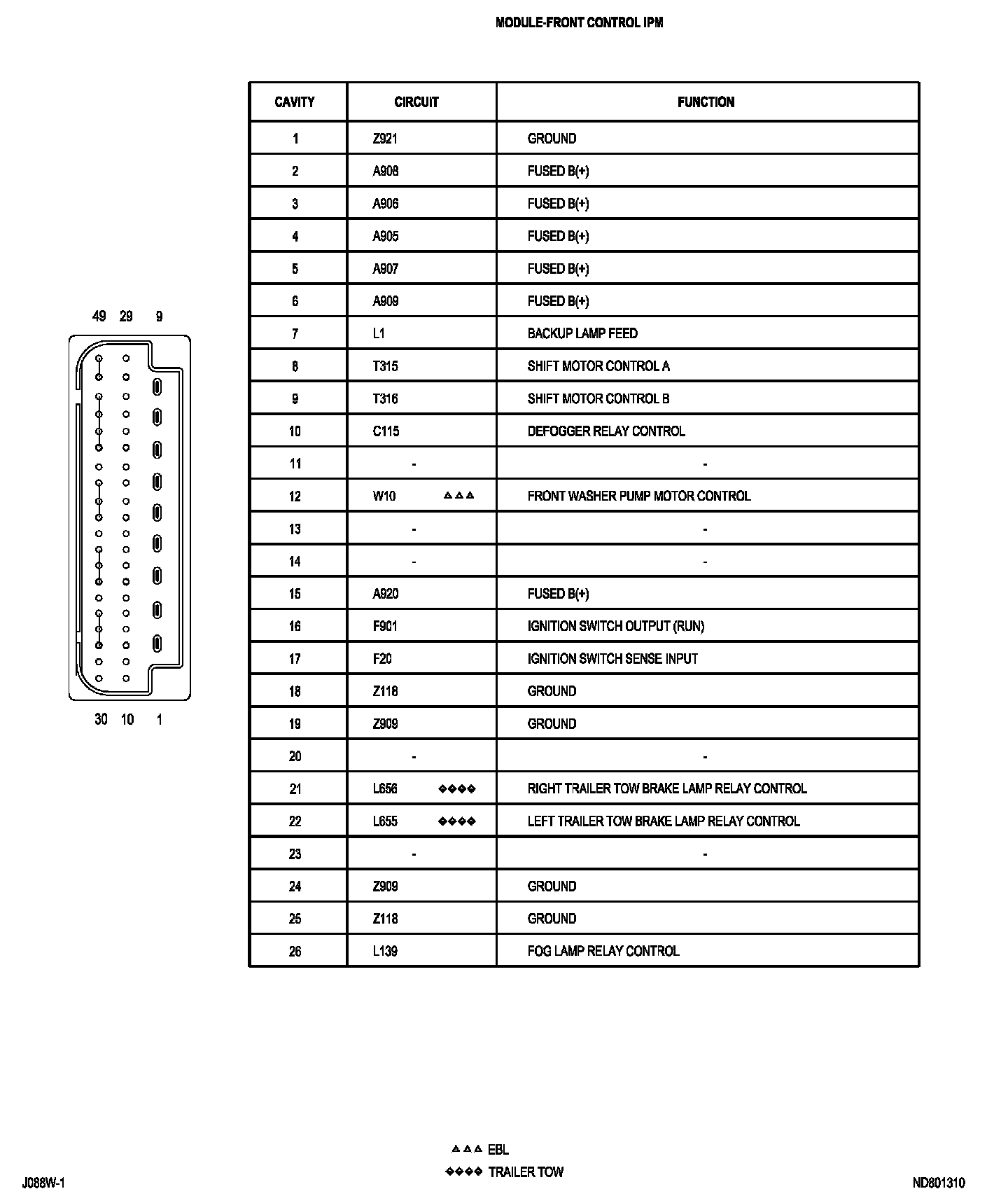

Module-Front Control (Part 1):

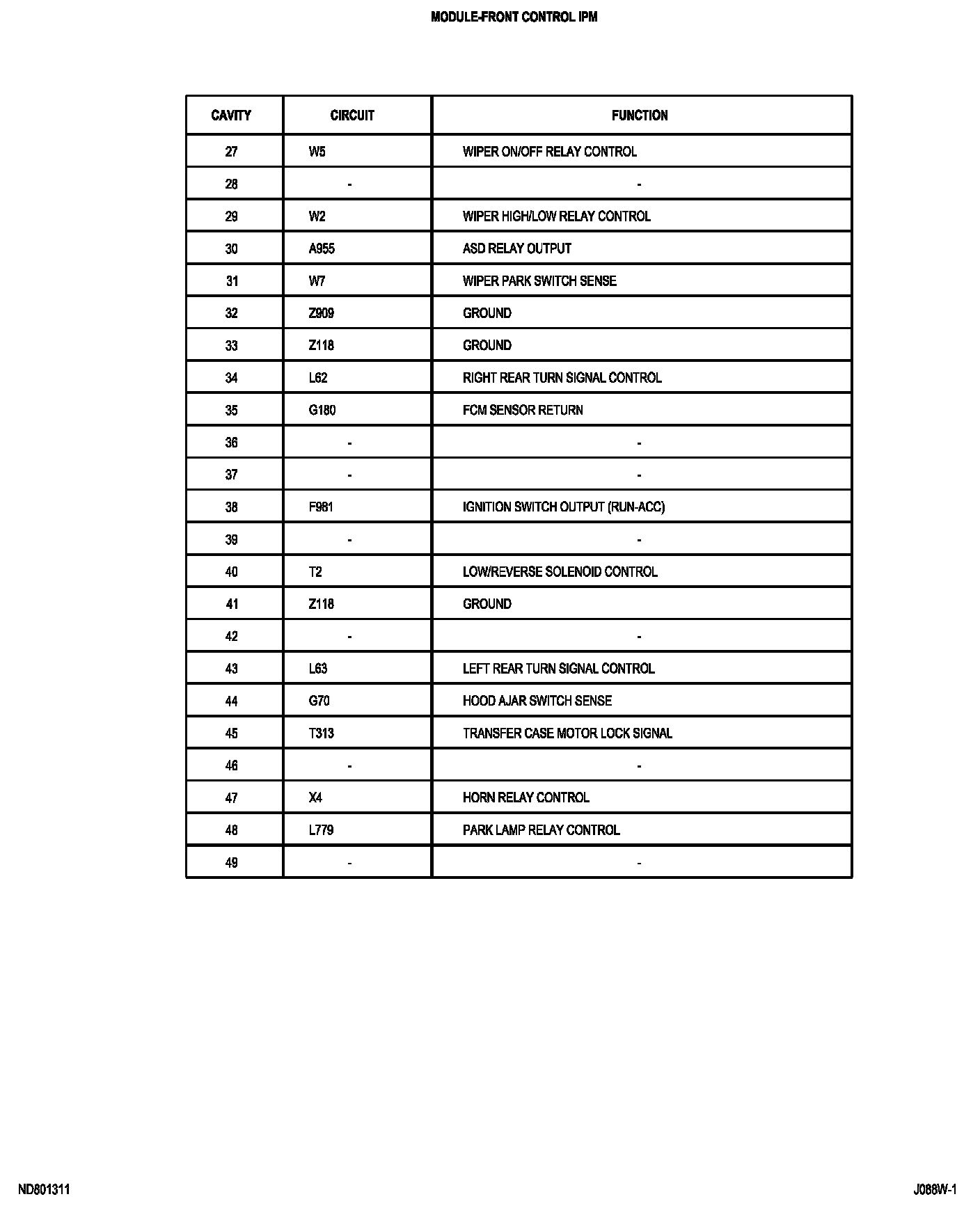

Module-Front Control (Part 2):
