Home >> Mitsubishi >> 2008 >> Raider 4WD V6-3.7L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

Power Window Switch: Locations

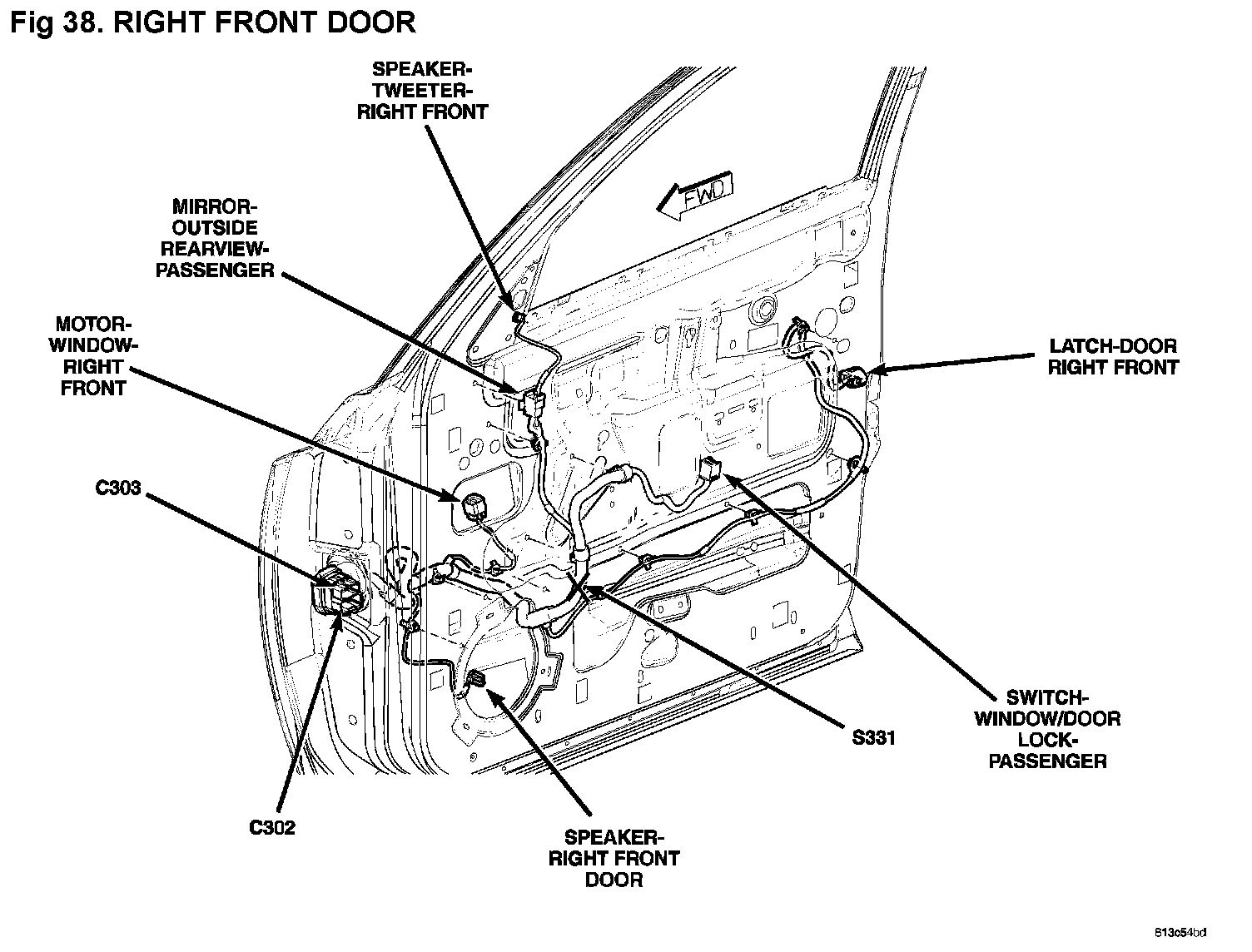

Fig. 38 Right Front Door:

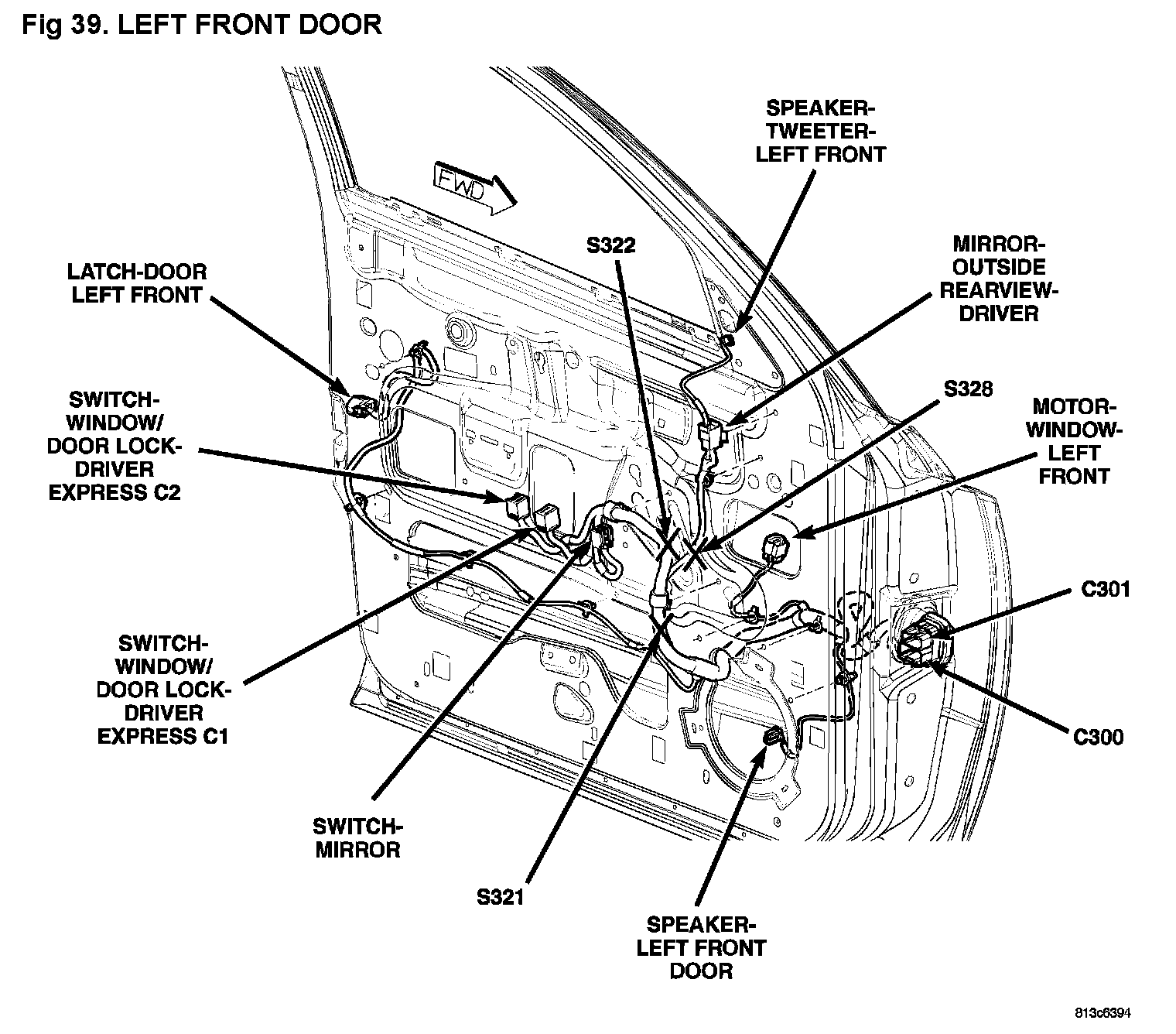

Fig. 39 Left Front Door:

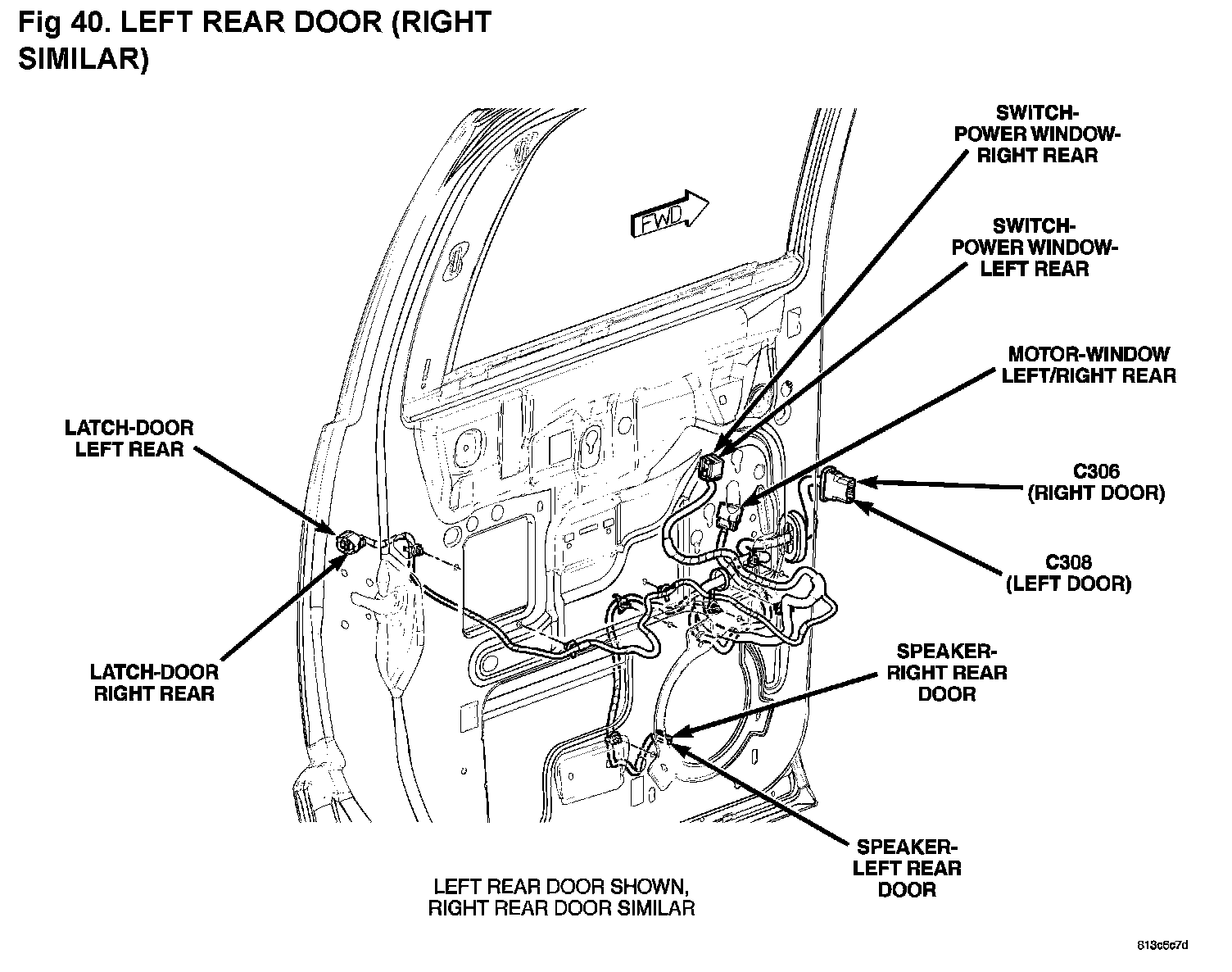

Fig. 40 Left Rear Door (Right Similar):
