Removal and Replacement

The content of this article reflects the changes identified in TSB 11-15-002.

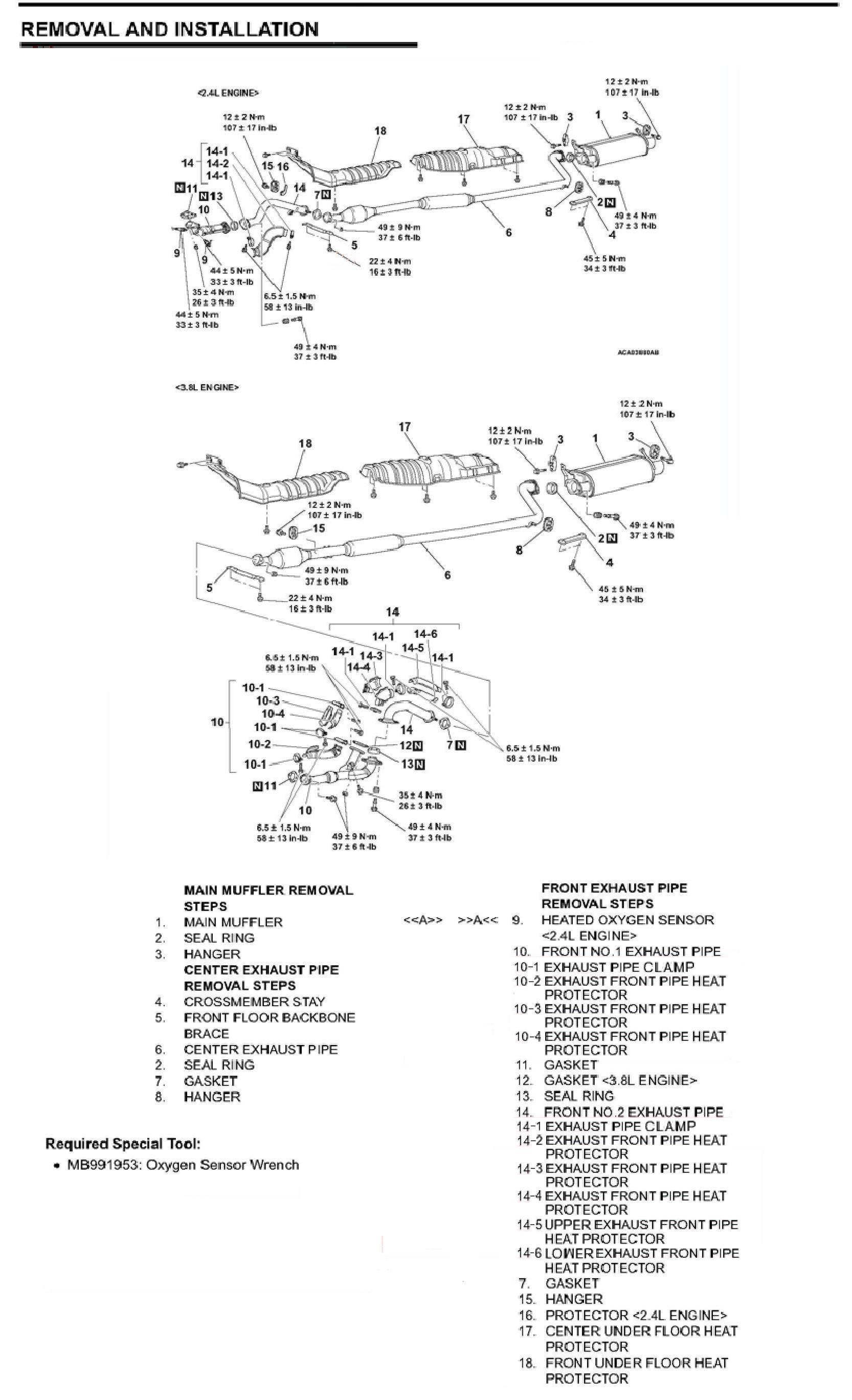

EXHAUST PIPE AND MAIN MUFFLER

REMOVAL AND INSTALLATION







Required Special Tool:
- MB991953: Oxygen Sensor Wrench

REMOVAL SERVICE POINT

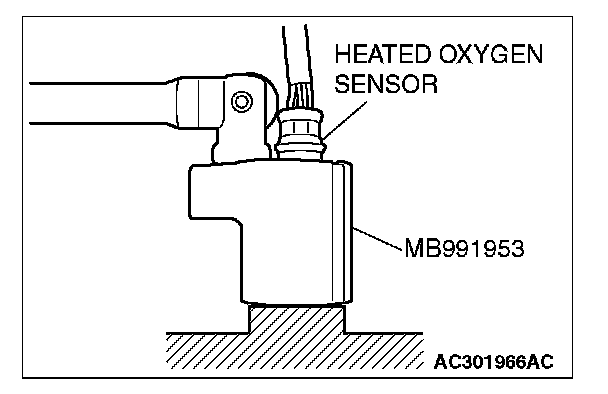

[[A]] HEATED OXYGEN SENSOR REMOVAL







Use special tool MB991953 to remove the heated oxygen sensor.

INSTALLATION SERVICE POINT

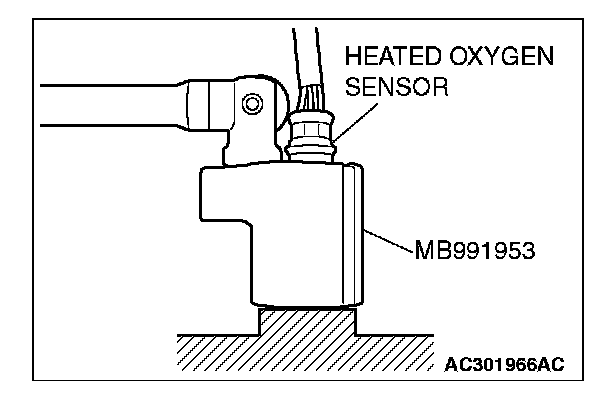

]]A[[ HEATED OXYGEN SENSOR INSTALLATION







Use special tool MB991953 to install the heated oxygen sensor.
