Power Window Switch Terminal Check

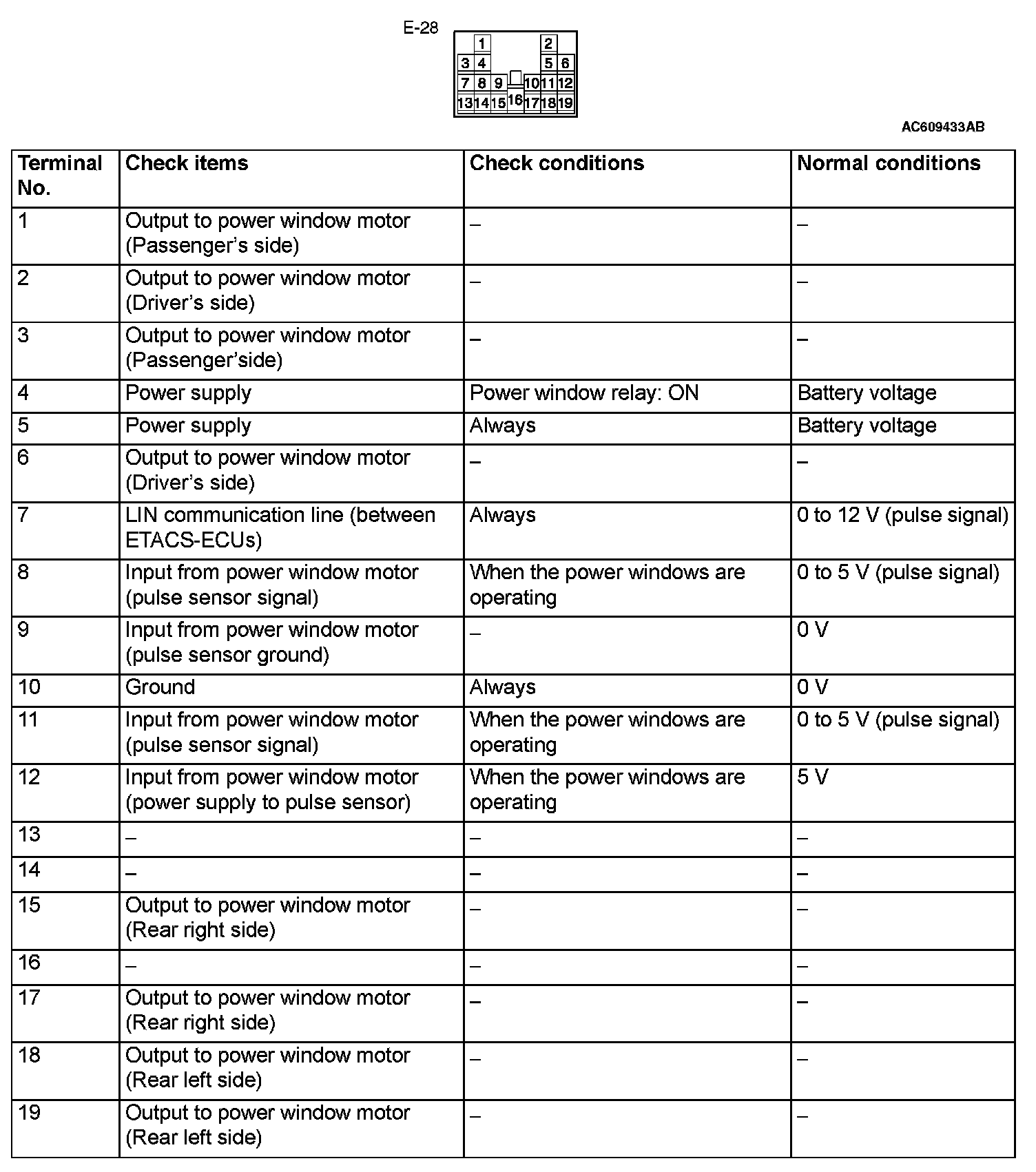

CHECK AT ECU TERMINAL [Vehicles with auto down and auto up mechanism]

POWER WINDOW SWITCH TERMINAL CHECK

POWER WINDOW MAIN SWITCH


Power Window Main Switch:
