Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2009
>>
Lancer L4-2.4L (4B12)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Shift Lever
>>

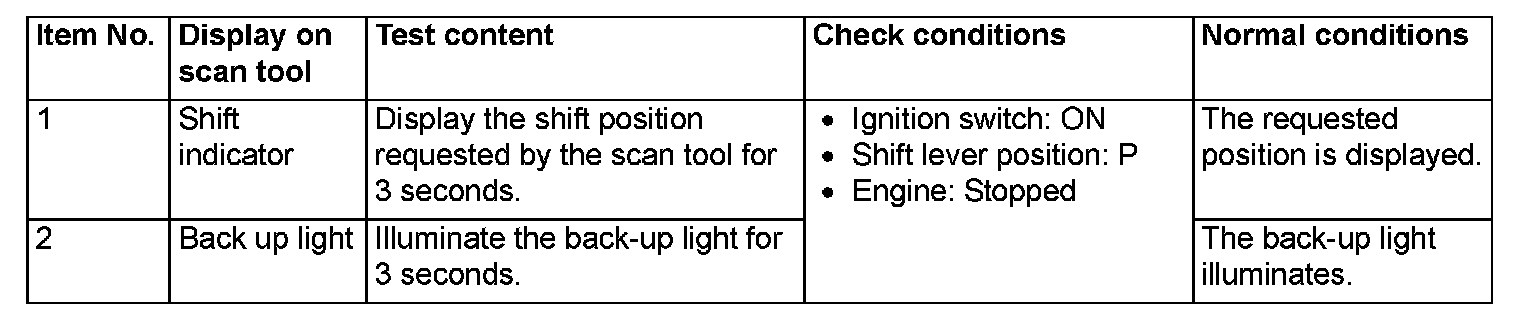

Special Function (Actuator Test Reference Table)
Special Function (Actuator Test Reference Table)
