Continuously Variable Transmission/Transaxle, CVT
Continuously Variable Transmission/Transaxle, CVT
TRANSAXLE
[F1CJA]

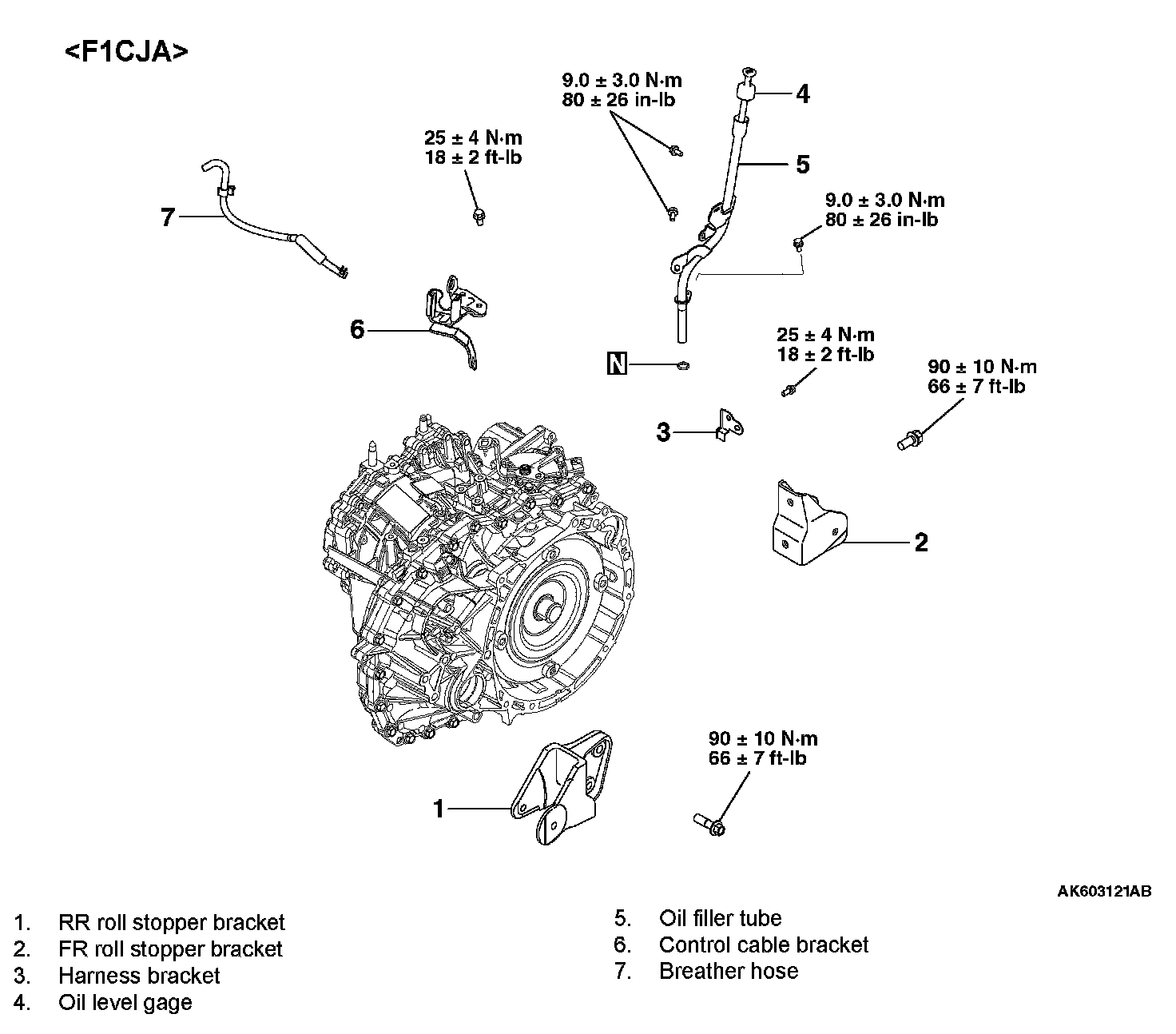

Disassembly Steps 1-7:

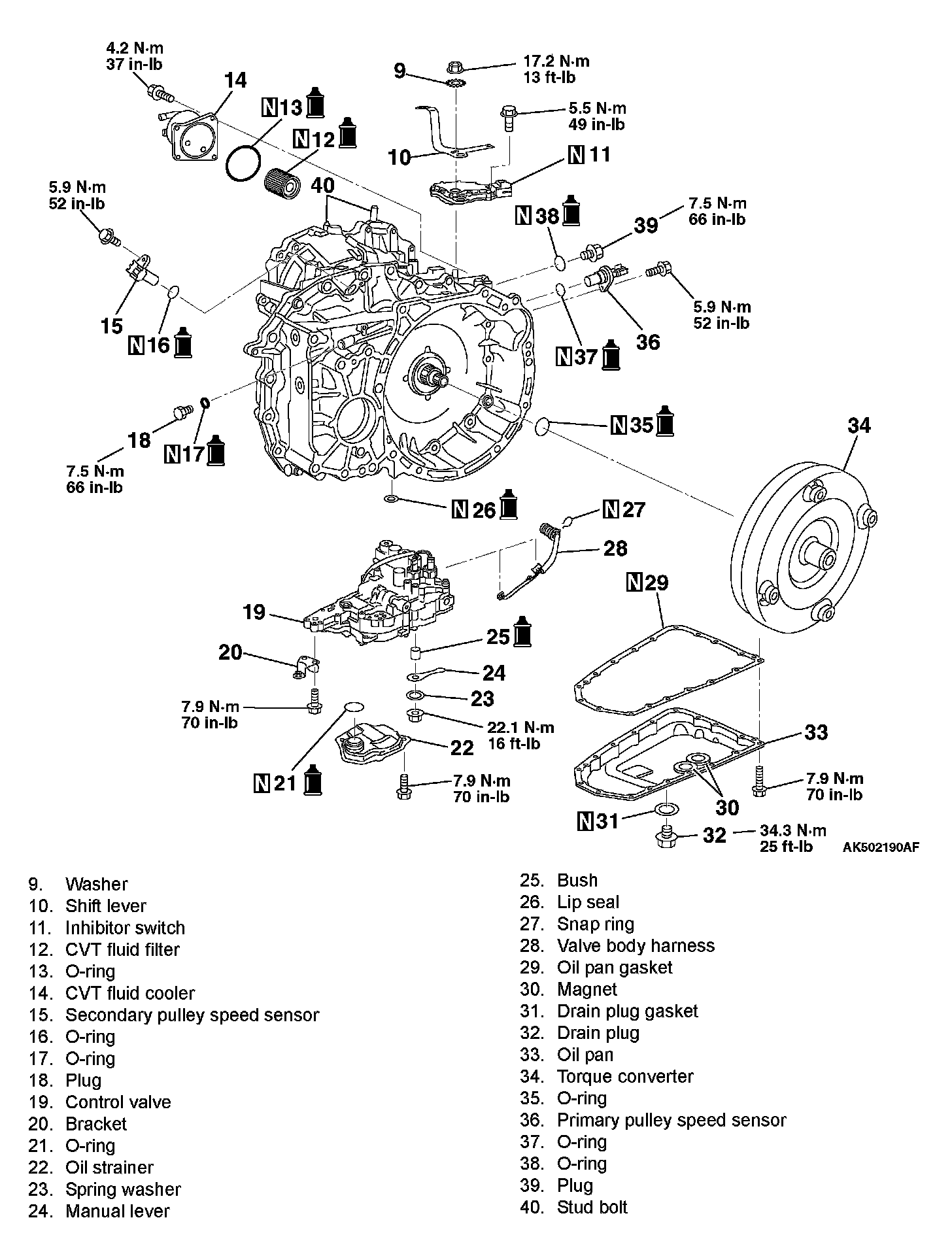

Disassembly Steps 8-39:

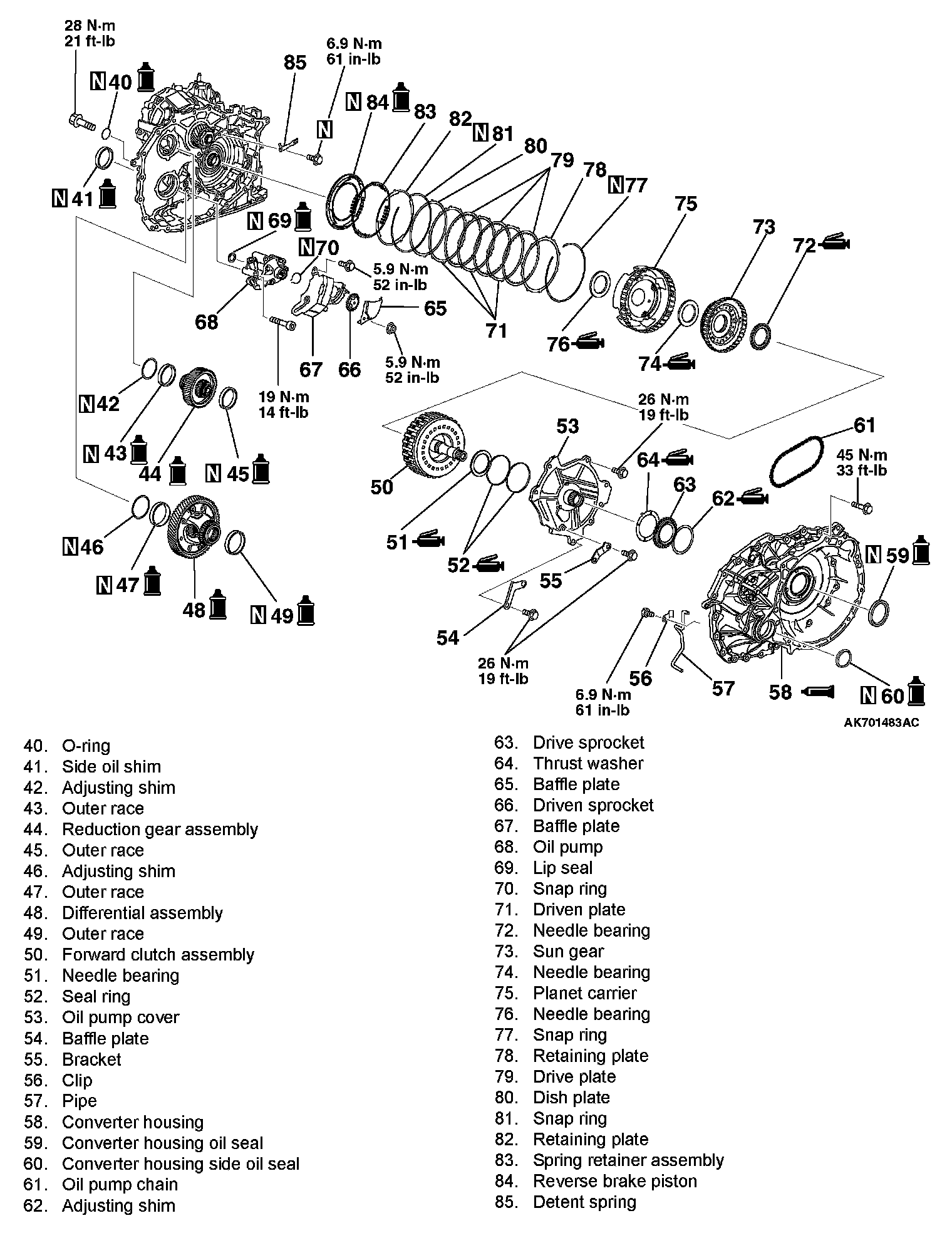

Disassembly Steps 40-85:
[W1CJA]

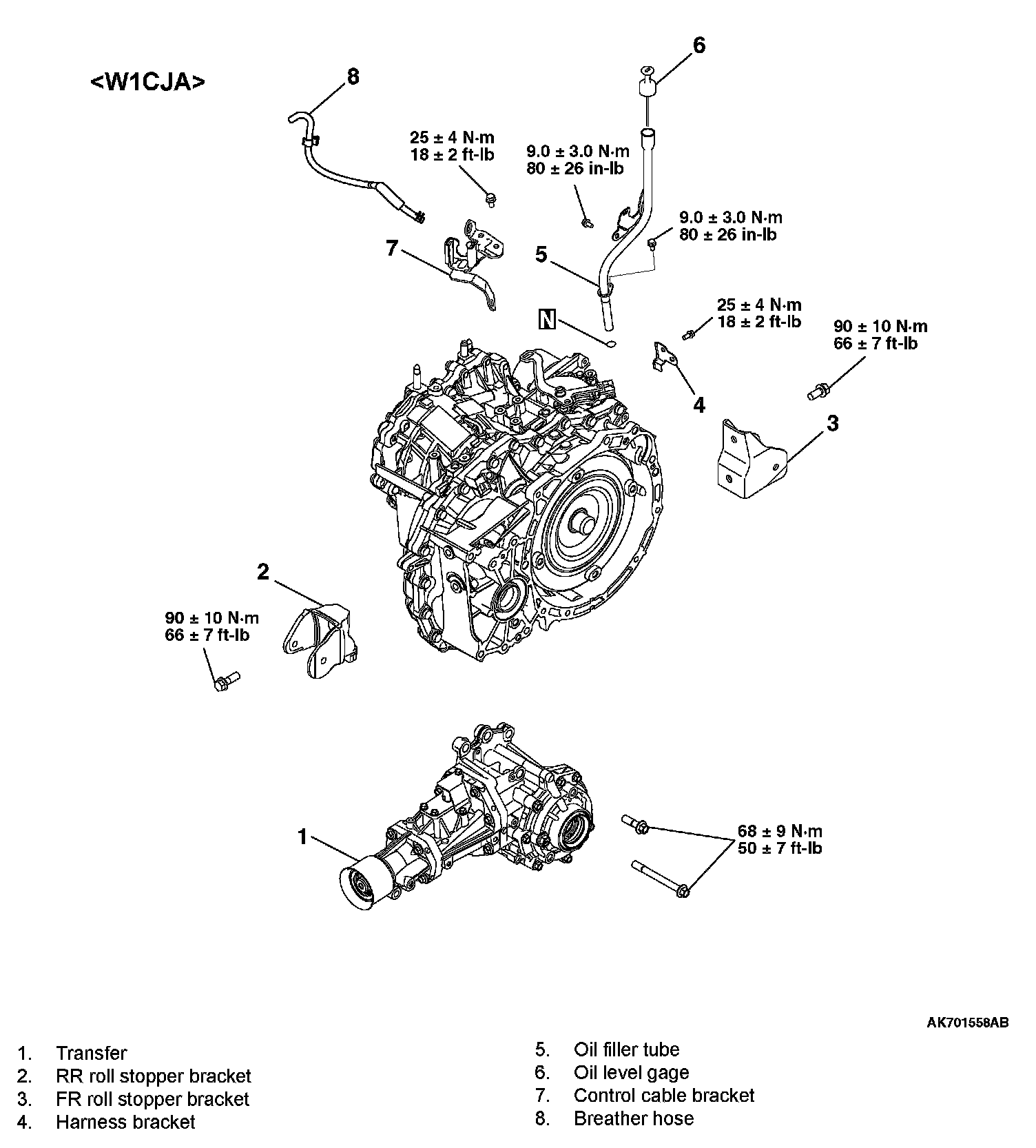

Disassembly Steps 1-8:
Disassembly Steps 9-40:

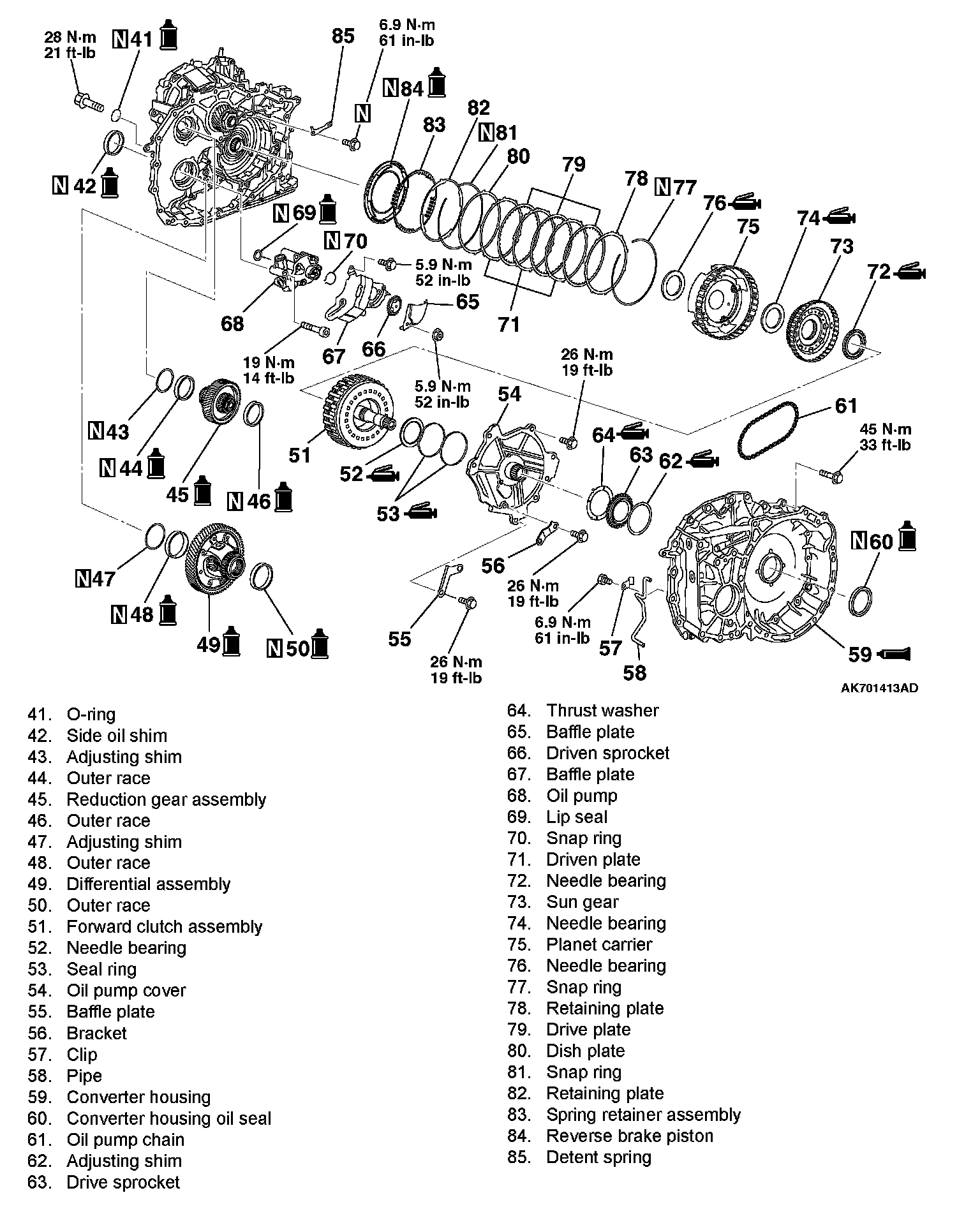

Disassembly Steps 41-85:
