Home >> Mitsubishi >> 2009 >> Outlander 2WD L4-2.4L (4B12) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations >> A/T

A/T

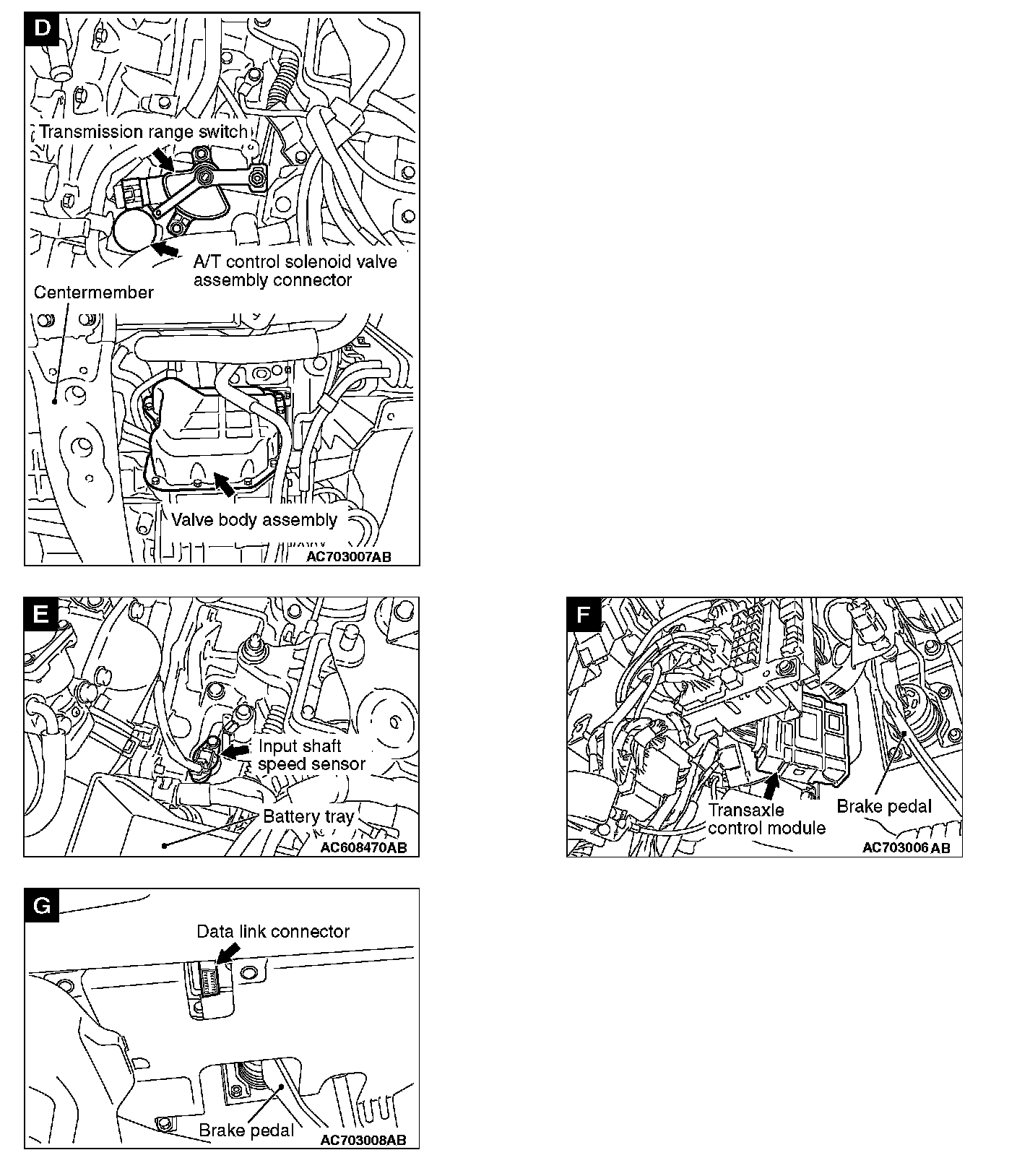

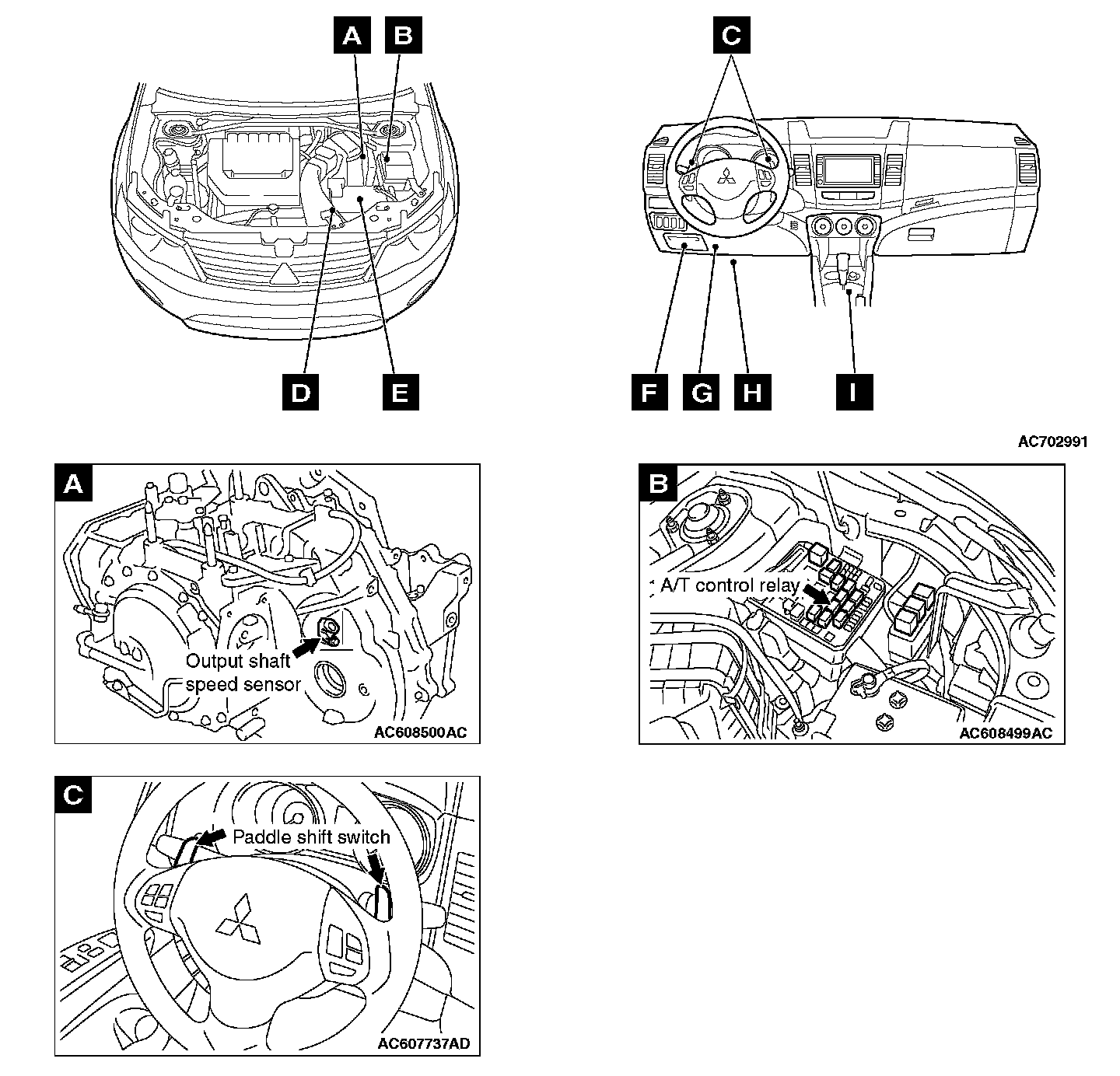

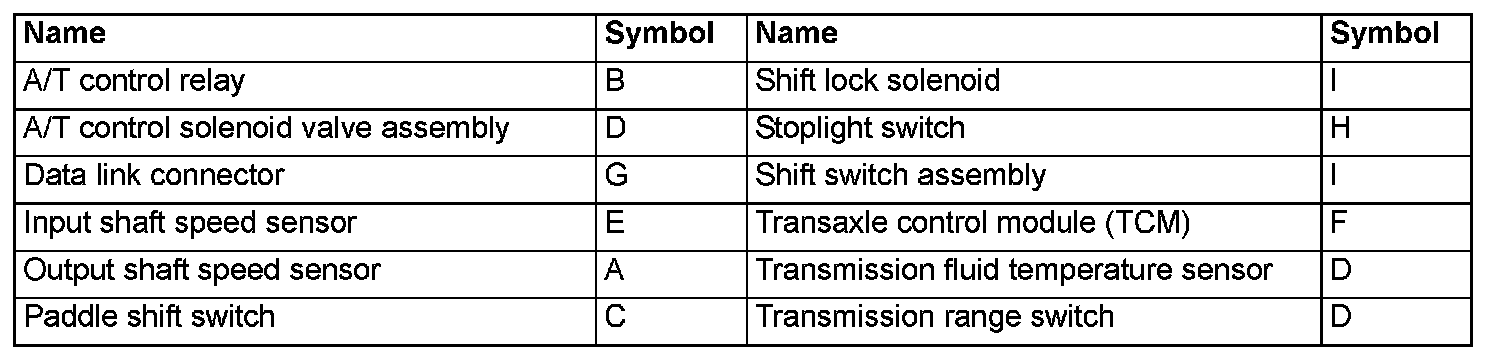

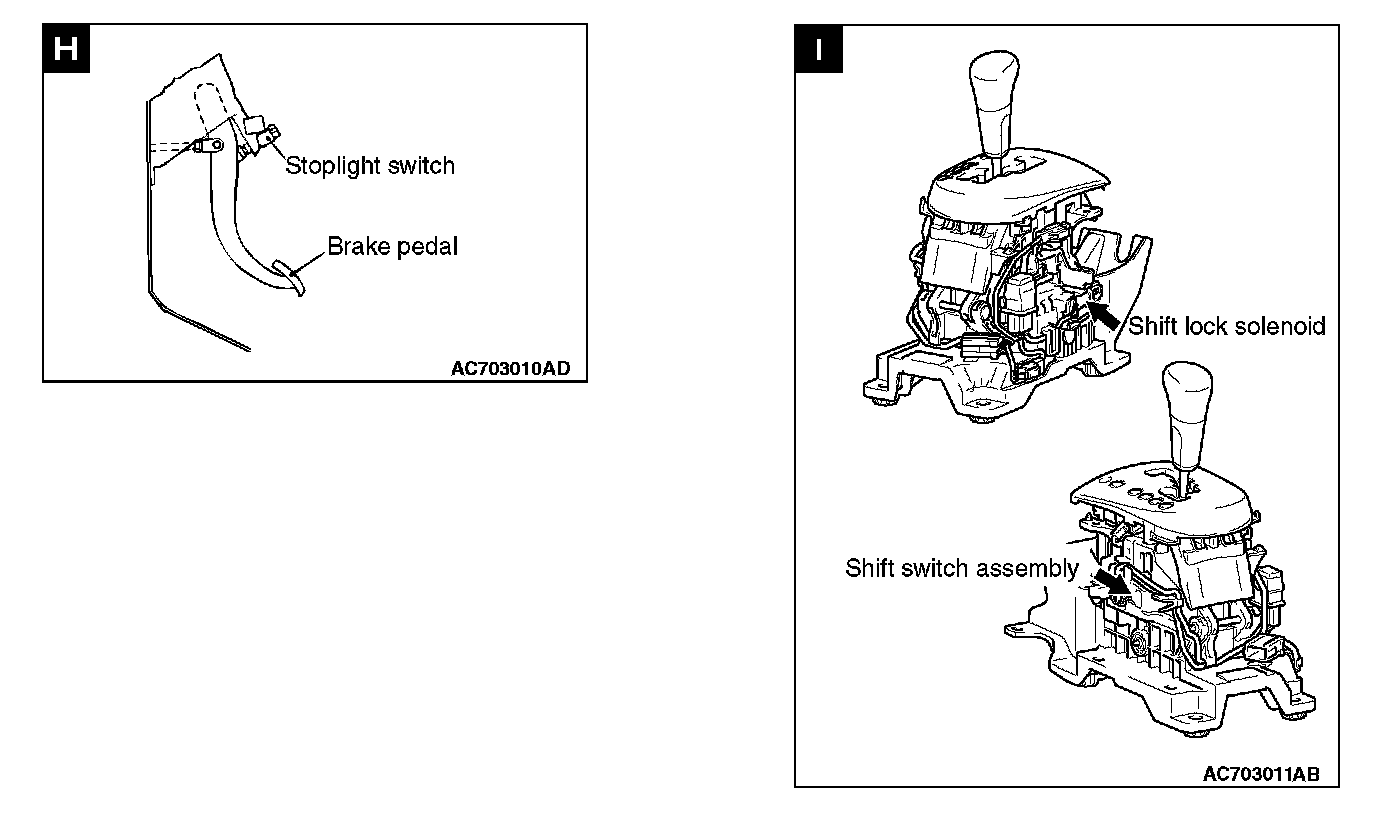

A/T CONTROL COMPONENT LAYOUT
