System Specifications

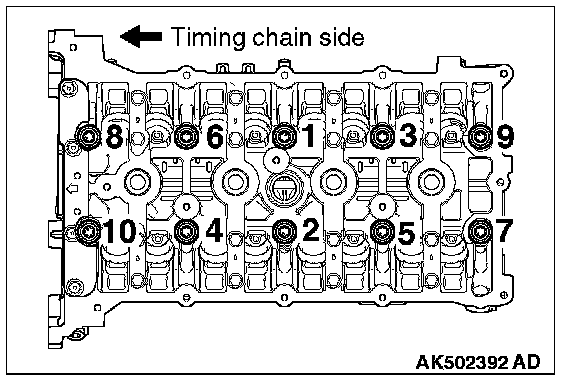

Cylinder Head Bolts
First Pass 35 ± 2 Nm (26 ± 1 ft-lb)
Final Pass 180 ± 2 degrees


Cylinder Head Bolts Reusability
Use only NEW cylinder head bolts when installing cylinder head.

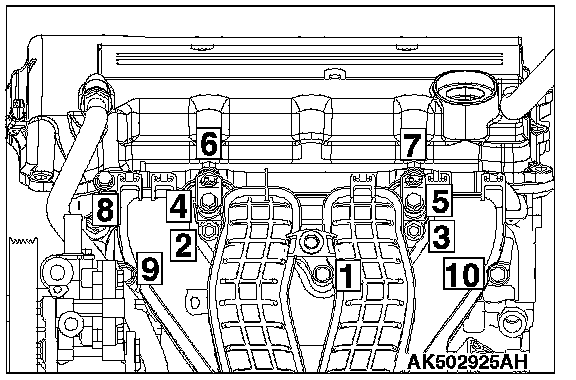

Intake Manifold Bolts
First Pass 3.5 ± 1.5 Nm (31 ± 13 in-lb)
Final Pass 20 ± 2 Nm (15 ± 1 ft-lb)

Exhaust manifold nut 49 ± 5 Nm (36 ± 3 ft-lb)

Cylinder Head Surface Variation
Standard value Within 0.05 mm (0.002 inch)
Limit 0.2 mm (0.08 inch)
Grinding limit 0.2 mm (0.008 inch)

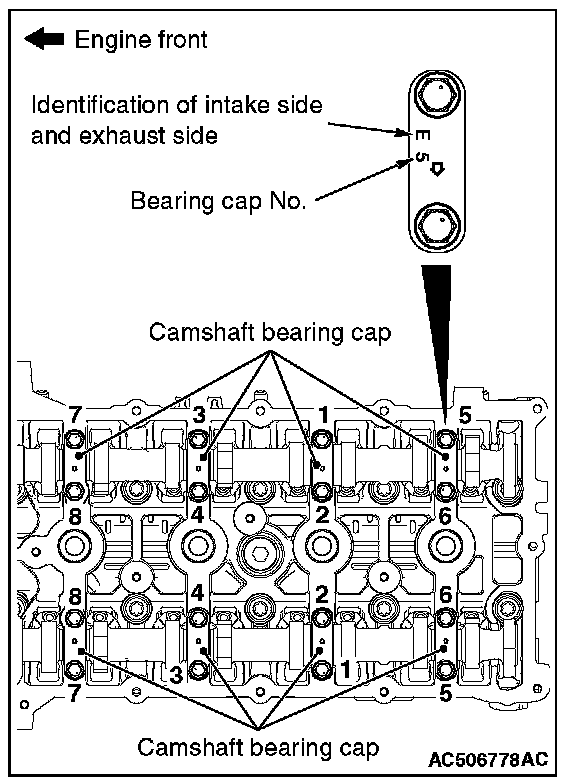

Camshaft Bearing Cap Mounting Bolts 12 ± 1 Nm (107 ± 8 in-lb)

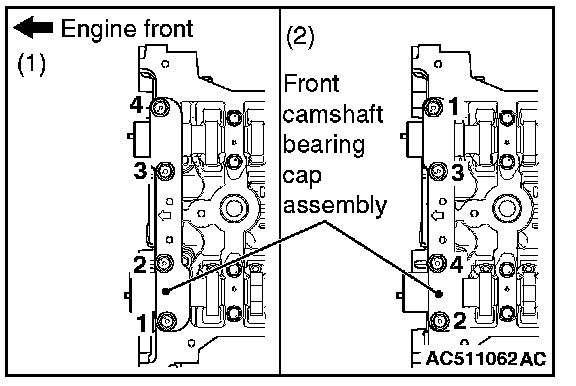

Front Camshaft Bearing Cap Mounting Bolts
First Pass 17 ± 3 Nm (13 ± 2 ft-lb)
Final Pass 30 ± 2 Nm (23 ± 1 ft-lb)

V.V.T. Intake Sprocket Bolt 59 ± 5 Nm (44 ± 3 ft-lb)
V.V.T. Exhaust Sprocket Bolt 59 ± 5 Nm (44 ± 3 ft-lb)
