Torque Specification
Intake Manifold Bolts
First Pass 3.5 ± 1.5 Nm (31 ± 13 in-lb)
Final Pass 20 ± 2 Nm (15 ± 1 ft-lb)

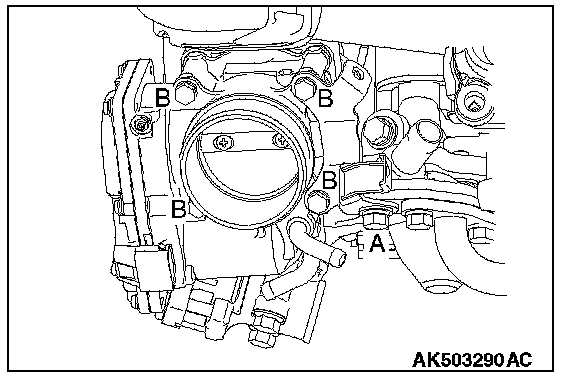

Throttle Body Mounting Bolts (A) 20 ± 2 Nm (15 ± 1 ft-lb)
Throttle Body Mounting Bolts (B) 9.5 ± 2.5 Nm (84 ± 22 in-lb)
Intake Manifold Bolts
First Pass 3.5 ± 1.5 Nm (31 ± 13 in-lb)
Final Pass 20 ± 2 Nm (15 ± 1 ft-lb)
Throttle Body Mounting Bolts (A) 20 ± 2 Nm (15 ± 1 ft-lb)
Throttle Body Mounting Bolts (B) 9.5 ± 2.5 Nm (84 ± 22 in-lb)
