Specifications
>>
Mechanical Specifications
>>
Flex Plate
Flex Plate

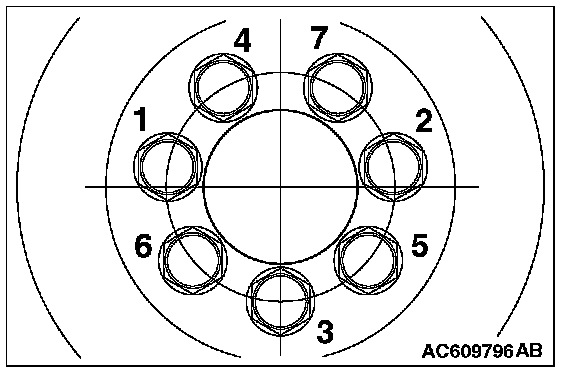

Drive Plate Bolts
First Pass
40 N-m (30 ft-lb)
Final Pass
130 N-m (96 ft-lb)
