Home >> Mitsubishi >> 2009 >> Outlander 2WD V6-3.0L (6B31) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Oil Pan, Engine

Oil Pan, Engine

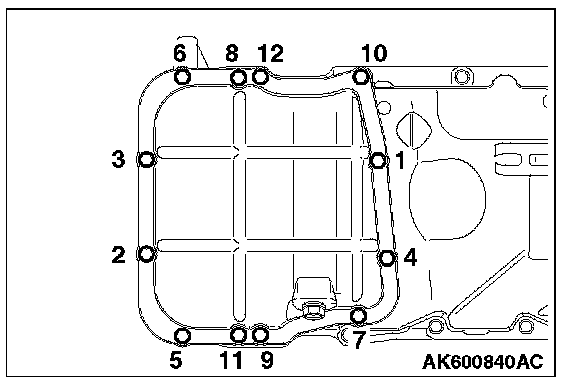

Upper Oil Pan Bolts 10.0 ± 2.0 Nm (89 ± 17 in-lb)

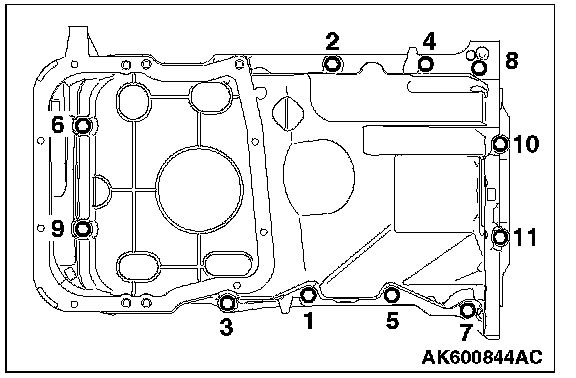

Lower Oil Pan Bolts 10.0 ± 2.0 Nm (89 ± 17 in-lb)
