Front Fender: Service and Repair

FENDER

REMOVAL AND INSTALLATION

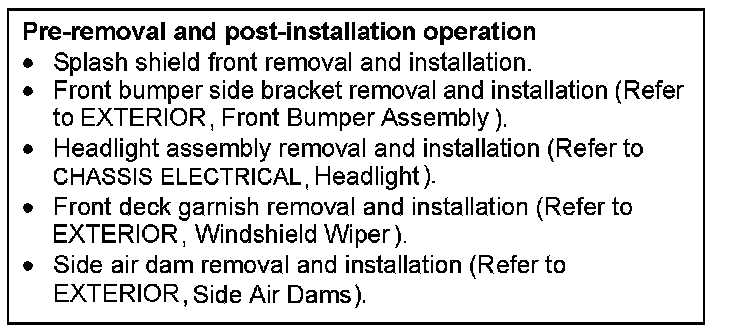

Pre-removal & Post-installation Operation:

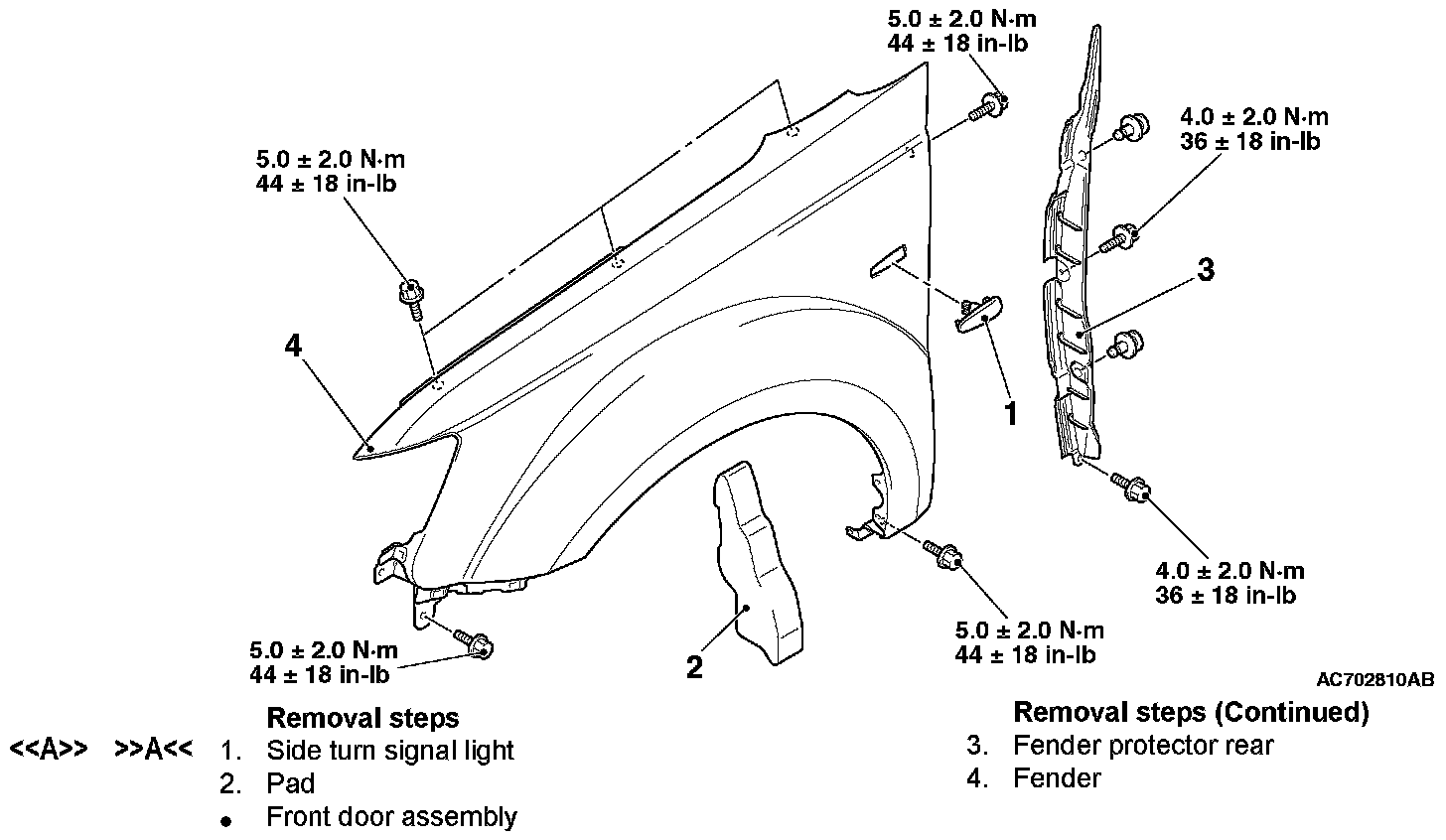

Removal Steps 1-4:

REMOVAL SERVICE POINT

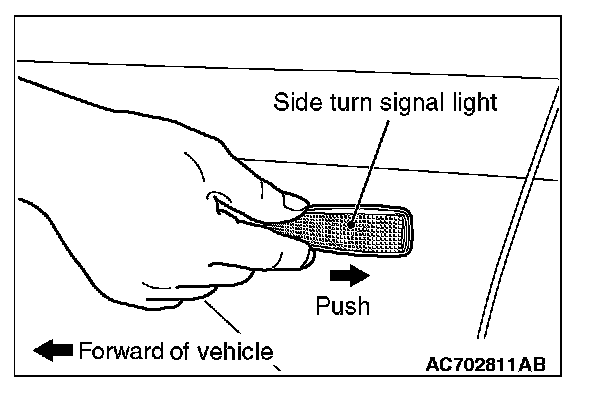

[[A]] SIDE TURN SIGNAL LIGHT REMOVAL







Push the side turn signal light toward the vehicle rear to bend the hook, and then remove by disengaging the tab from the fender panel.

INSTALLATION SERVICE POINT

]]A[[ SIDE TURN SIGNAL LIGHT INSTALLATION







Engage the claw to the fender panel to install the side turn signal light.
