Automatic Transmission/Transaxle

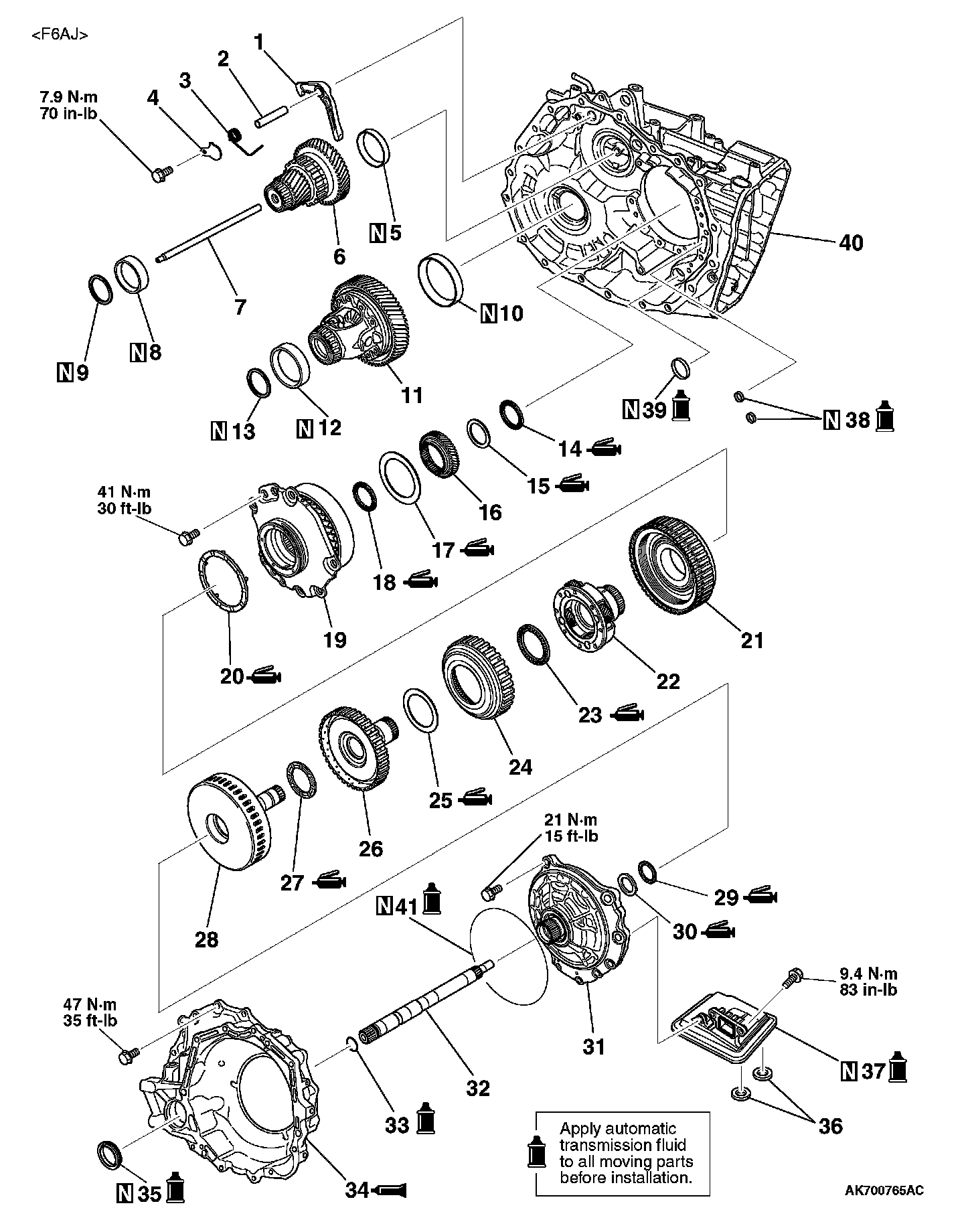

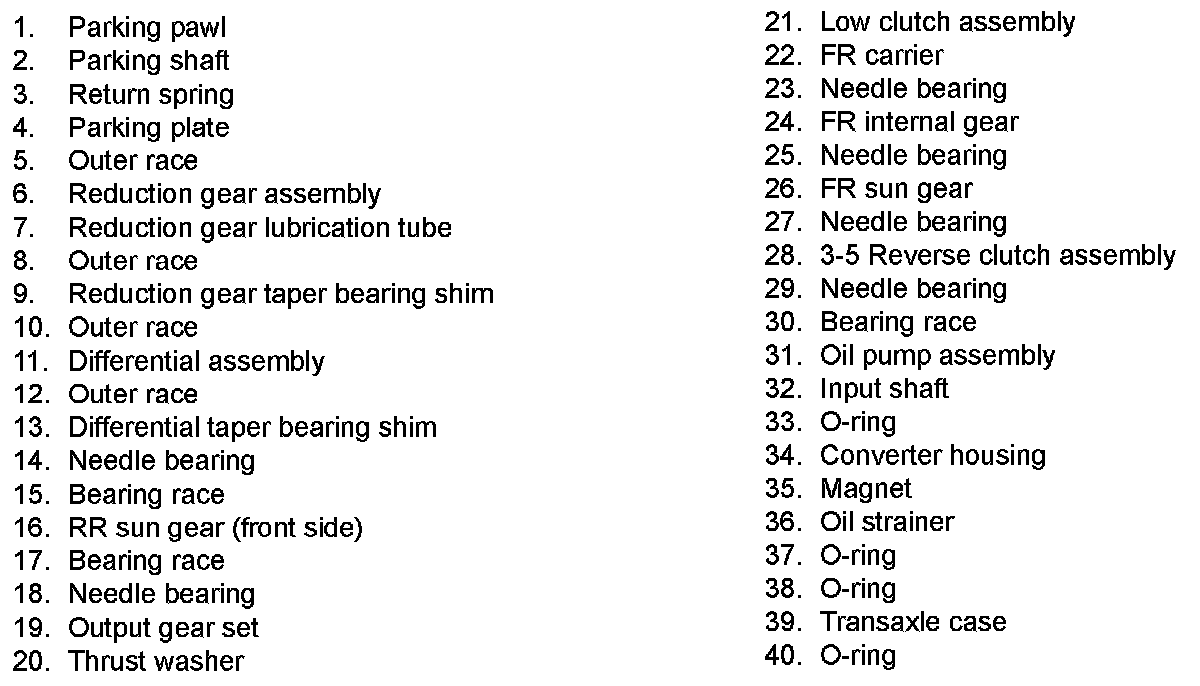

TRANSAXLE[F6AJ]
Disassembly Steps 1-13:

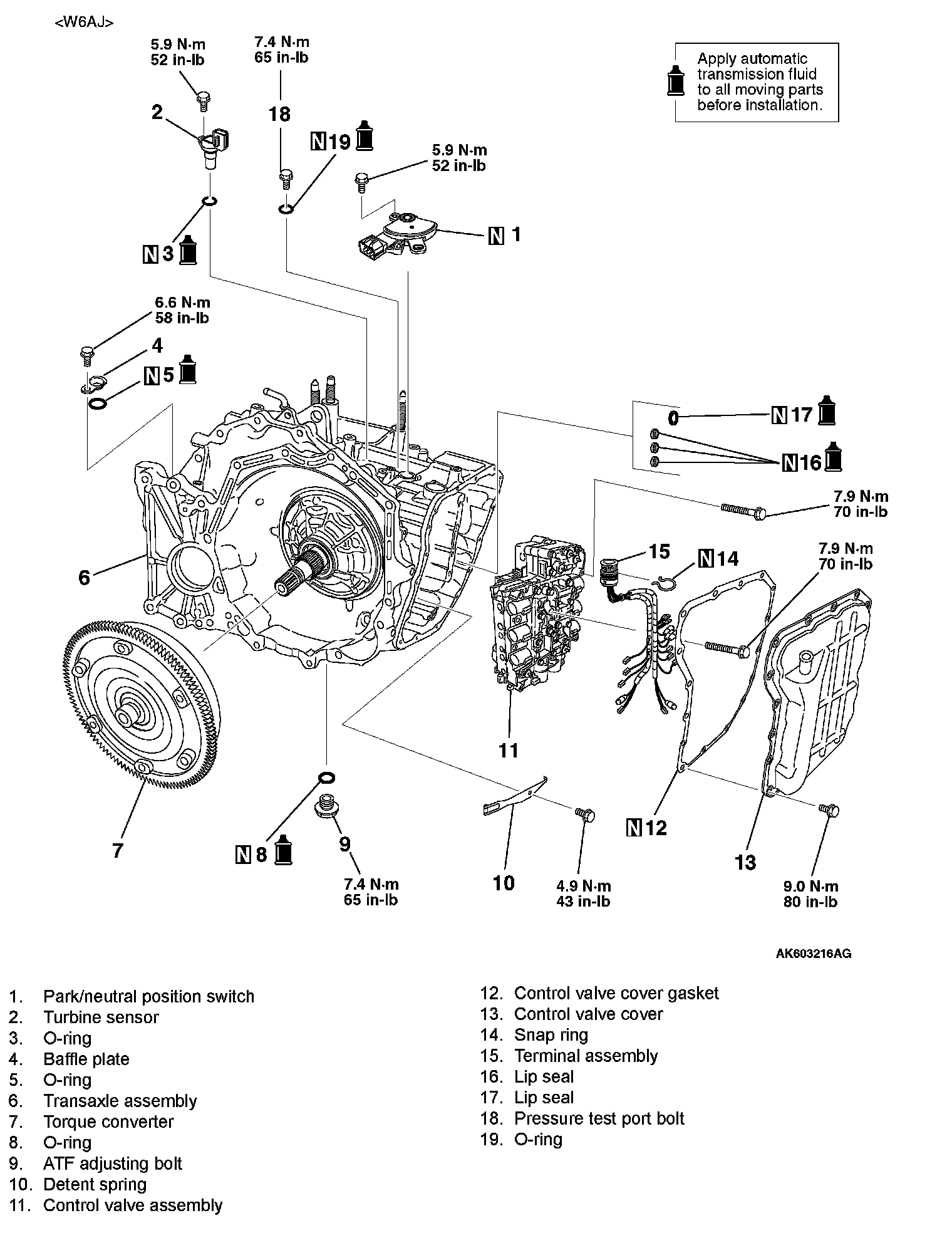

[W6AJ]
Disassembly Steps 1-14:

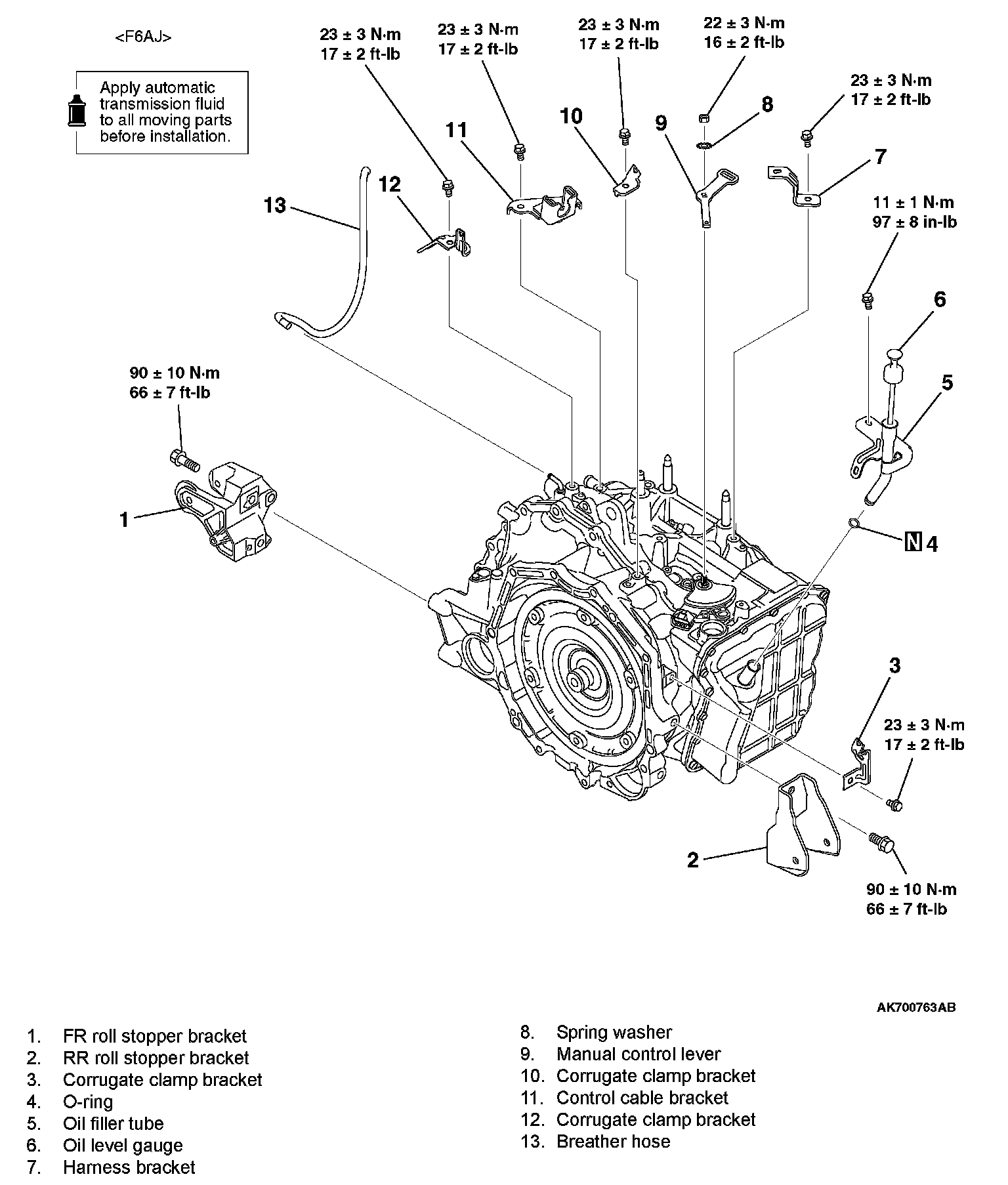

[F6AJ]
Disassembly Steps 1-19:

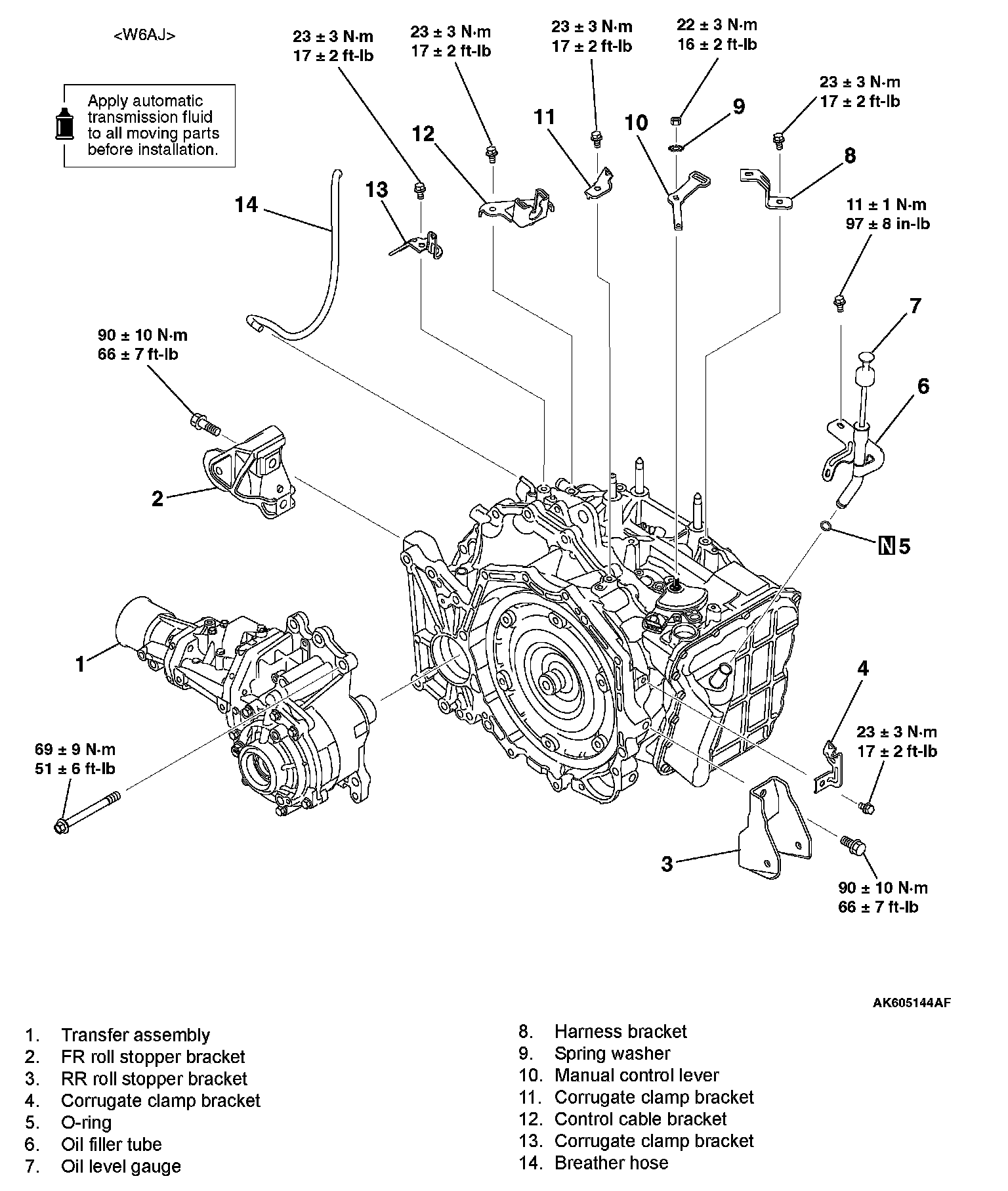

[W6AJ]
Disassembly Steps 1-19:
[F6AJ]

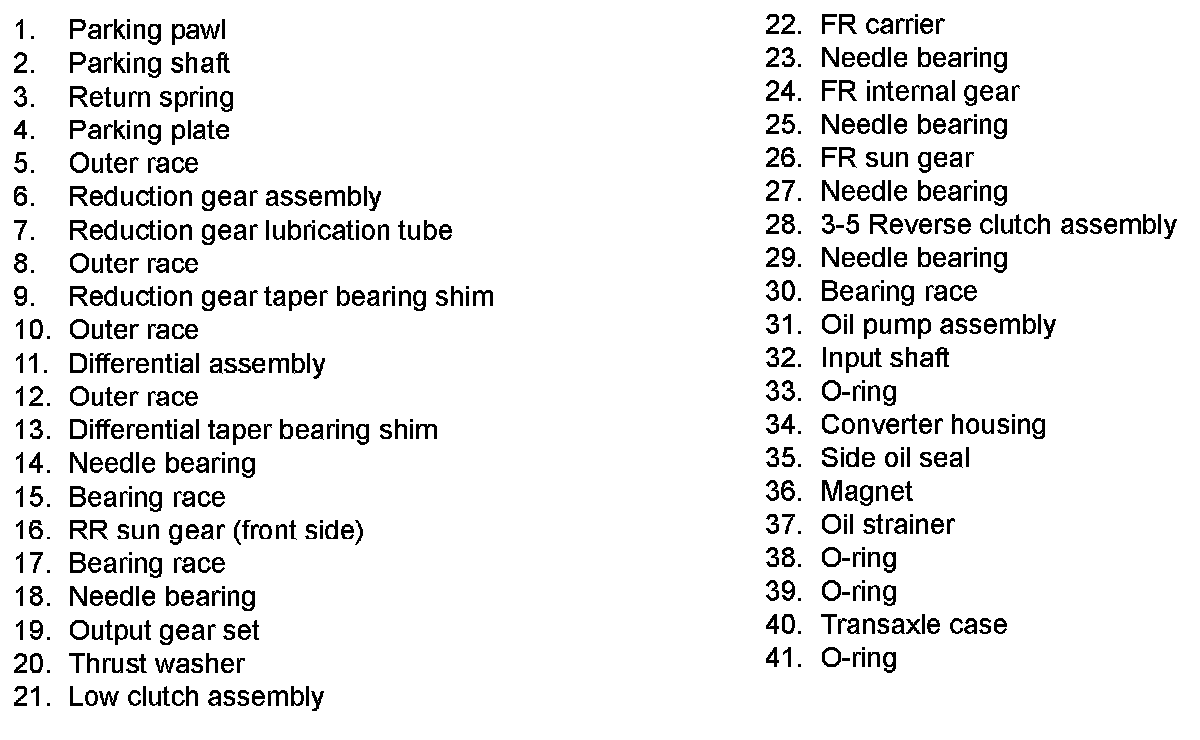

Disassembly Steps 1-41:

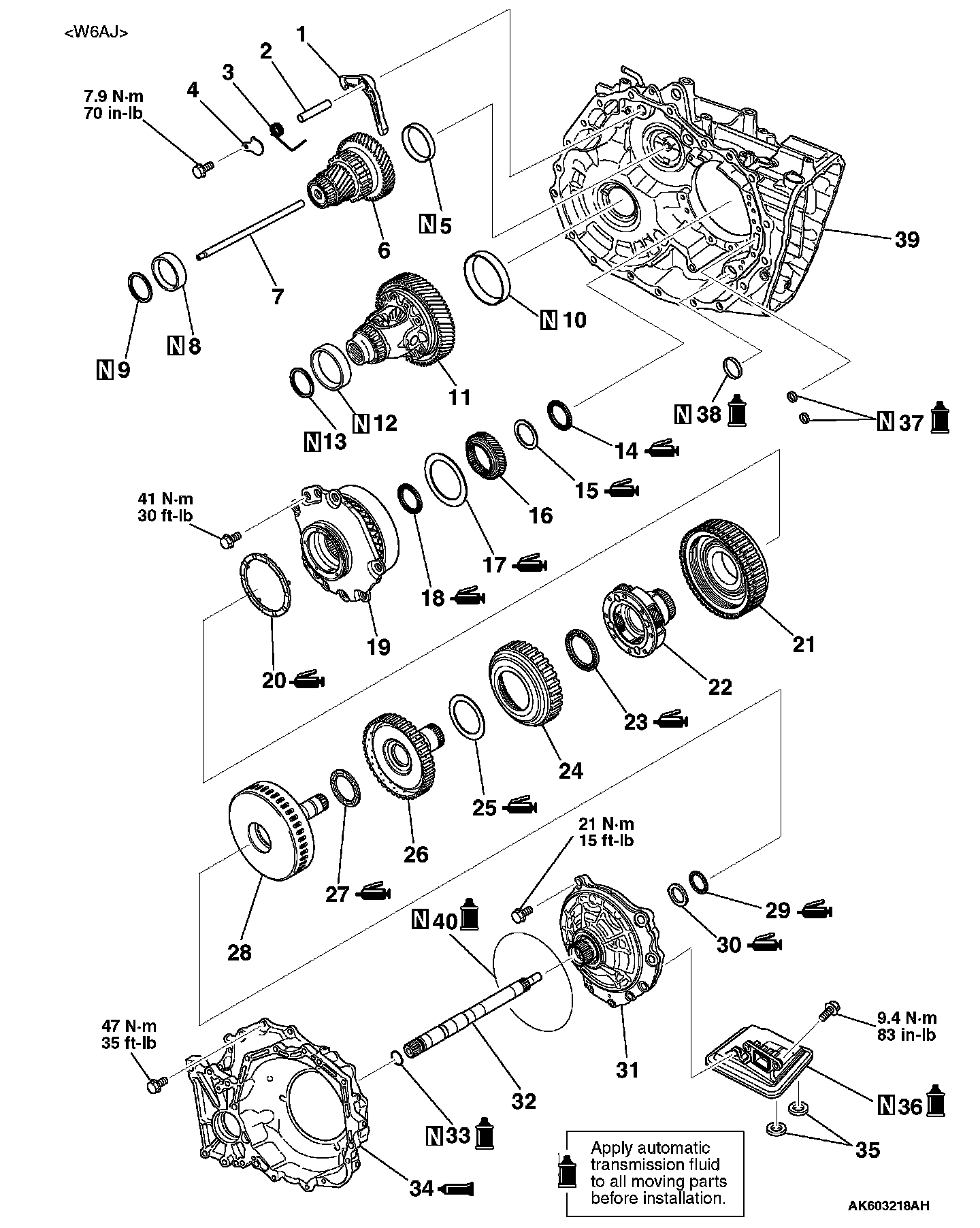

[W6AJ]
Disassembly Steps 1-40:

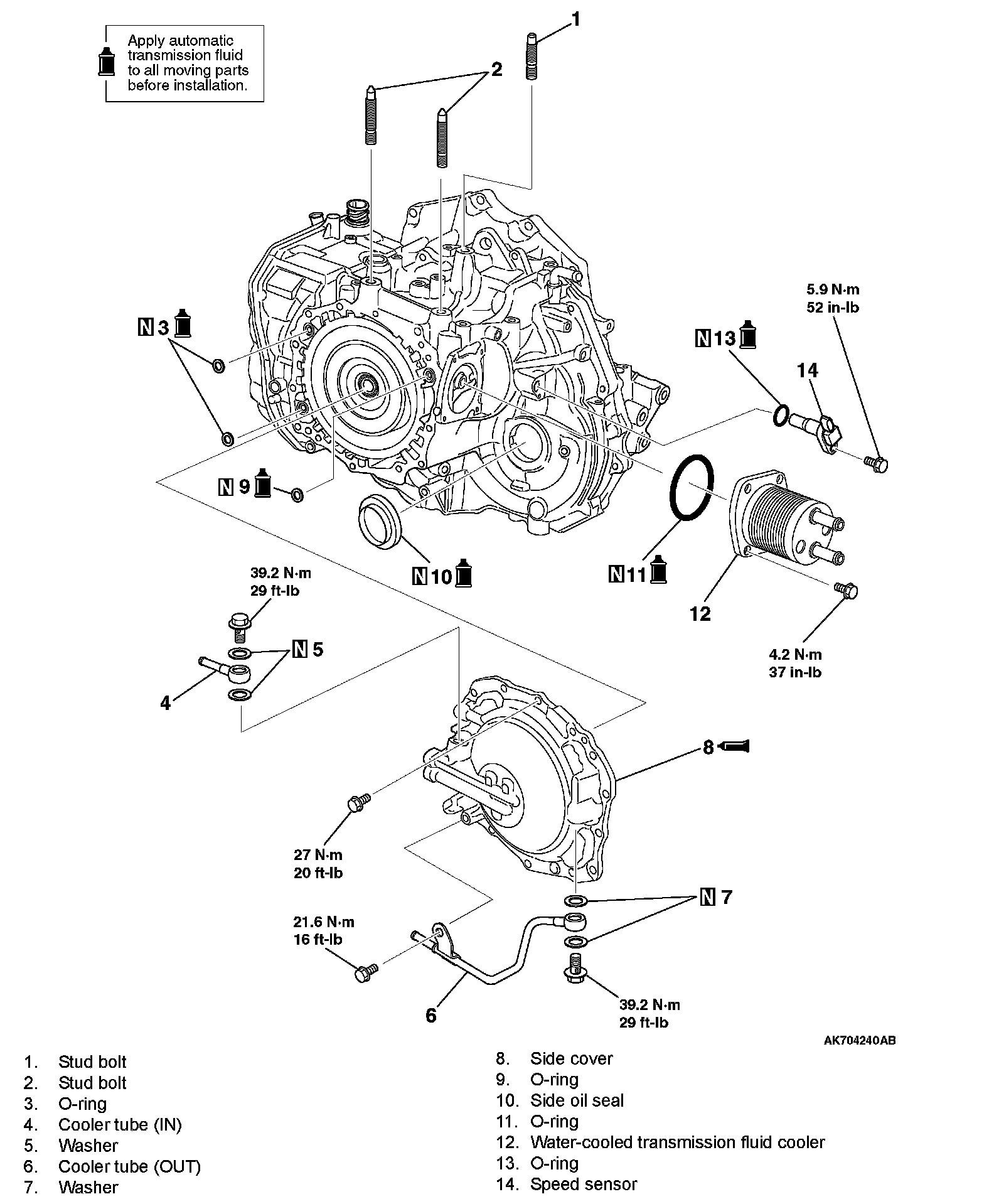

Disassembly Steps 1-14:

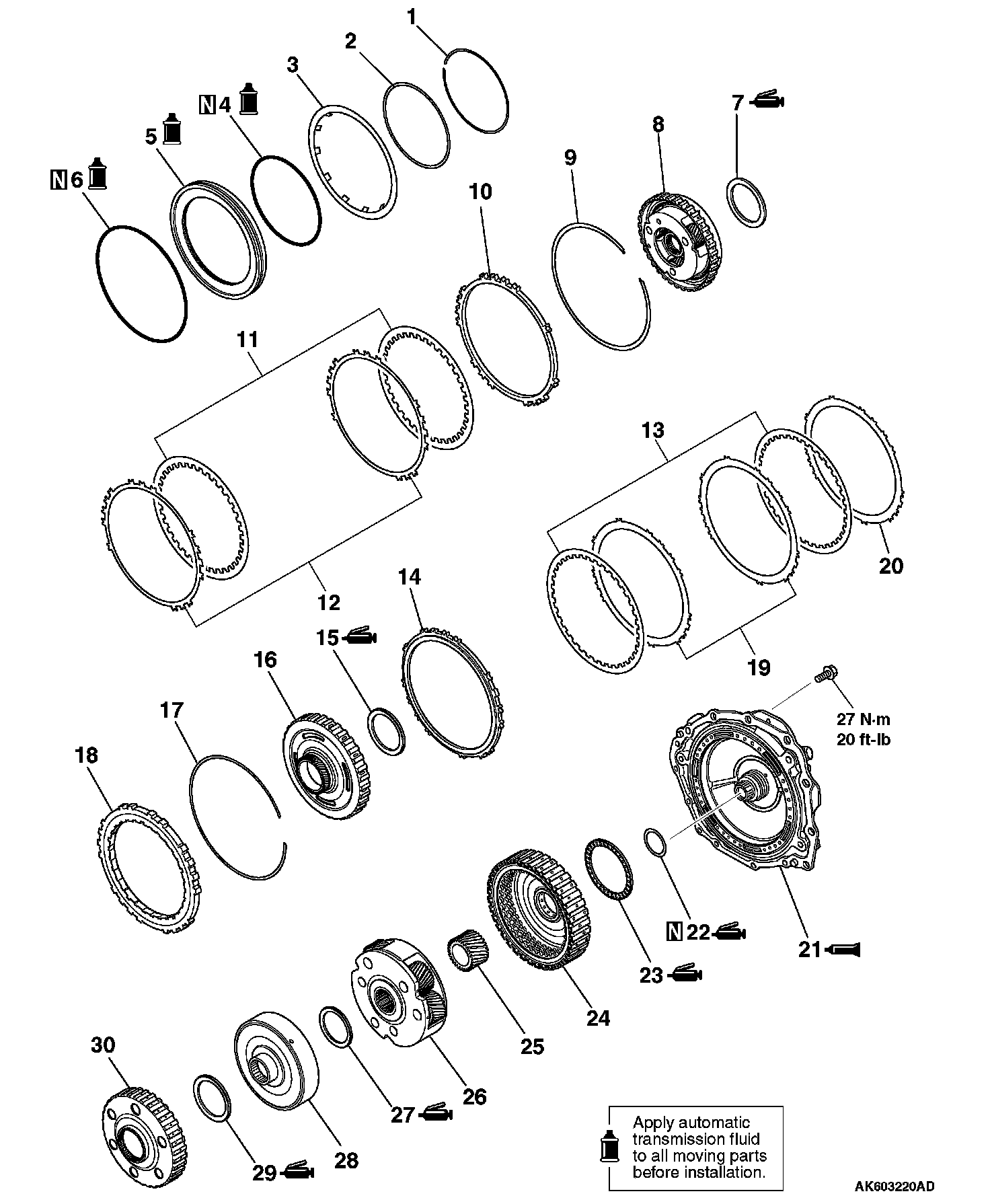

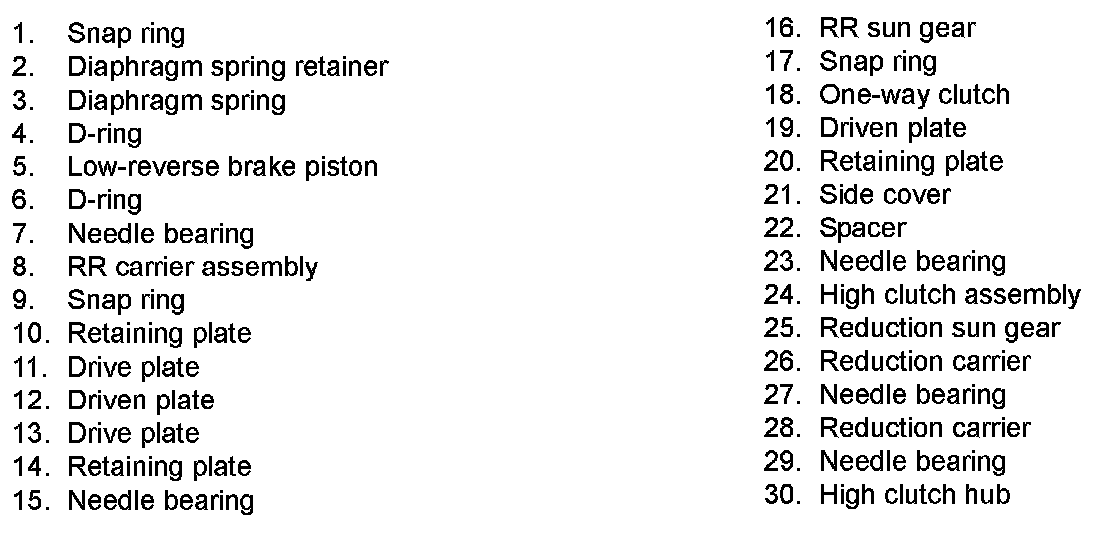

Disassembly Steps 1-30:
