Outlander 4WD L4-2.4L (4B12)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Oscilloscope Patterns and Waveforms
Oscilloscope Patterns and Waveforms
OSCILLOSCOPE INSPECTION PROCEDURES
CVT Transmission

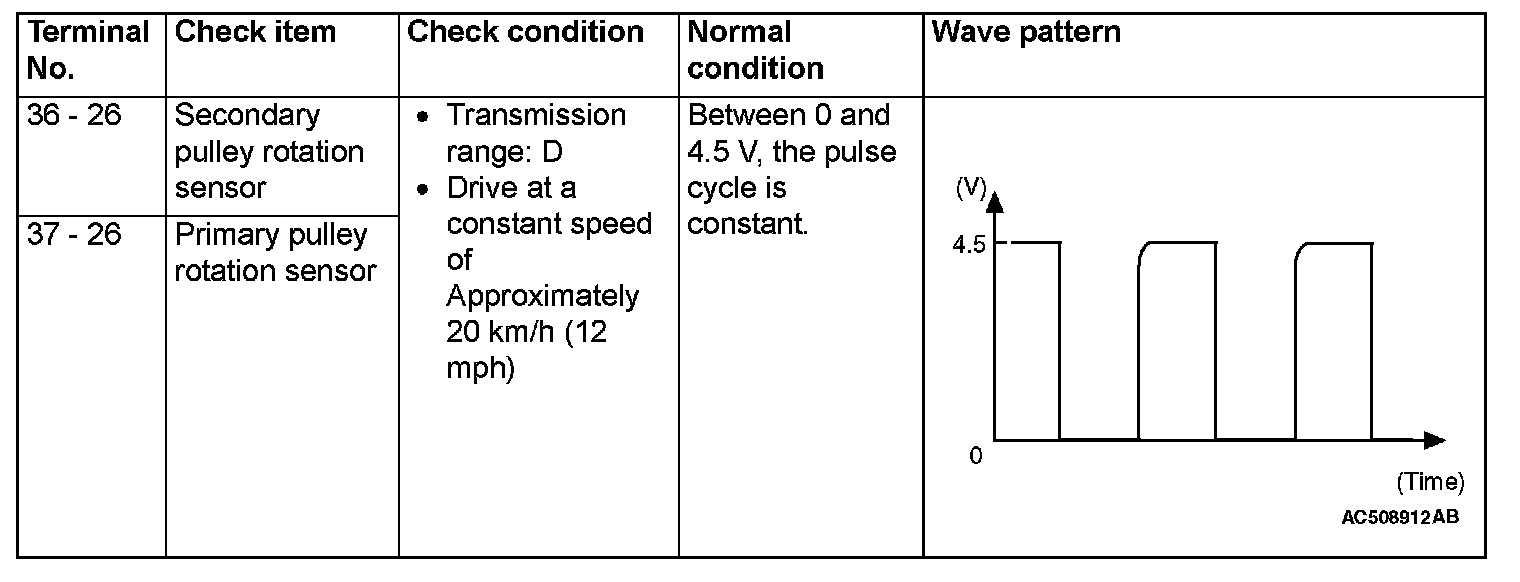

With the connector remain connected, connect the oscilloscope probe to each terminal of
TCM
.
