Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Cellular Phone
>>
Description and Operation
>>
System Block Diagram
System Block Diagram
SYSTEM BLOCK DIAGRAM

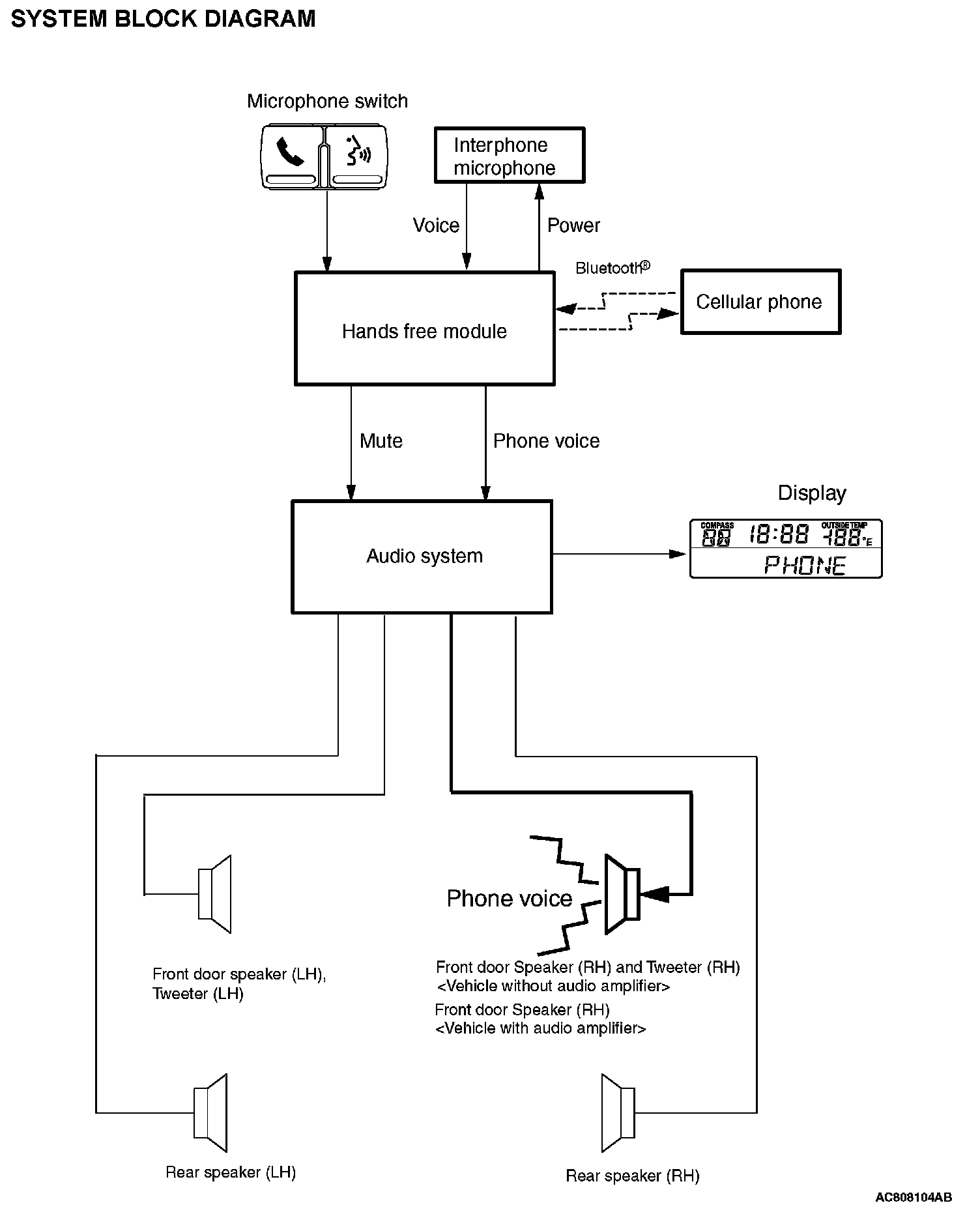

System Block Diagram:
