Intake Manifold

FASTENER TIGHTENING SPECIFICATIONS

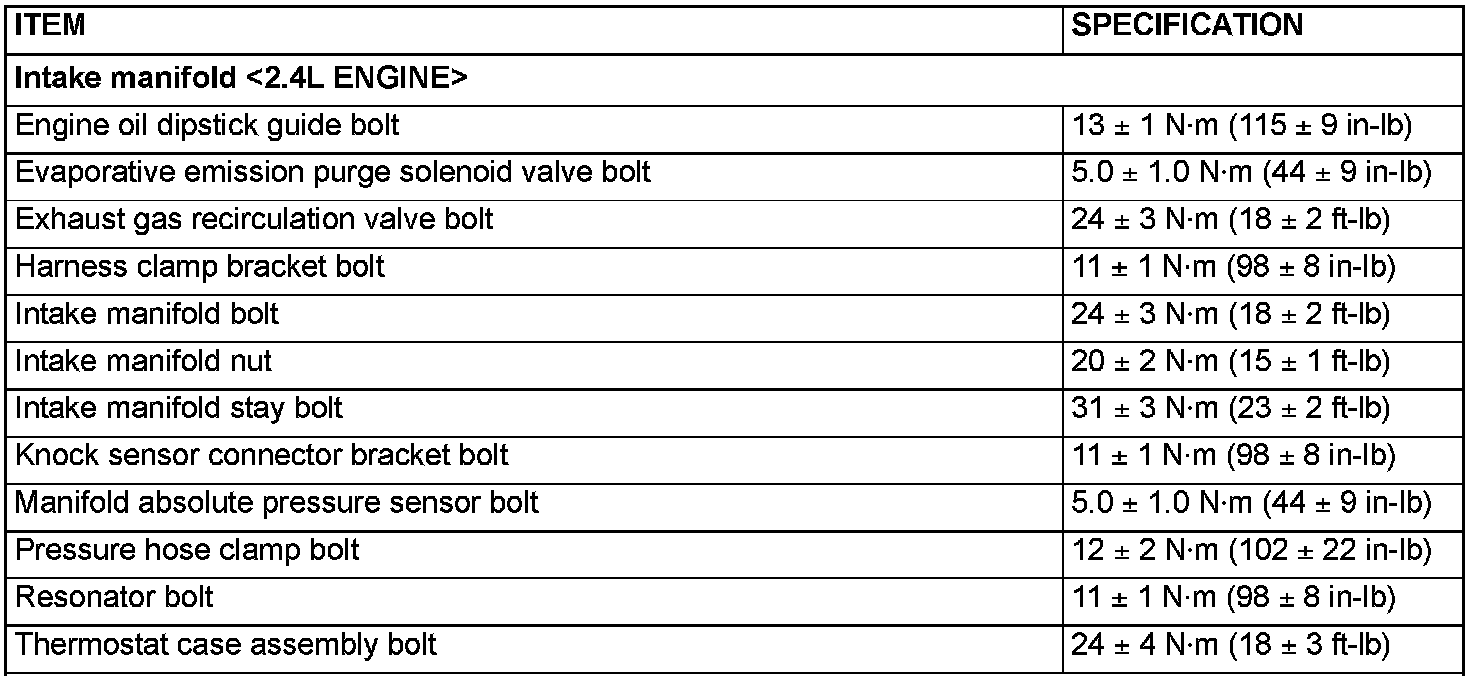

Intake Manifold - Fastener Tightening Specifications:





Service Specification:
