Actuator Test Reference Table

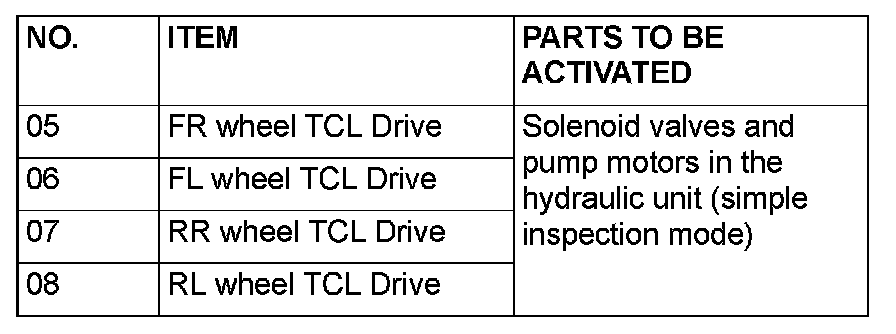

ACTUATOR TEST REFERENCE TABLE

The scan tool activates the following actuators for testing.

NOTE: If the TCL/SC-ECU runs down, actuator testing cannot be carried out.

NOTE: Actuator testing is only possible when the vehicle is stationary

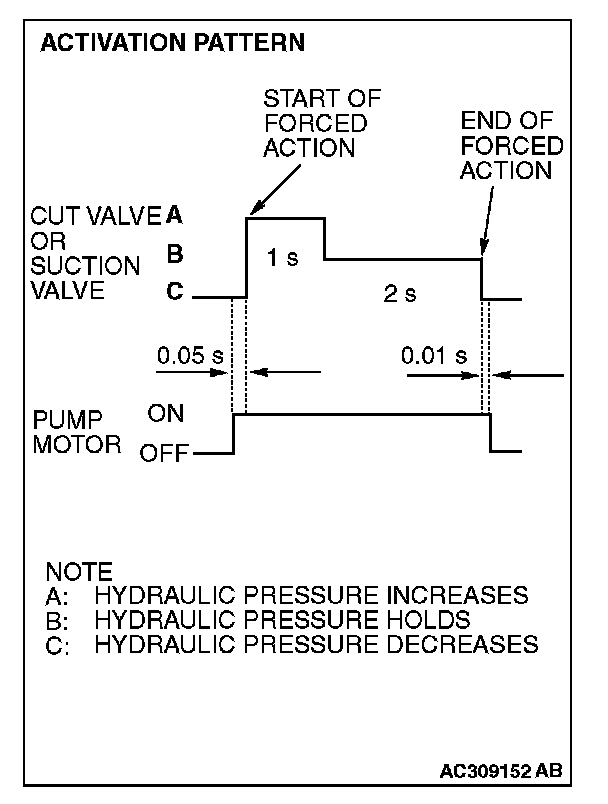

ACTUATOR TEST SPECIFICATIONS
