Automatic Transmission/Transaxle
>>
Center Differential
Center Differential

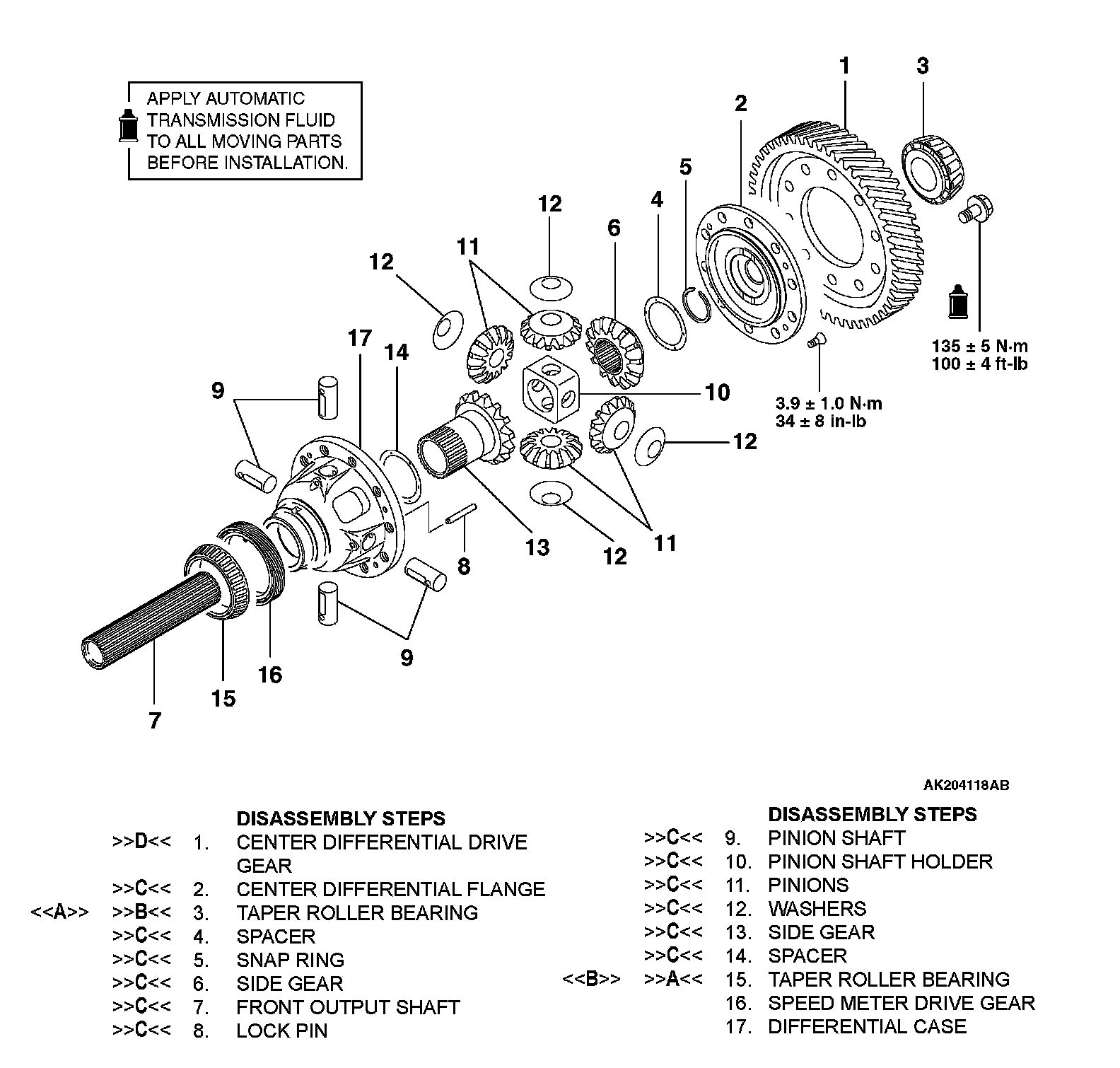

CENTER DIFFERENTIAL
DISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-17:
