Endeavor AWD V6-3.8L (6G75)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Second Brake
Second Brake

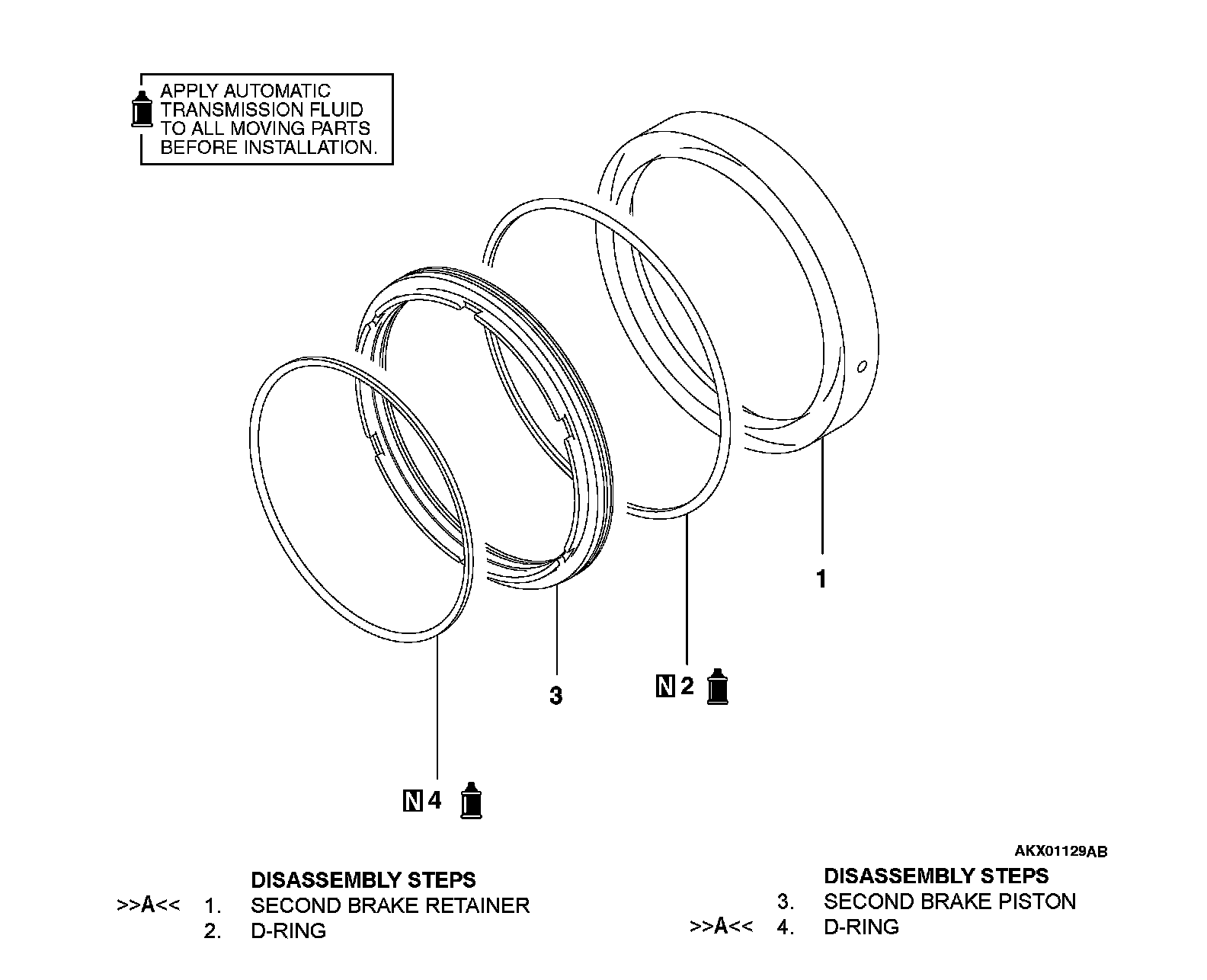

SECOND BRAKE
DISASSEMBLY AND ASSEMBLY
Disassembly & Assembly Steps 1-4:
