CONSTRUCTION DIAGRAM

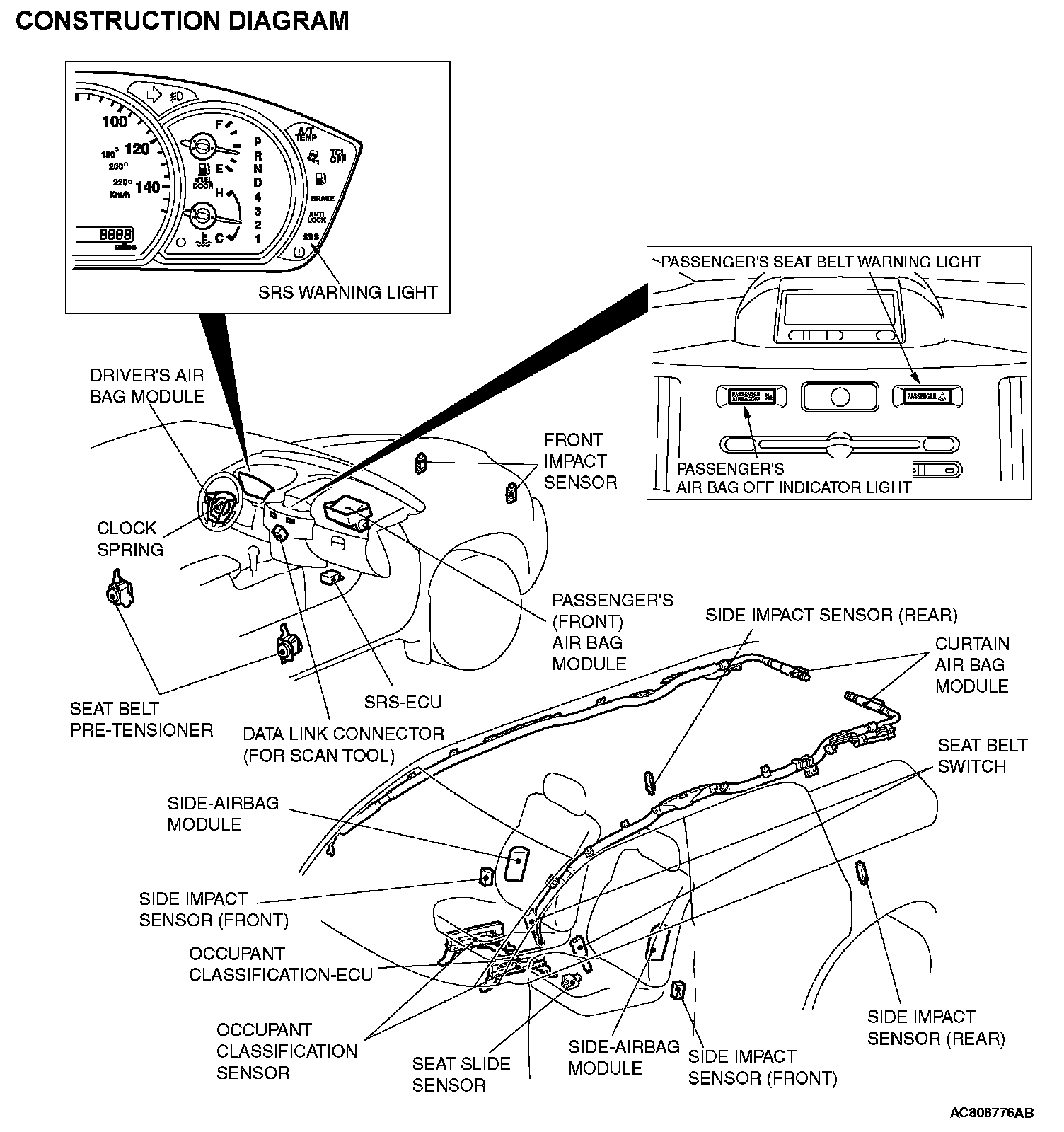

Construction Diagram:
NOTE:
This construction diagram shows the general view of the SRS components. For details, refer to "Schematic, "Configuration Diagrams," and "Circuit Diagram".
