Repair and Diagnosis: Application and ID
VEHICLE IDENTIFICATIONVEHICLE IDENTIFICATION NUMBER PLATE

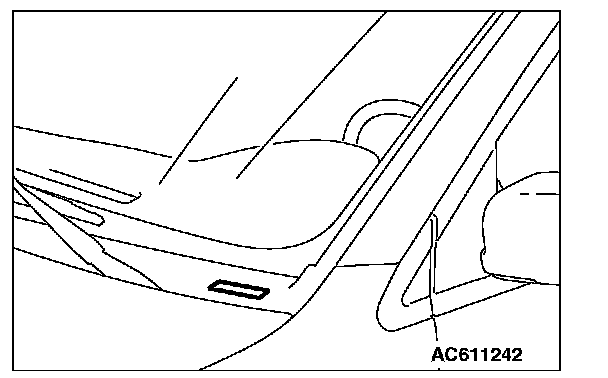

VEHICLES IDENTIFICATION NUMBER LOCATION
The vehicle identification number (VIN) plate is located on a plate attached to the left top side of the instrument panel.

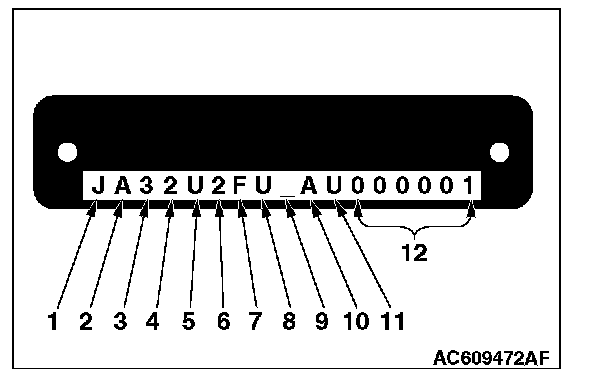

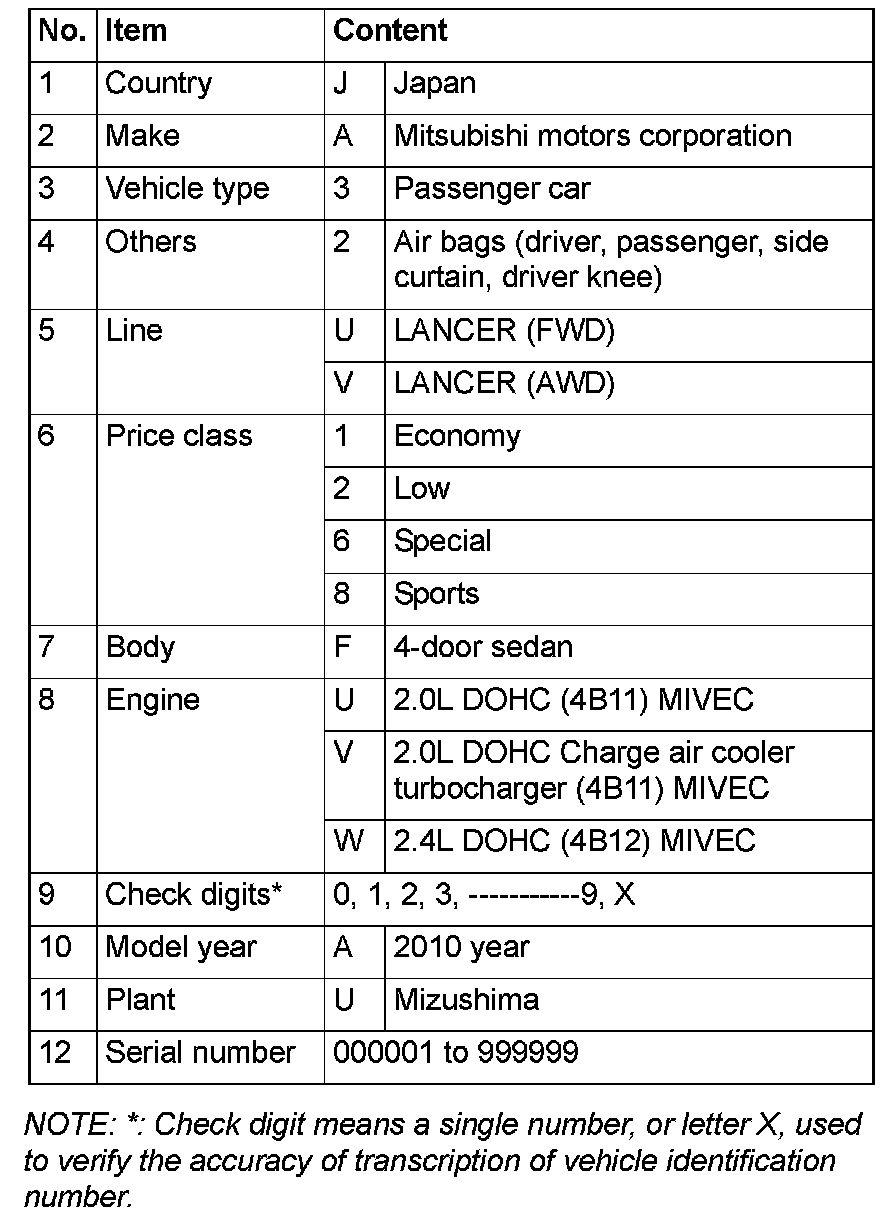

CODE CHART

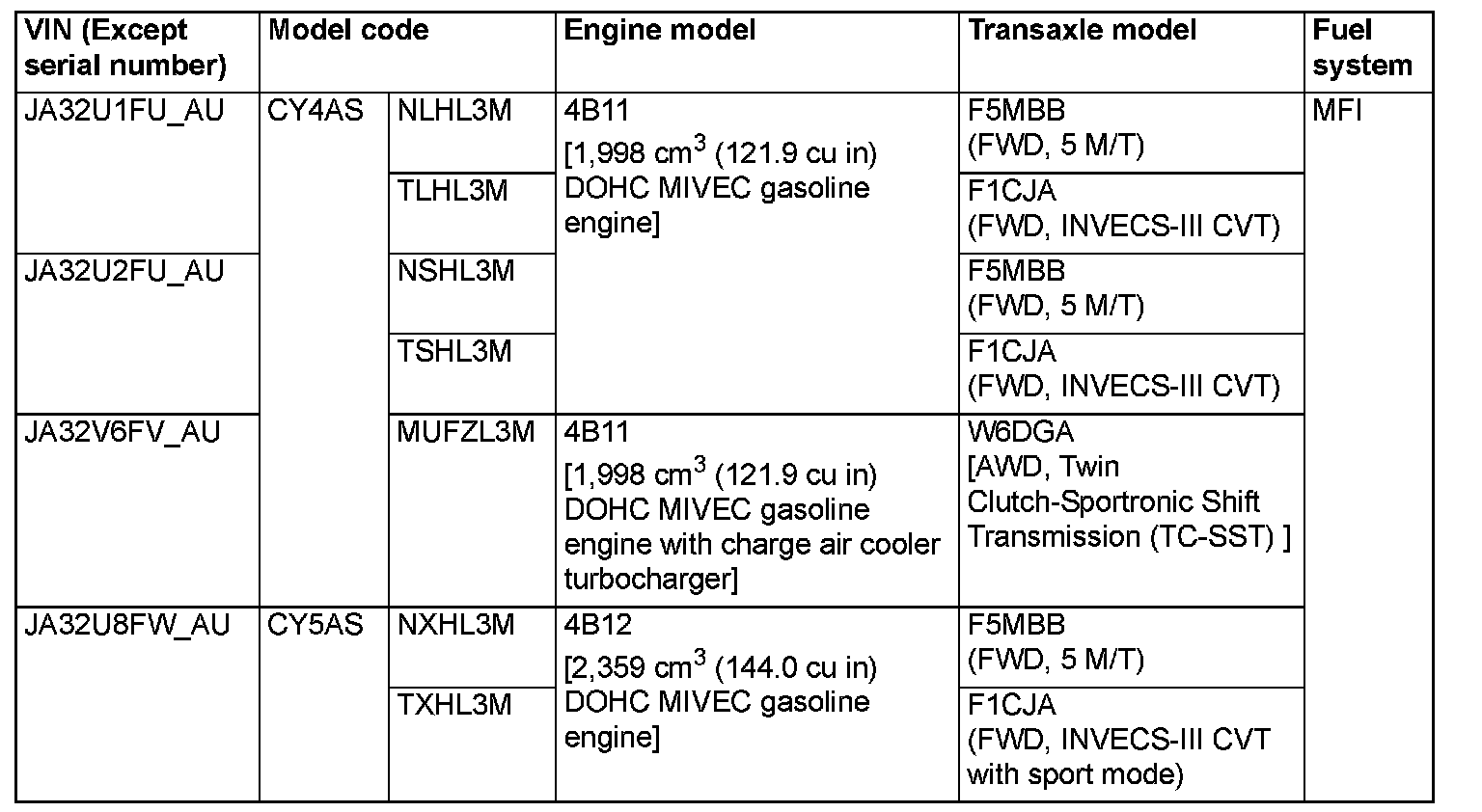

VEHICLE IDENTIFICATION NUMBER LIST
VEHICLES FOR USA

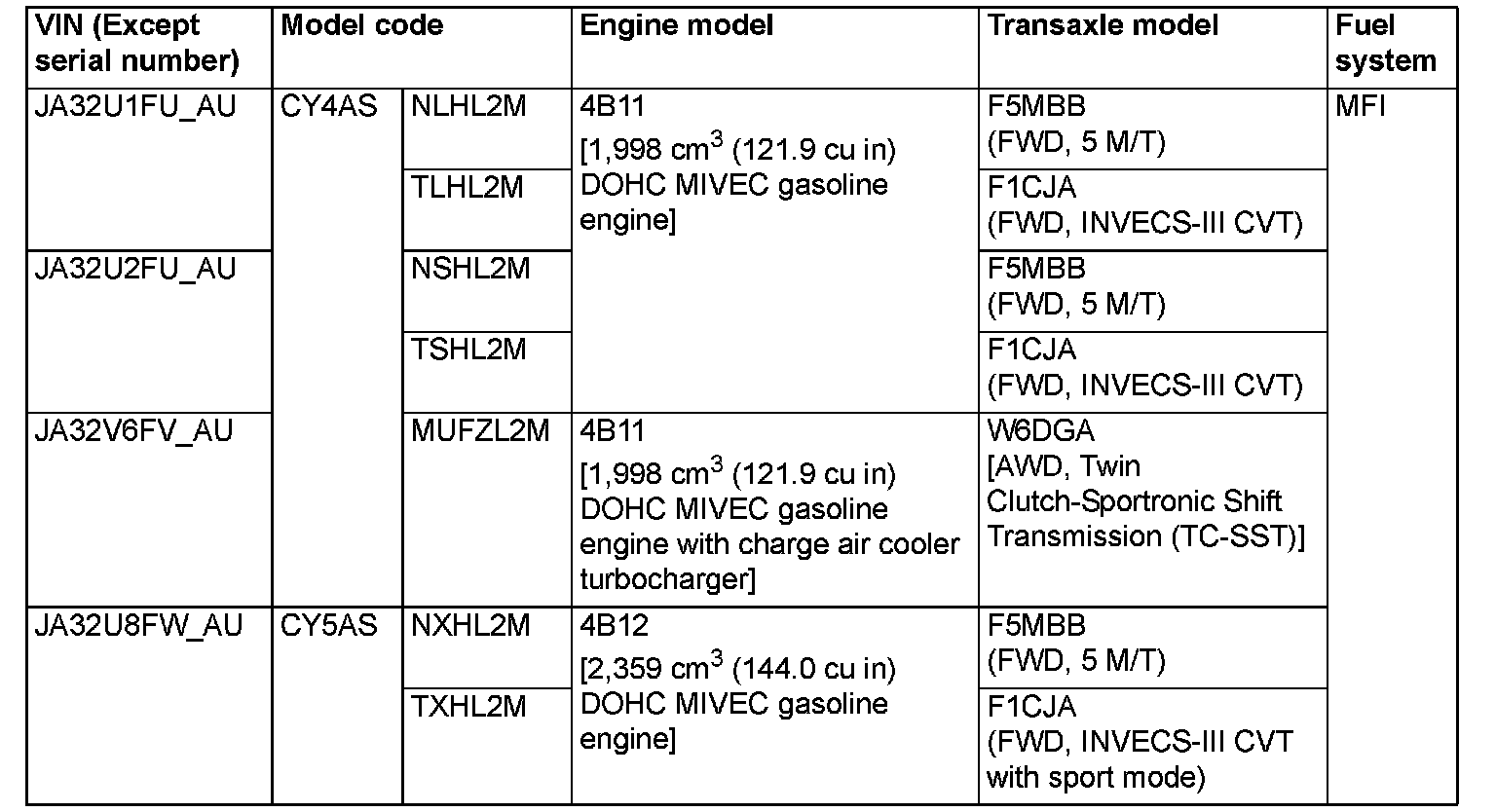

(VEHICLES FOR FEDERAL EMISSION REGULATION)

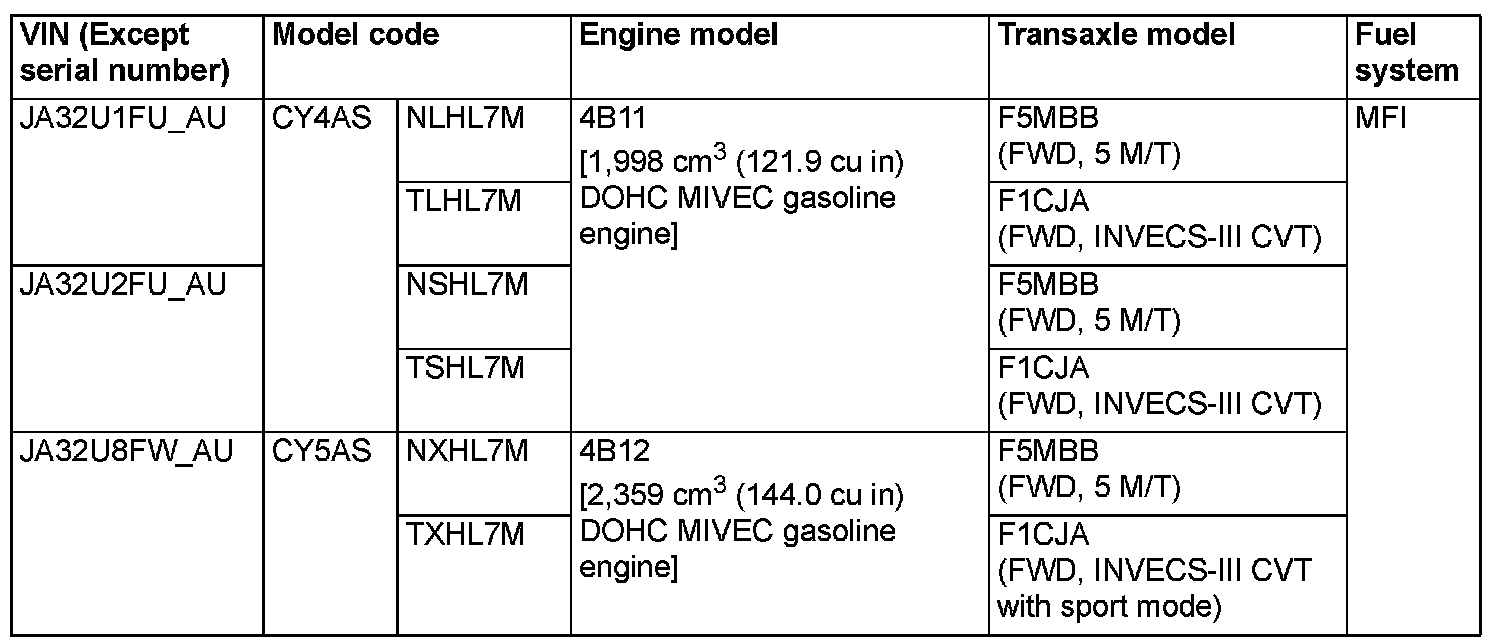

(VEHICLES FOR CALIFORNIA EMISSION REGULATION)
VEHICLES FOR PUERTO RICO, GUAM AND SAIPAN
VEHICLES FOR CANADA
CHASSIS NUMBER

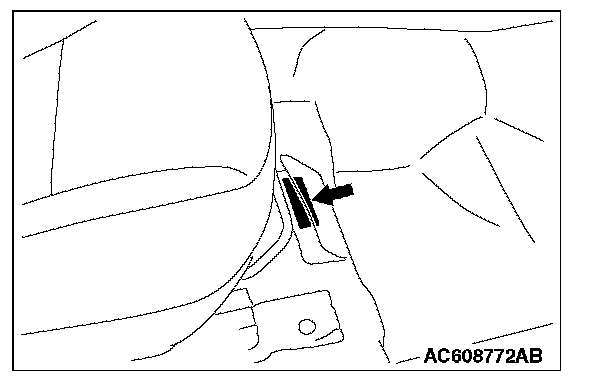

The chassis number is stamped on the front floor pan.

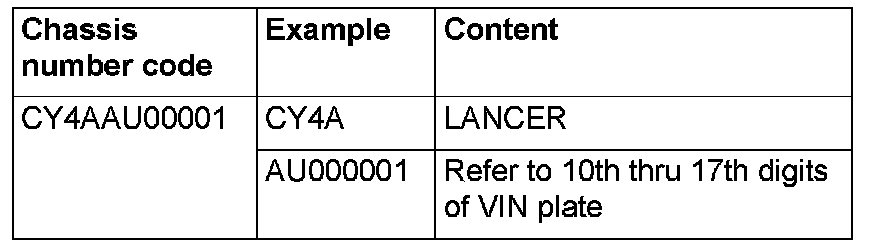

CHASSIS NUMBER CODE CHART

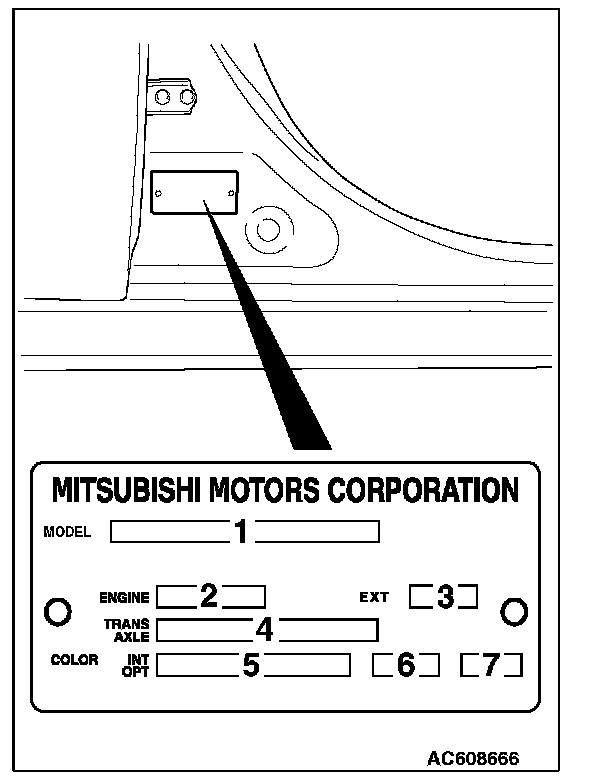

VEHICLE IDENTIFICATION CODE PLATE
The vehicle information code plate is riveted to the face of the passengers door sill.

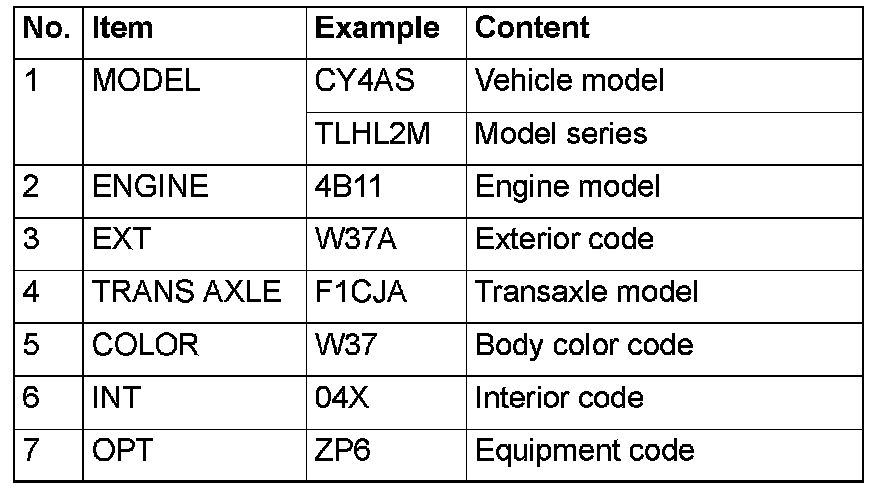

CODE CHART
For monotone color vehicles, the body color code shall be indicated.
TIRE AND LOADING INFORMATION PLACARD

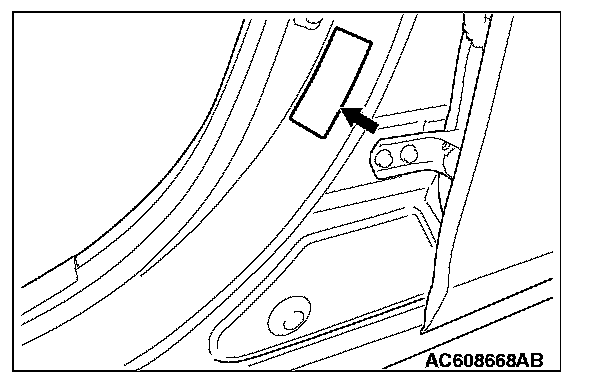

The tire and loading information placard is located on the inside sill of the drivers door.

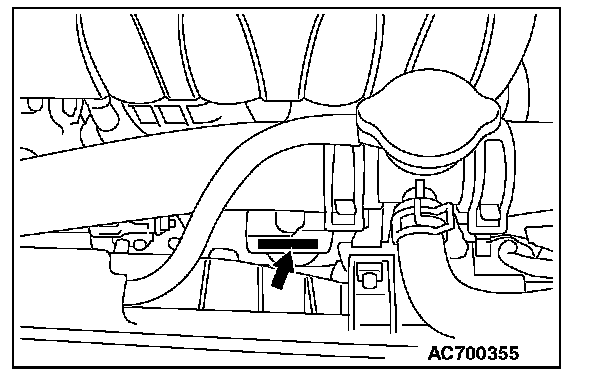

ENGINE MODEL STAMPING
The engine model is stamped on the cylinder block.

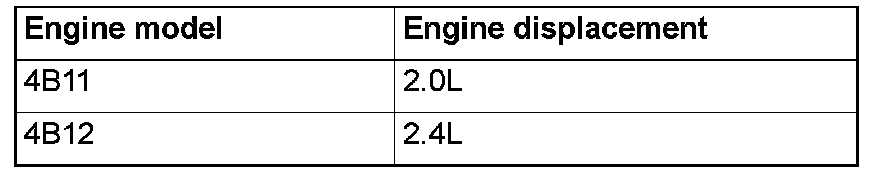

These engine model numbers are as shown as follows.
The engine serial number is stamped near the engine model number.
