Headlamp Switch: Testing and Inspection
INSPECTION

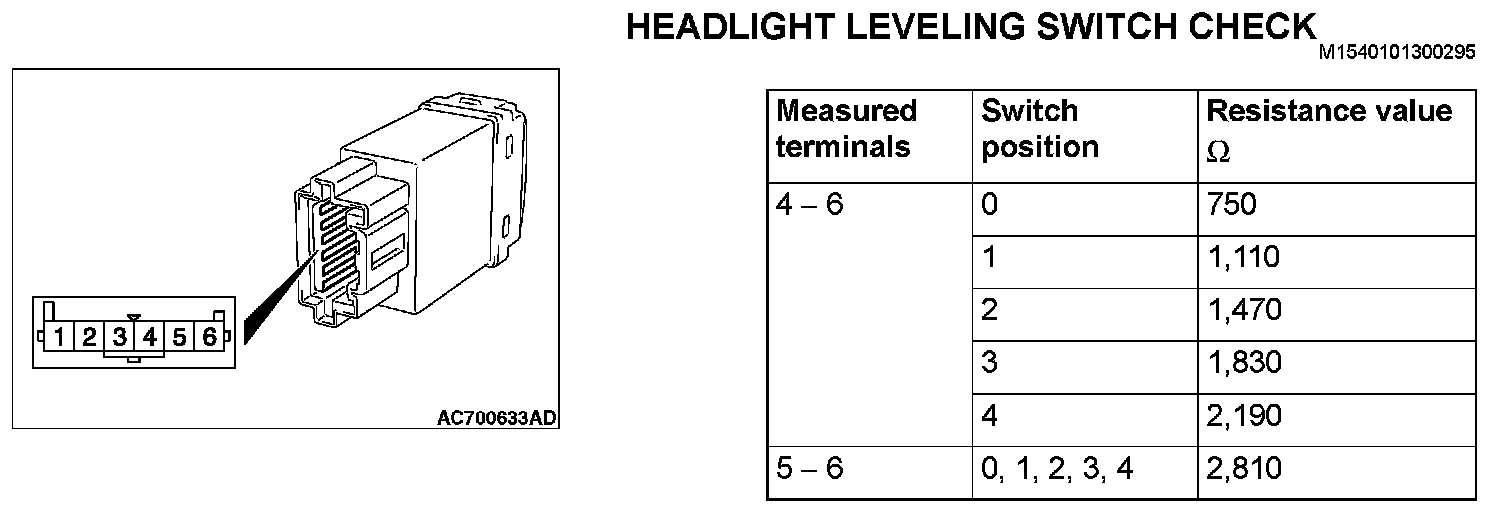

HEADLIGHT LEVELING SWITCH CHECK
Headlight Leveling Switch Check:
