Air Flow Meter/Sensor: Service and Repair

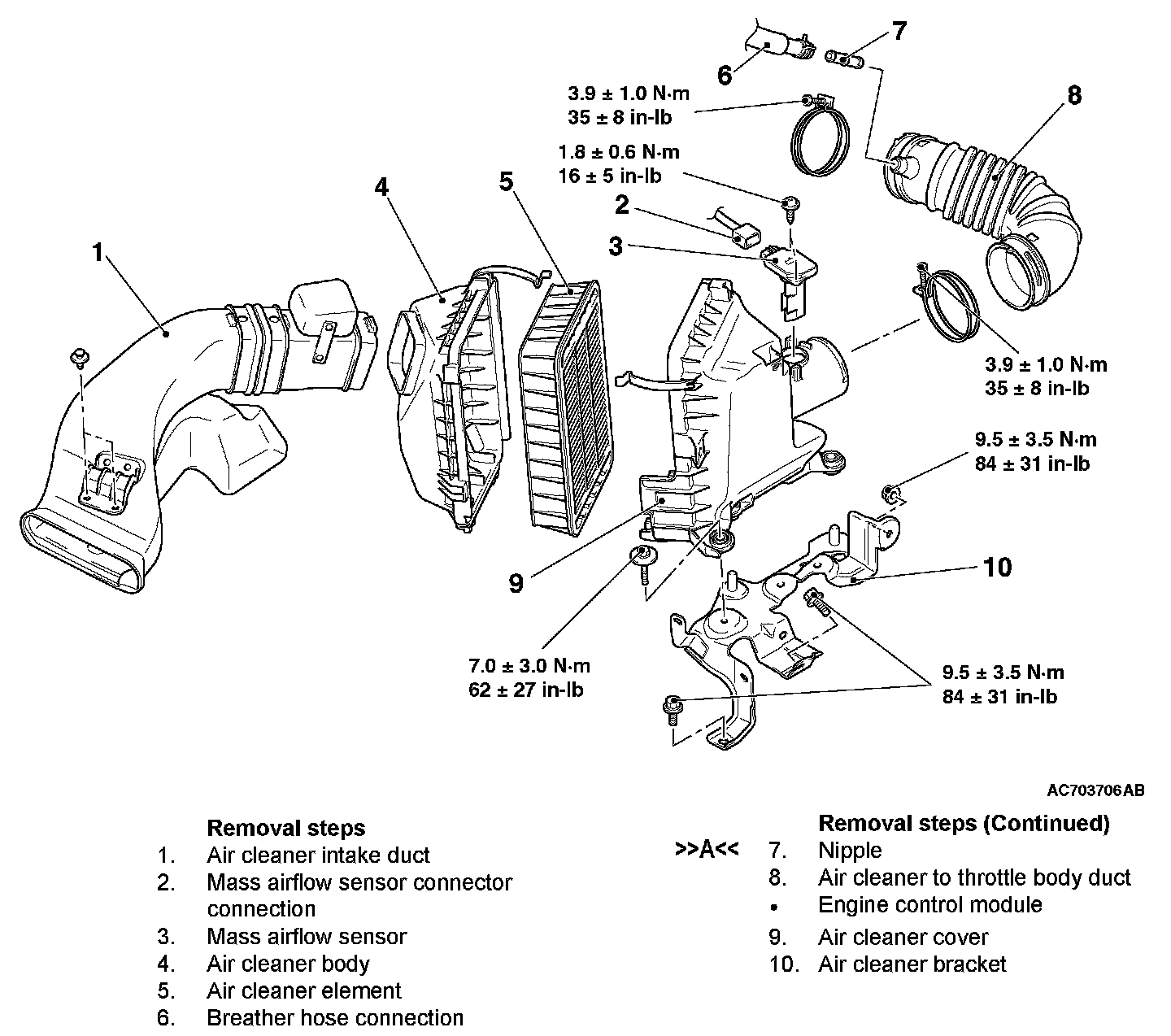

AIR CLEANERREMOVAL AND INSTALLATION [3.0L ENGINE]
Removal Steps 1-10:
INSTALLATION SERVICE POINT
]]A[[ NIPPLE INSTALLATION
CAUTION: Securely install the nipple to the air cleaner to throttle body duct.
REMOVAL AND INSTALLATION [3.0L ENGINE]
INSTALLATION SERVICE POINT
]]A[[ NIPPLE INSTALLATION
CAUTION: Securely install the nipple to the air cleaner to throttle body duct.
