System Specifications

Cylinder head

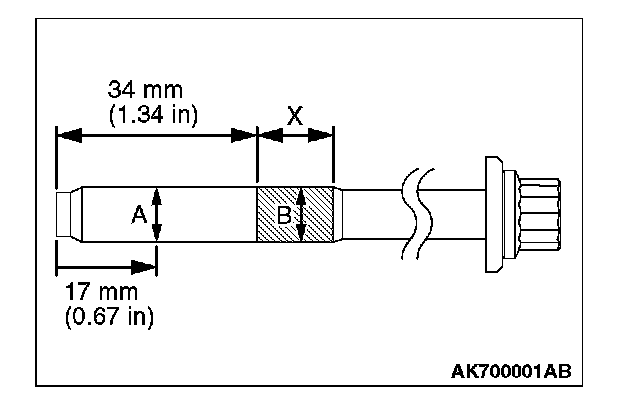

Check in the following procedure before reusing the cylinder head bolt.
Measure the outside diameter "A".
Measure the smallest outside diameter "B" within the range "X" shown in the illustration.
If the difference of outside diameter of thread exceeds the limit, replace the cylinder head bolt.
Limit 0.1 mm (0.0039 inch)





Tighten the bolts in two or three cycles
1st 45 ± 2 Nm (33 ± 1 ft-lb)
2nd 150 to 154 degrees

Cylinder head flatness of gasket surface mm (in)
Standard value Less than 0.03 (0.0012)
Limit 0.05 (0.002)
Cylinder head grinding limit of gasket surface mm (in) (Total resurfacing depth of cylinder head and cylinder block)
Limit 0.15 (0.006)
Cylinder head overall height mm (in)
Standard value 120 (4.7)

Intake manifold plenum 22 ± 1 Nm (16 ± 1 ft lb)

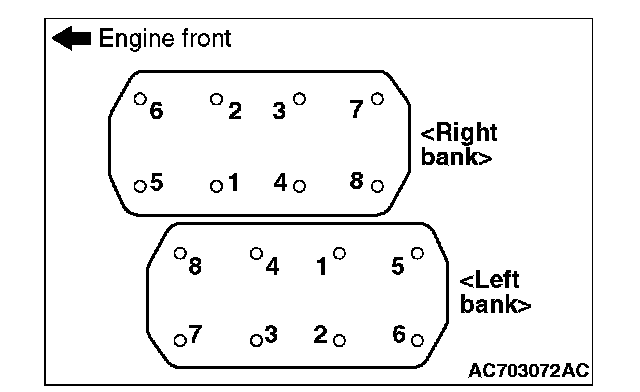

Intake manifold





1. Tighten left bank 6.5 ± 1.5 Nm (58 ± 13 in-lb).
2. Tighten right bank 22 ± 1 Nm (16 ± 1 ft-lb)
3. Tighten left bank 22 ± 1 Nm (16 ± 1 ft-lb)
4. Tighten right bank and left bank again in that order 22 ± 1 Nm (16 ± 1 ft-lb)

Camshaft sprocket 90 ± 10 Nm (67 ± 7 ft lb)

Exhaust manifold 49 ± 5 Nm (36 ± 3 ft lb)
