Programming and Relearning

ETACS CUSTOMIZATION FUNCTION

The following ETACS functions can be customized by selecting "Equipment" on the "Settings" screen of the multivision display.

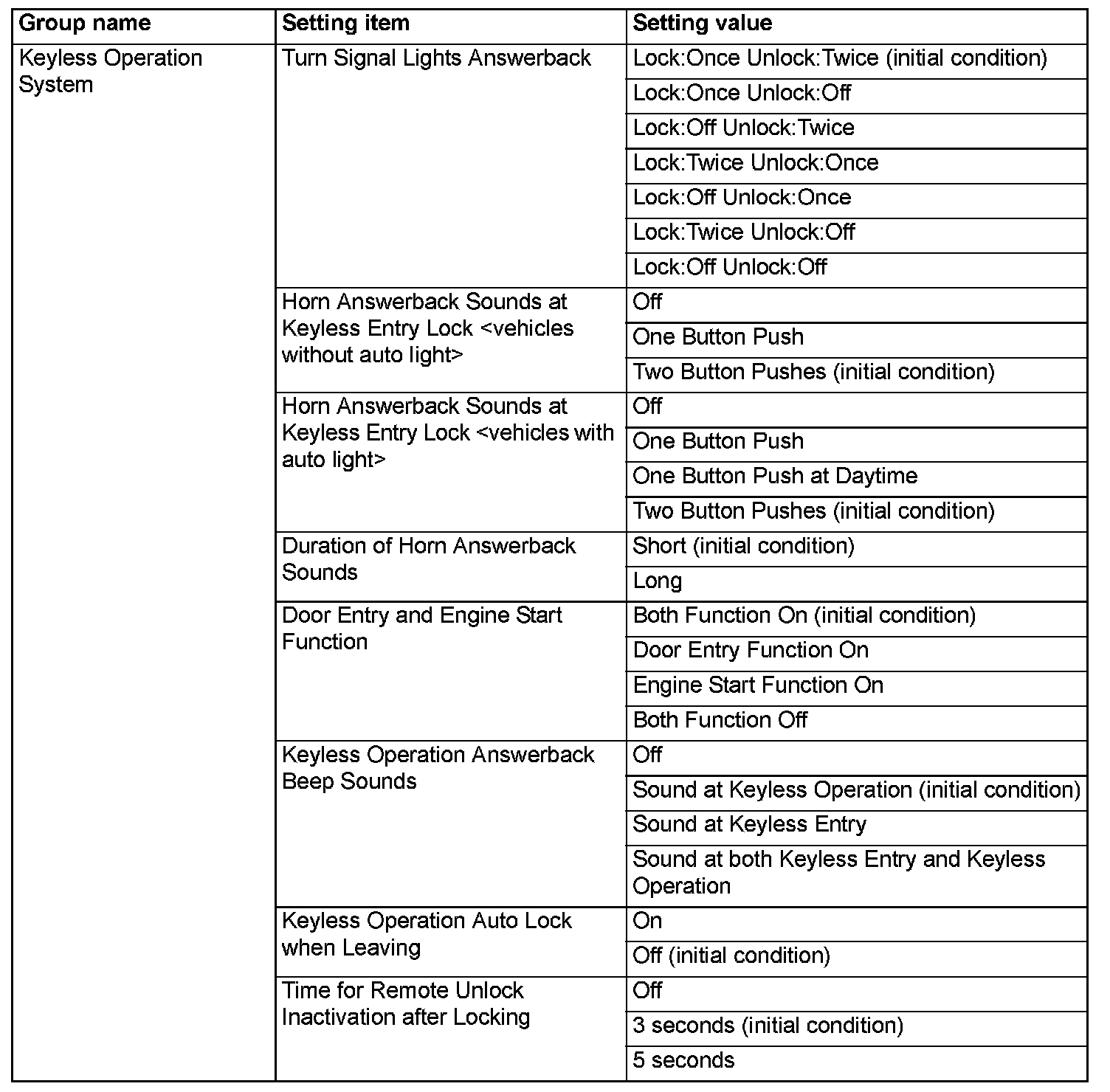

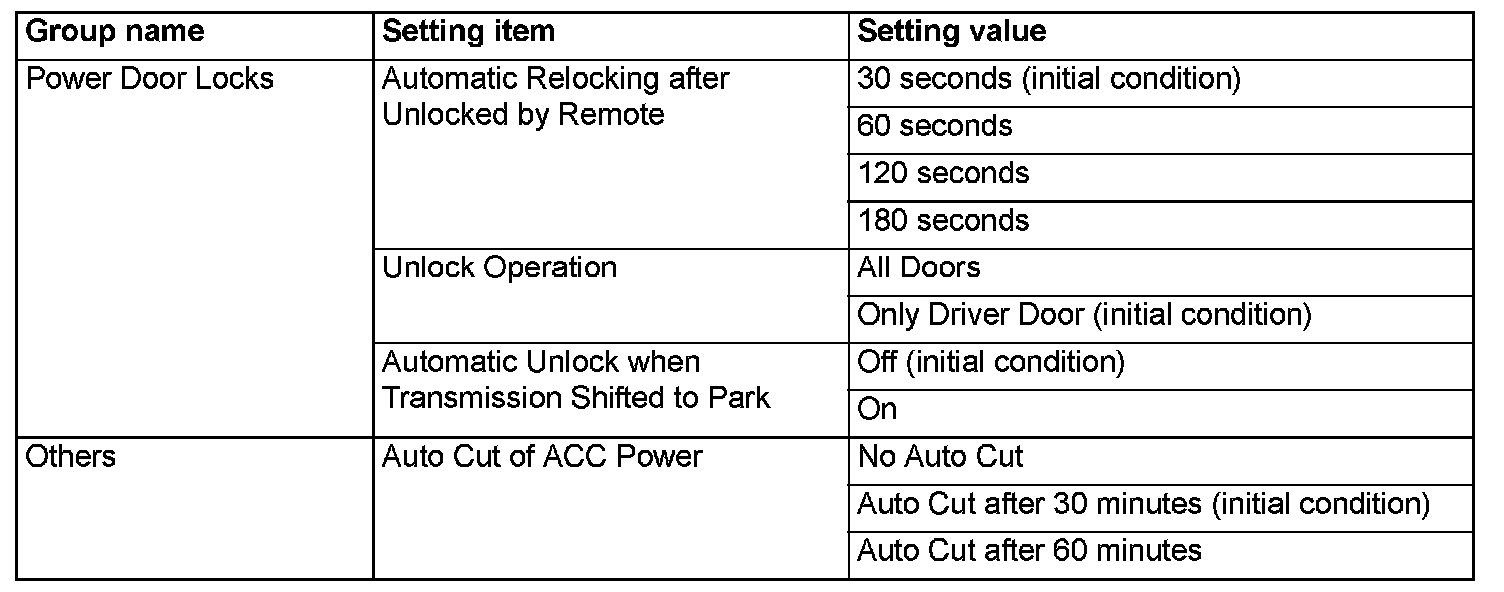

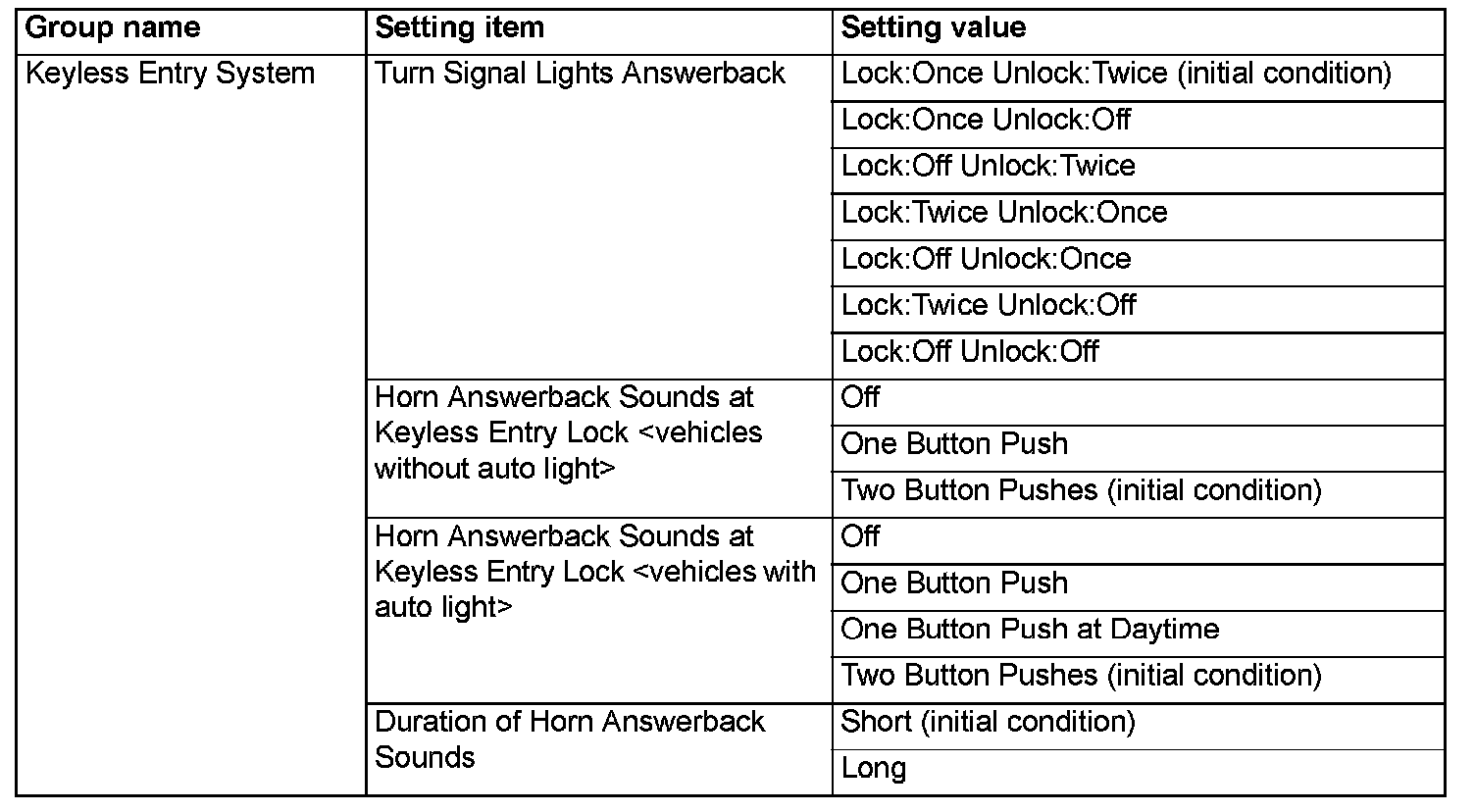

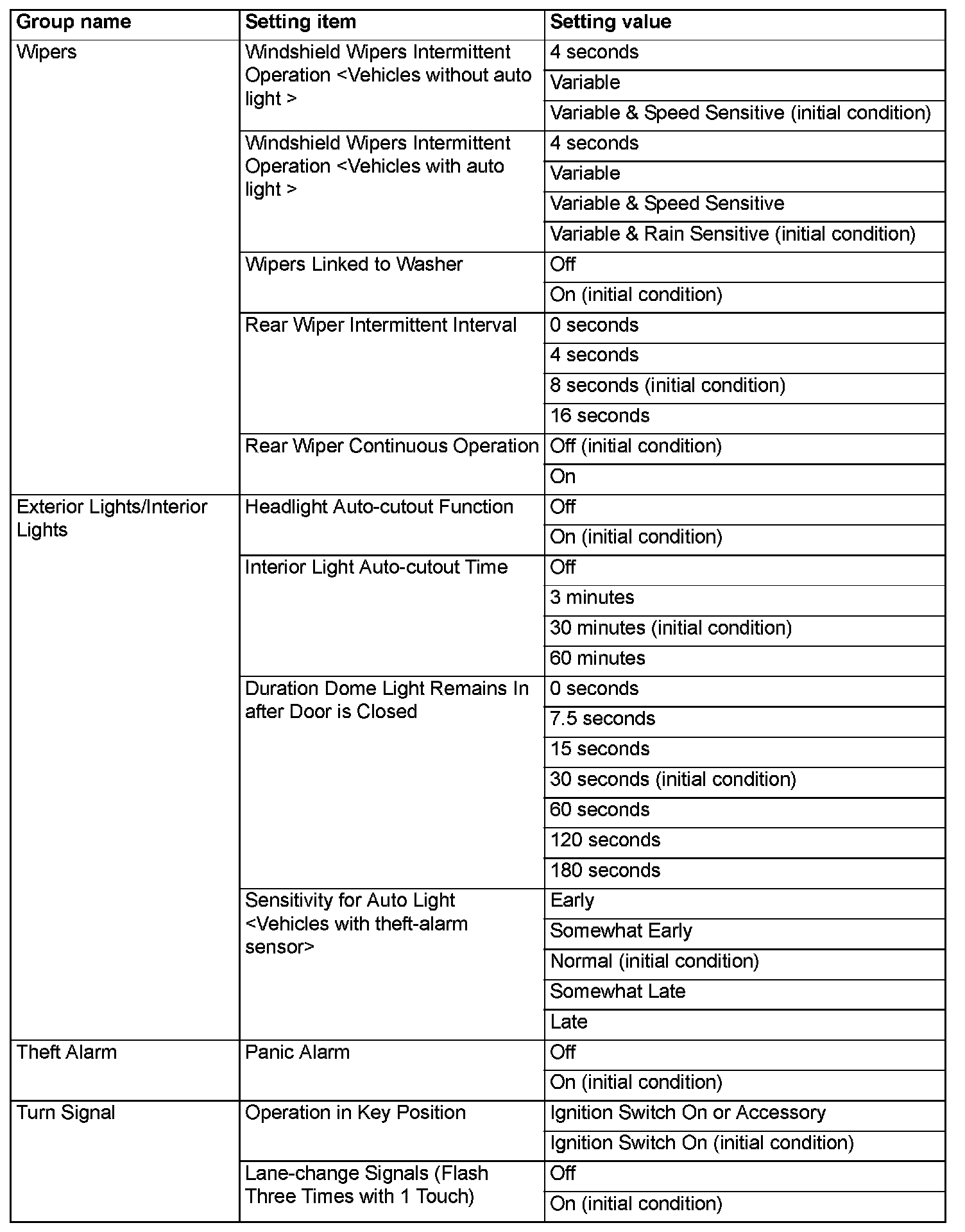

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:




Part 6:




Part 7:




Part 8:




Part 9:




Part 10:




Part 11:






NOTE:
- If the setting of "Wipers Linked to Washer" is changed, it cannot be reset to the initial value by the multivision display.
- Some items (e.g. "Coming home light", "Welcome light") cannot be set by the multivision display.
