Repair and Diagnosis: Application and ID
VEHICLE IDENTIFICATIONVEHICLE IDENTIFICATION NUMBER PLATE

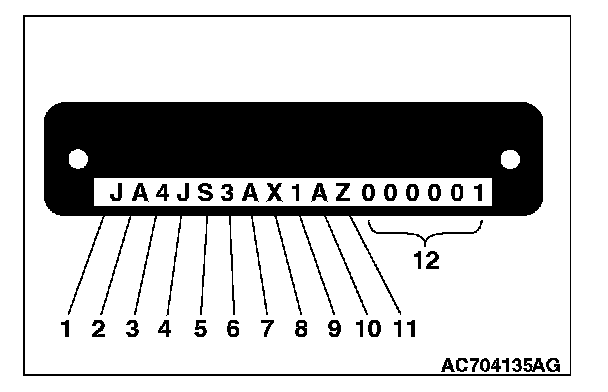

VEHICLES IDENTIFICATION NUMBER LOCATION

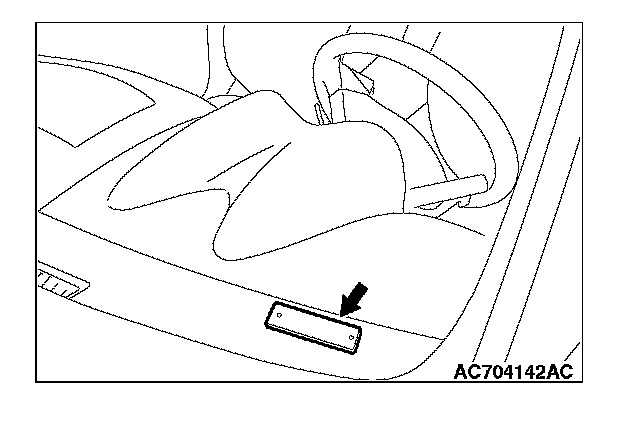

The vehicle identification number (VIN) plate is located on a plate attached to the left top side of the instrument panel.

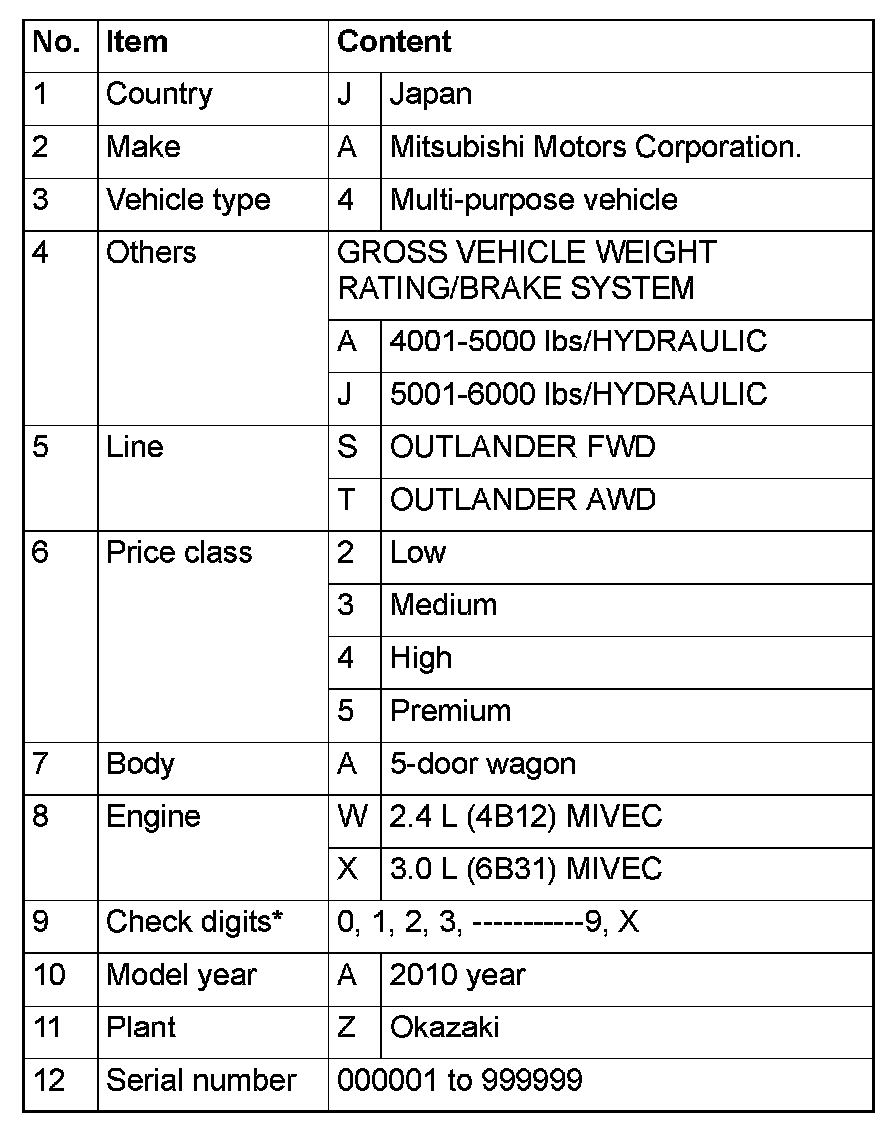

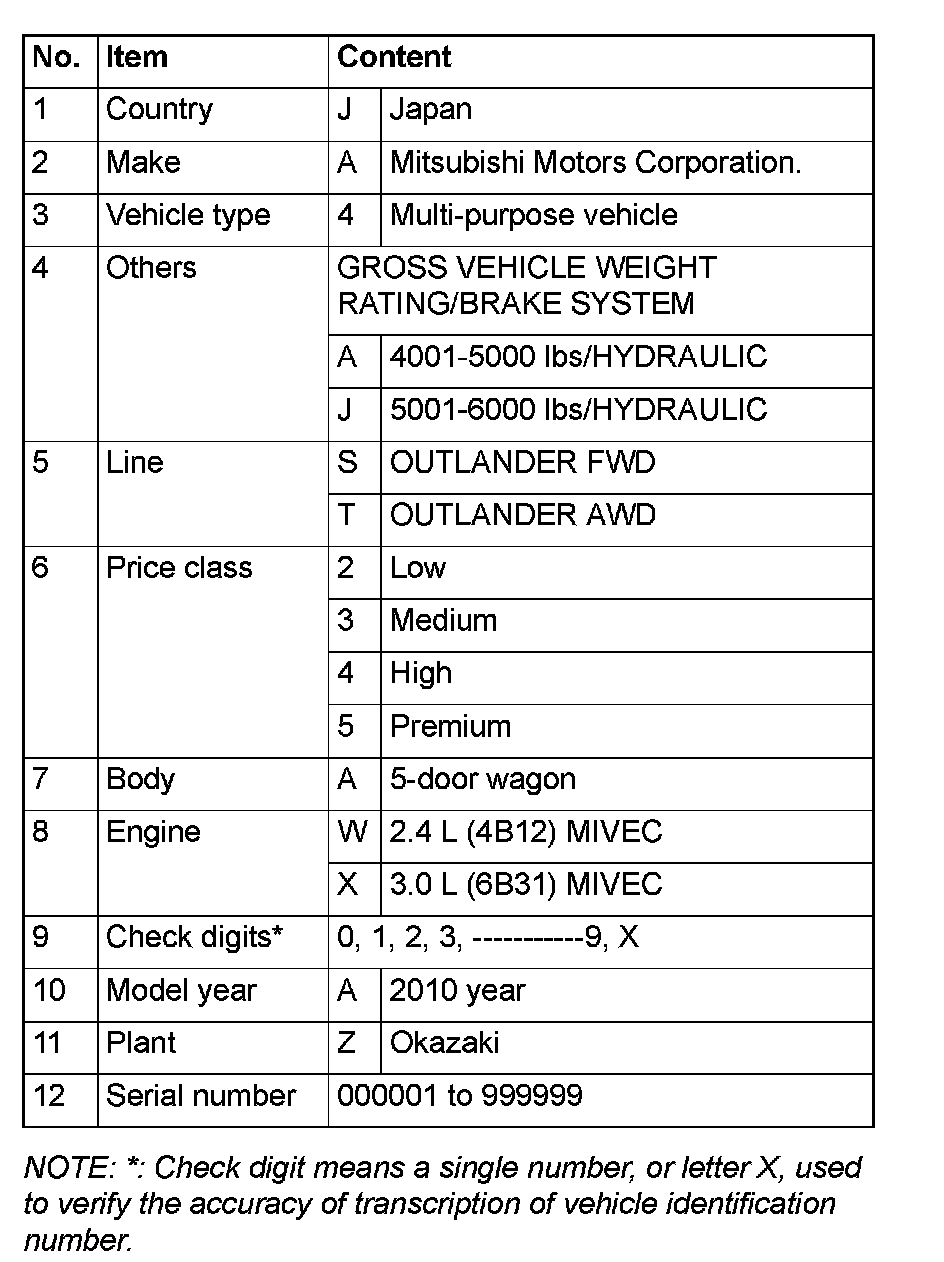

CODE CHART

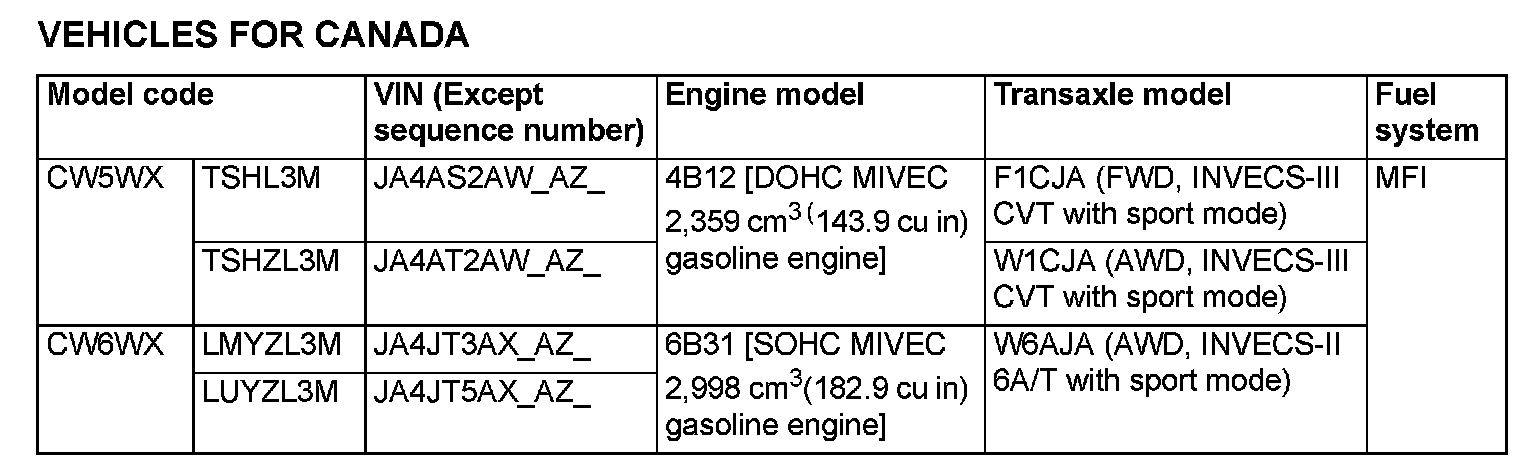

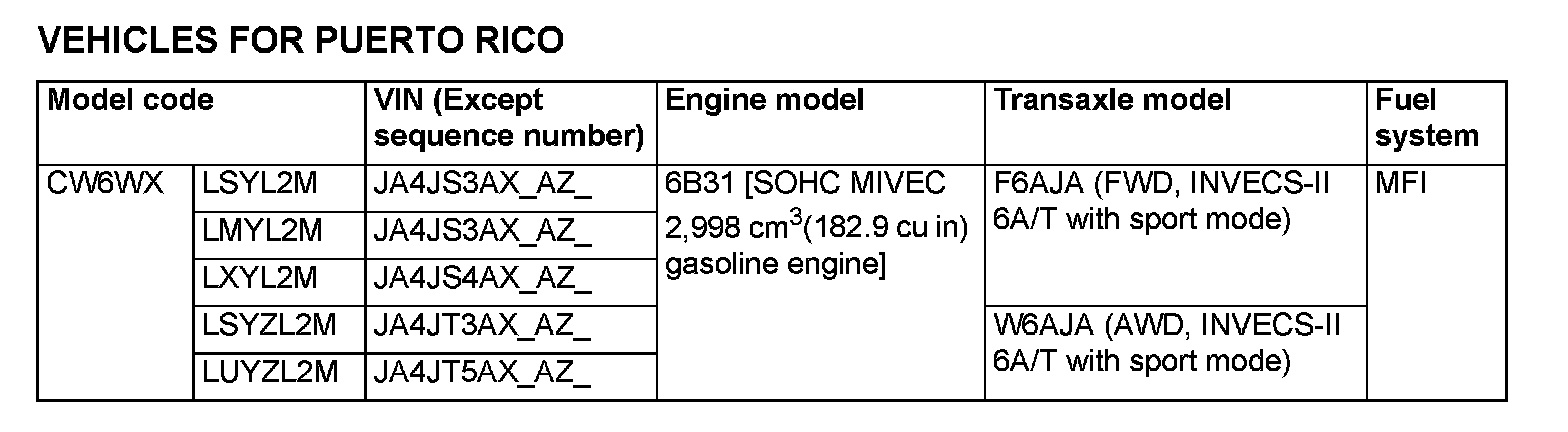

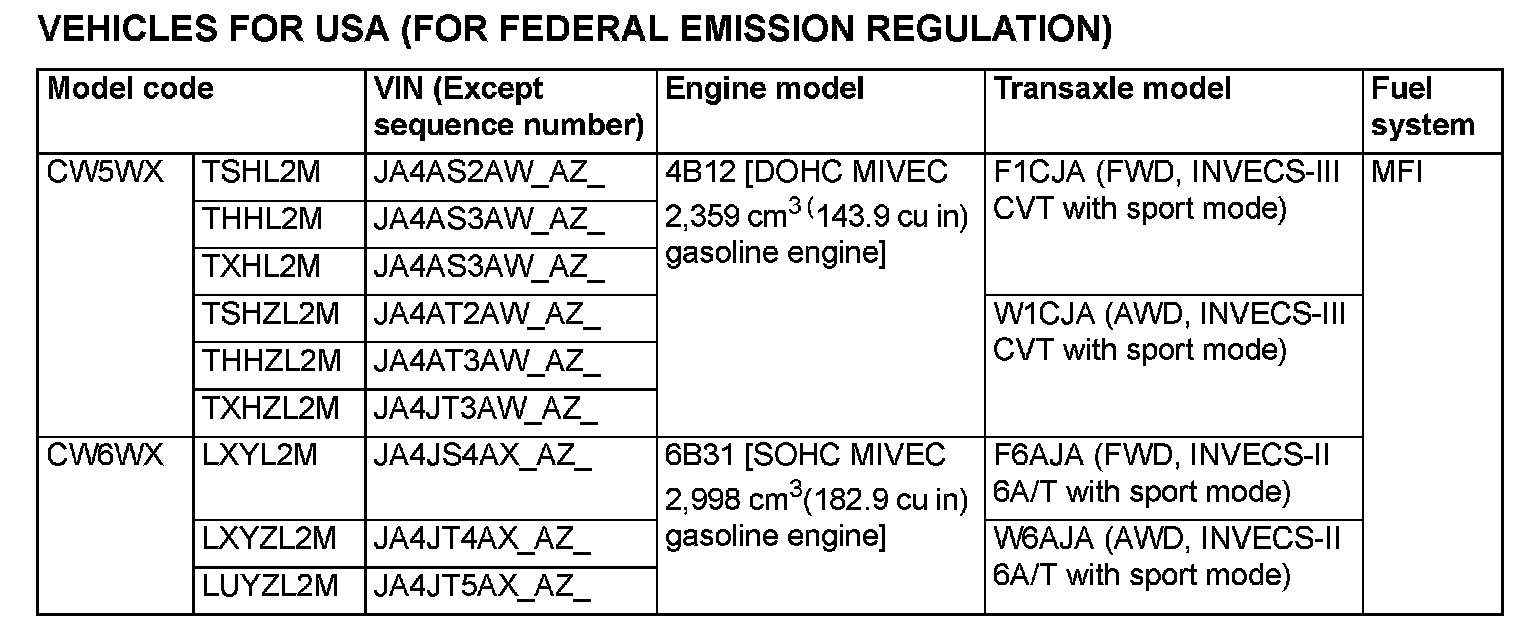

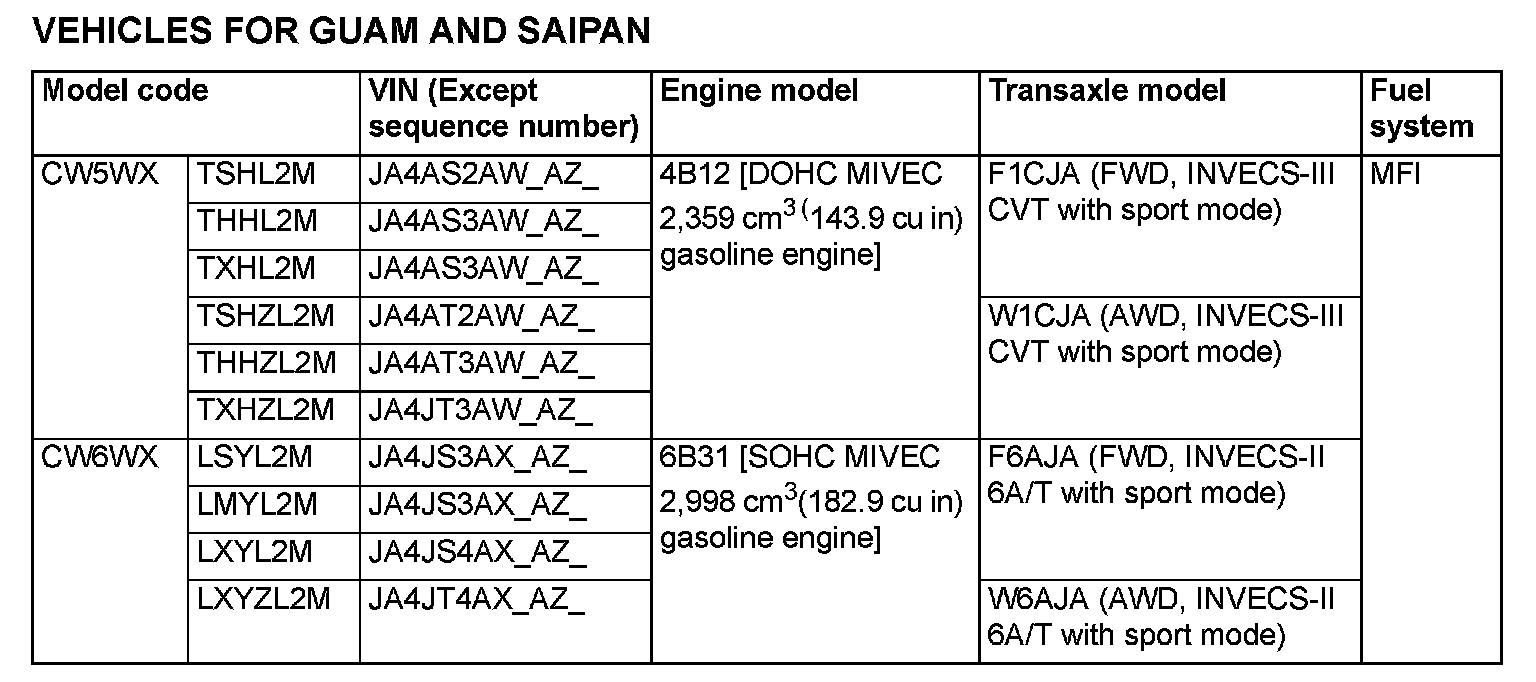

VEHICLE IDENTIFICATION NUMBER LIST
VEHICLE IDENTIFICATION NUMBER (CHASSIS NUMBER)

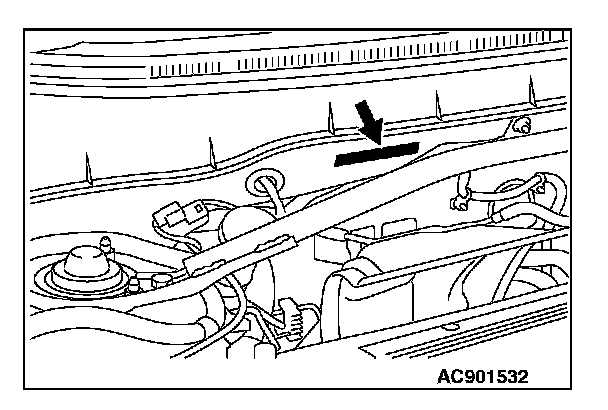

The vehicle identification number (chassis number) is stamped on the toeboard inside the engine compartment.

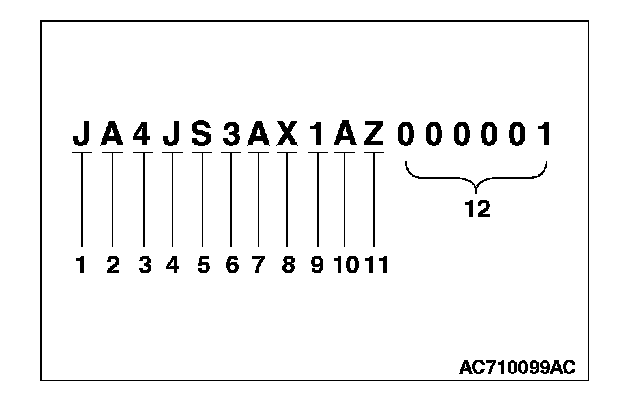

CODE CHART
VEHICLE IDENTIFICATION CODE PLATE

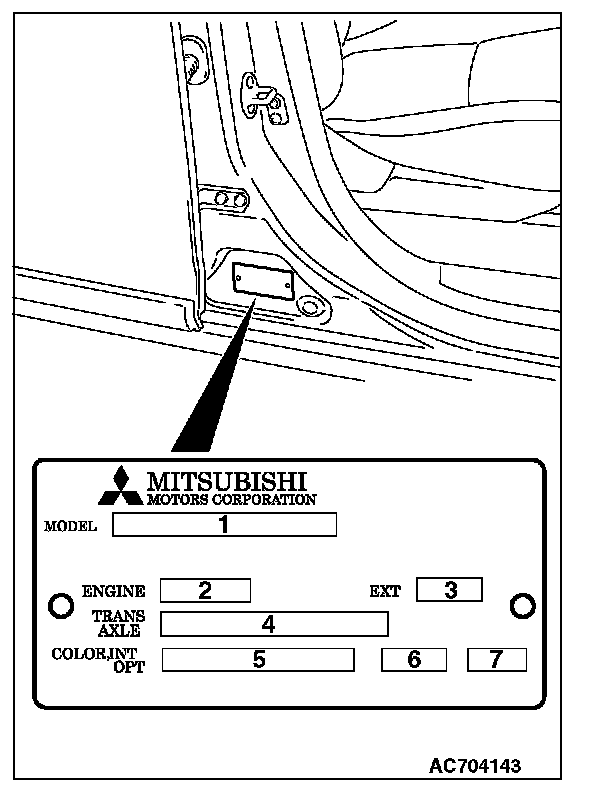

The vehicle information code plate is riveted to the face of the passenger's door sill.
CODE CHART
For monotone color vehicles, the body color code shall be indicated.
TIRE AND LOADING INFORMATION PLACARD

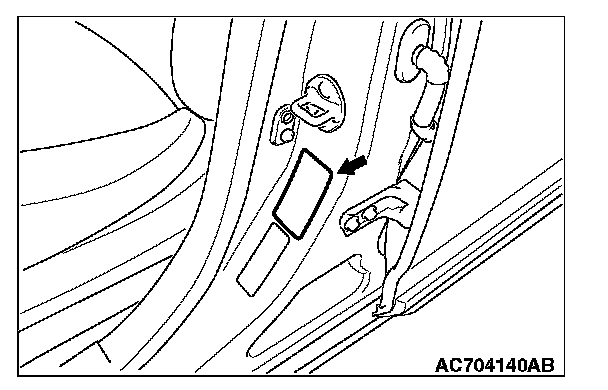

The tire and loading information placard is located on the inside sill of the driver's door.

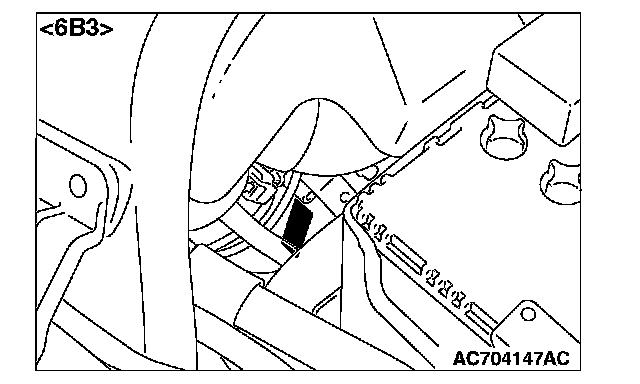

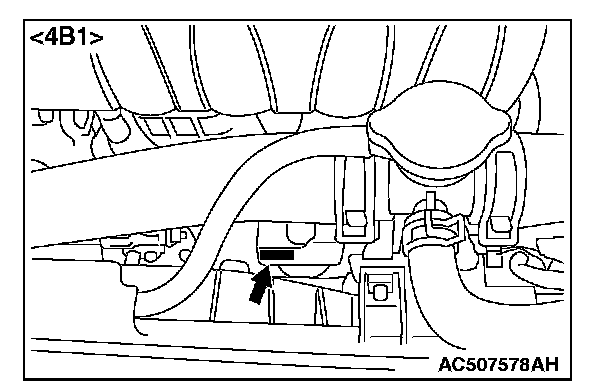

ENGINE MODEL STAMPING
The engine model is stamped on the cylinder block.
These engine model numbers are as shown as follows.
The engine serial number is stamped near the engine model number.

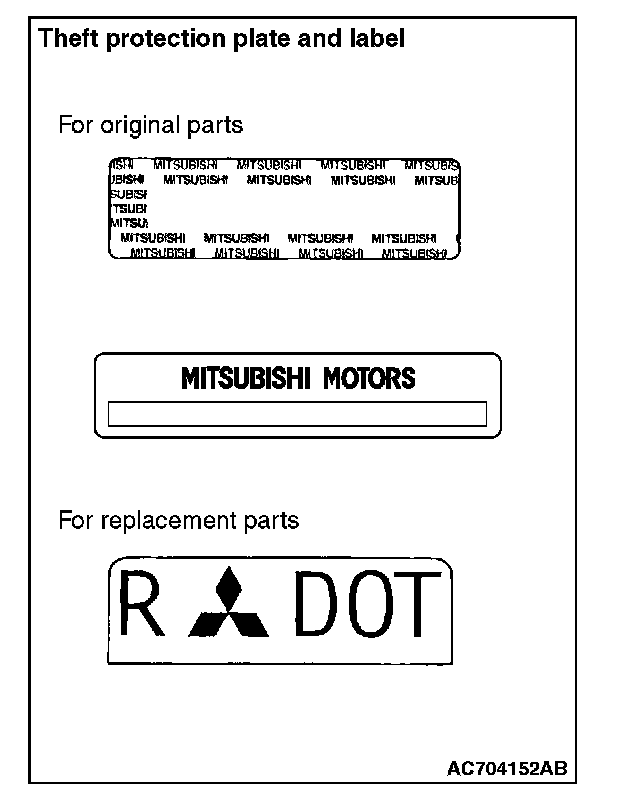

THEFT PROTECTION LABEL [VEHICLES FOR USA]
CAUTION
When replacing a part that has the theft protection plate, label or stamp on it, be sure that the part has either A or B shown in the figure. It is illegal if both A and B are attached, or neither A nor B is attached.
In order to protect against theft, a Vehicle Identification Number (VIN) is attached as a plate or label to the following major parts of the engine, transaxle and main outer panels: Engine cylinder block, Transaxle housing, Front fender, bumpers, Doors, Center pillar panel outer, Hood, Quarter panel outer, liftgate panel inner lower and liftgate panel inner upper. In addition, a theft protection label is attached to replacement parts for the body outer panel main components, and the same data is stamped into replacement parts for the engine and the transaxle.
CAUTION
Cautions regarding panel repairs:
^ When repainting original parts, do so after first masking the theft-protection label. After painting, be sure to peel off the masking tape.
^ The theft-protection label for replacement parts is covered by masking tape, so such parts can be painted as is. The masking tape should be removed after painting is finished.
^ The theft-protection label should not be removed from original parts or replacement parts.

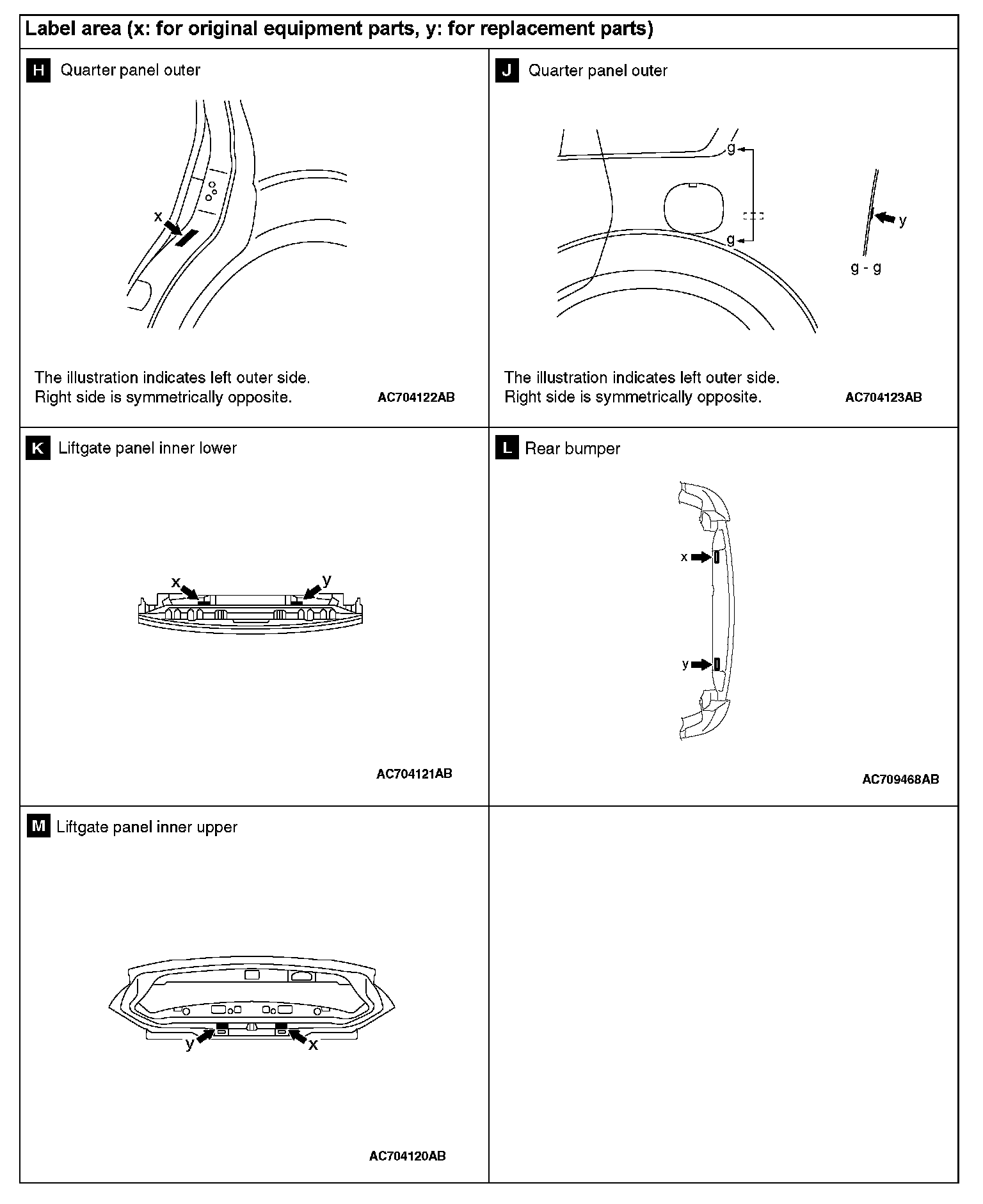

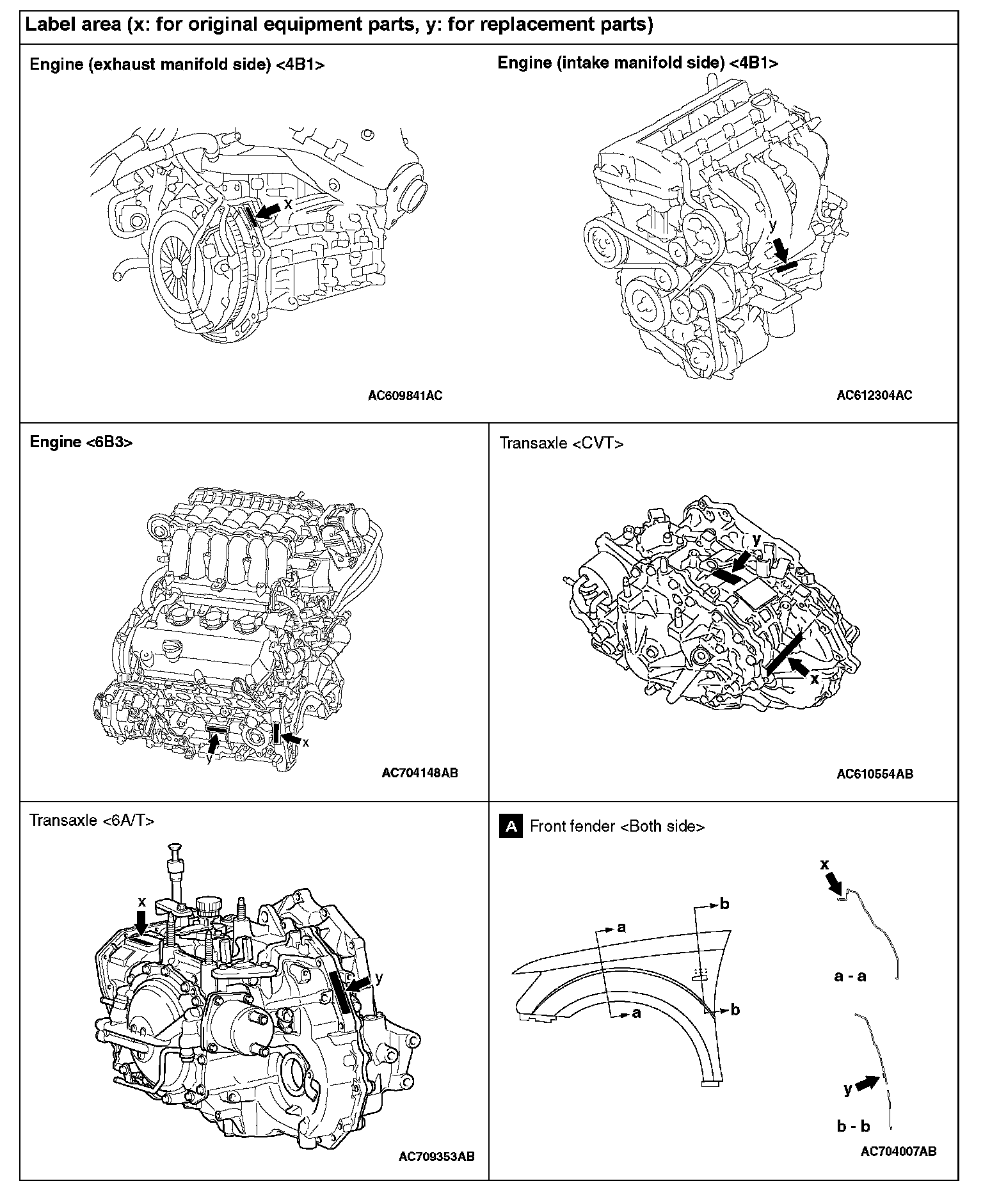

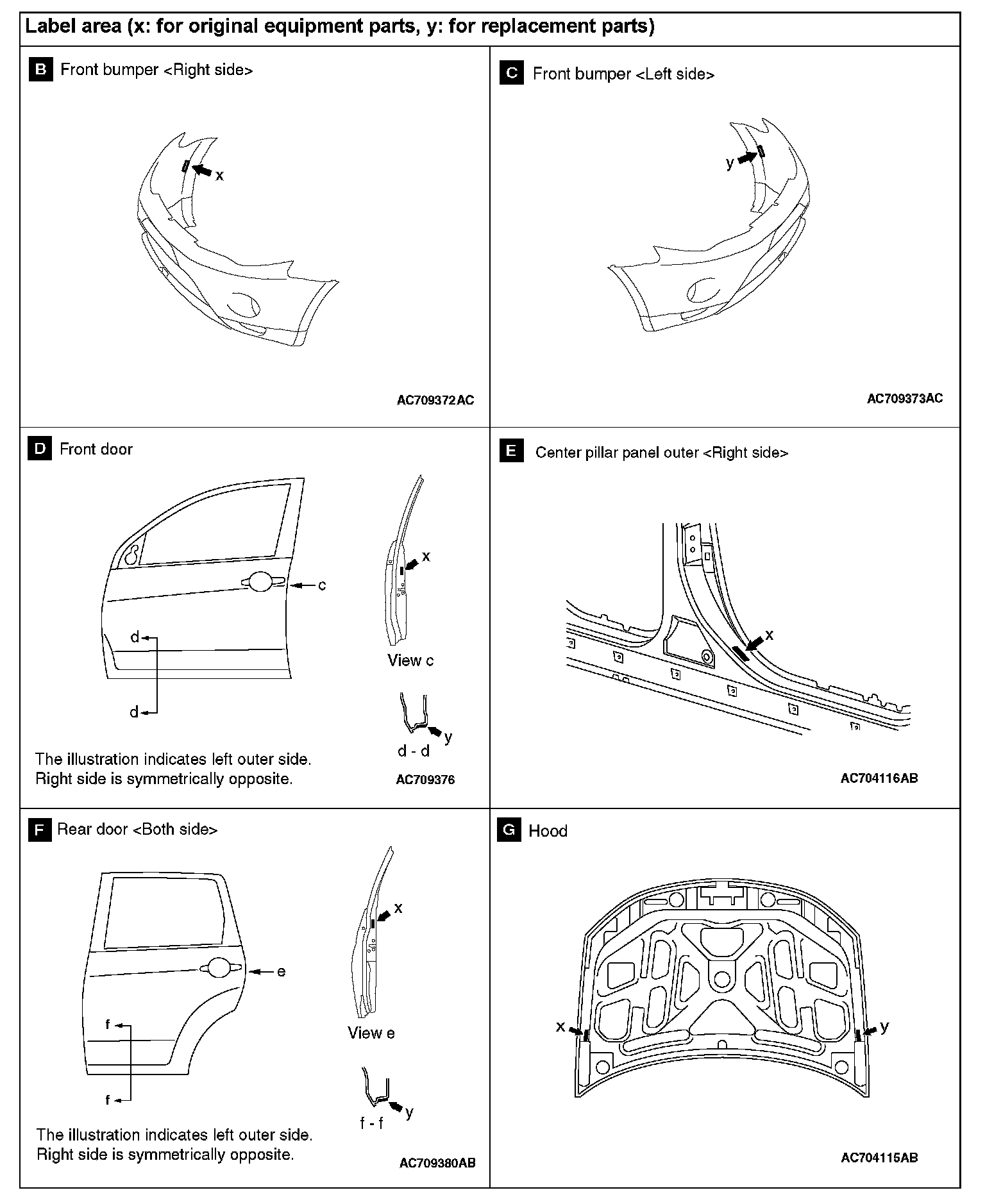

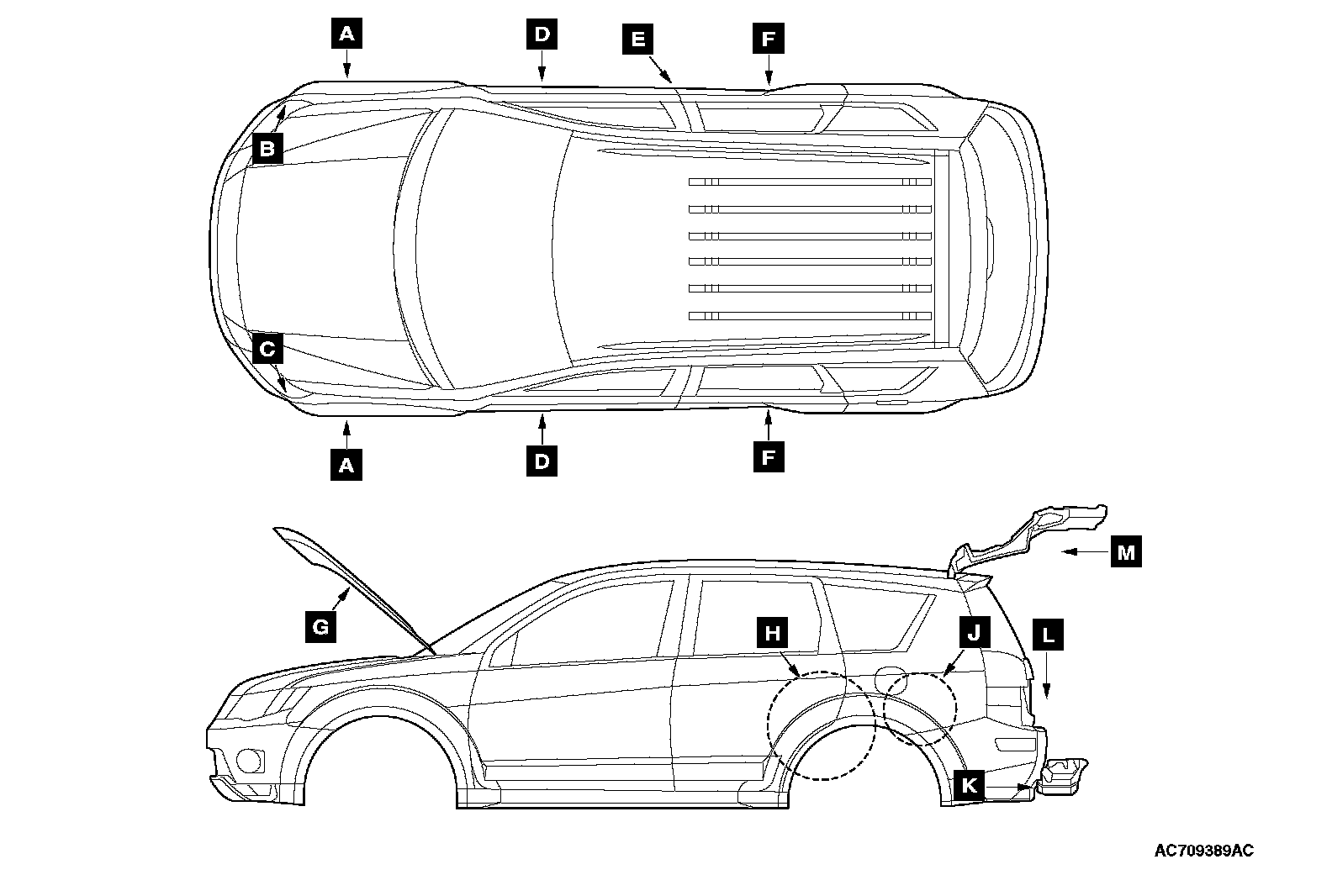

LOCATIONS
