Front Fender: Service and Repair
FENDER
REMOVAL AND INSTALLATION

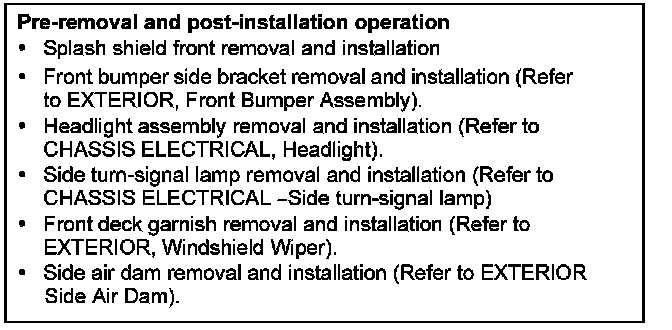

Pre-removal And Post-installation Operation:

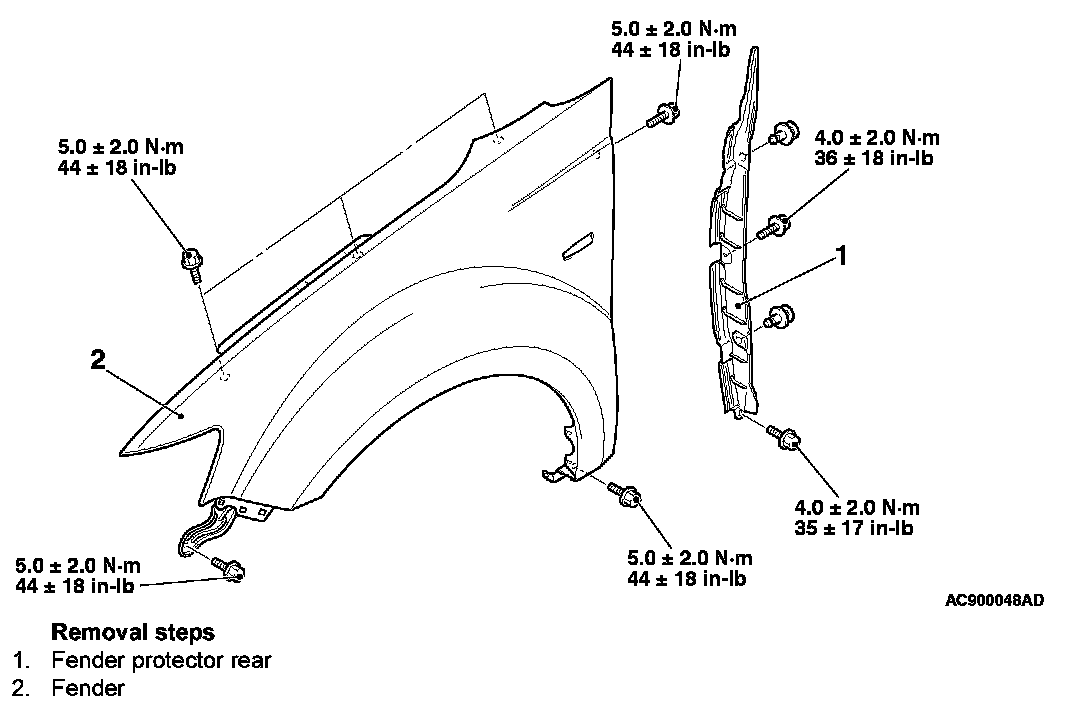

Removal Steps 1-2:
