Rear Subframe: Service and Repair

REAR SUSPENSION CROSSMEMBER

REMOVAL AND INSTALLATION

CAUTION
^ The parts indicated by * are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

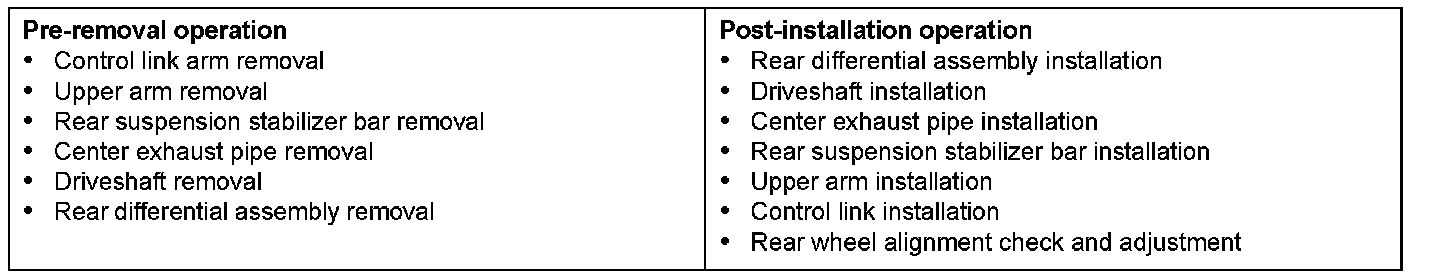

Pre-removal & Post-installation Operation:

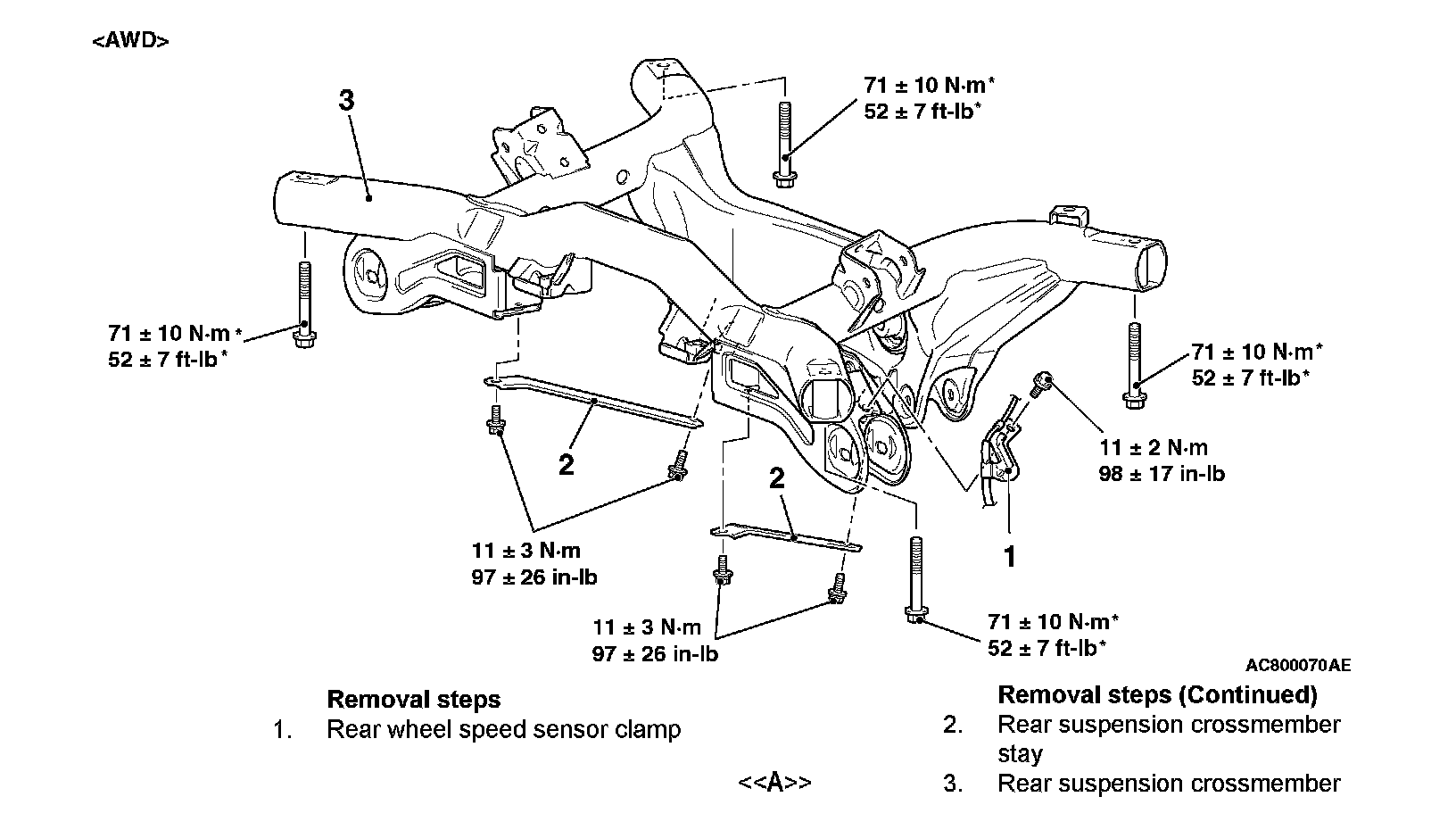

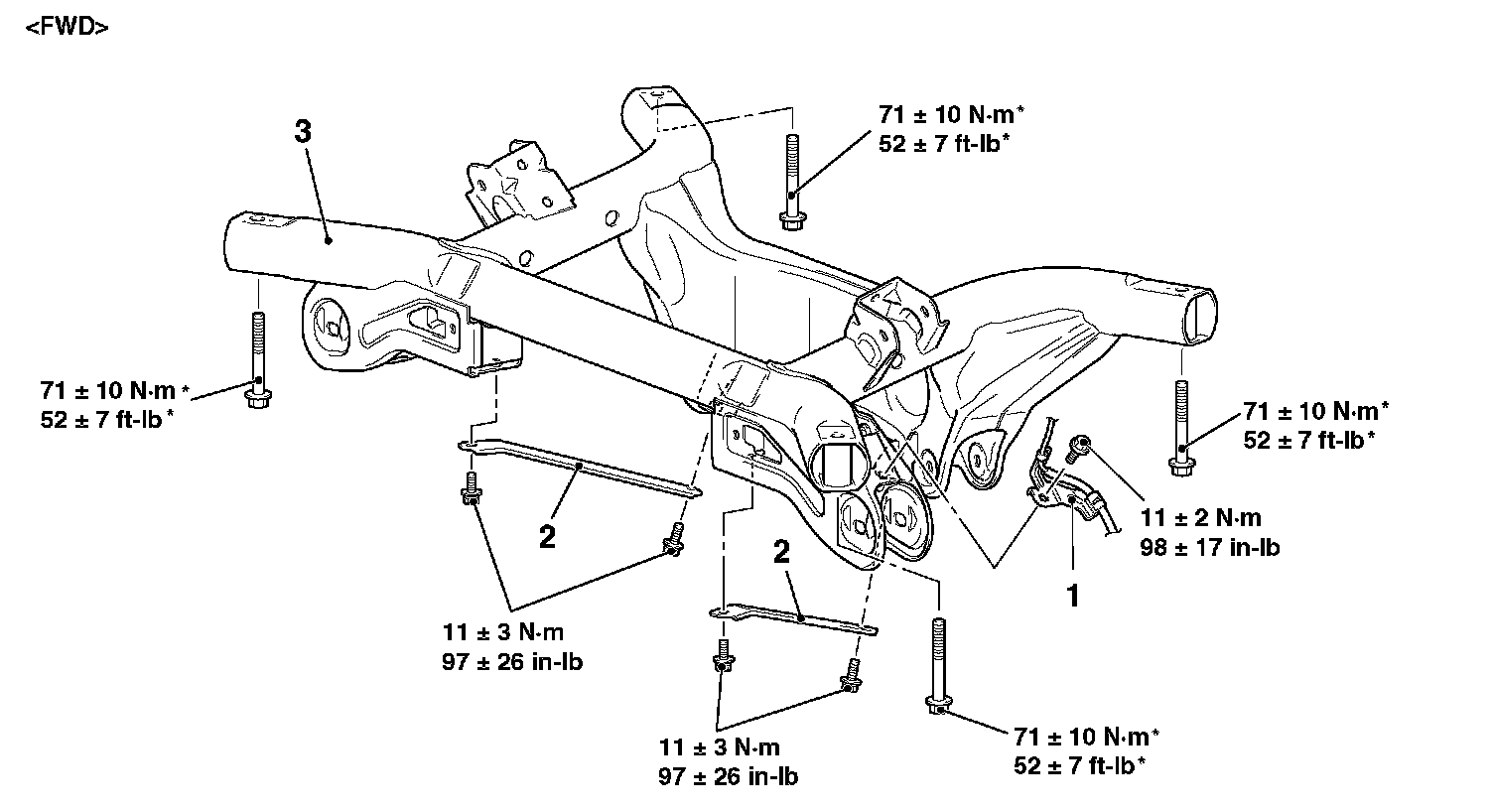

Removal Steps 1-3:

REMOVAL SERVICE POINT

[A] REAR SUSPENSION CROSSMEMBER REMOVAL [2.4 L ENGINE: 5 PERSONS SEAT]

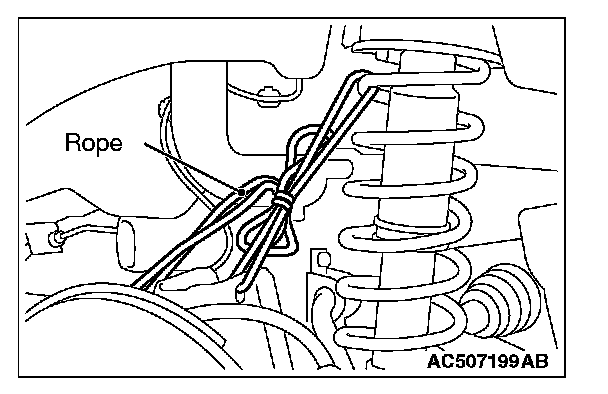

To avoid the break hose load, fix the trailing arm assembly with a rope as shown in the figure.
