Data List Reference Table

DATA LIST REFERENCE TABLE

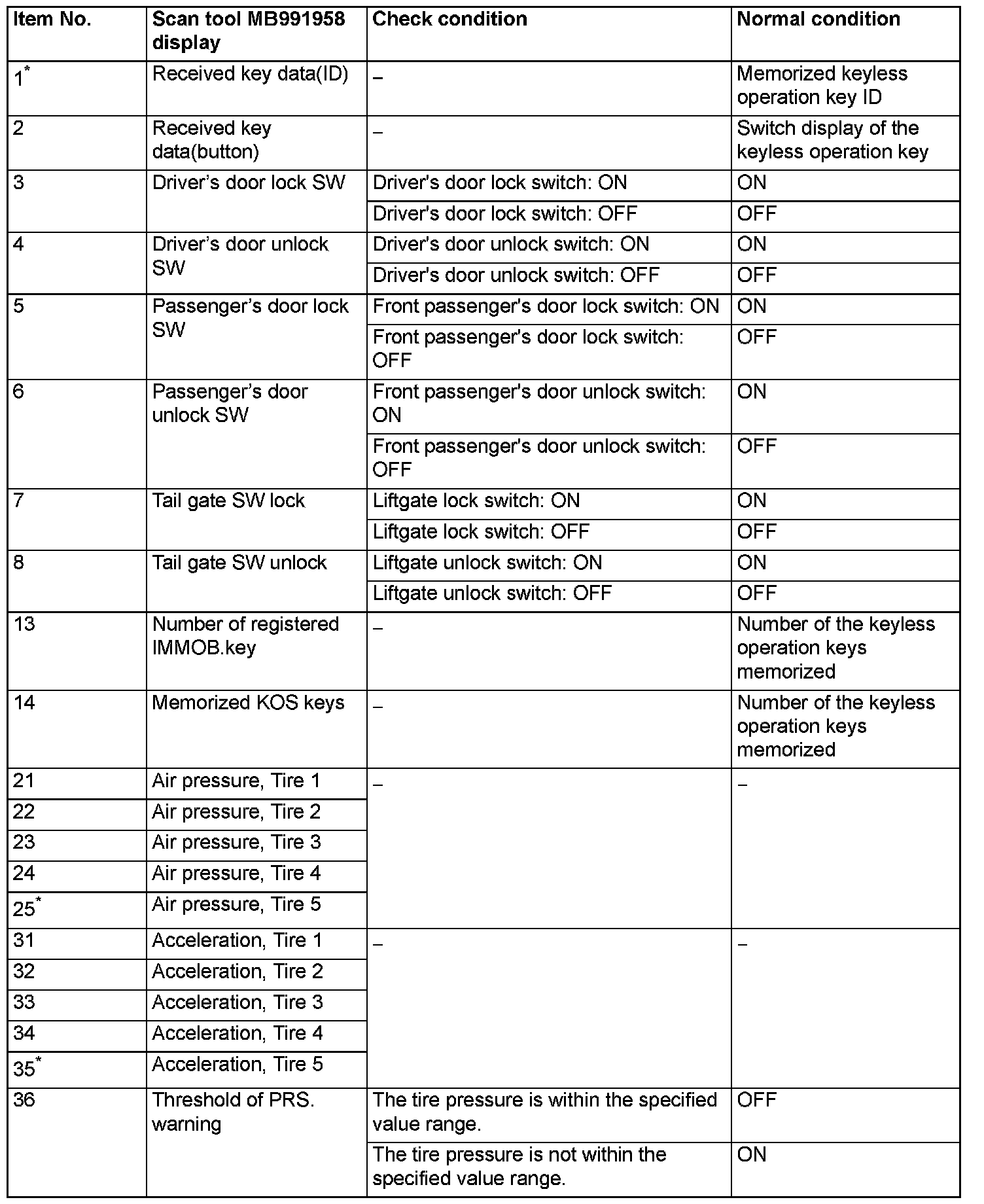

Data List Reference Table (Part 1):

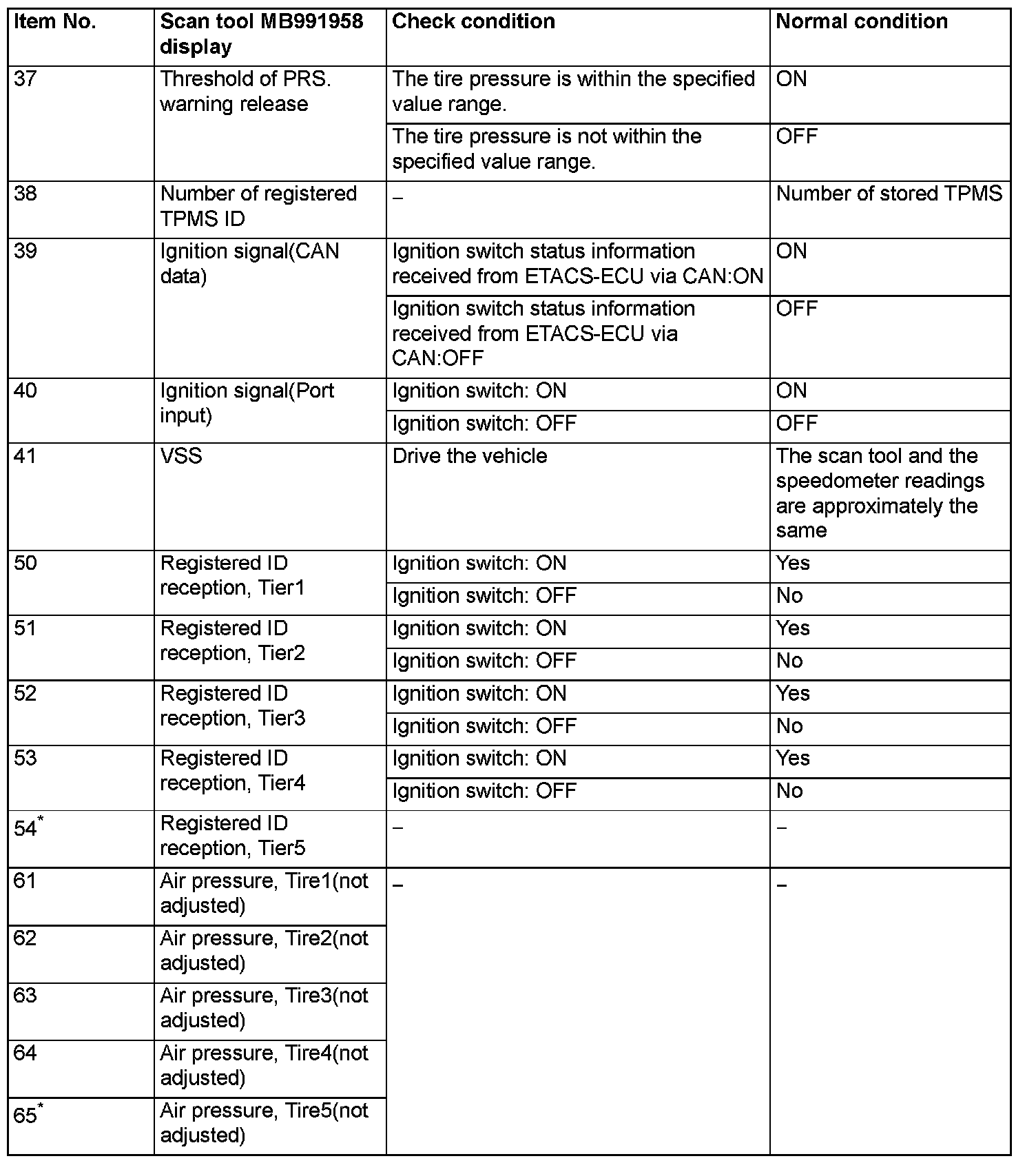

Data List Reference Table (Part 2):






NOTE: * shows that it is displayed but not used.
