Cruise Control Switch Check

CRUISE CONTROL SWITCH CHECK

1. Remove the cruise control switch.

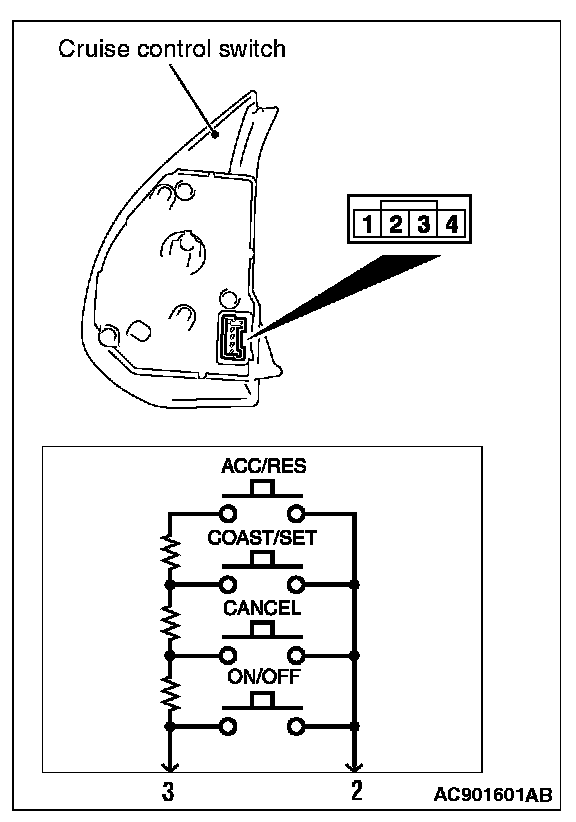

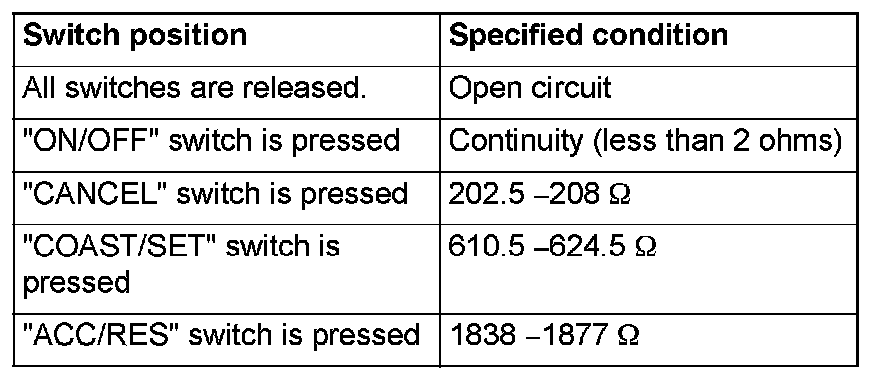

2. Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "ON/OFF" switches is pressed. If values measured at the time each switch is pressed correspond to those in the table below, the resistance values are correct.
