Data List Reference Table
DATA LIST REFERENCE TABLECAUTION:
- Driving tests always need two persons: one driver and one observer.
- When shifting the selector lever to "D" range apply the brakes should be applied so that the vehicle does not move forward.
NOTE: *:After the inspection is completed, Reconnect the throttle position sensor connector, and then delete the diagnostic trouble code using scan tool MB991958 (Refer to Diagnostic Function - How to Read and Erase Diagnostic Trouble Codes) With Manufacturer's Scan Tool [2.4L Engine] or (Refer to Diagnostic Function - How to Read and Erase Diagnostic Trouble Codes) With Manufacturer's Scan Tool [3.0L Engine].

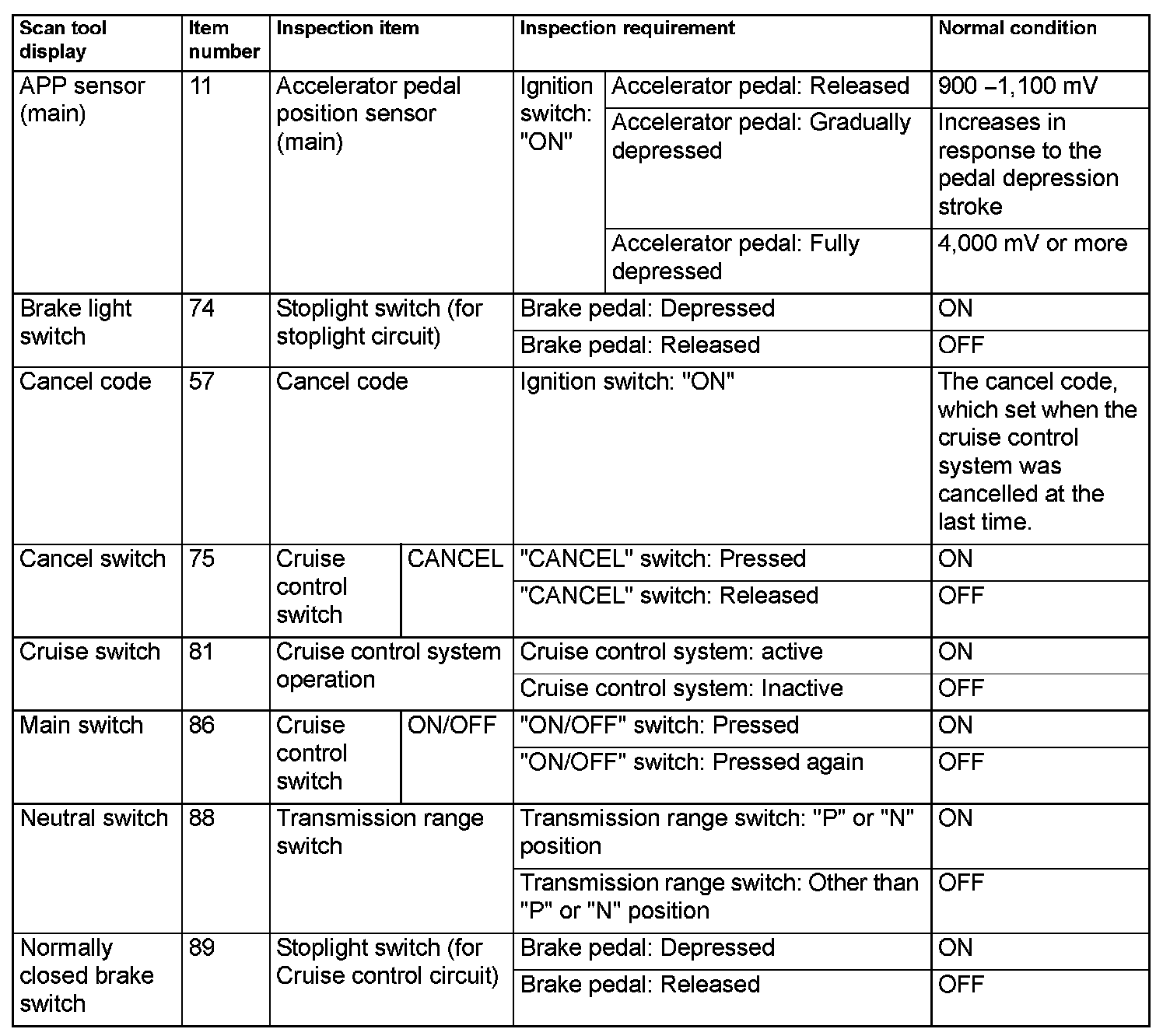

Data List Reference Table (Part 1):

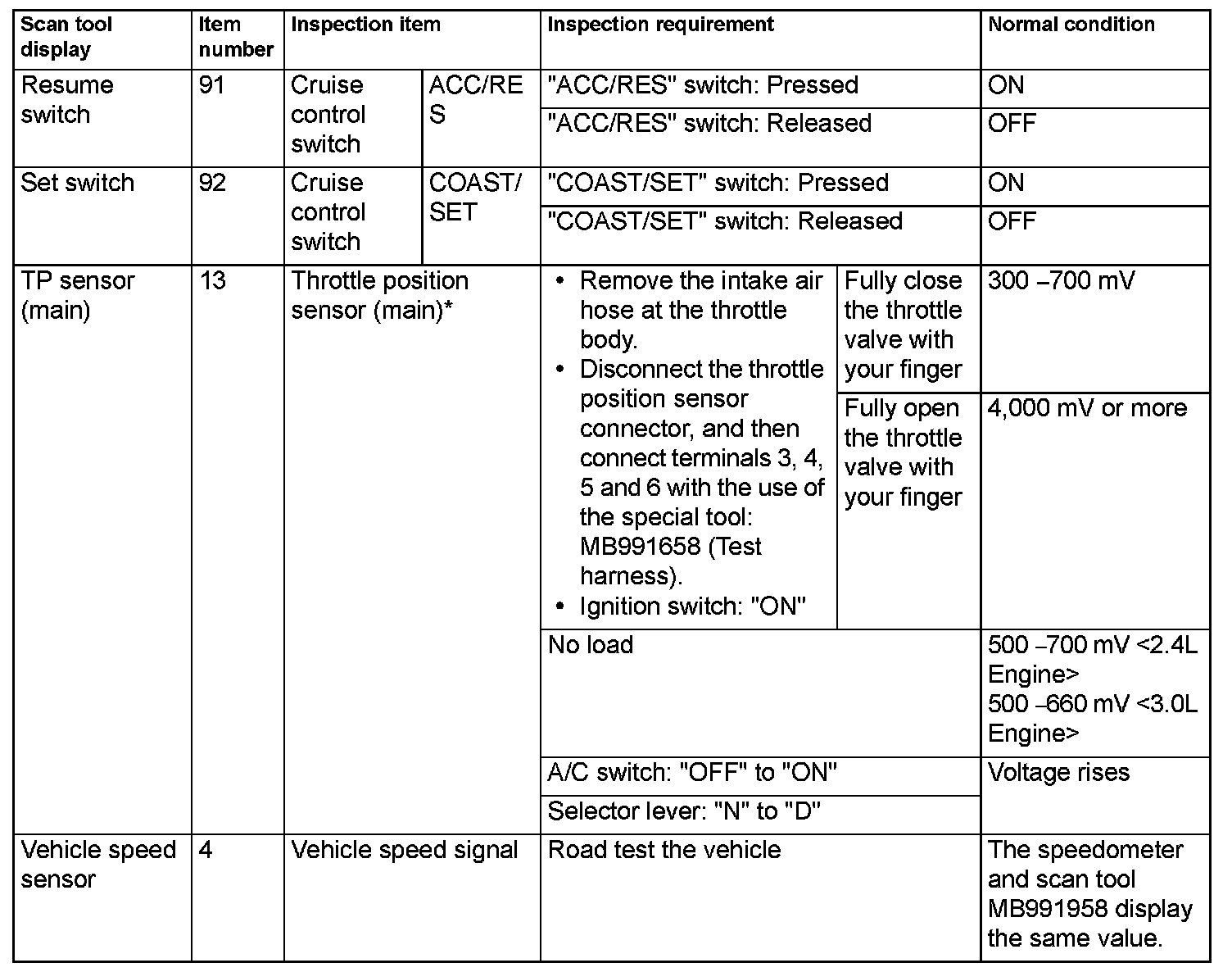

Data List Reference Table (Part 2):
