Automatic Transmission/Transaxle
TRANSAXLEDISASSEMBLY AND ASSEMBLY

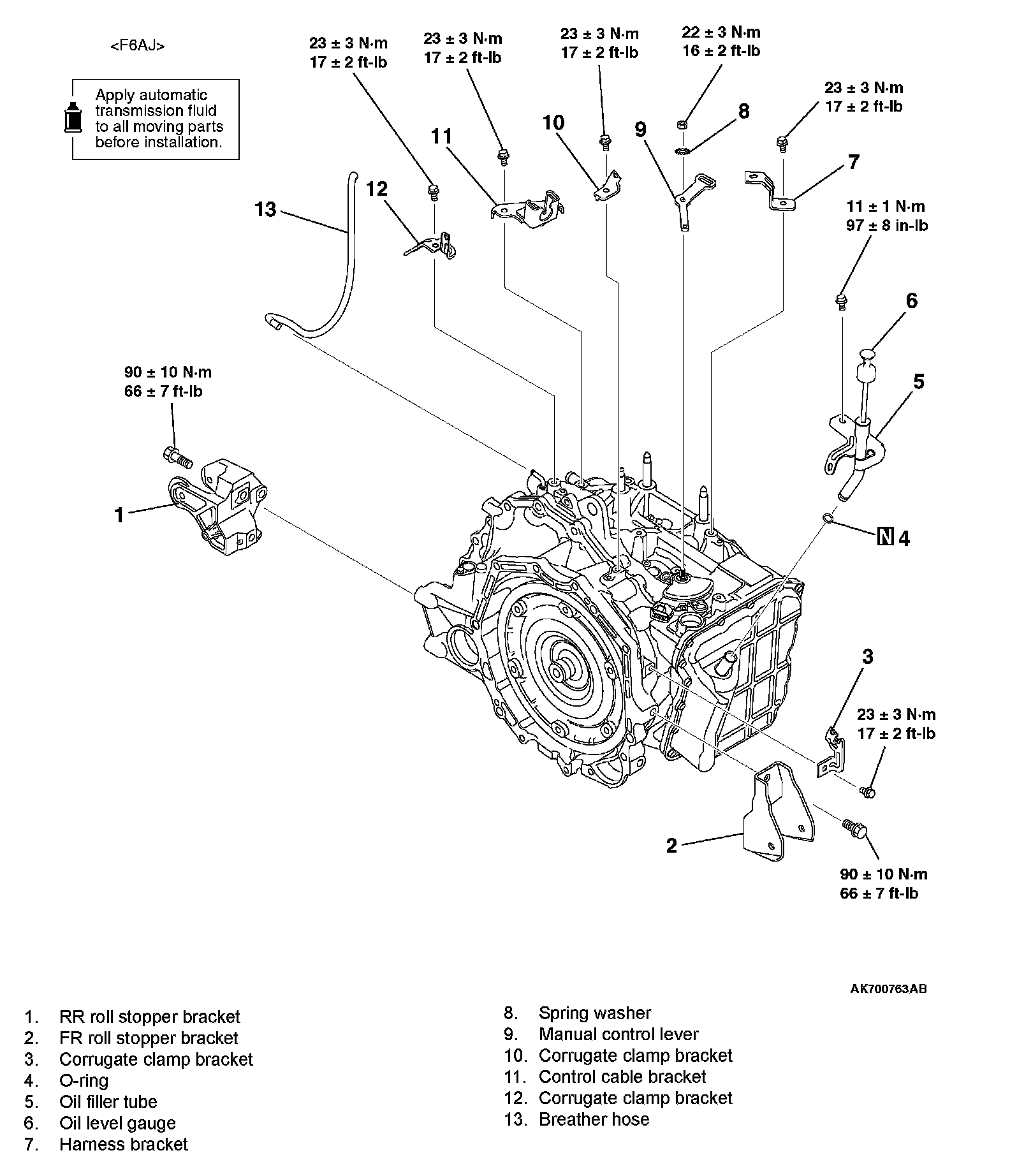

Disassembly Steps 1-13:

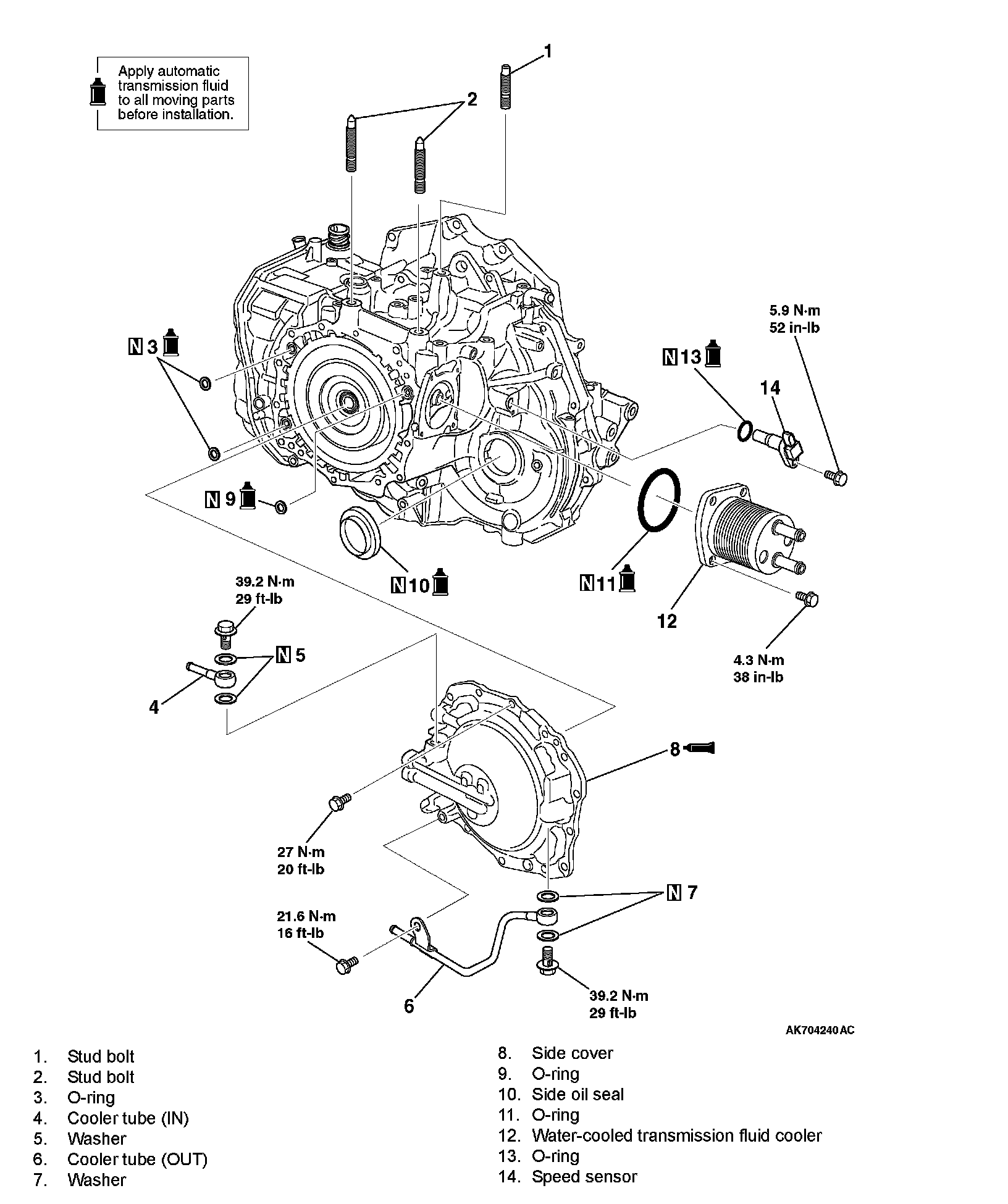

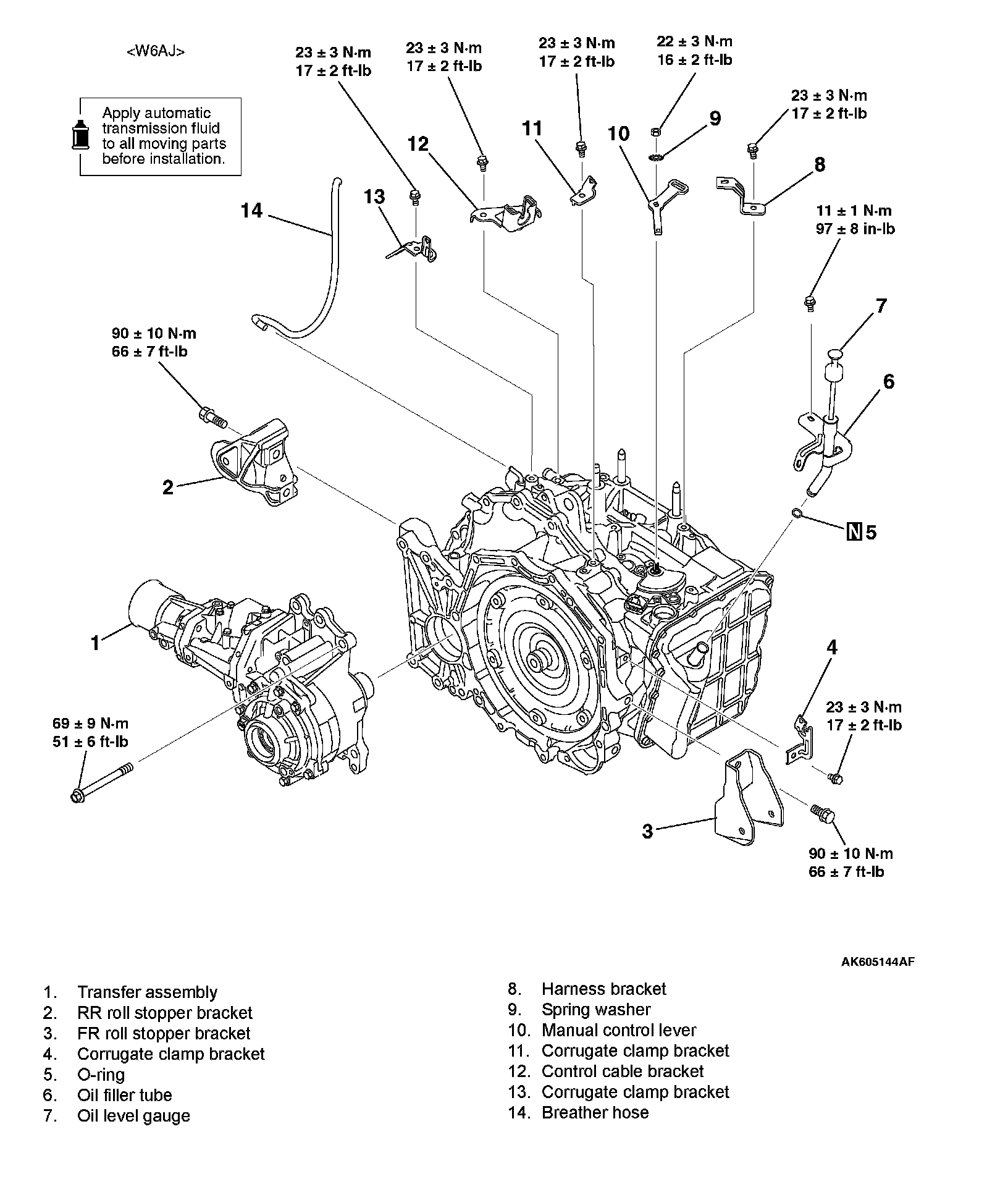

Disassembly Steps 1-14:

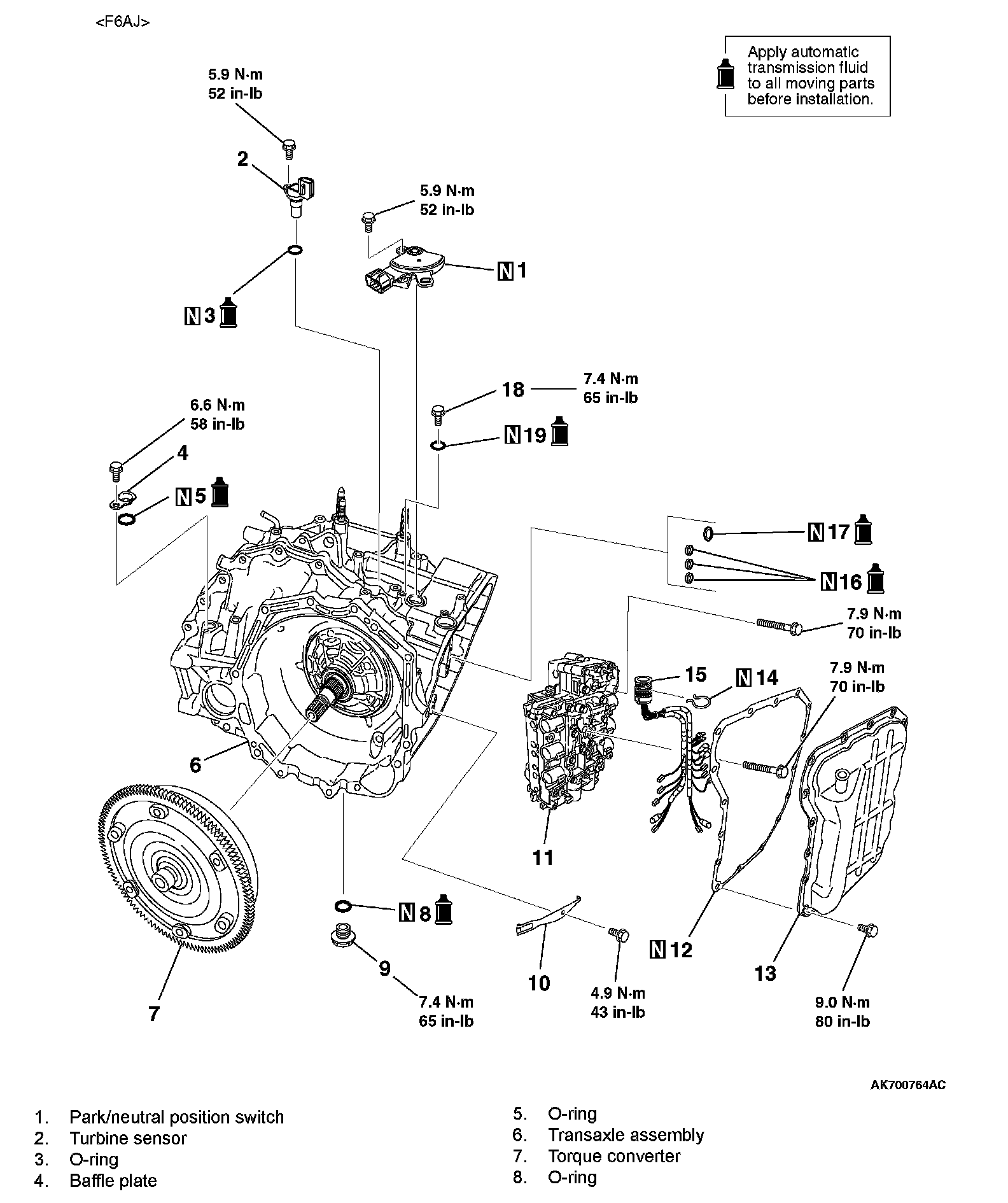

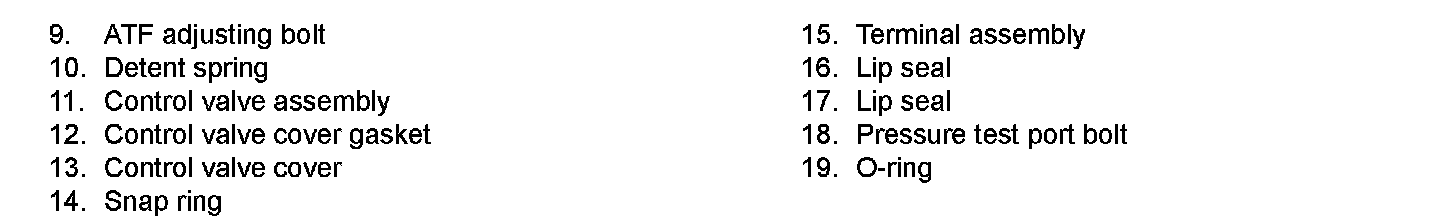

Disassembly Steps 1-19 (Part 1):
Disassembly Steps 1-19 (Part 2):

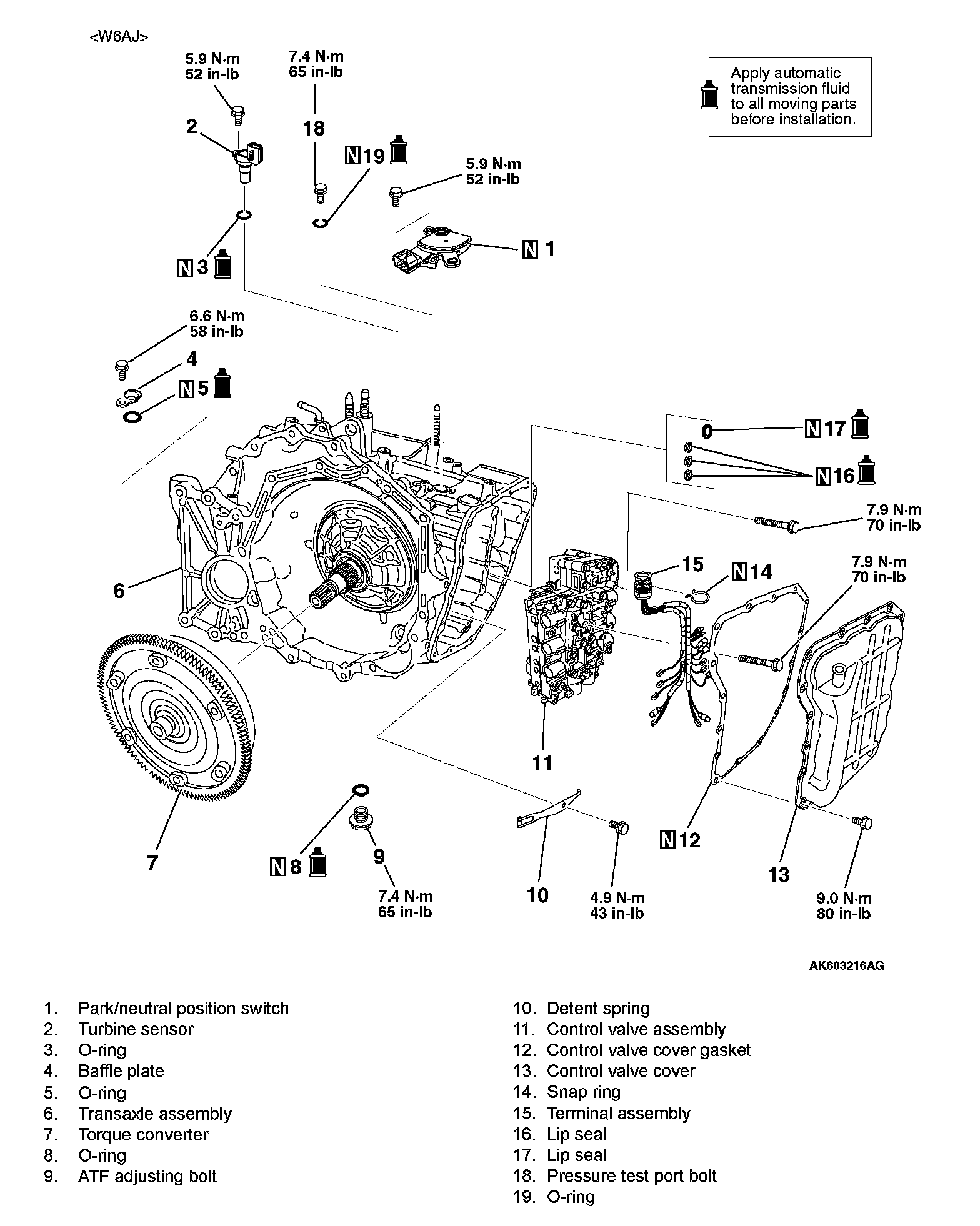

Disassembly Steps 1-19:

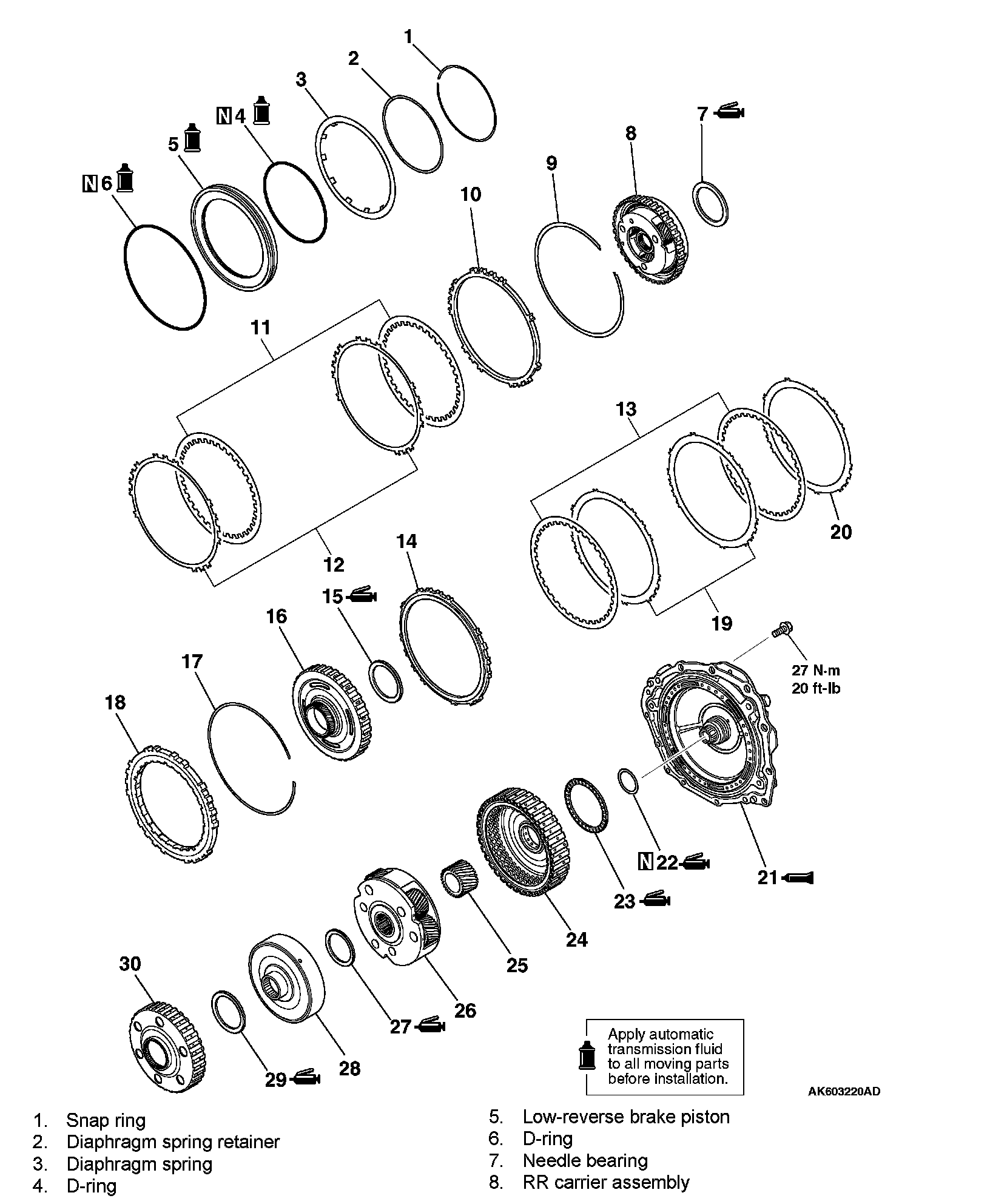

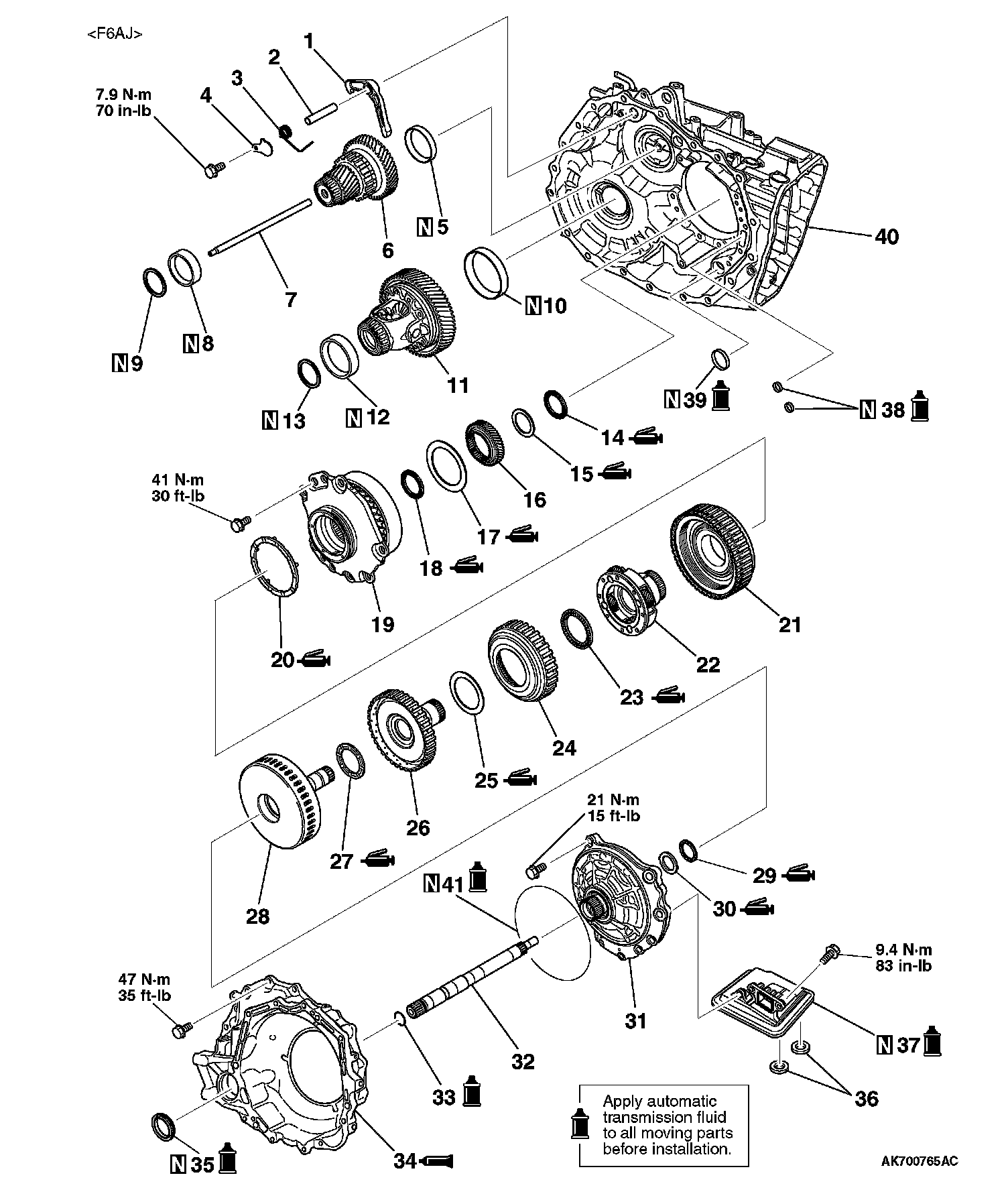

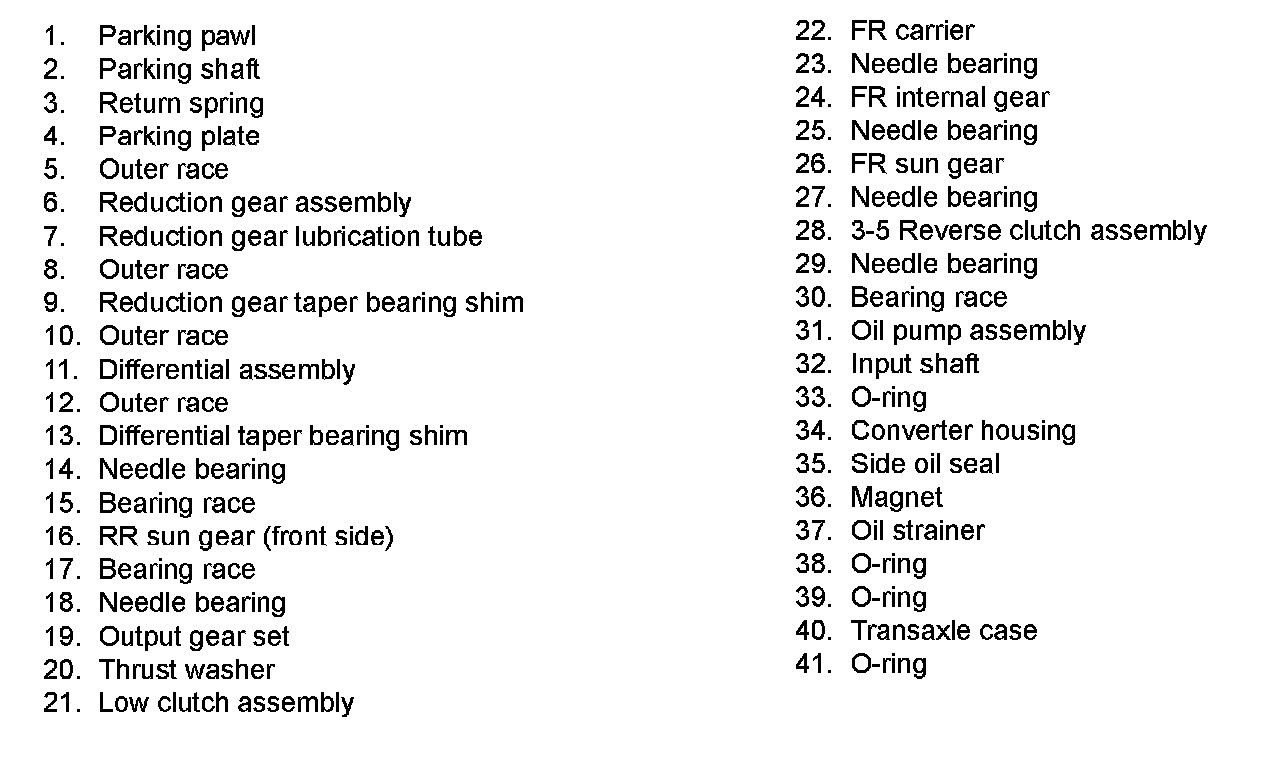

Disassembly Steps 1-41:
Disassembly Steps 1-41:
Disassembly Steps 1-8:

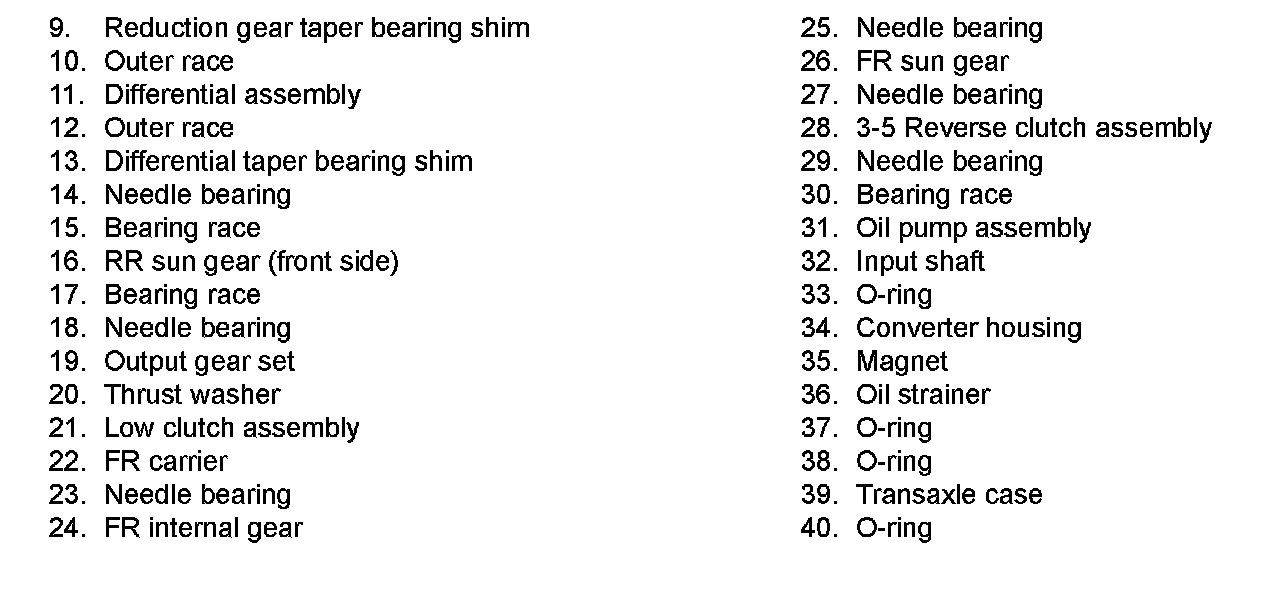

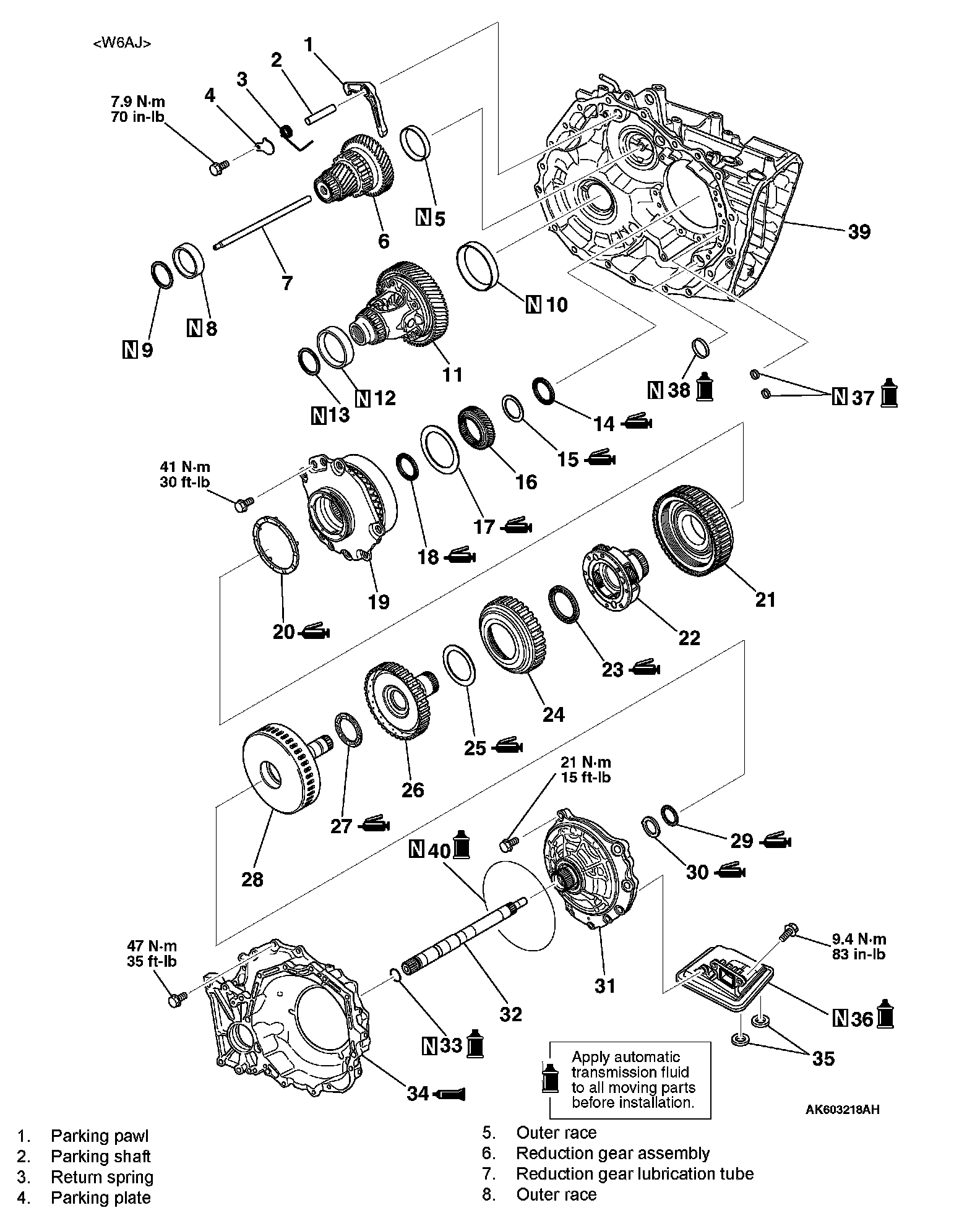

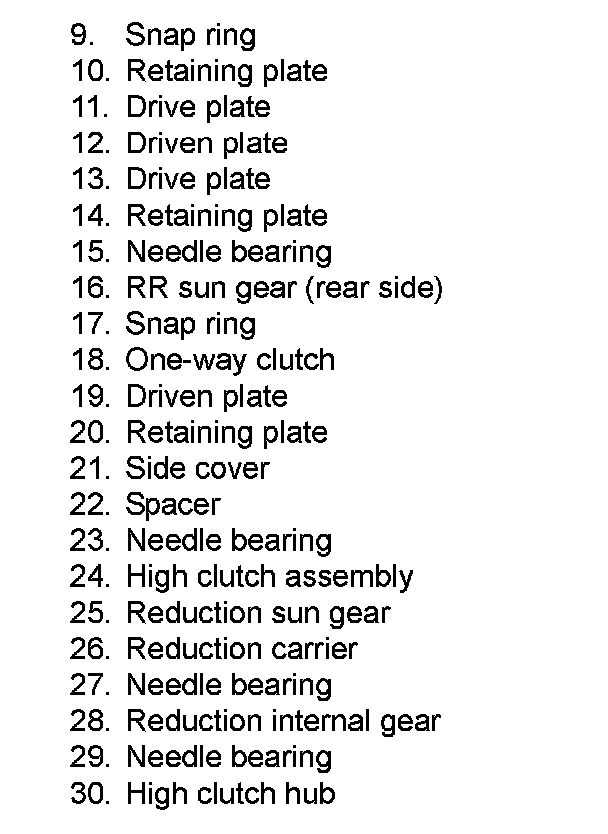

Disassembly Steps 9-40:
Disassembly Steps 1-14:
Disassembly Steps 1-8:
Disassembly Steps 9-30:
