Alignment: Testing and Inspection
STEERING ANGLE CHECKCAUTION
After adjusting the steering angle, always perform calibration to make ABS/ASC-ECU learn the neutral position of the steering wheel sensor.
1. Check that the wheel alignment is normal.

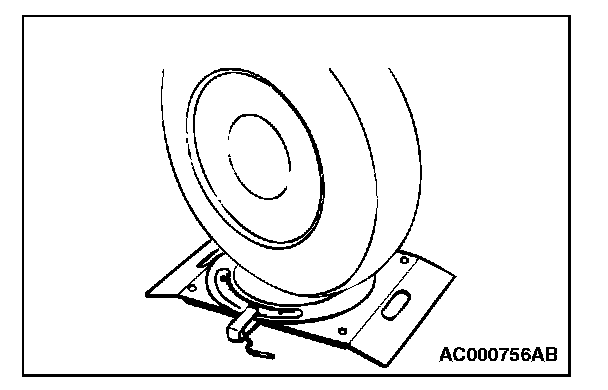

2. Place the front wheel onto the turning radius gauge, and measure the steering angle.

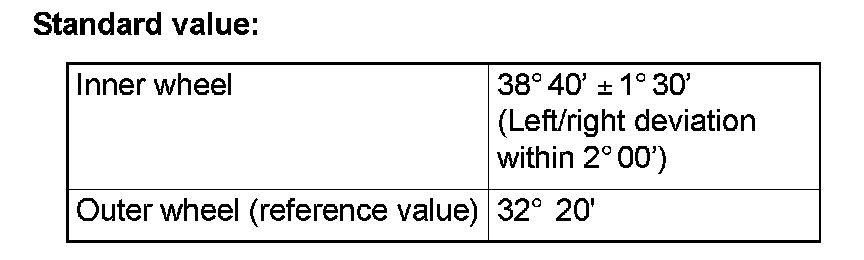

Standard value:
3. If not within the standard value, adjust the tie-rods (right and left), and repeat Steps 1 and 2.
4. If the measured value exceeds the standard range by performing Step 3, replace the steering gear and linkage assembly.
