Accelerator Pedal Position Sensor: Service and Repair

ACCELERATOR PEDAL

REMOVAL AND INSTALLATION

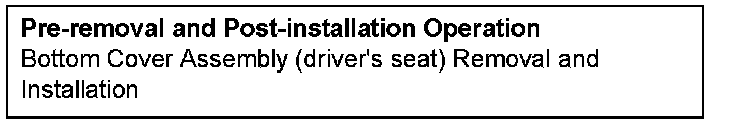

Pre-Removal & Post-Installation Operation:

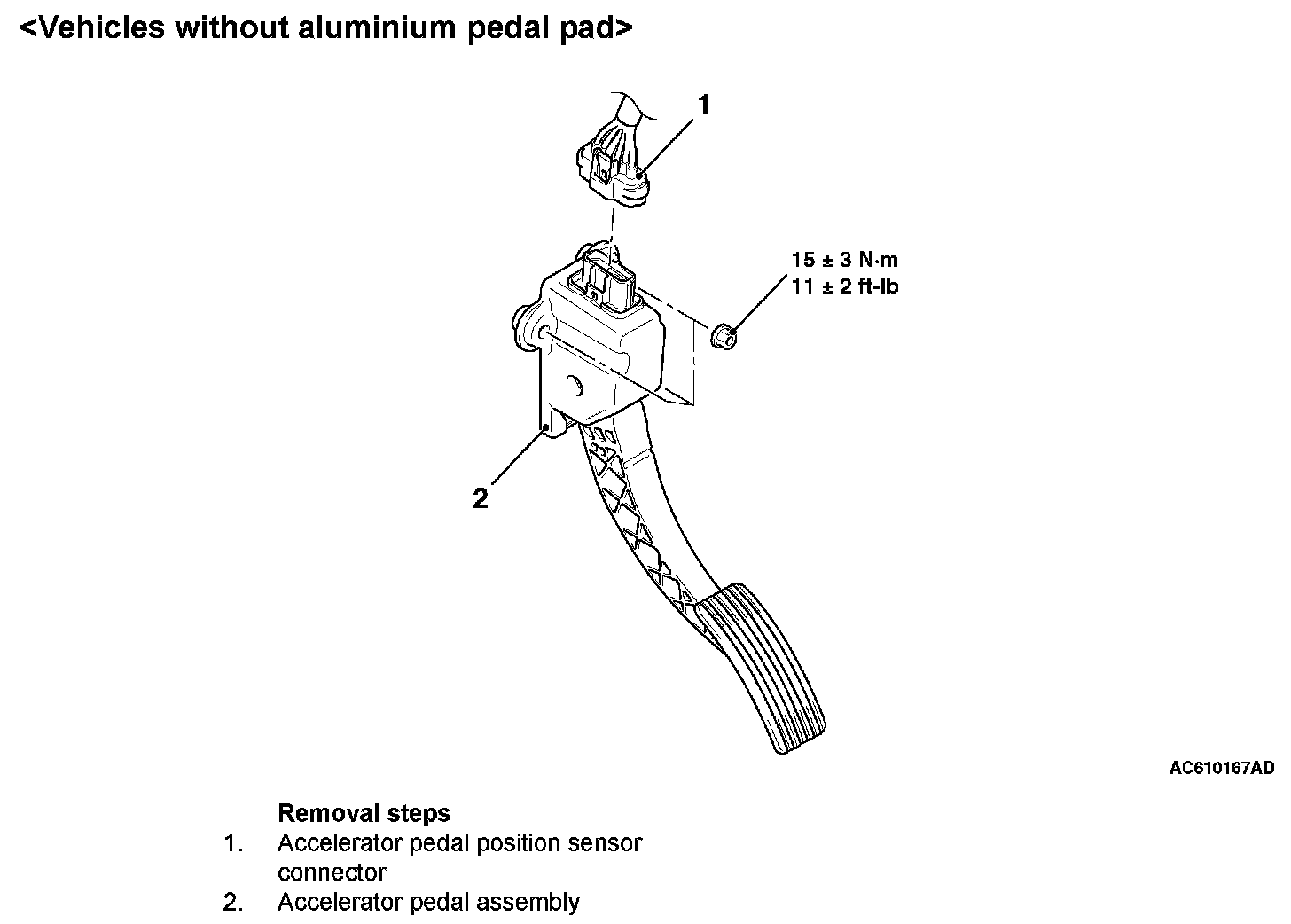

[Vehicles without aluminium pedal pad]


Removal Steps 1-2:

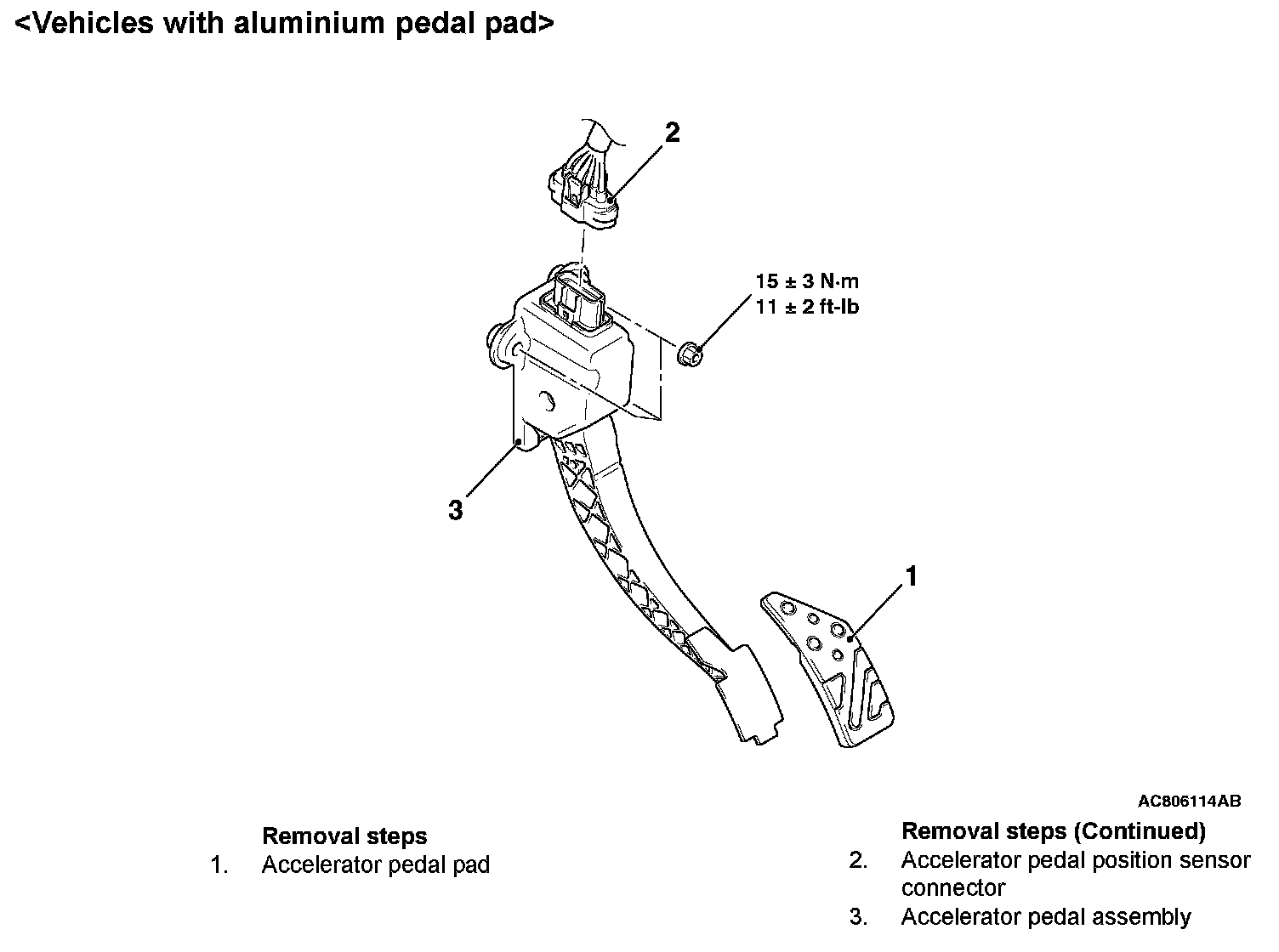

[Vehicles with aluminium pedal pad]


Removal Steps 1-3:
