Air Flow Meter/Sensor: Service and Repair
AIR CLEANER

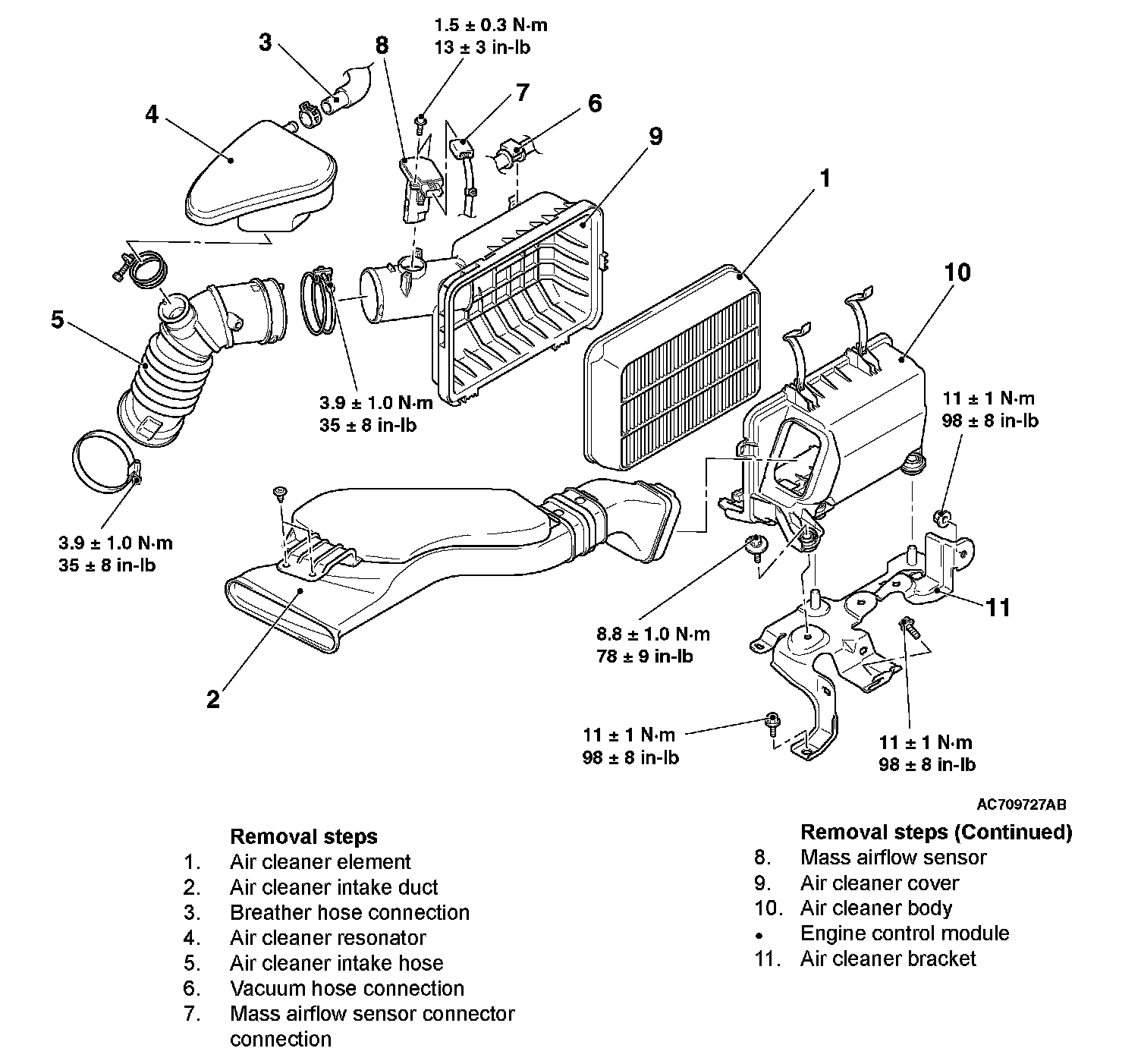

REMOVAL AND INSTALLATION [2.4L ENGINE]
Removal Steps 1-11:
