Pinout Values and Diagnostic Parameters

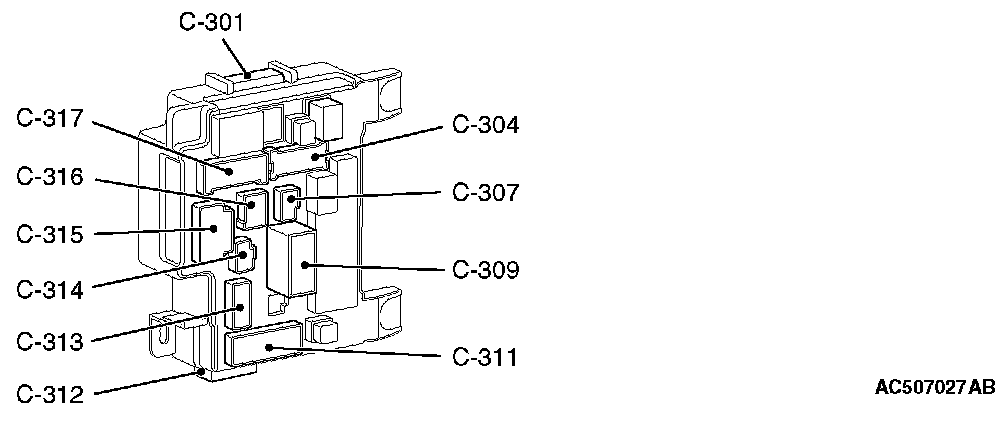

CHECK WITH TERMINAL VOLTAGE

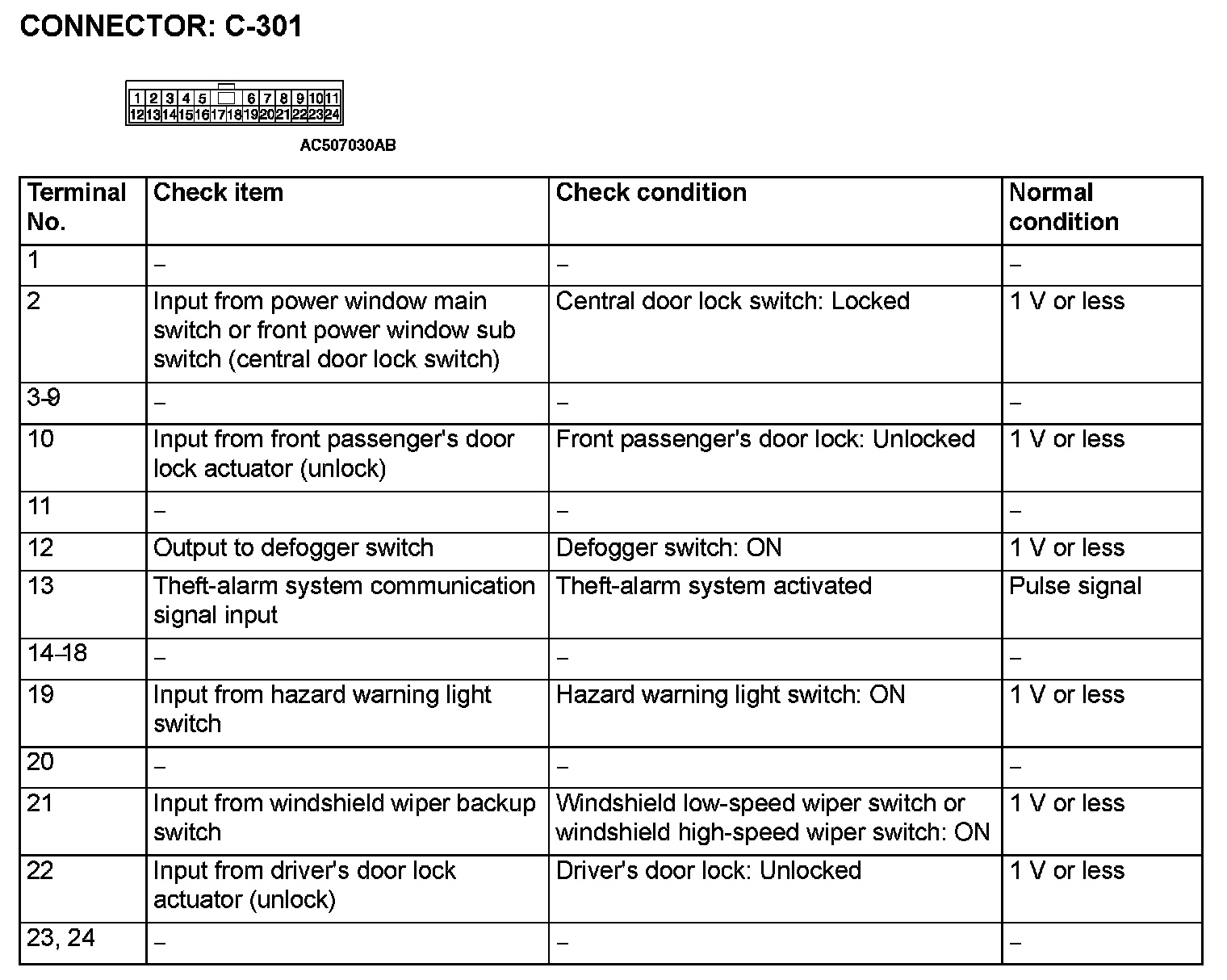

C-301:

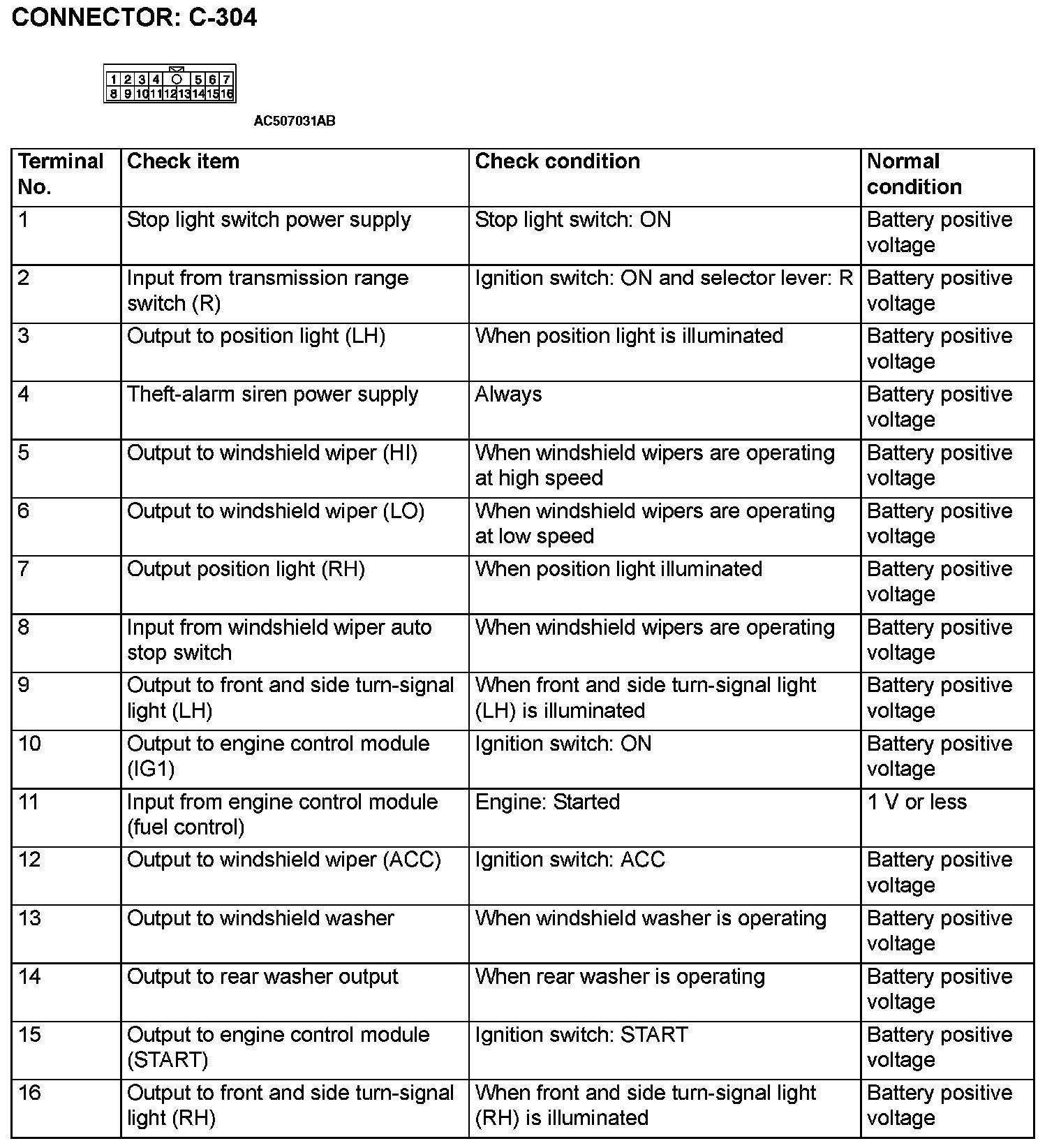

C-304:

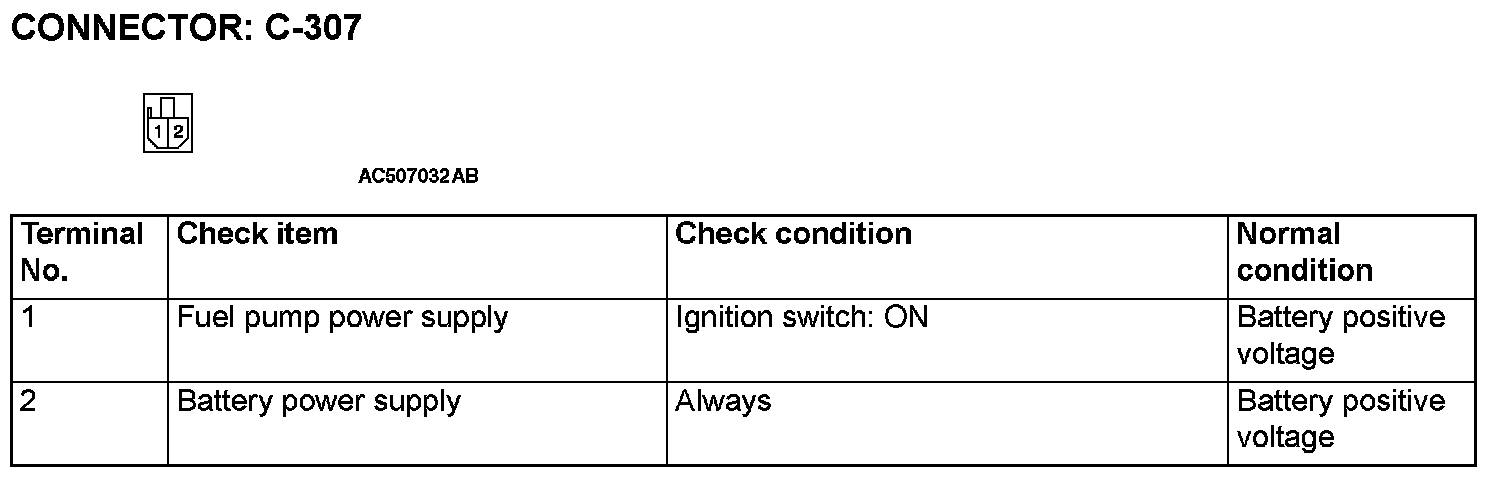

C-307:

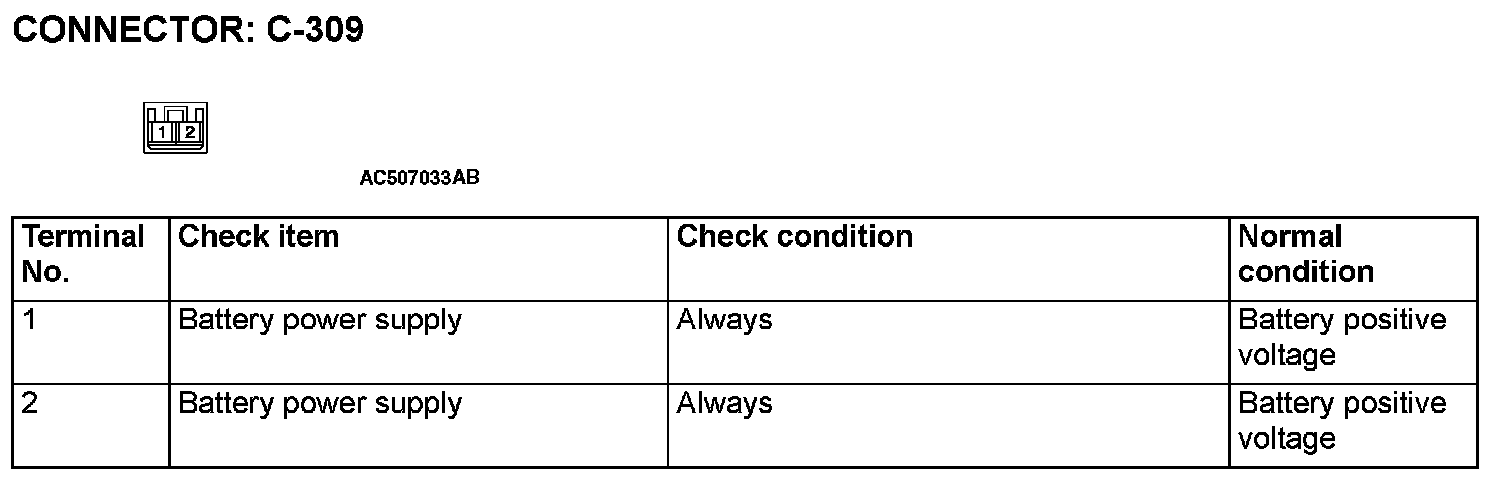

C-309:

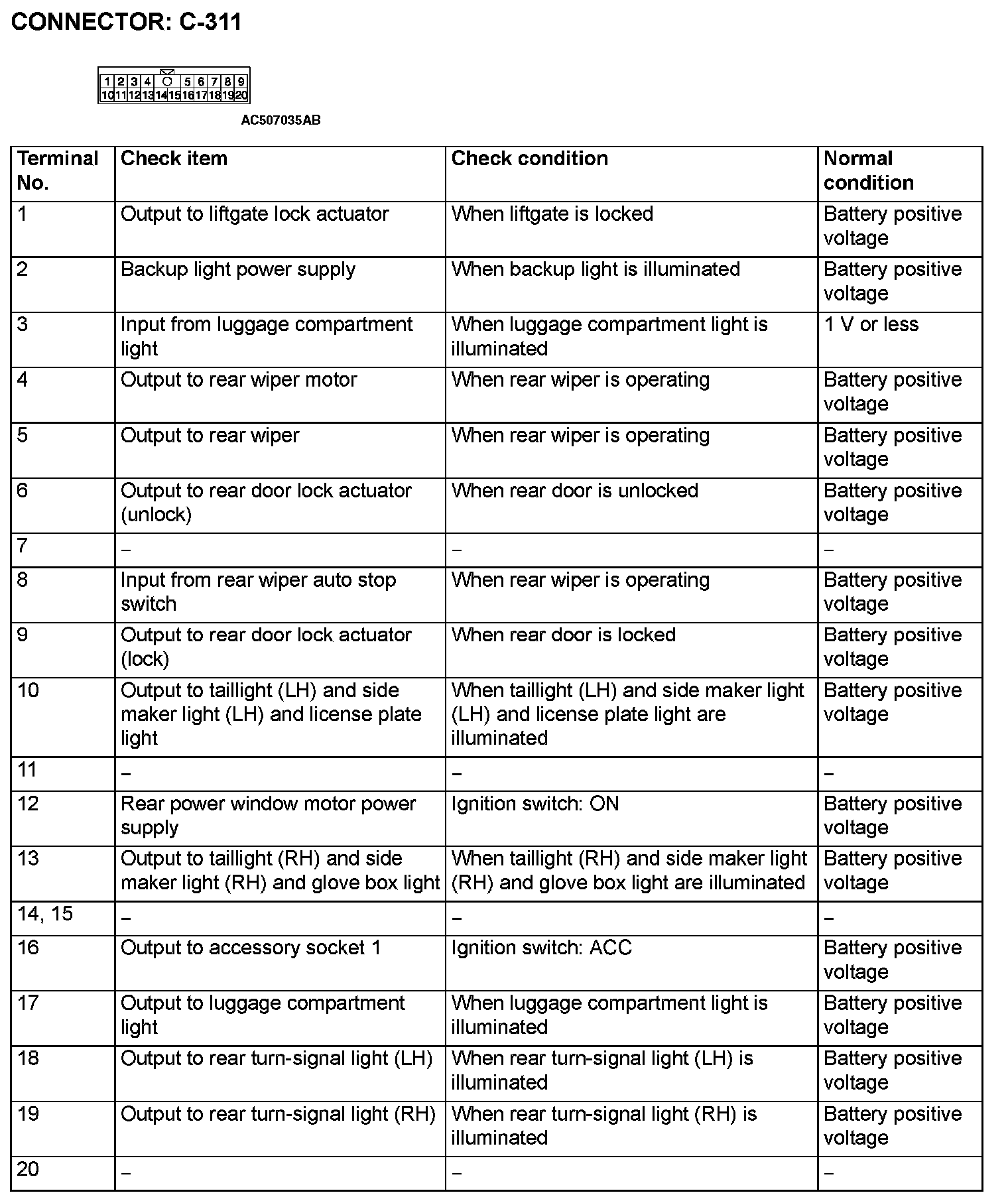

C-311:

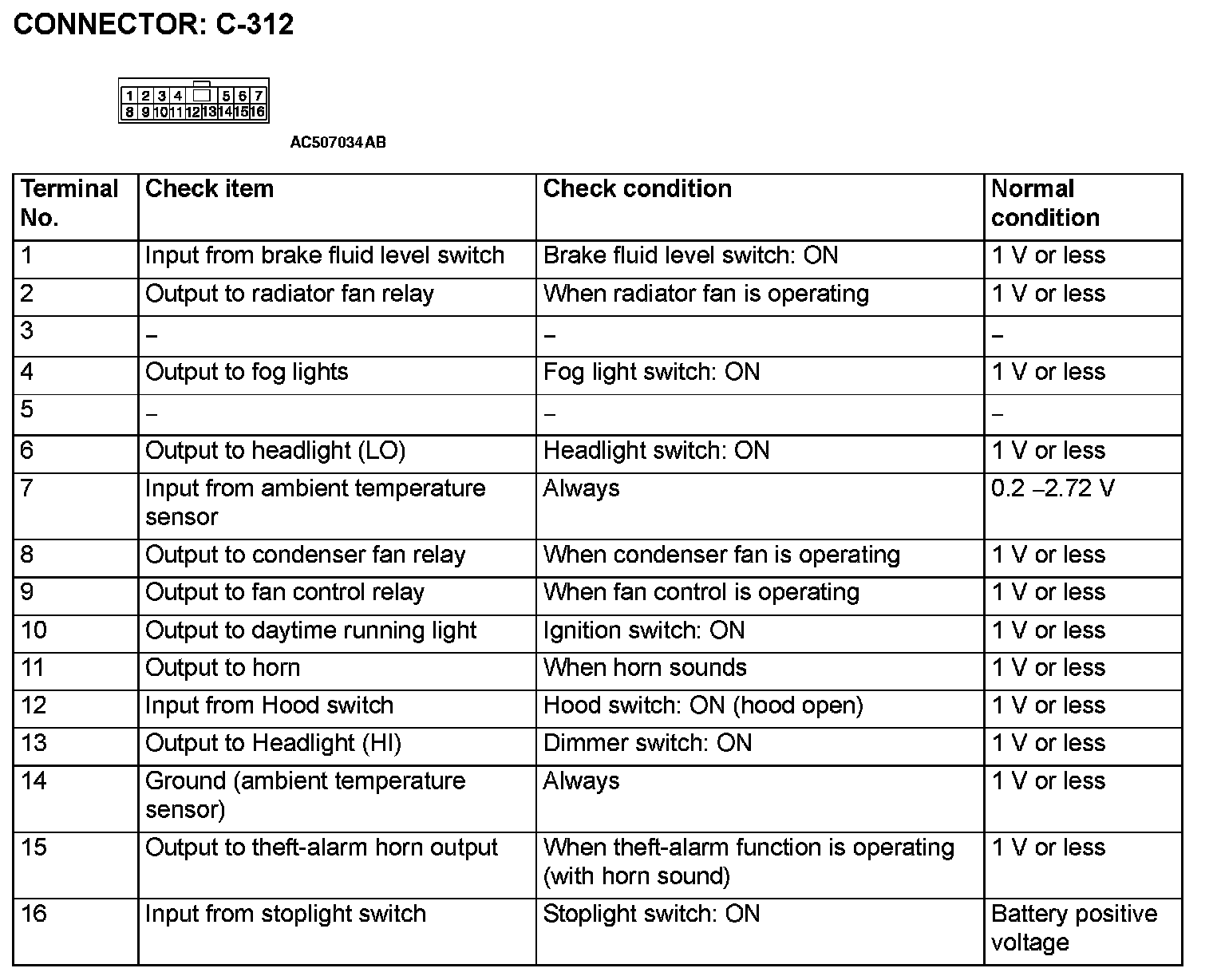

C-312:

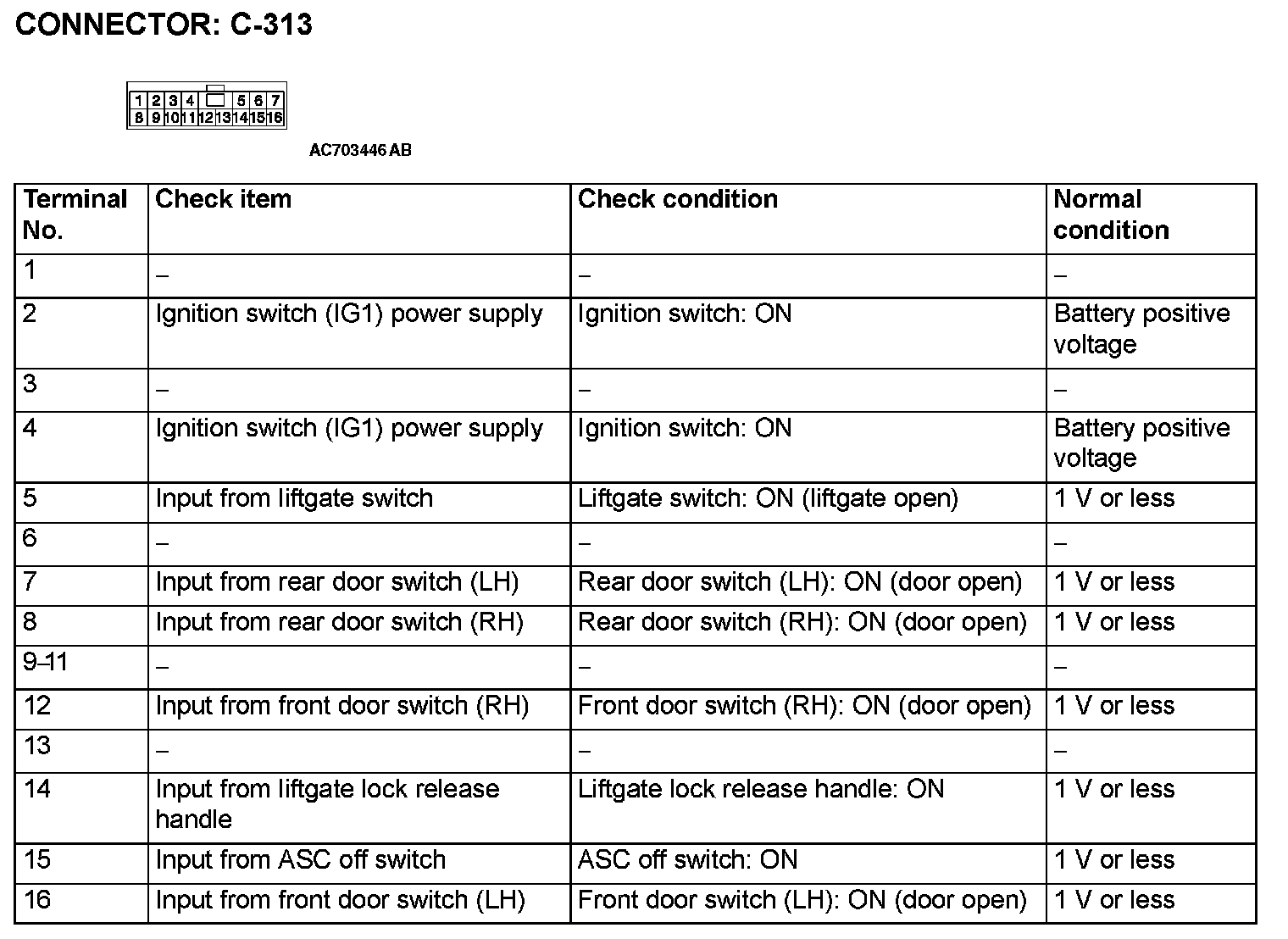

C-313:

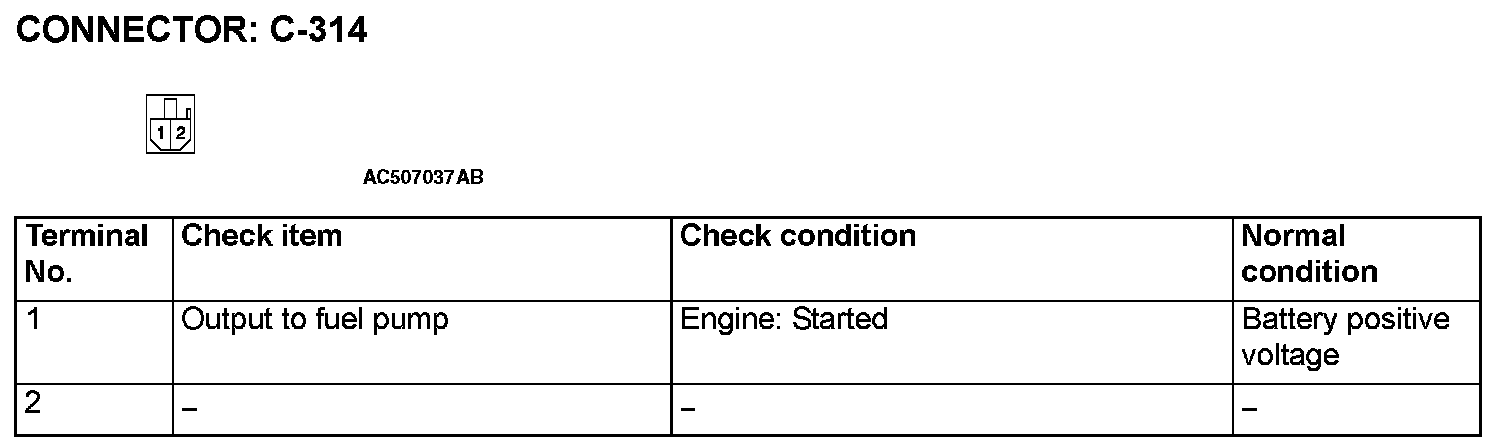

C-314:

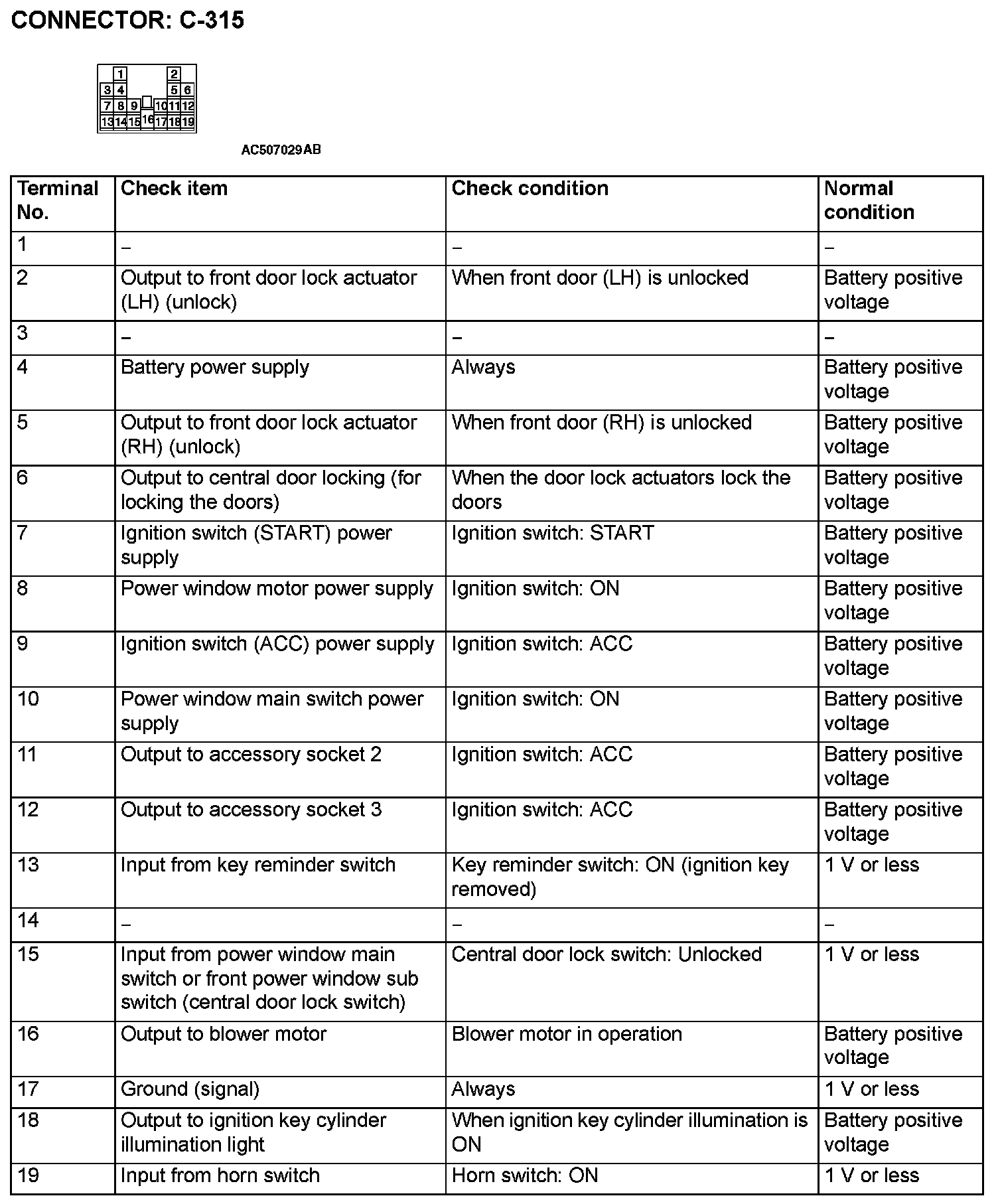

C-315:

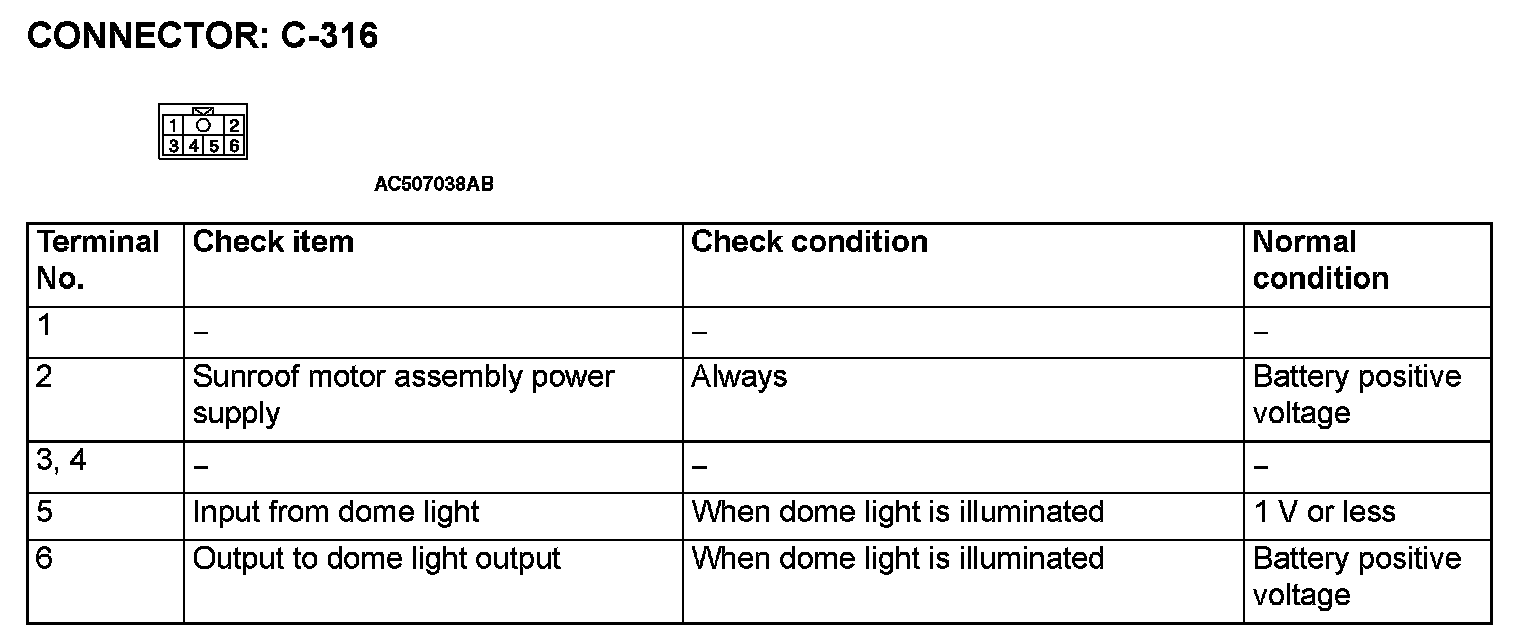

C-316:

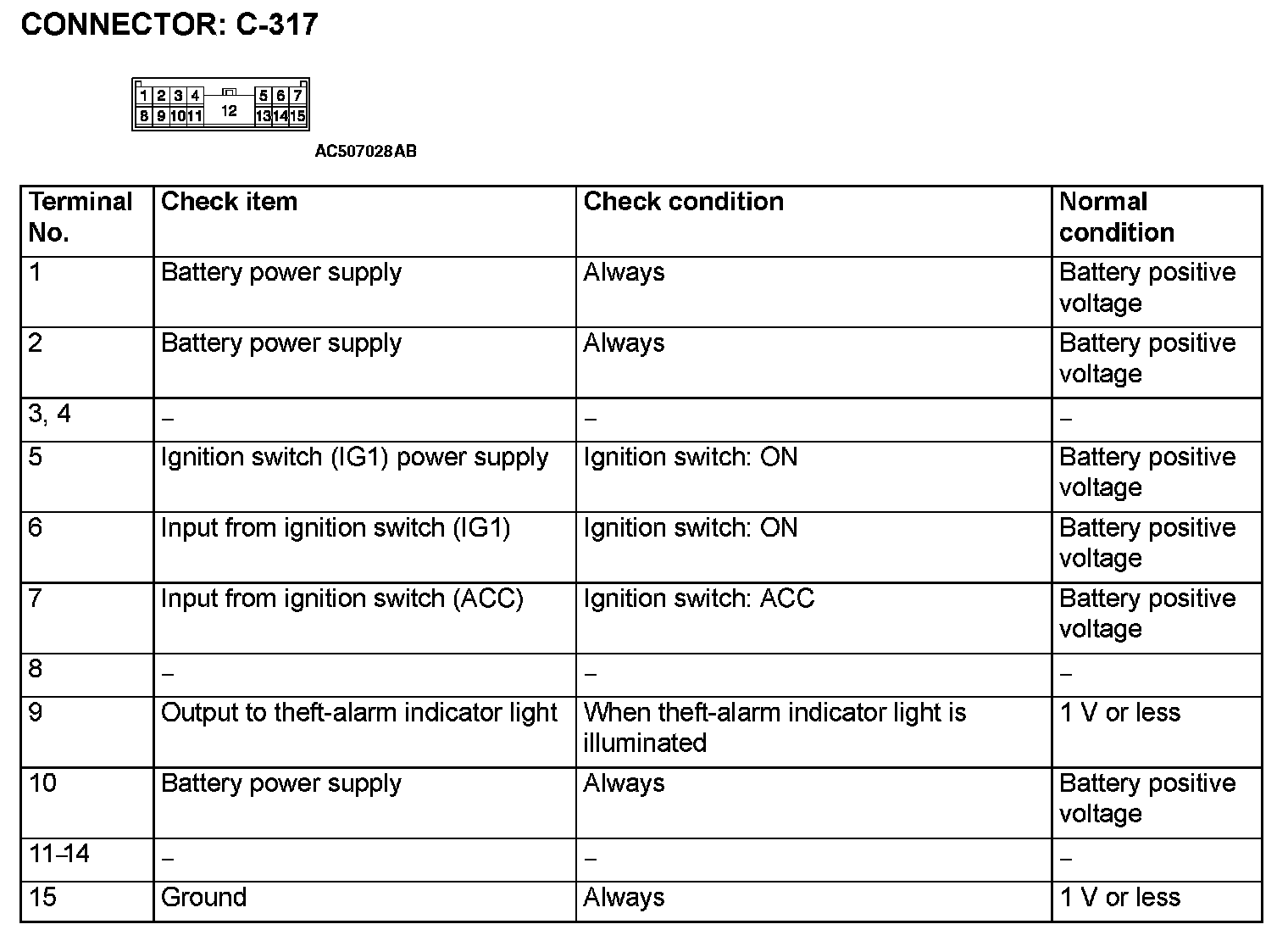

C-317:
