Shift Switch Assembly Continuity Check
Shift Switch Assembly Continuity Check

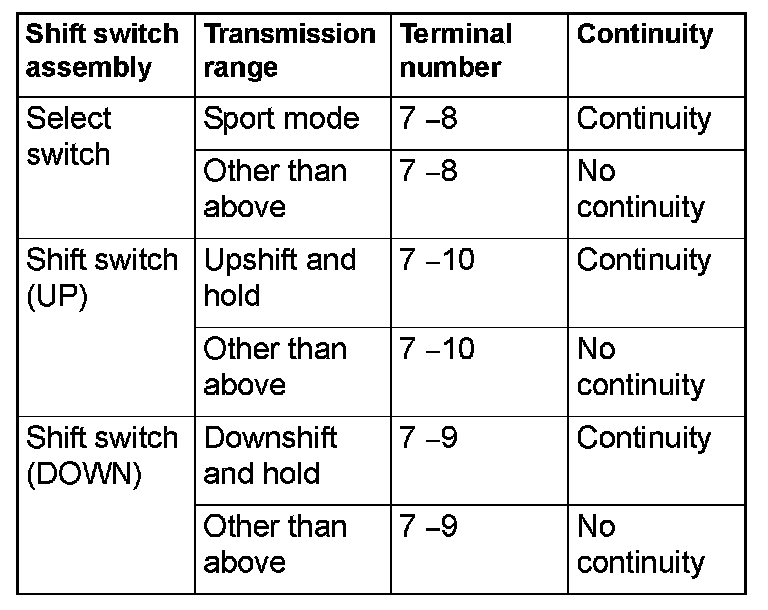

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK
