F6AJA/W6AJA
>>
Fail-Safe/Backup Function
Fail-Safe/Backup Function

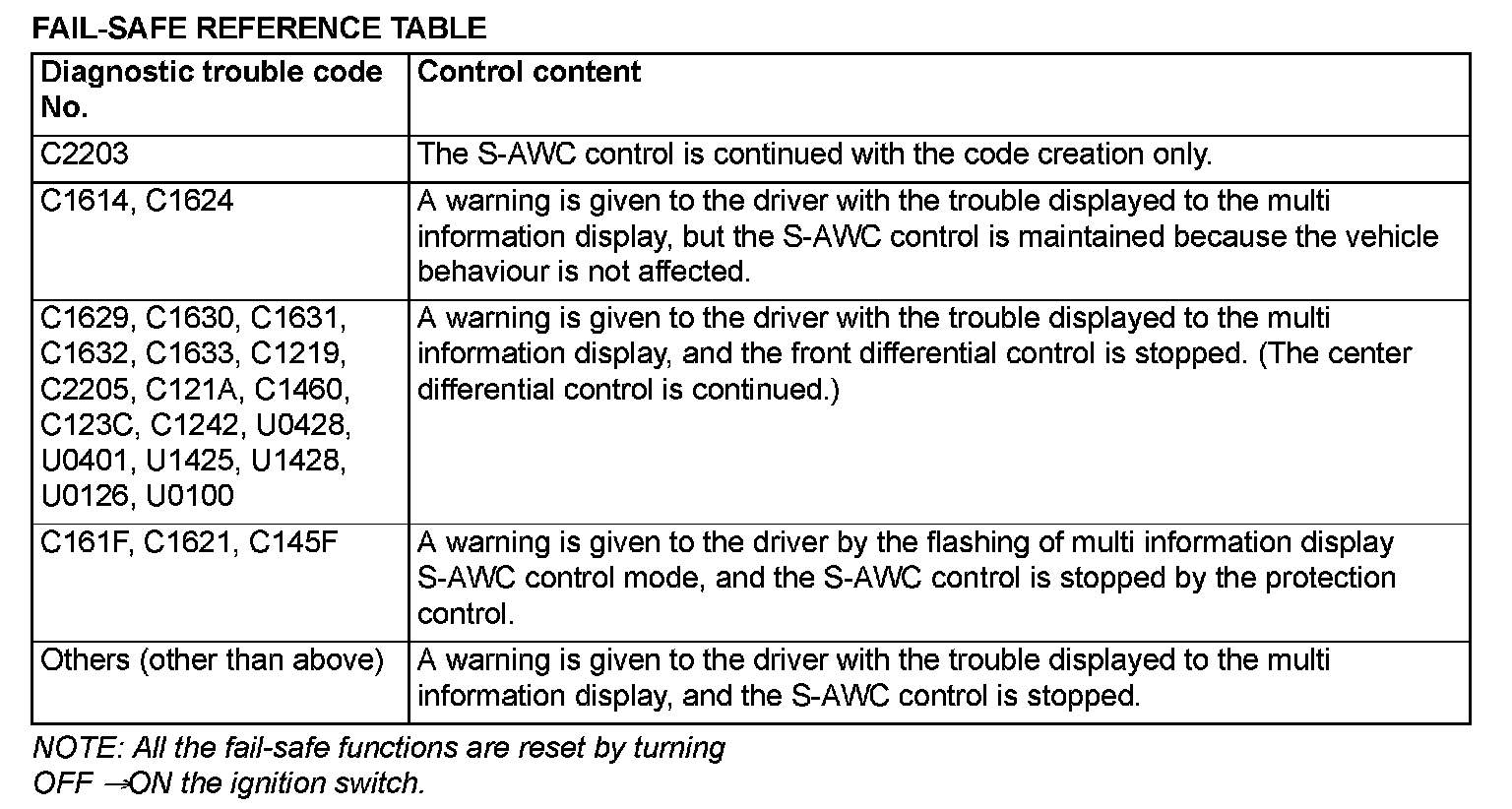

FAIL-SAFE FUNCTION
If an abnormality occurs to the signal of sensors, switches, solenoids, or others, the AWC-ECU performs a control for the driver safety and system protection. The control contents are as follows.
