Data List Reference Table

DATA LIST REFERENCE TABLE

NOTE: For some information result read out by the ECU, the specific items may not be displayed.

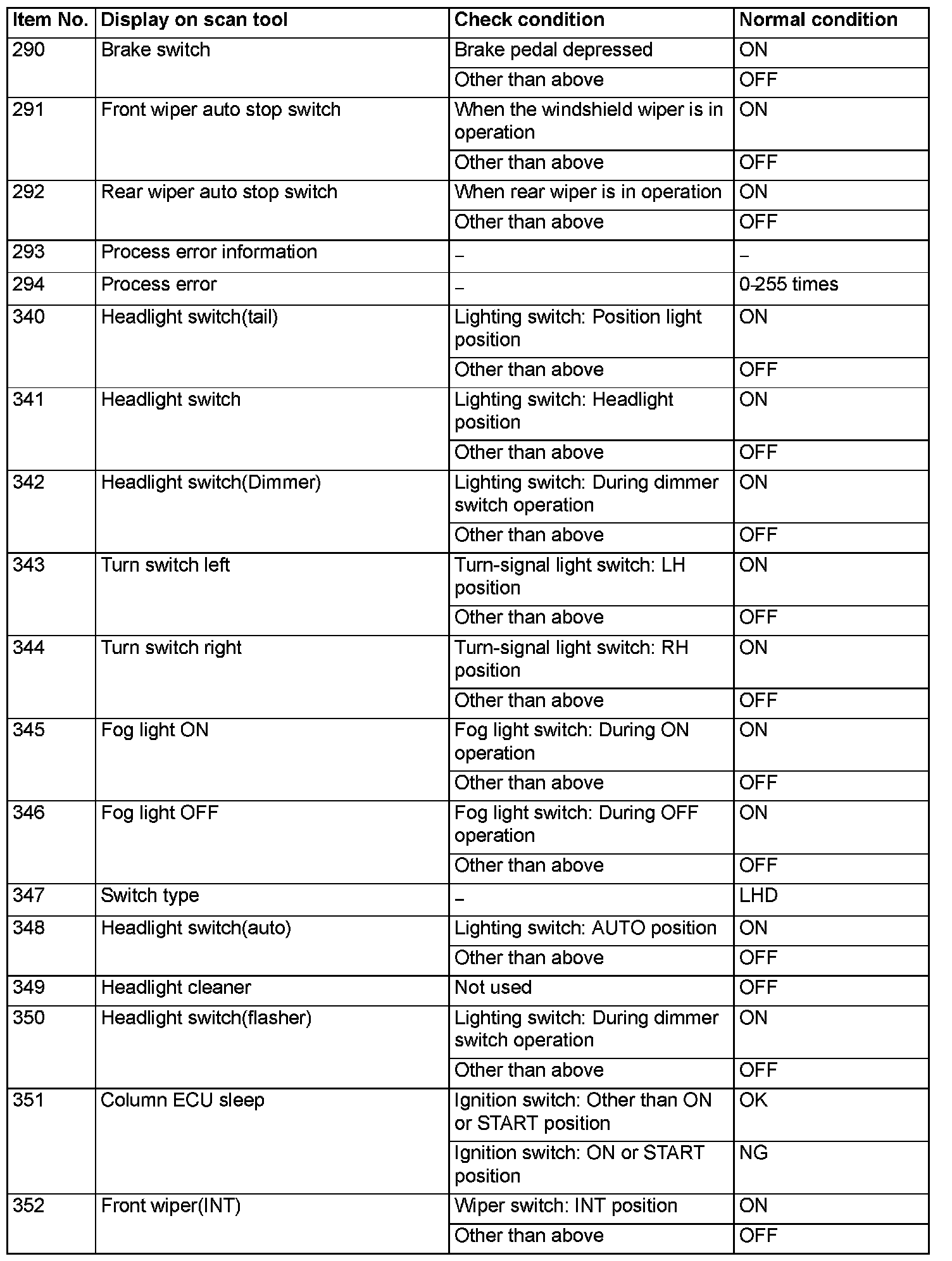

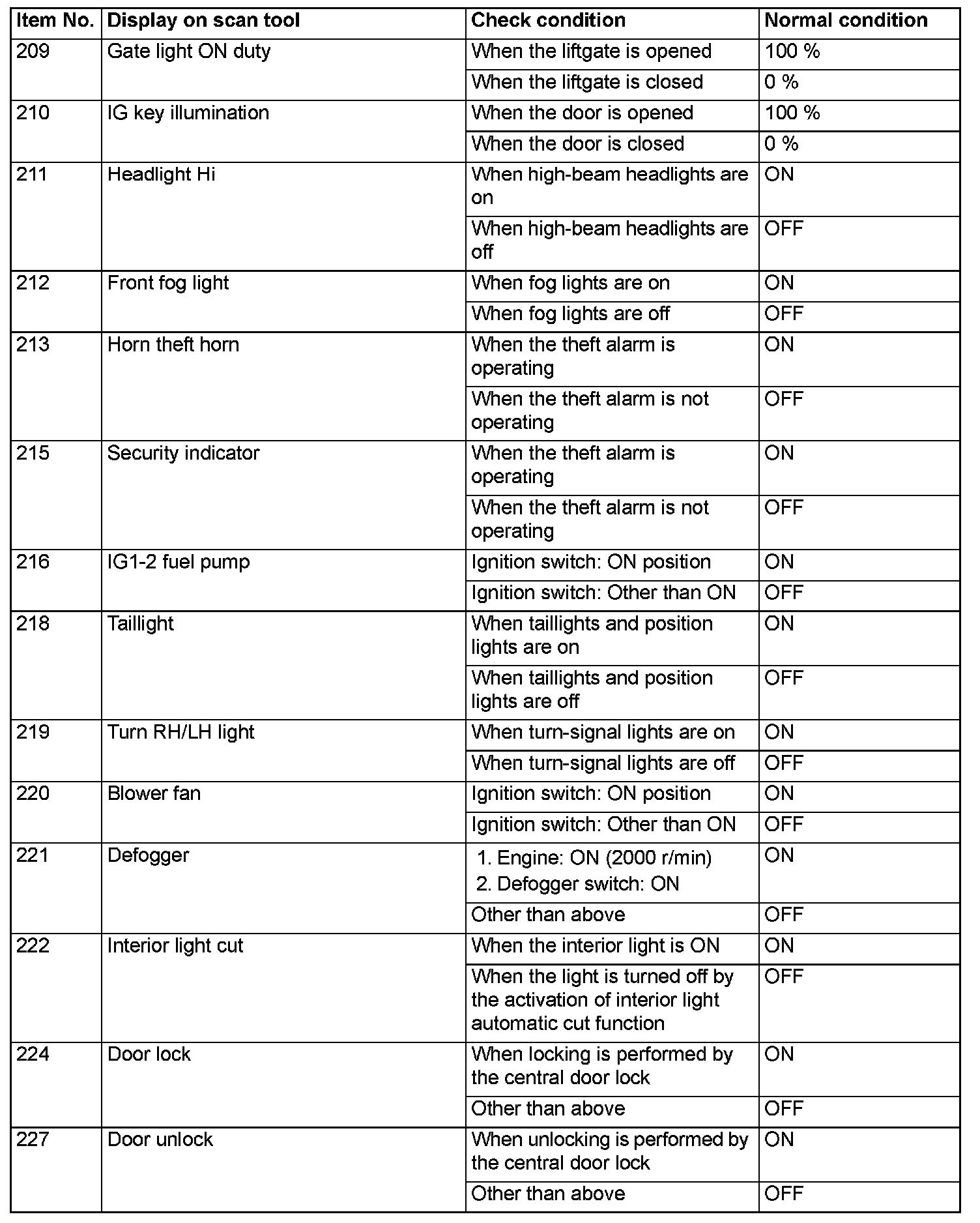

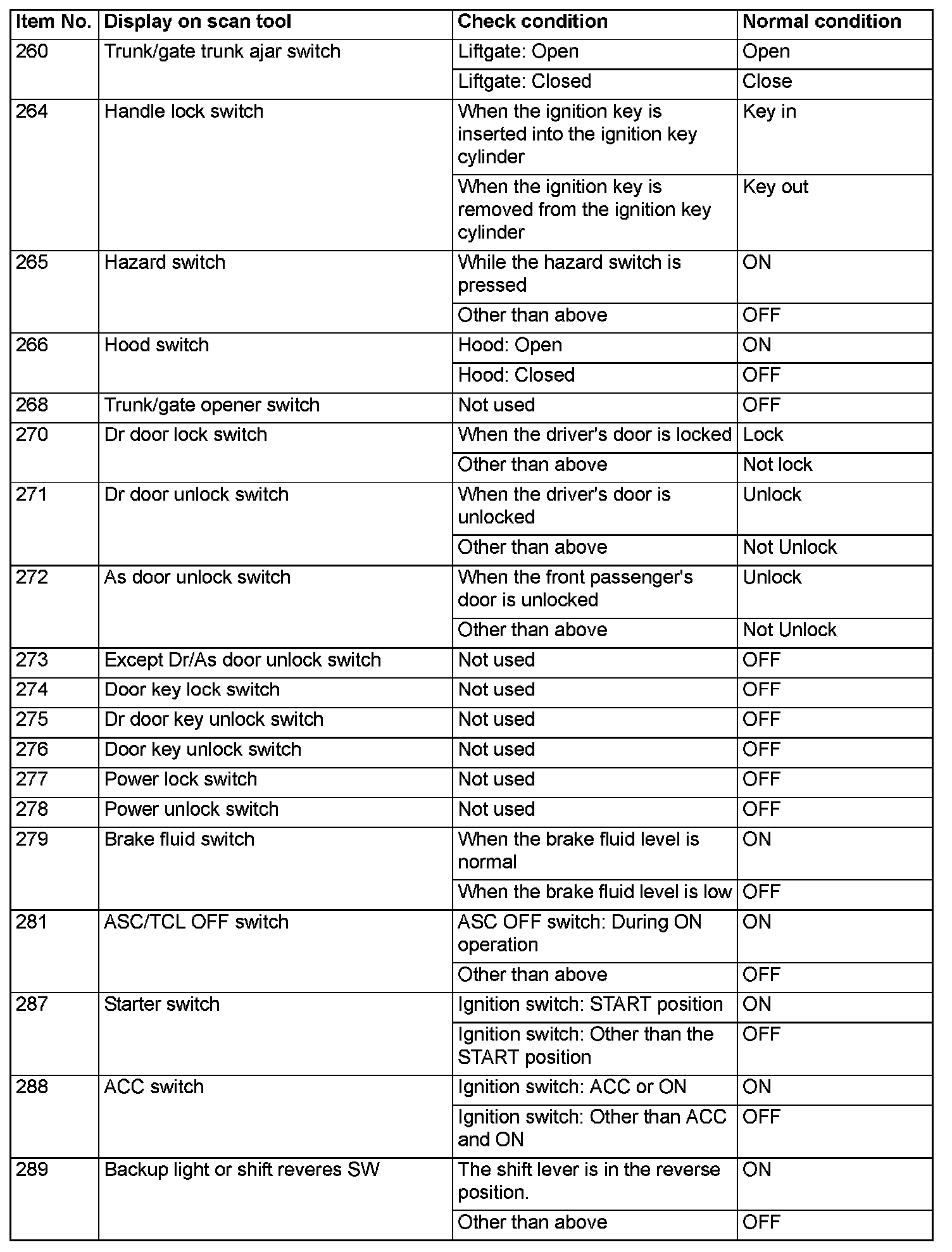

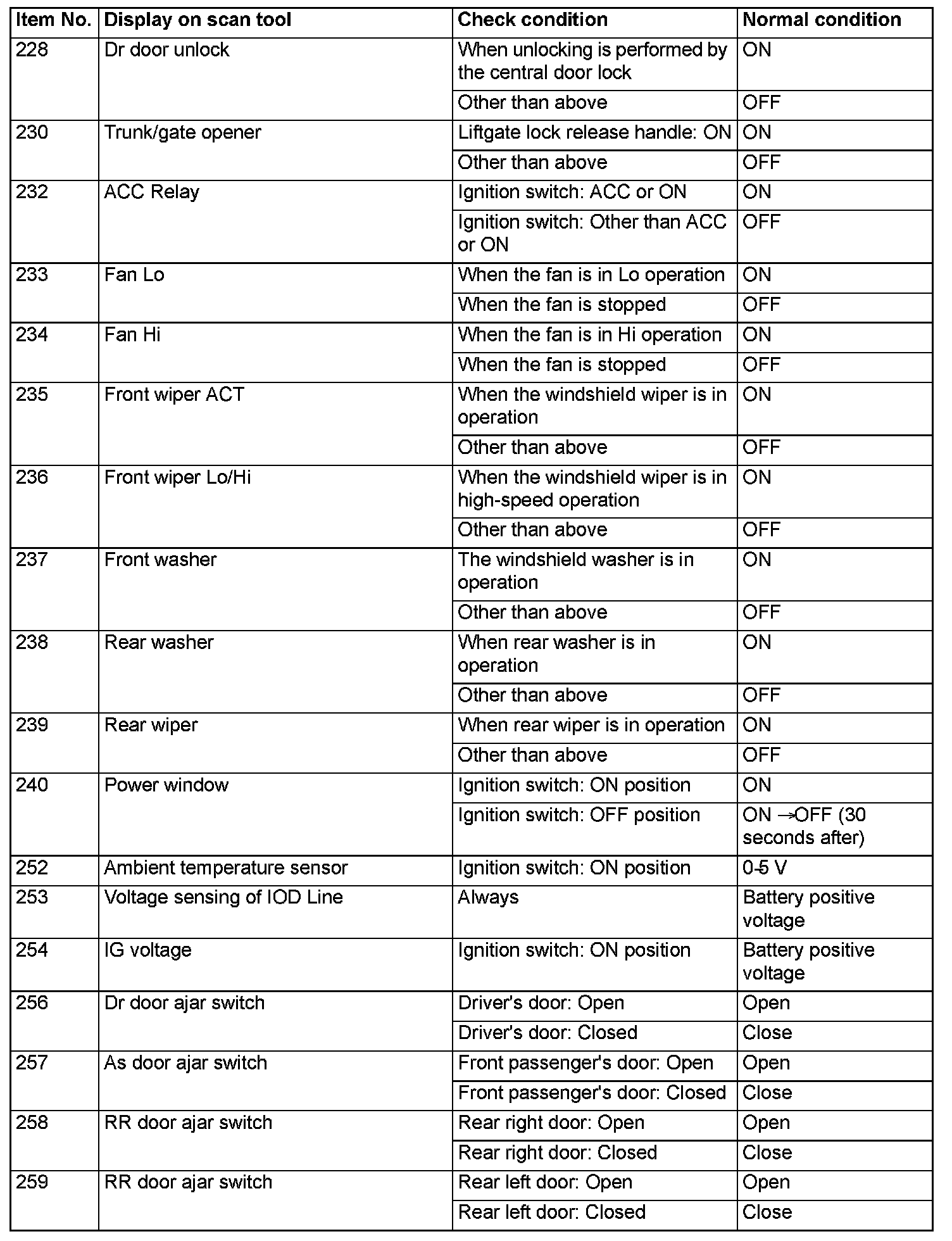

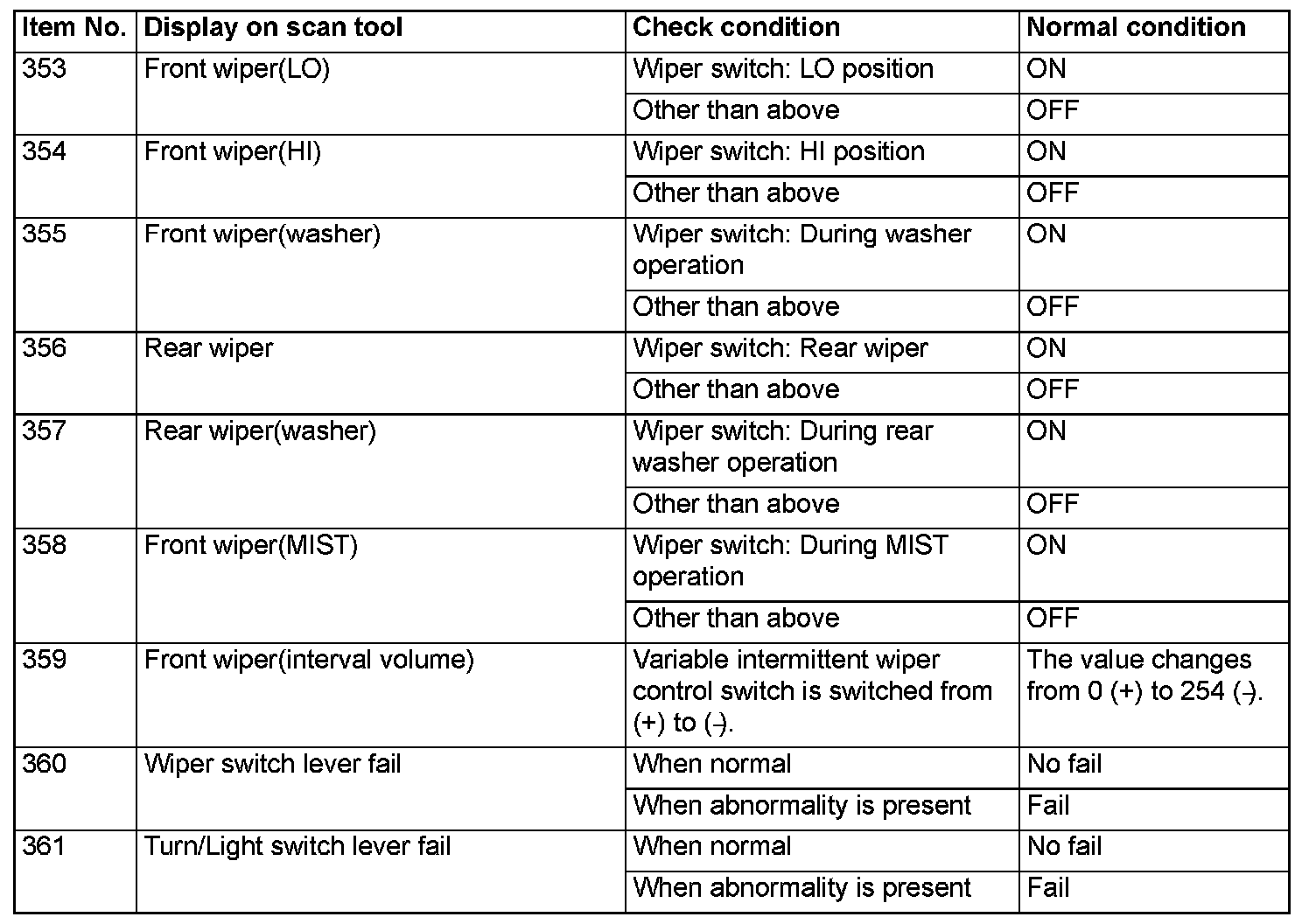

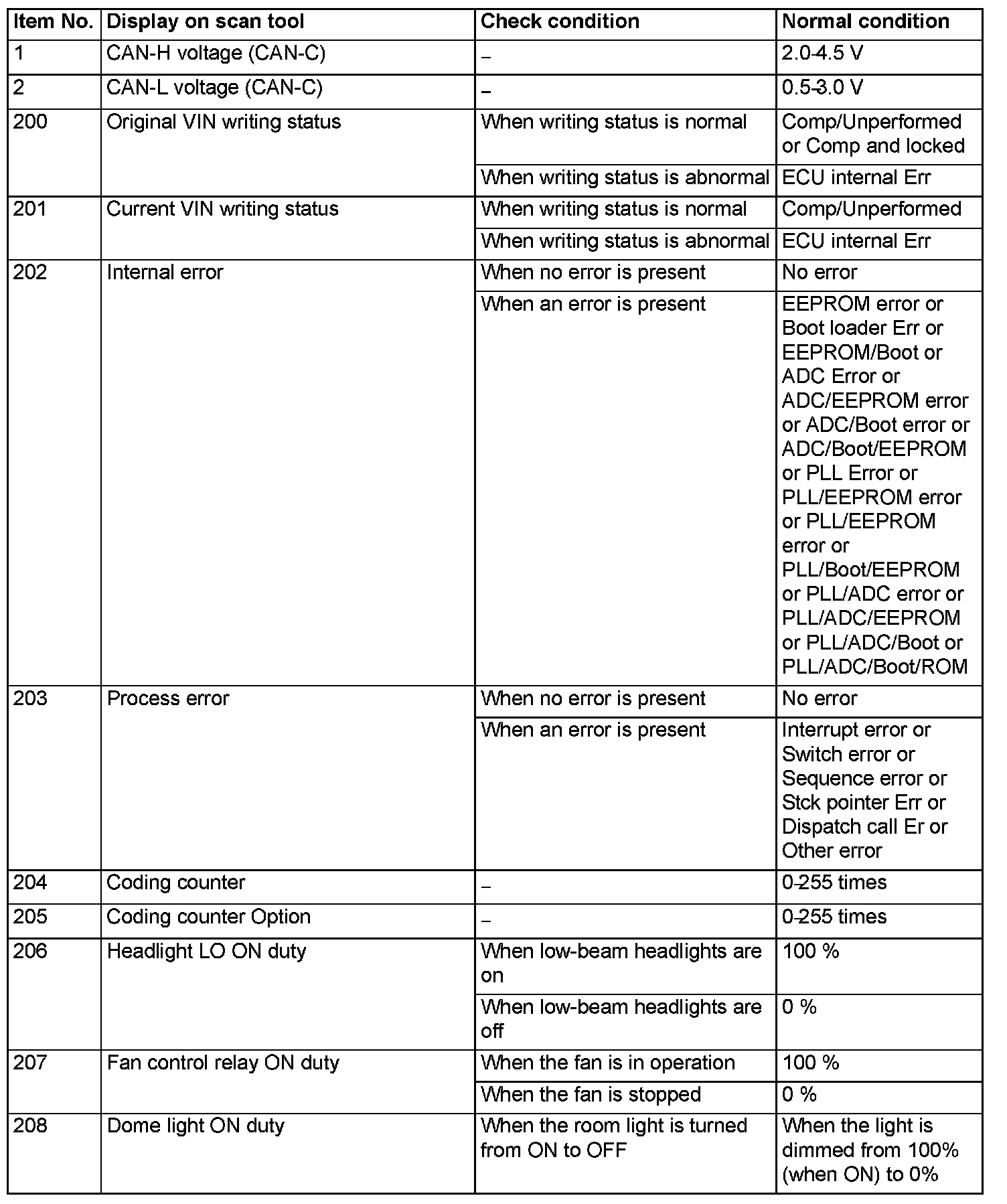

Data List Reference Table (Part 1):

Data List Reference Table (Part 2):

Data List Reference Table (Part 3):

Data List Reference Table (Part 4):

Data List Reference Table (Part 5):

Data List Reference Table (Part 6):
