Data List Reference Table
DATA LIST OUTPUT

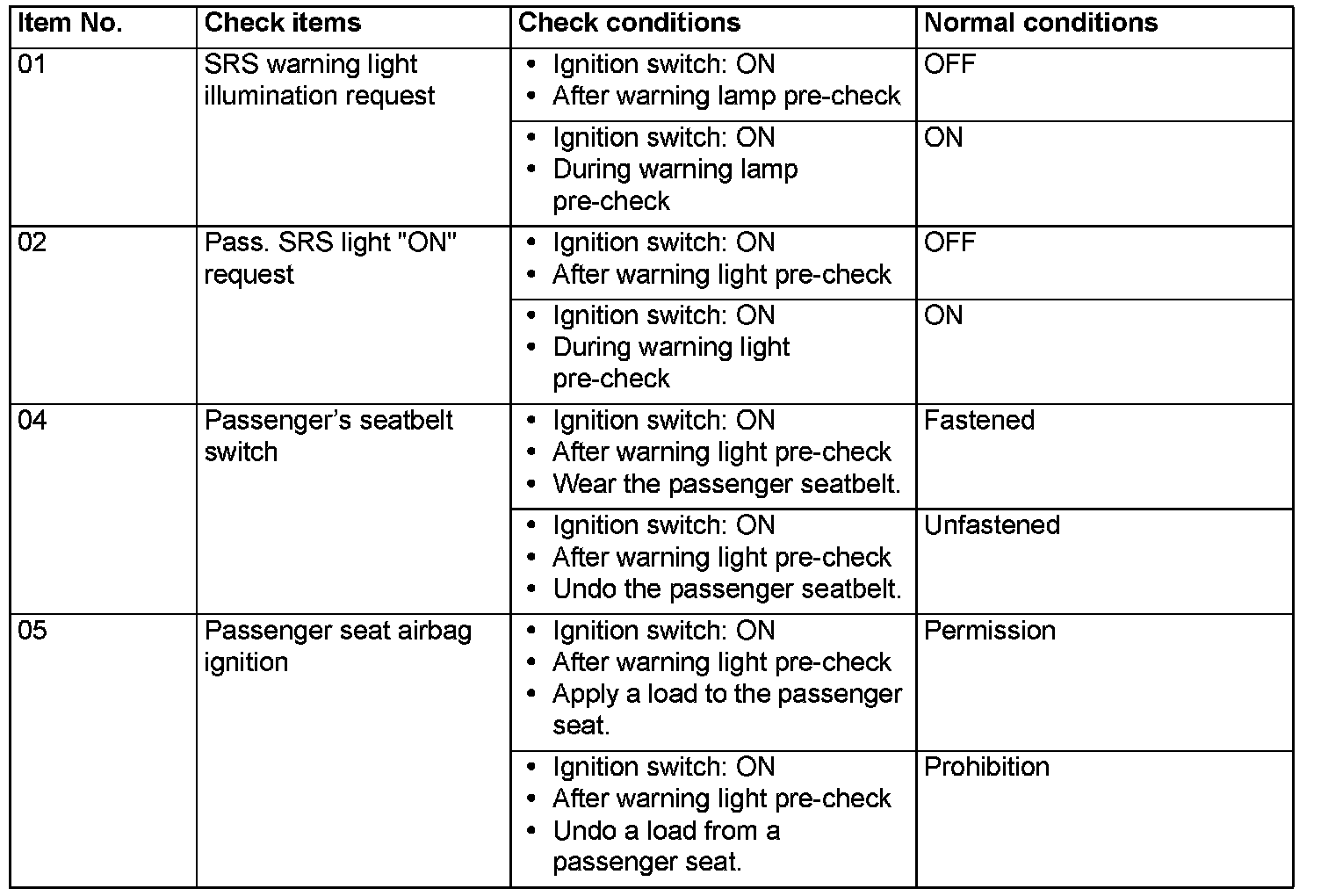

The following items can be read by the scan tool. from the SRS-ECU input data.
Data List Reference Table:

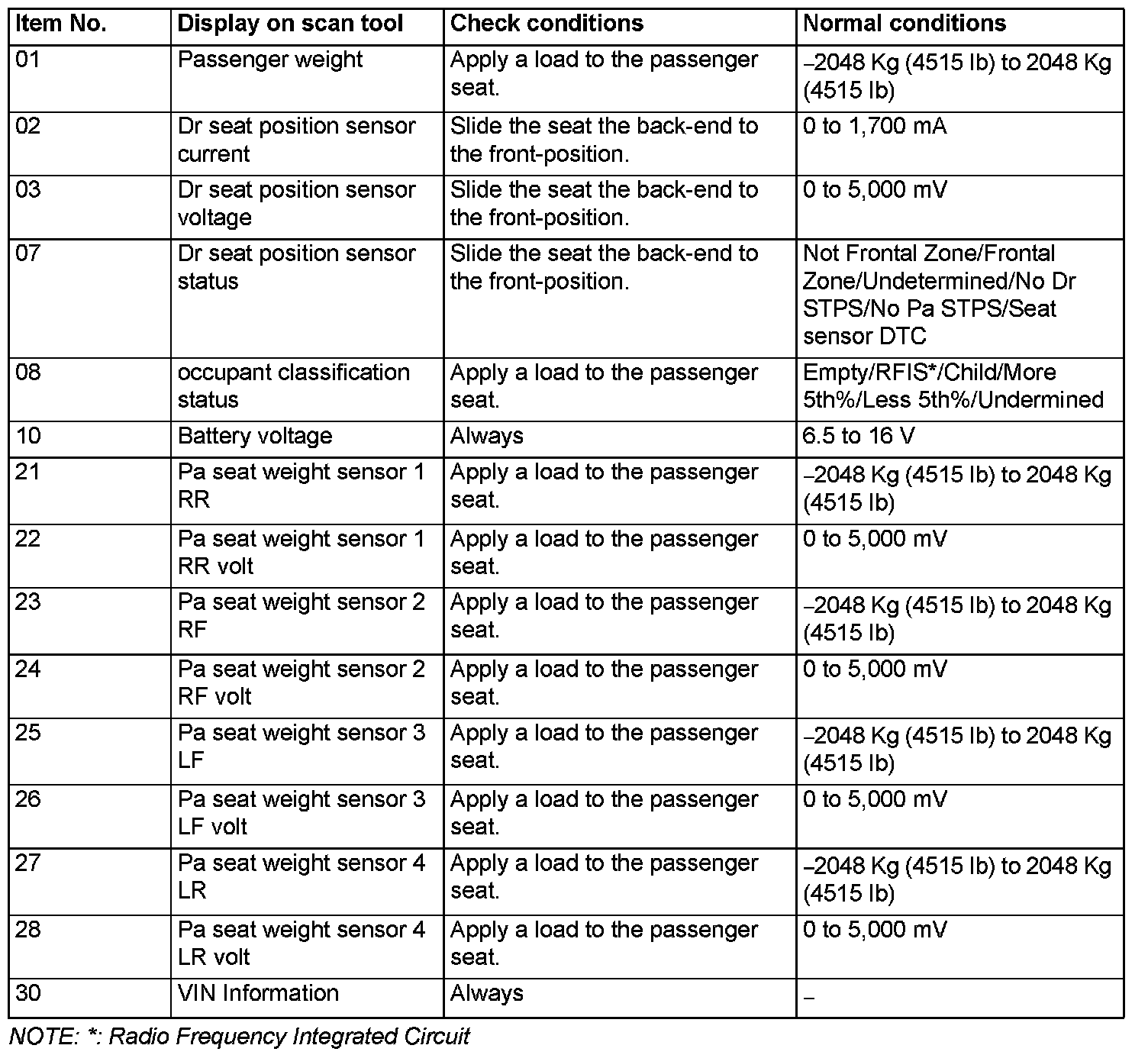

The following items can be read by the scan tool from the occupant classification-ECU input data.
Data List Reference Table:
