System Specifications
Piston and connecting rodPiston pin press-fit load N (lb) 7,500 - 17,500 (1.686 - 3.934)
Clearance between piston ring and ring groove mm (in)
Number 1
Standard value 0.03 - 0.07 (0.001 - 0.003)
Limit 0.1 (0.004)
Number 2
Standard value 0.03 - 0.07 (0.001 - 0.003)
Limit 0.1 (0.004)
Piston ring end gap mm (in)
Number 1
Standard value 0.15 - 0.25 (0.006 - 0.011)
Limit 0.8 (0.03)
Number 2
Standard value 0.25 - 0.40 (0.010 - 0.016)
Limit 0.8 (0.03)
Oil
Standard value 0.10 - 0.35 (0.004 - 0.014)
Limit 1.0 (0.04)
Clearance of connecting rod big end thrust mm (in)
Standard value 0.10 - 0.25 (0.004 - 0.010)
Limit 0.4 (0.016)
Difference of outside diameter of connecting rod bolt mm (in)
Limit 0.1 (0.04)
Connecting rod bearing oil clearance mm (in)
Standard value 0.018 - 0.045 (0.0007 - 0.0018)
Limit 0.1 (0.04)
Crankshaft and cylinder block
Underhead length of crankshaft bearing cap bolt mm (in)
Standard value 75.5 - 76.5 (2.972 - 3.012)
Crankshaft end play mm (in)
Standard value 0.05 - 0.25 (0.002 - 0.010)
Limit 0.4 (0.016)
Crankshaft journal oil clearance mm (in)
Standard value 0.012 - 0.030 (0.0005 - 0.0012)
Limit 0.08 (0.0031
Distortion of cylinder block top surface mm (in)
Limit 0.05 (0.0020
Grinding limit of cylinder block top surface mm (in)
Limit 0.2 (0.008)
Cylinder block cylinder bore mm (in)
Standard value 88 (3.46)
Cylindricity of cylinder block mm (in)
Standard value 0.0076 (0.0003)

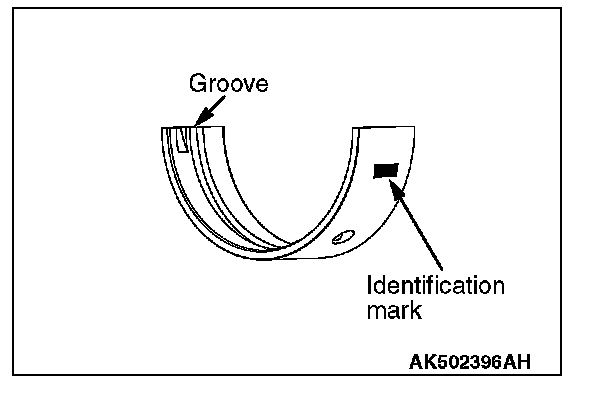

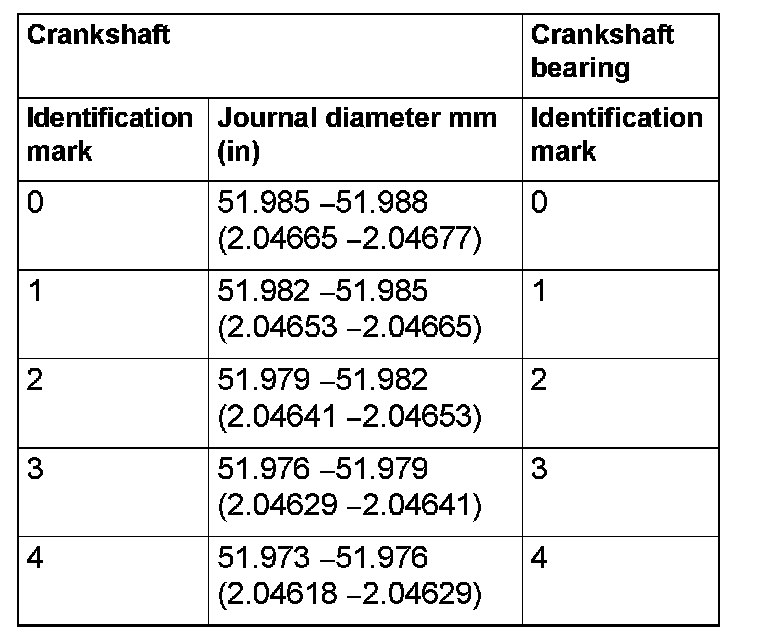

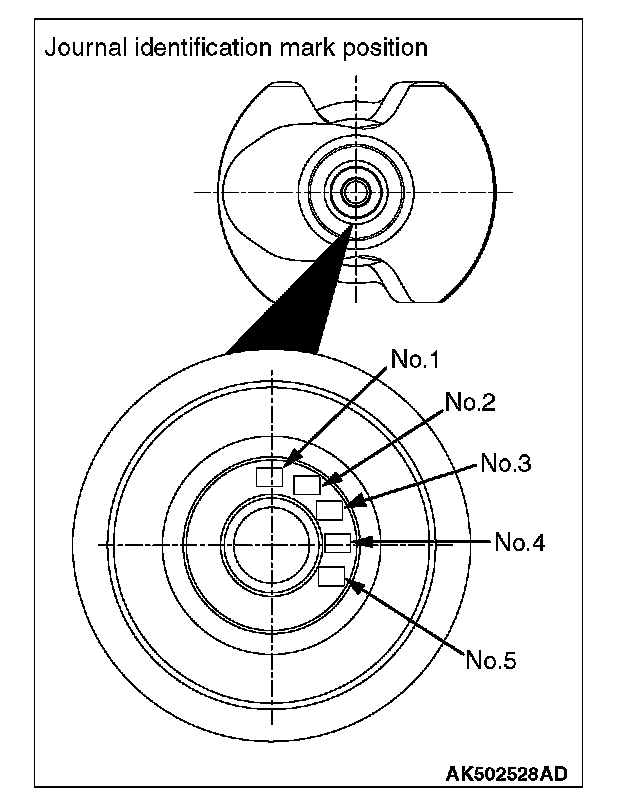

Upper bearing codes

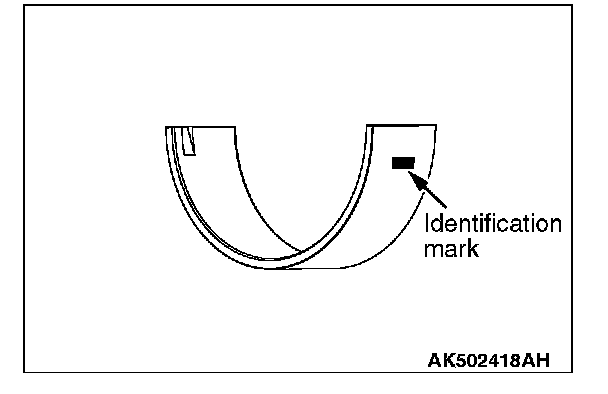

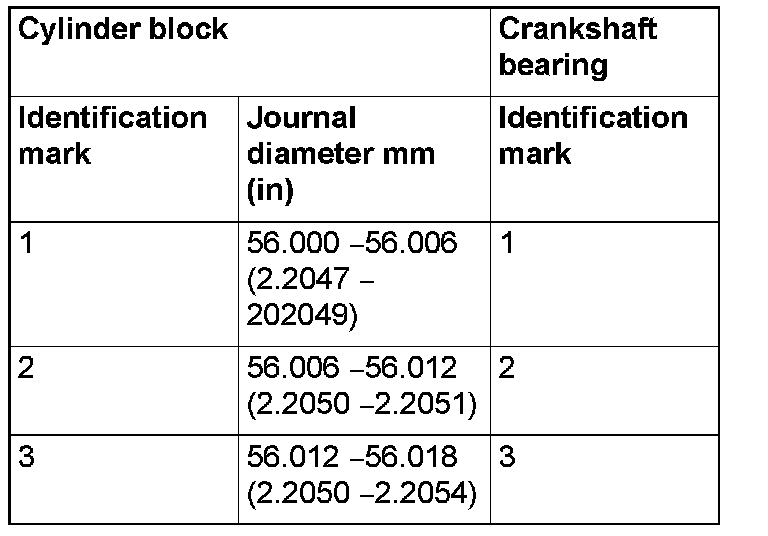

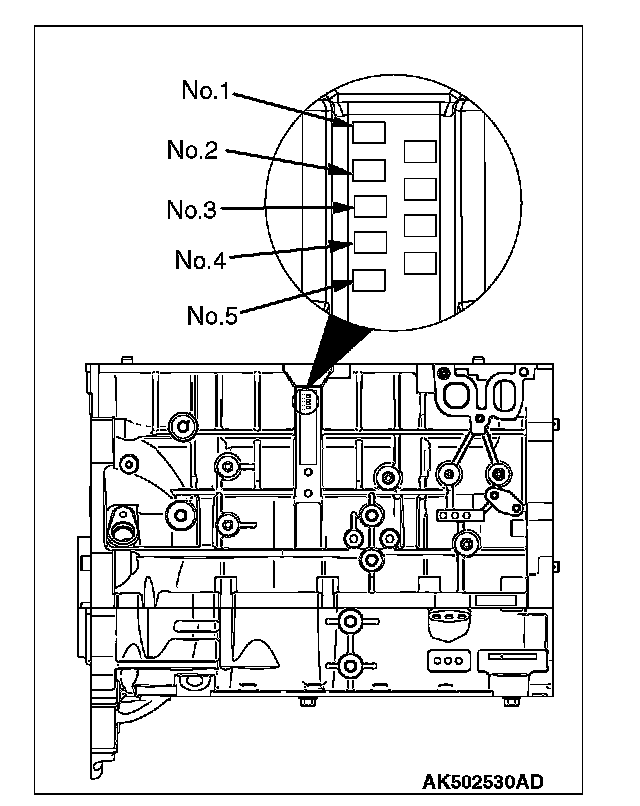

Lower bearing codes

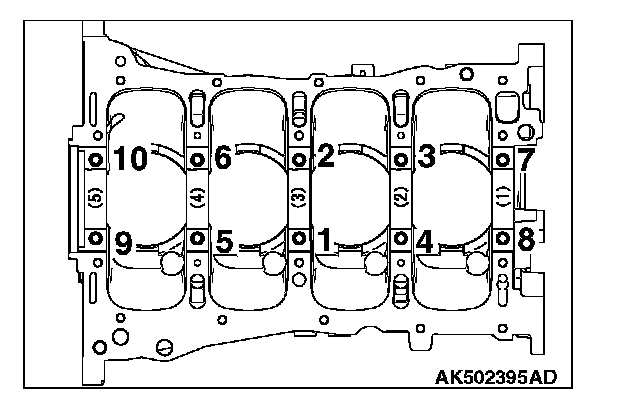

Main bearing caps
1st 26.5 ± 2.0 Nm (20 ± 1 ft-lb)
2nd 45 degrees
Crankshaft pulley 210 Nm (155 ft-lb)
