Intake Manifold
Intake manifold1st 3.5 ± 1.5 Nm (31 ± 13 in-lb)
2nd 20 ± 2 Nm (15 ± 1 ft-lb)

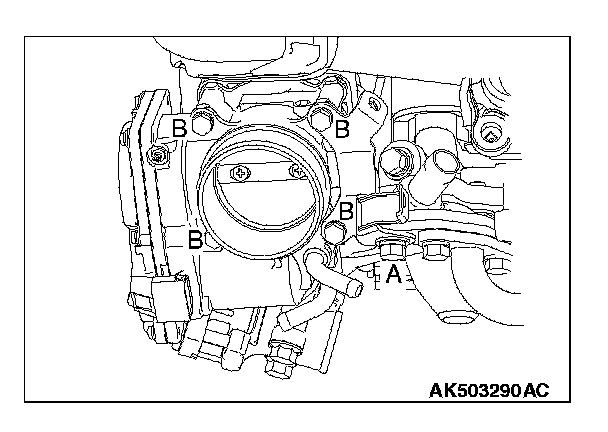

Throttle body
Illustrated position A 20 ± 2 Nm (15 ± 1 ft-lb)
Illustrated position B 9.5 ± 2.5 Nm (84 ± 22 in-lb)
1st 3.5 ± 1.5 Nm (31 ± 13 in-lb)
2nd 20 ± 2 Nm (15 ± 1 ft-lb)
Throttle body
Illustrated position A 20 ± 2 Nm (15 ± 1 ft-lb)
Illustrated position B 9.5 ± 2.5 Nm (84 ± 22 in-lb)
