Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2010
>>
Outlander AWD L4-2.4L (4B12)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Oil Pump, Engine
Oil Pump, Engine

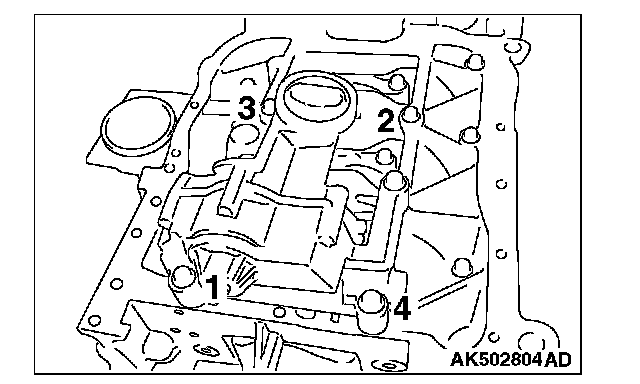

Balancer shaft module (Oil pump)
1st
20 Nm (14 ft-lb)
2nd
44 Nm (32 ft-lb)
3rd
completely loosen
4th
20 Nm (14 ft-lb)
5th
135 degrees
