Home >> Mitsubishi >> 2010 >> Outlander AWD L4-2.4L (4B12) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Control Module >> Testing and Inspection >> Check at ECU Terminals

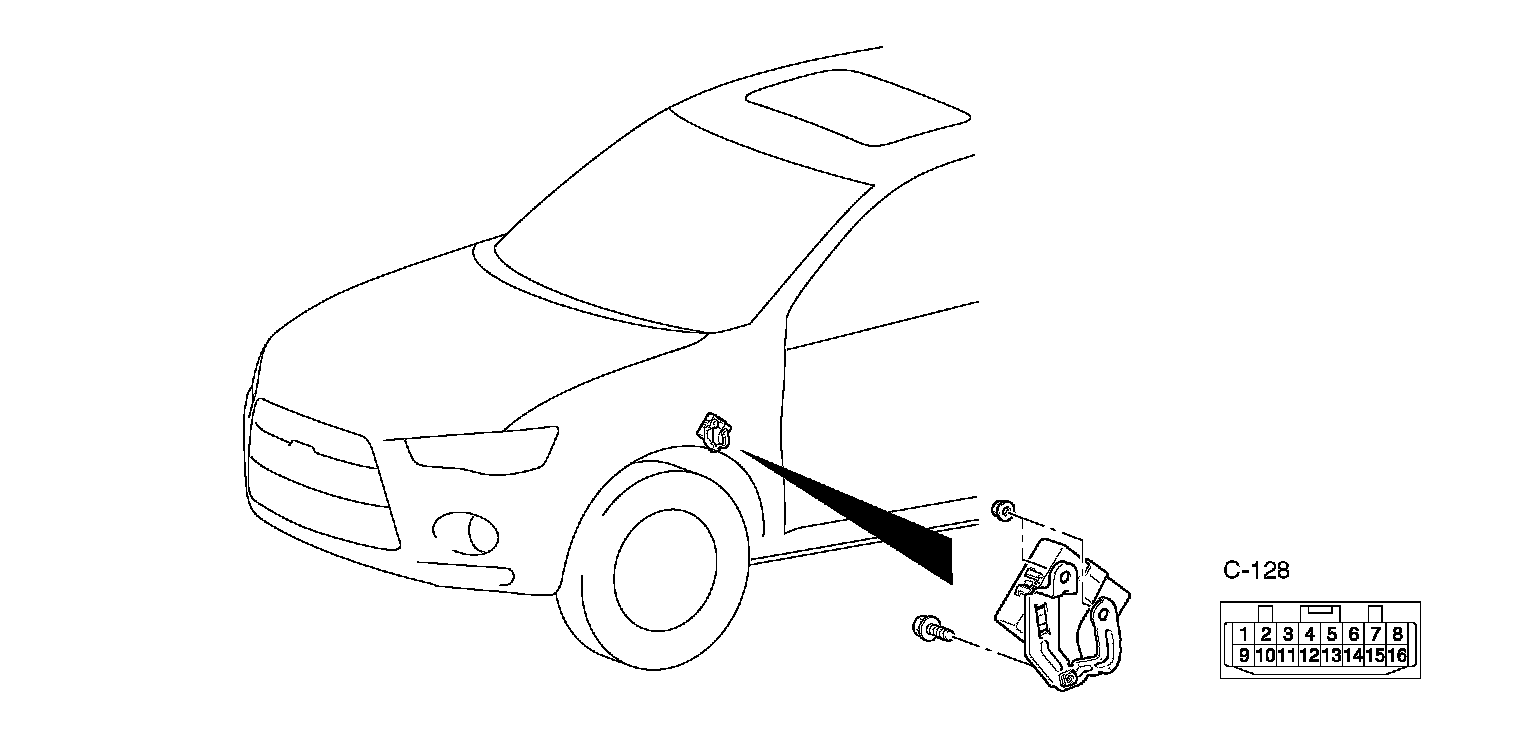

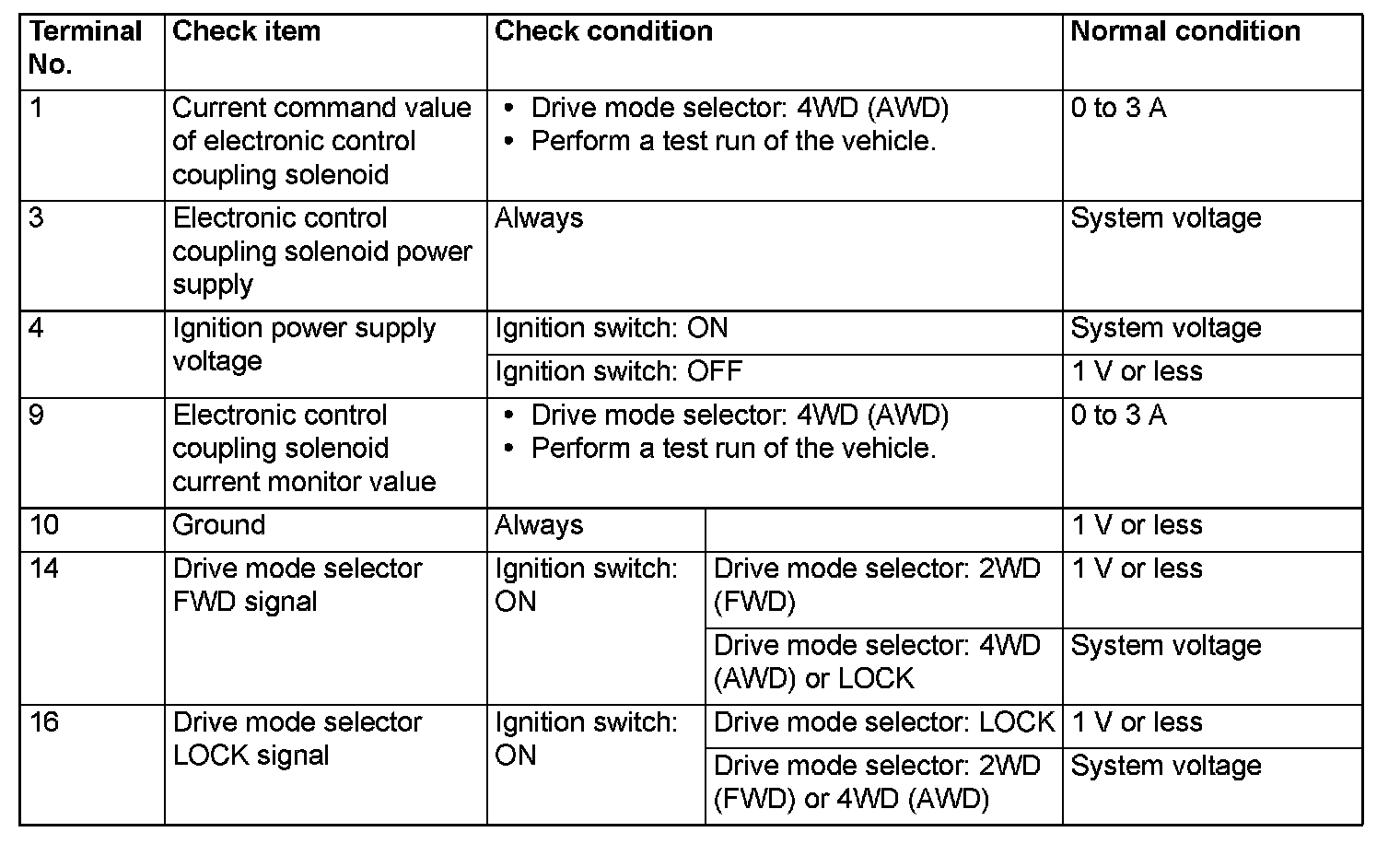

Check at ECU Terminals

CHECK AT ECU TERMINALS
