Power Window Switch Terminal Check

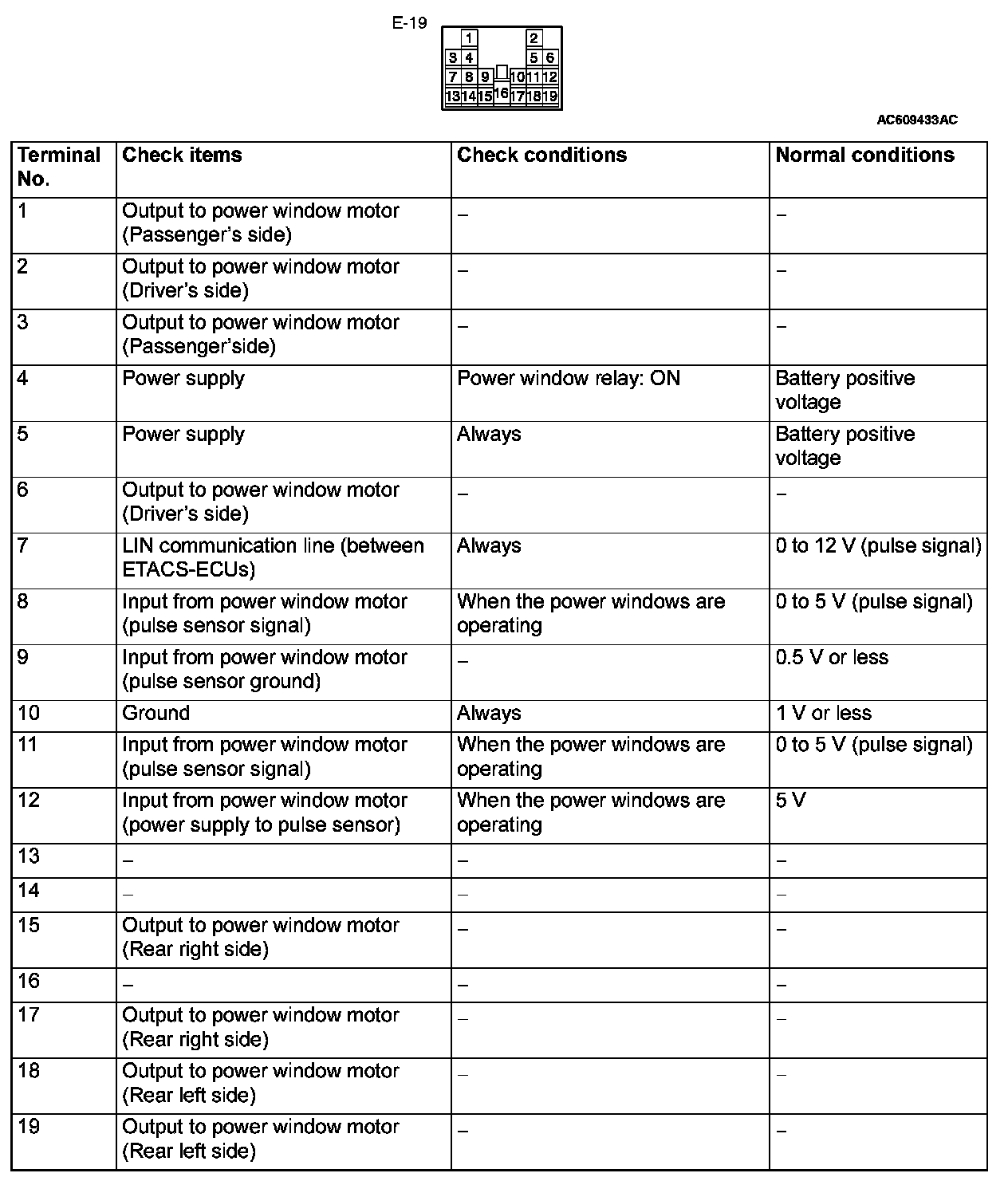

CHECK AT ECU TERMINAL

POWER WINDOW SWITCH TERMINAL CHECK

POWER WINDOW MAIN SWITCH
