Crankshaft Position Sensor: Service and Repair
CRANKSHAFT POSITION SENSOR
REMOVAL AND INSTALLATION [3.0L ENGINE]

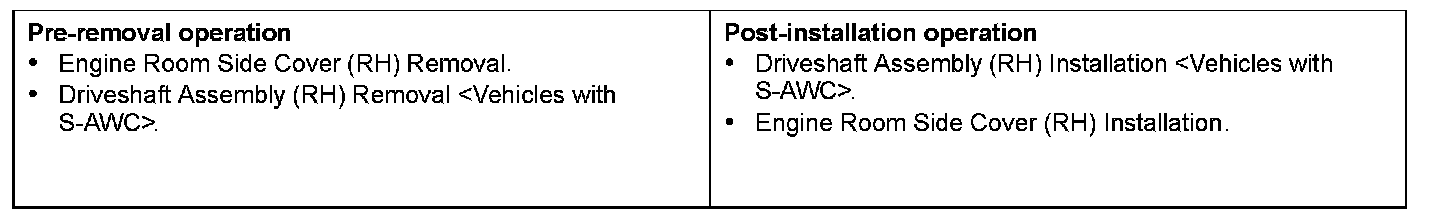

Pre-removal & Post-Installation Operation:

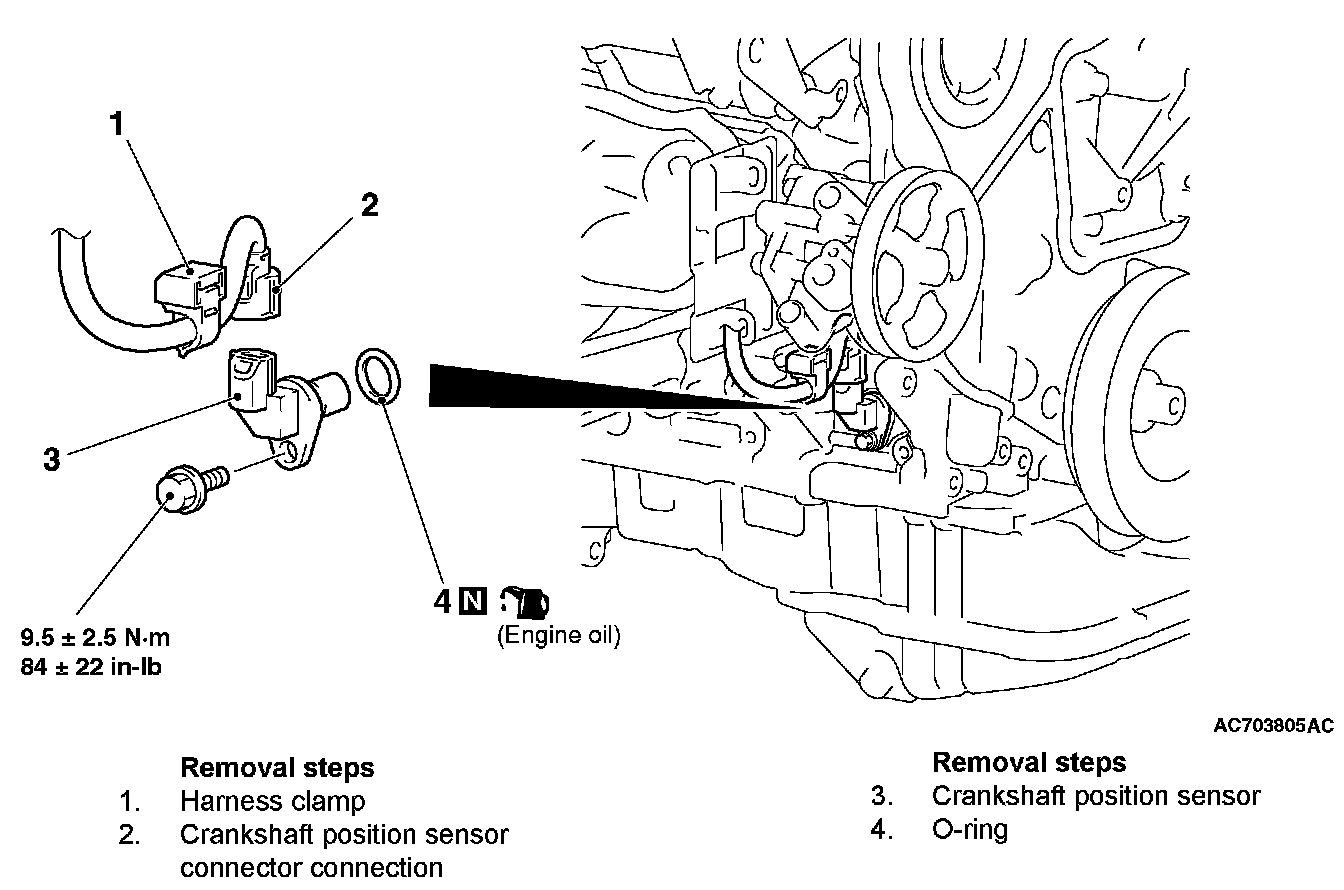

Removal Steps 1-4:
