Powertrain Management: Locations
ON-VEHICLE SERVICE
COMPONENT LOCATION

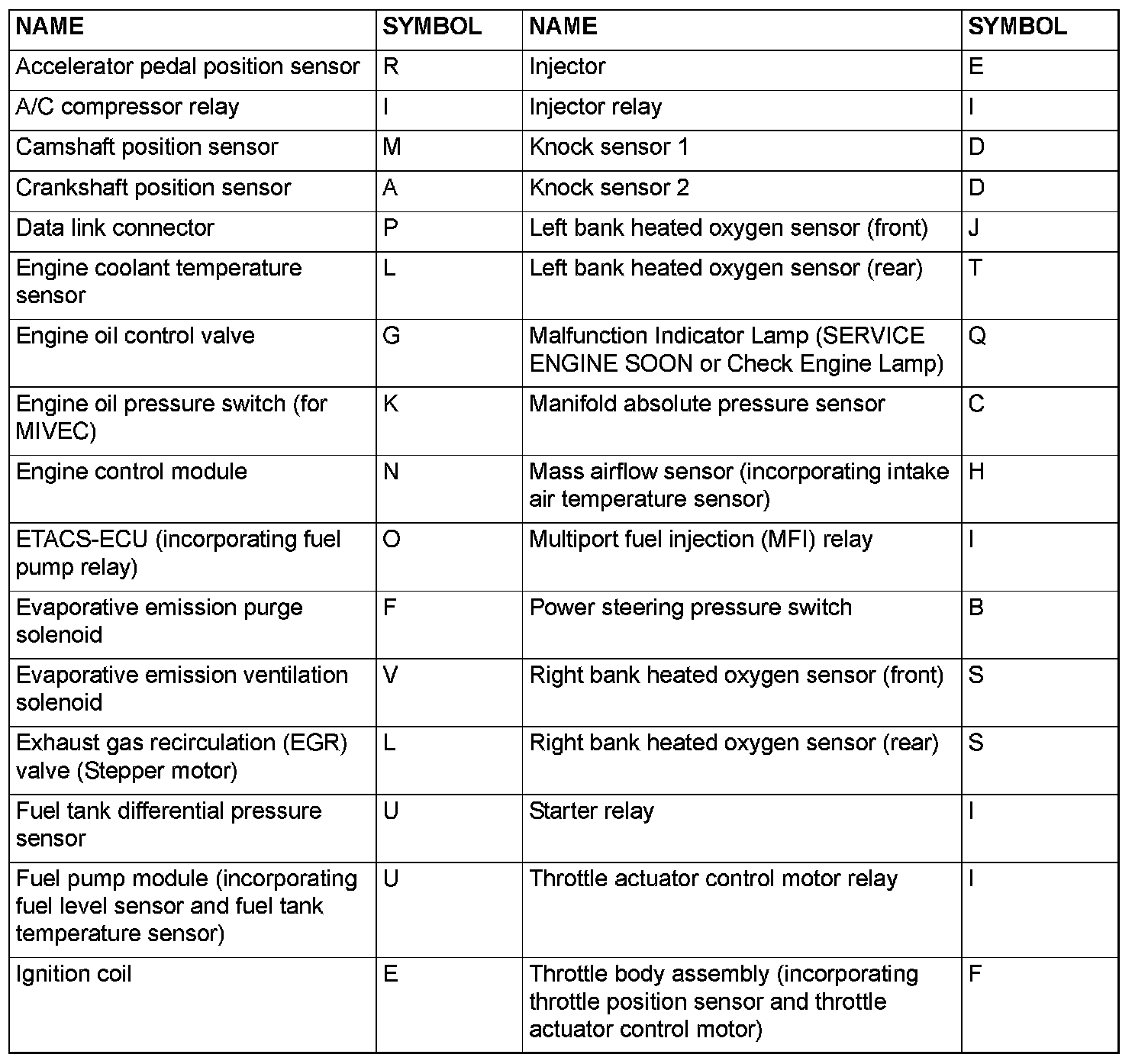

Component Location:

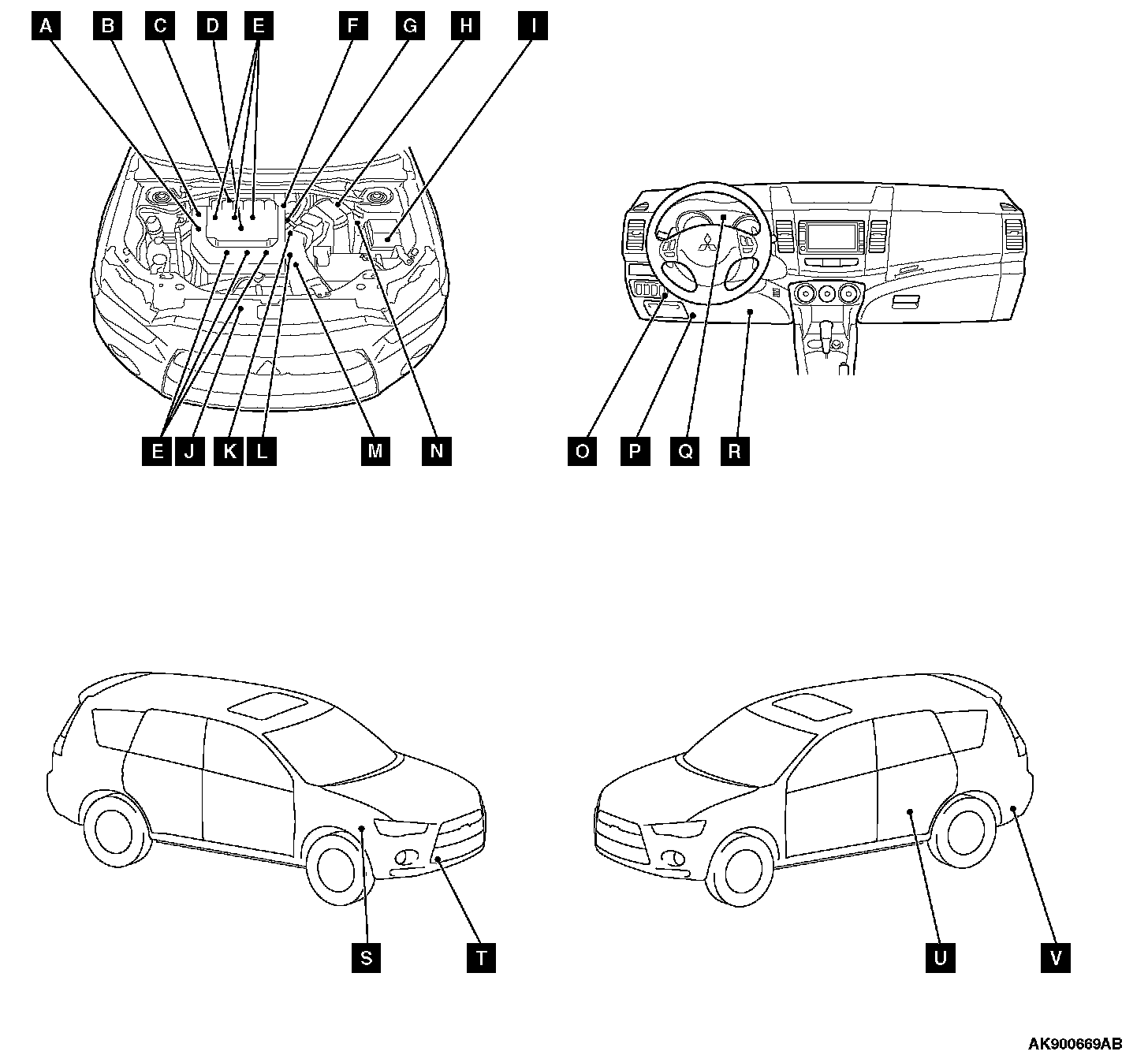

Overall View:

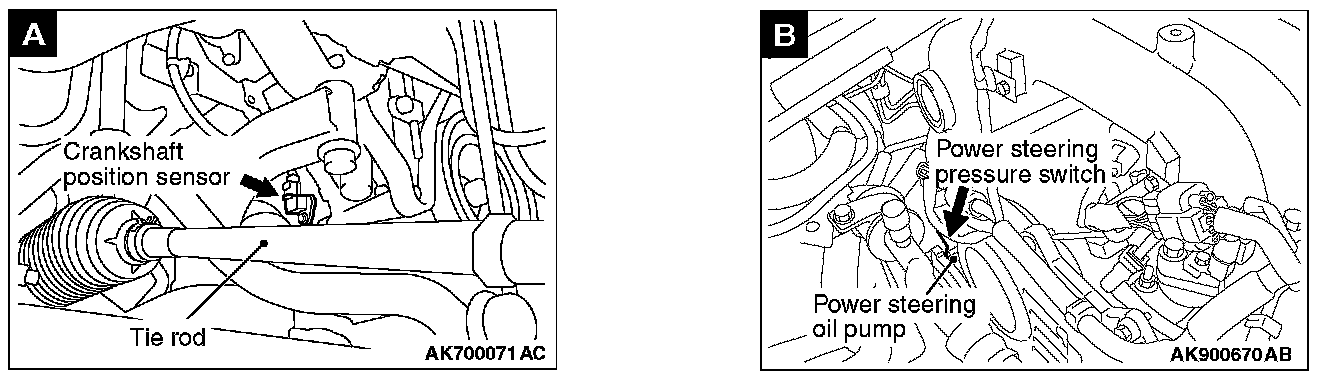

View A-B:
View C-F:
View G-N:

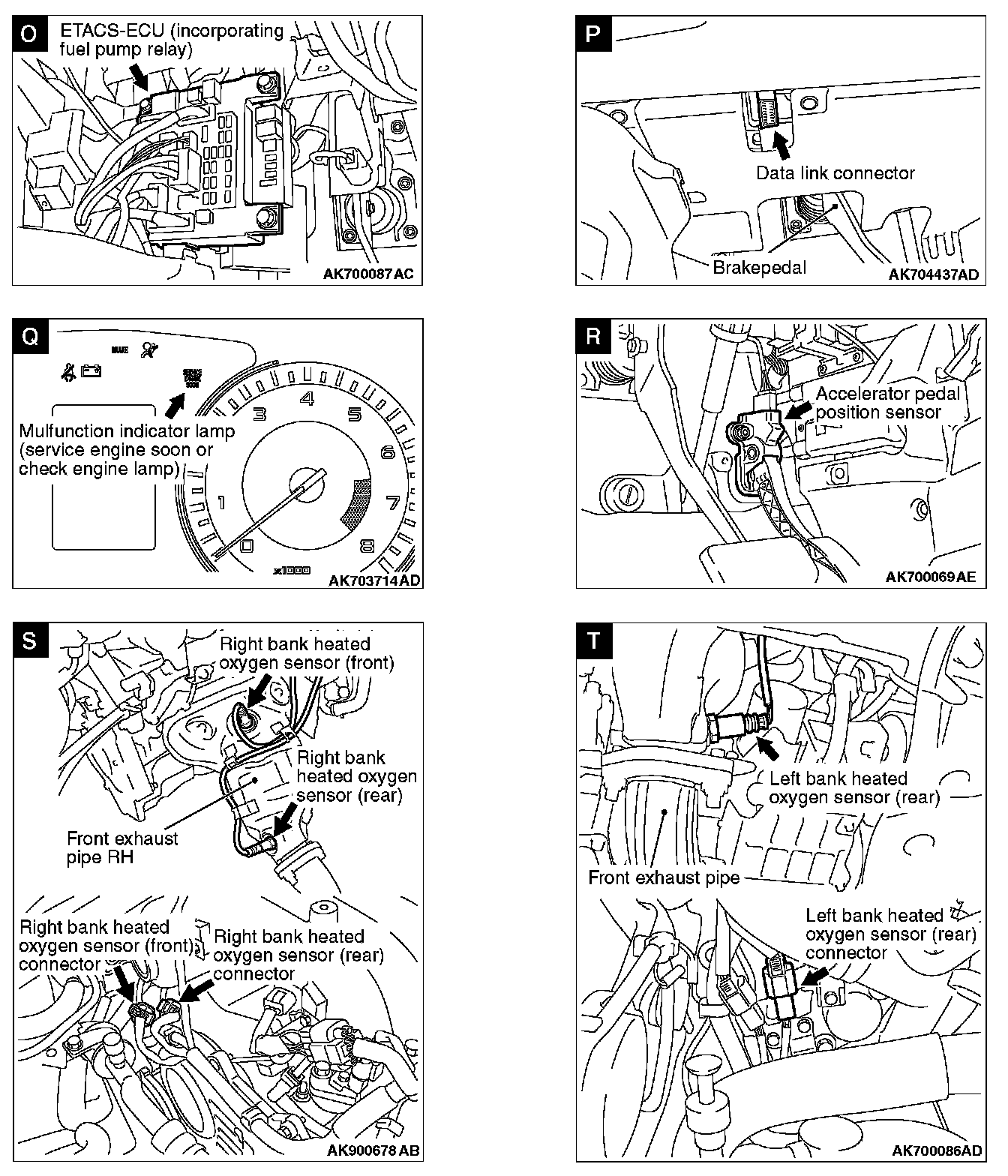

View O-T:

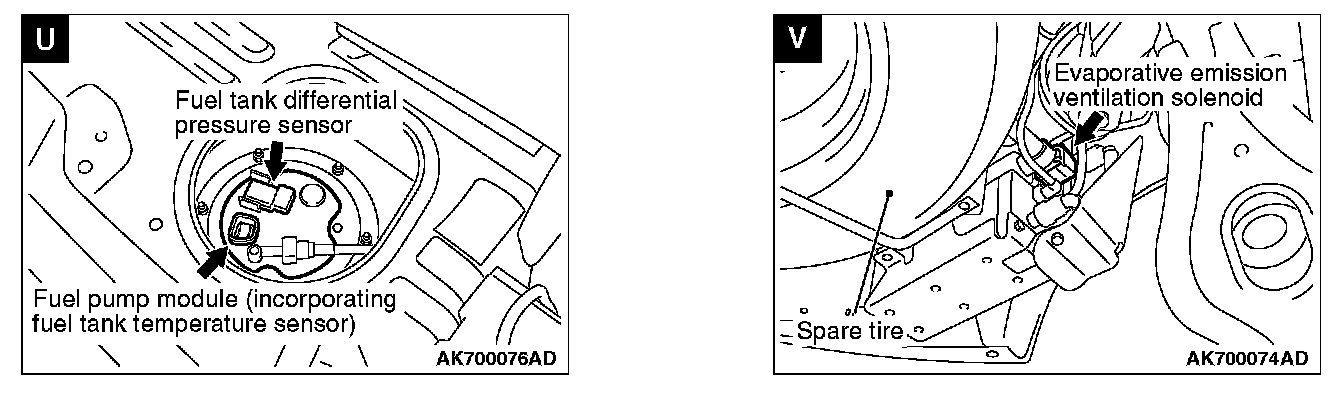

View U-V:
