A/T Controls - 1-2/3-2 Shift Shock: Overview
No: TSB-10-23-006DATE: September 2010
MODEL: 2009-10 Outlander
SUBJECT:
TCM REPROGRAMMING FOR SHIFT SHOCK AT COLD ENGINE TEMPERATURE
PURPOSE
Customers of some affected vehicles may notice a shock when the transmission shifts from 1st to 2nd or downshifts from 3rd to 2nd, when the fluid temperature is below 10°C (50°F). This condition is due to transmission fluid line pressure being higher than expected at these temperatures.
This TSB describes procedures to reprogram the TCM with new parameters to correct the condition.
AFFECTED VEHICLES
2009-2010 Outlander V6 built prior to the following dates:
U.S & Puerto Rico: July 20, 2010
Canada: July 21, 2010
REQUIRED OPERATIONS
The following equipment is needed to reprogram the ECM.
^ VCI (Vehicle Communication Interface) - MB991824.
^ Laptop computer with A/C power adaptor - 520924, or M1T547708.
^ MUT-III main harness 'A' (blue connector at the DLC end) - MB991910.
^ USB 2.0 cable - MB991827.
^ "Engine Compartment/Control Module" labels - p/n MSSF024G00.
^ MEDIC-II Download at M384 or higher.
^ For Standalone MUT-III units, reprogramming CD 10/10
If an affected vehicle has a Malfunction Indicator Lamp (MIL) illuminated and DTCs other than described above are recorded in the TCM memory (before reprogramming), follow diagnostic instructions for the applicable DTCs per the service manual. Do not reprogram the TCM until the reason for other DTCs being set is corrected.
PARTS INFORMATION

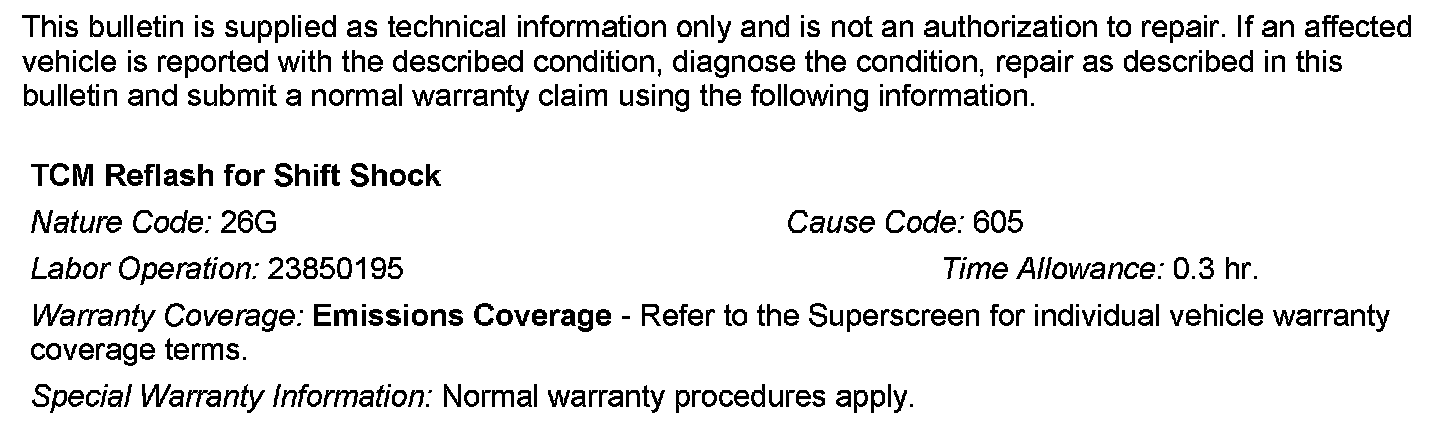

WARRANTY INFORMATION
