Body Control Systems: Adjustments




CUSTOMIZATION FUNCTION

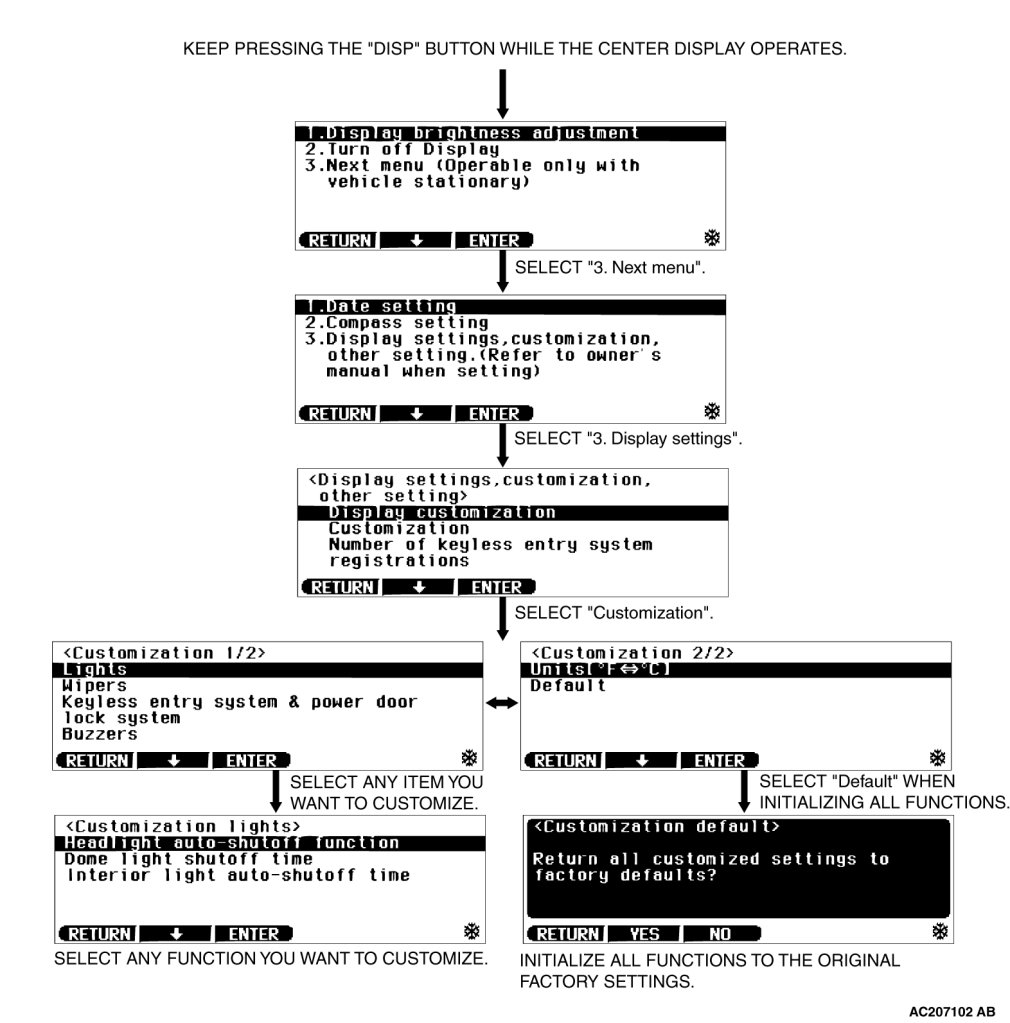

ADJUSTMENT BY OPERATING THE MULTI-CENTER DISPLAY [VEHICLES WITH MIDDLE-GRADE MULTI-CENTER DISPLAY ONLY]

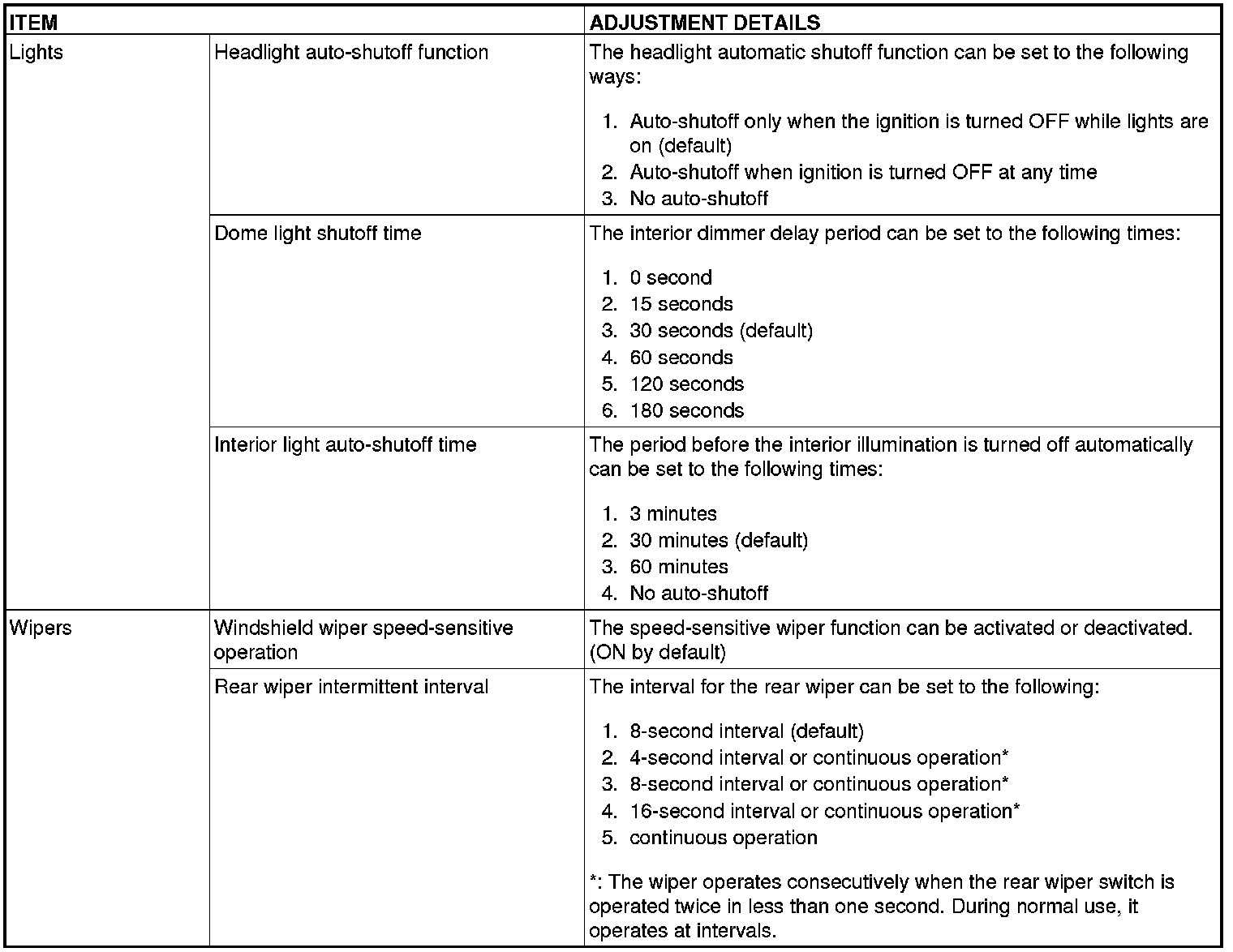

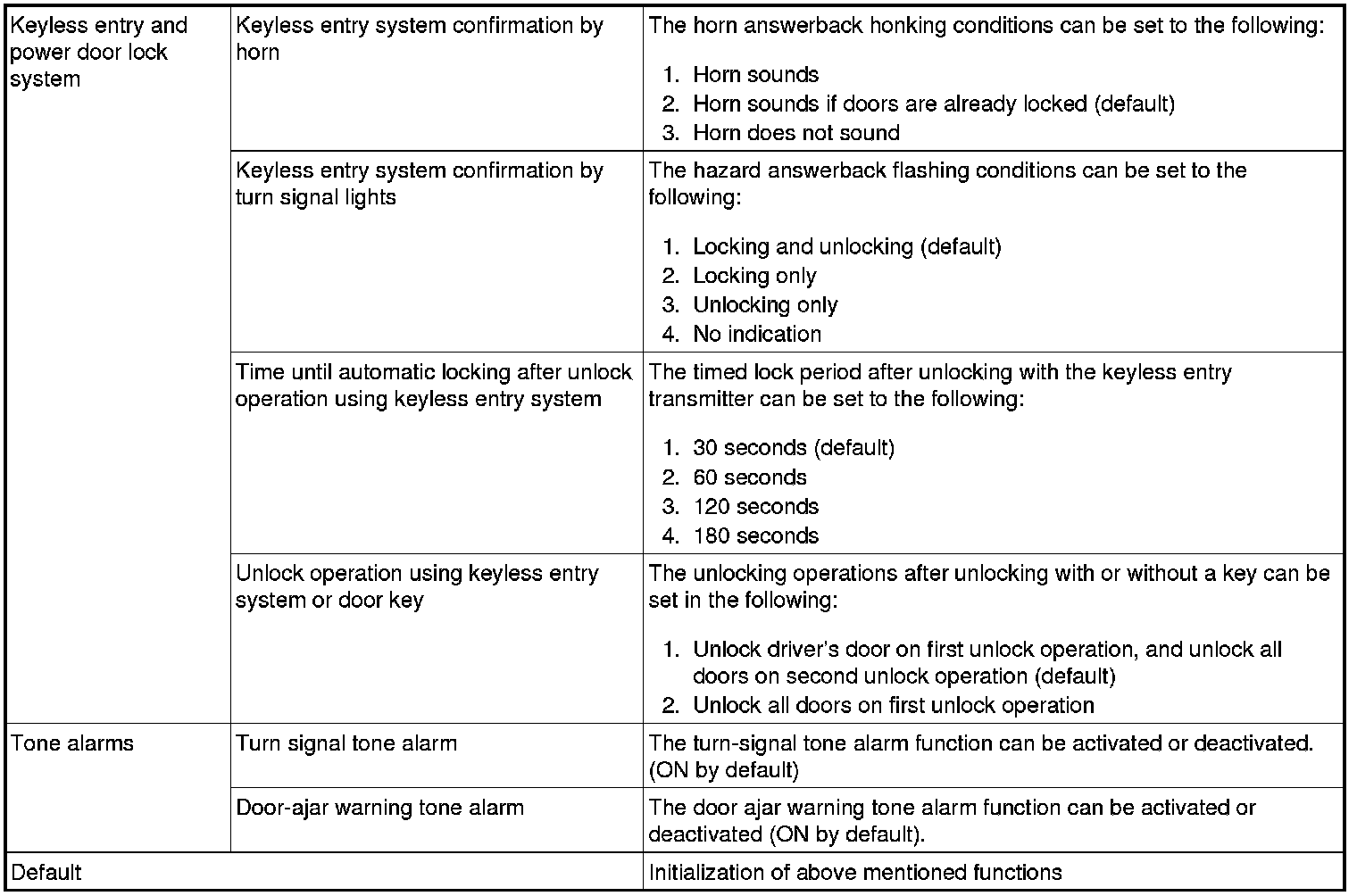

The following function and system customizations are possible by using the multi center display.

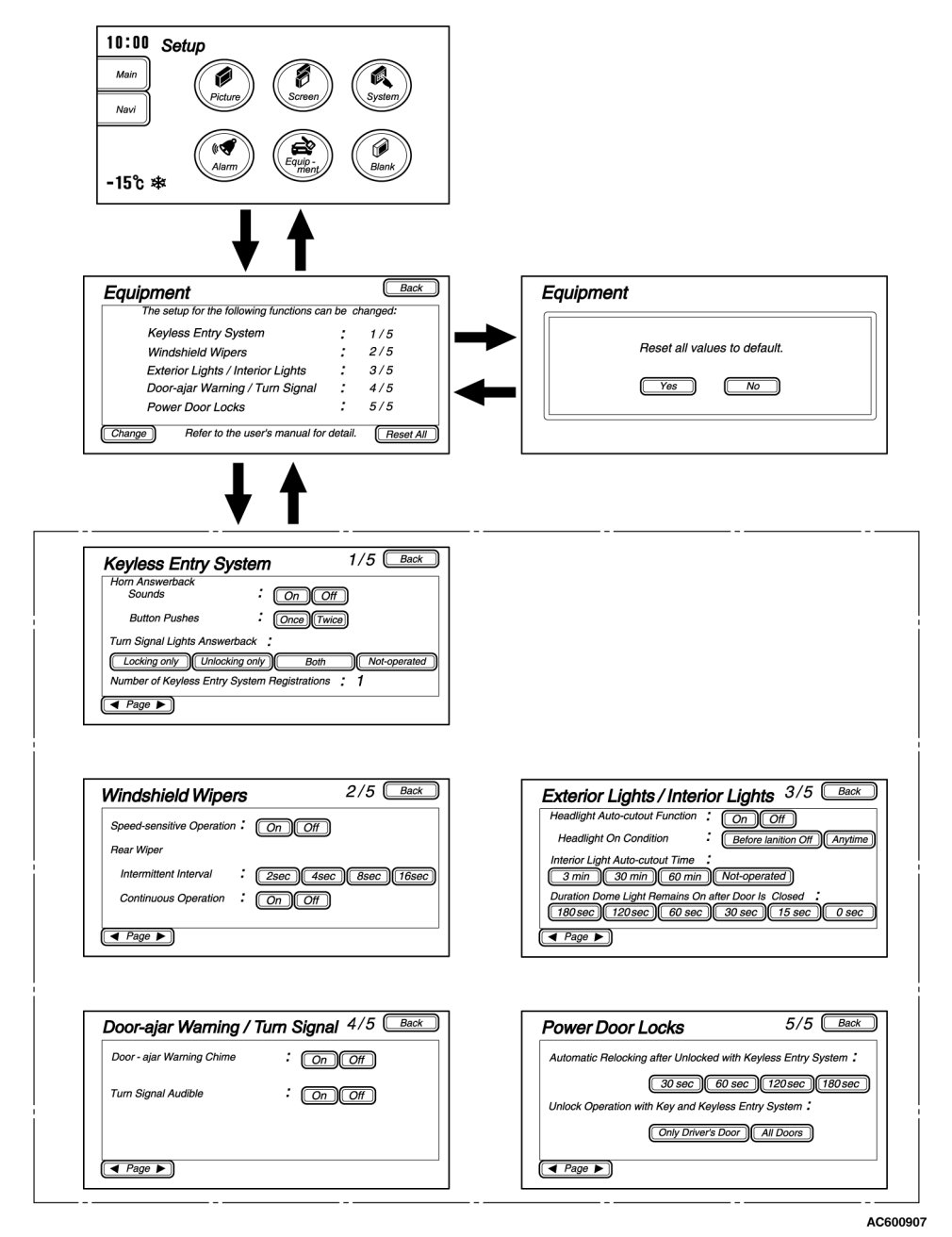

ADJUSTMENT BY OPERATING THE MULTI-CENTER DISPLAY [VEHICLES WITH MITSUBISHI MULTI COMMUNICATION SYSTEM]

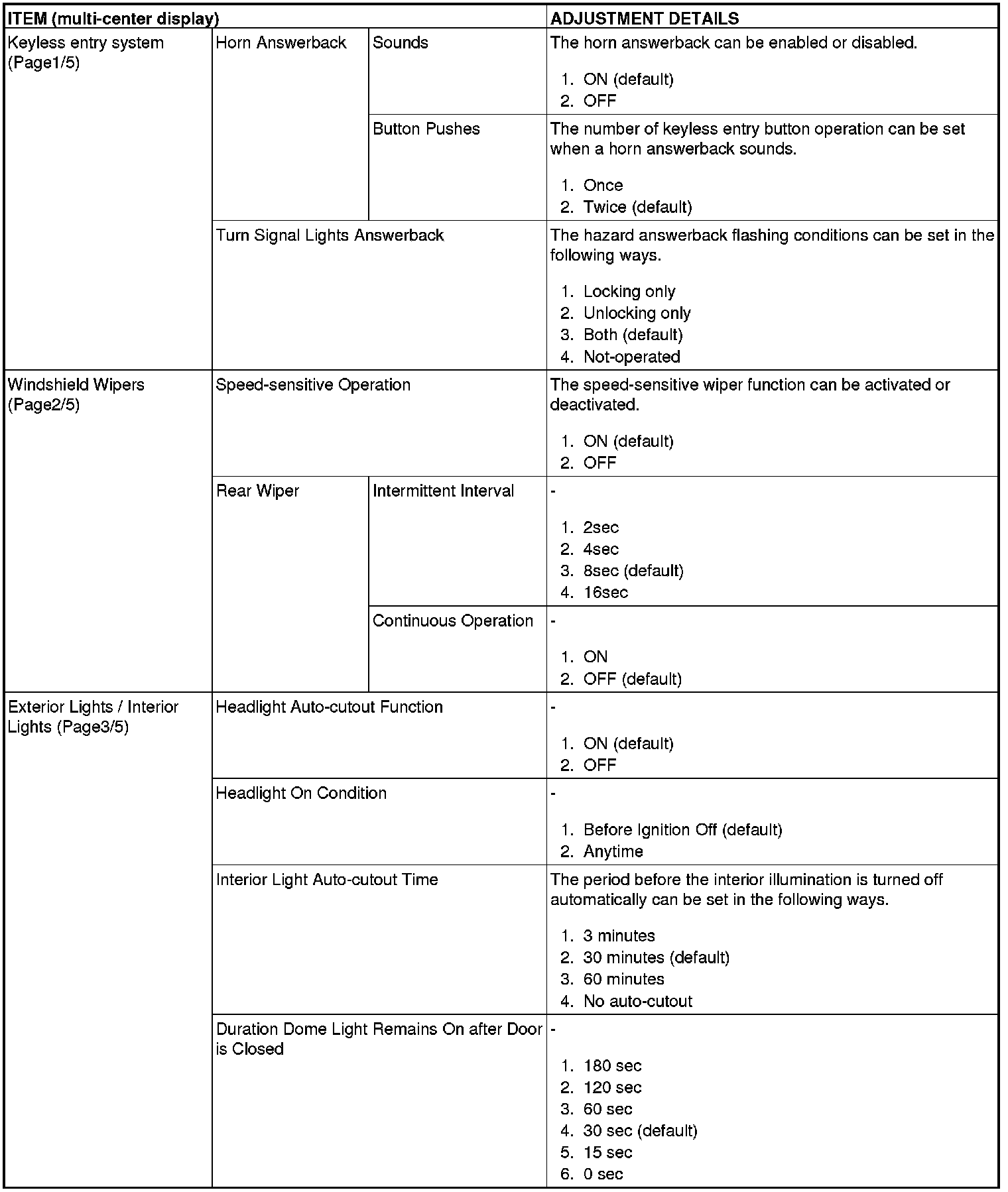

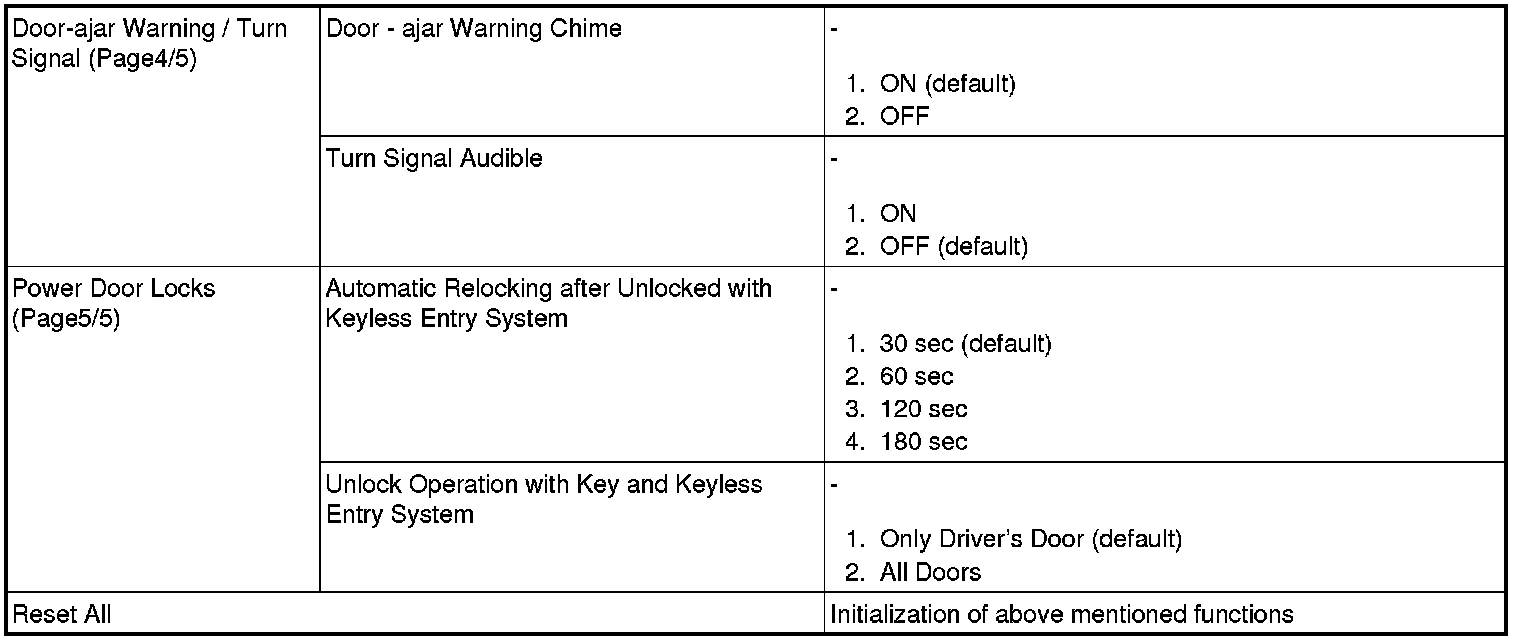

The following function and system customizations are possible by using the multi-center display.
